Zeiss

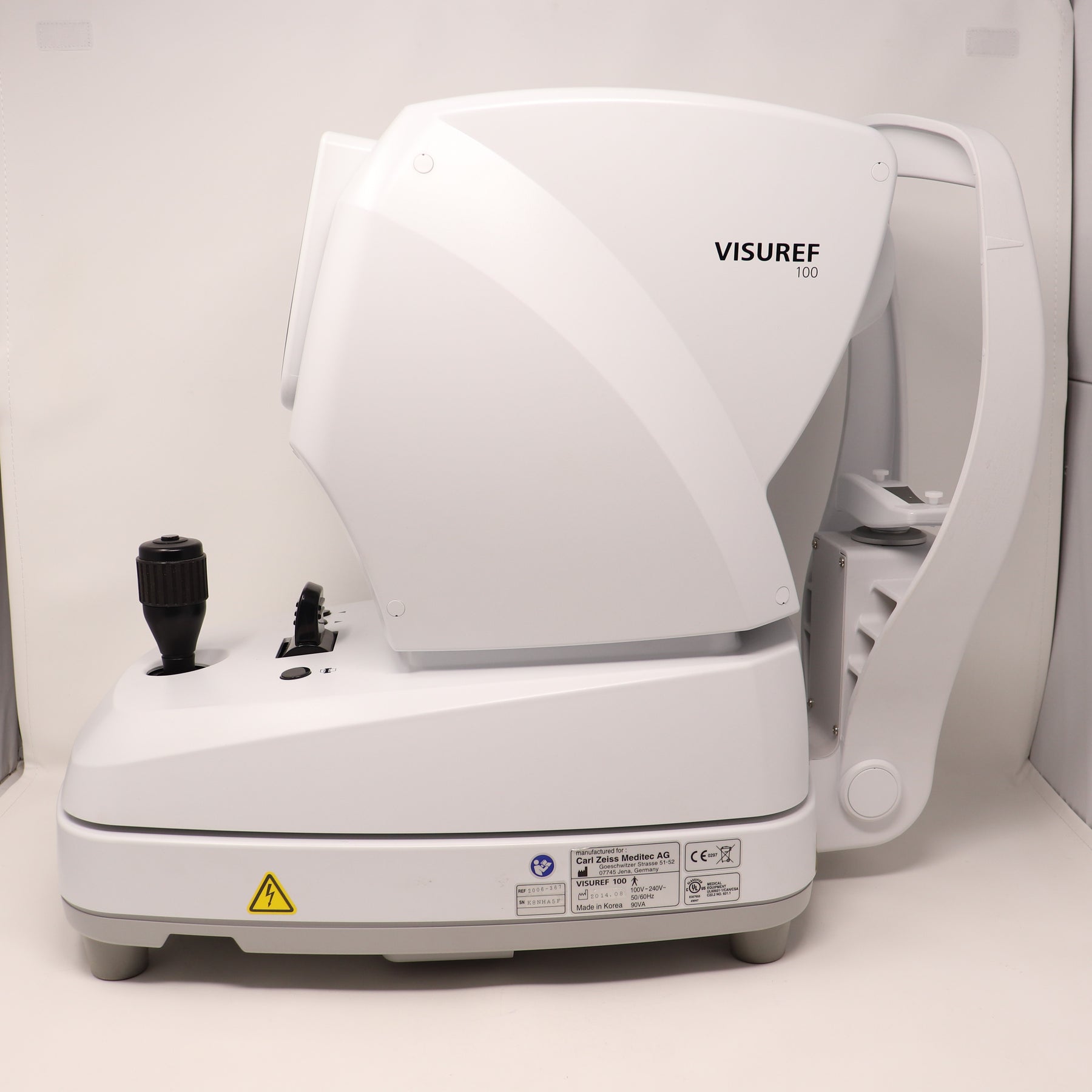

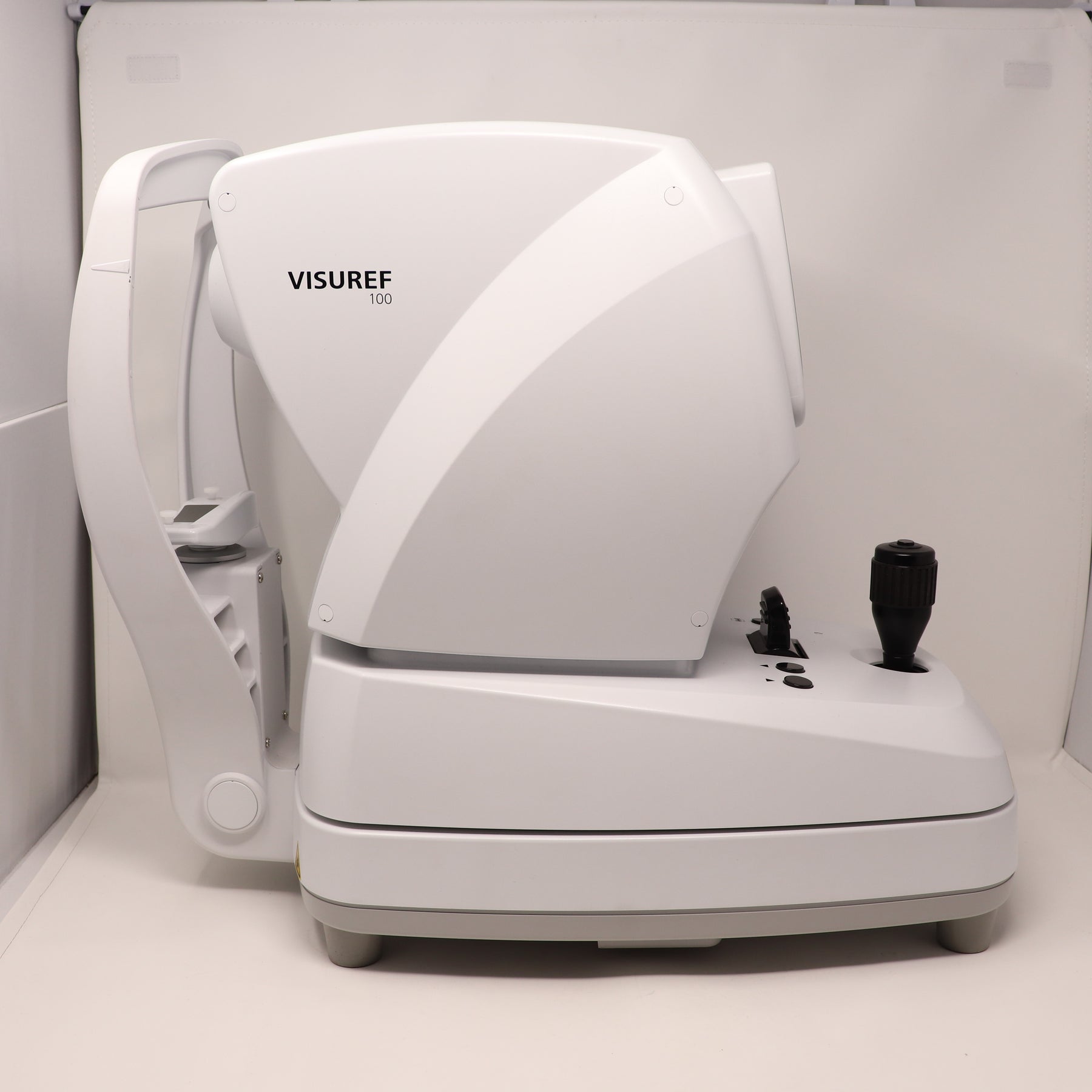

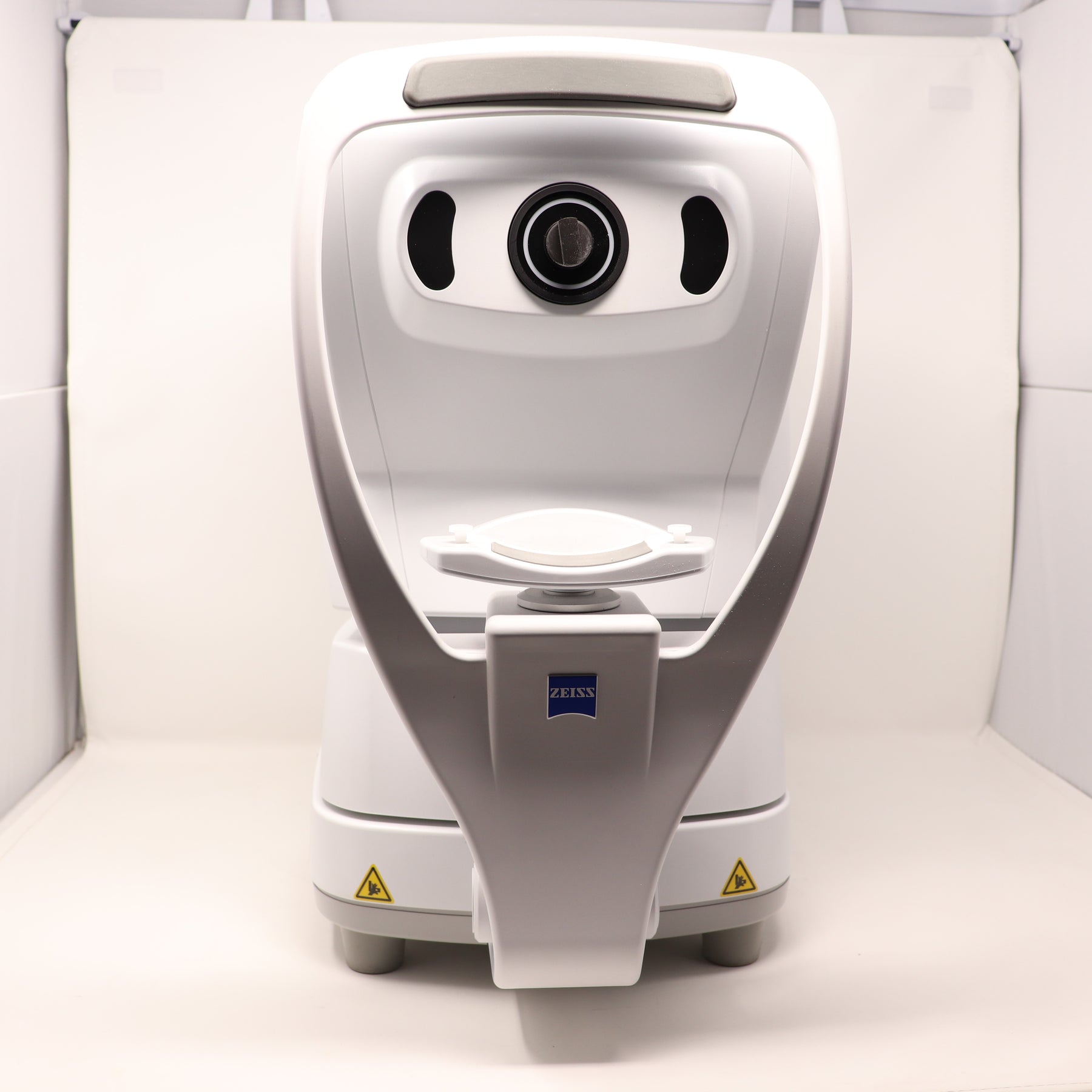

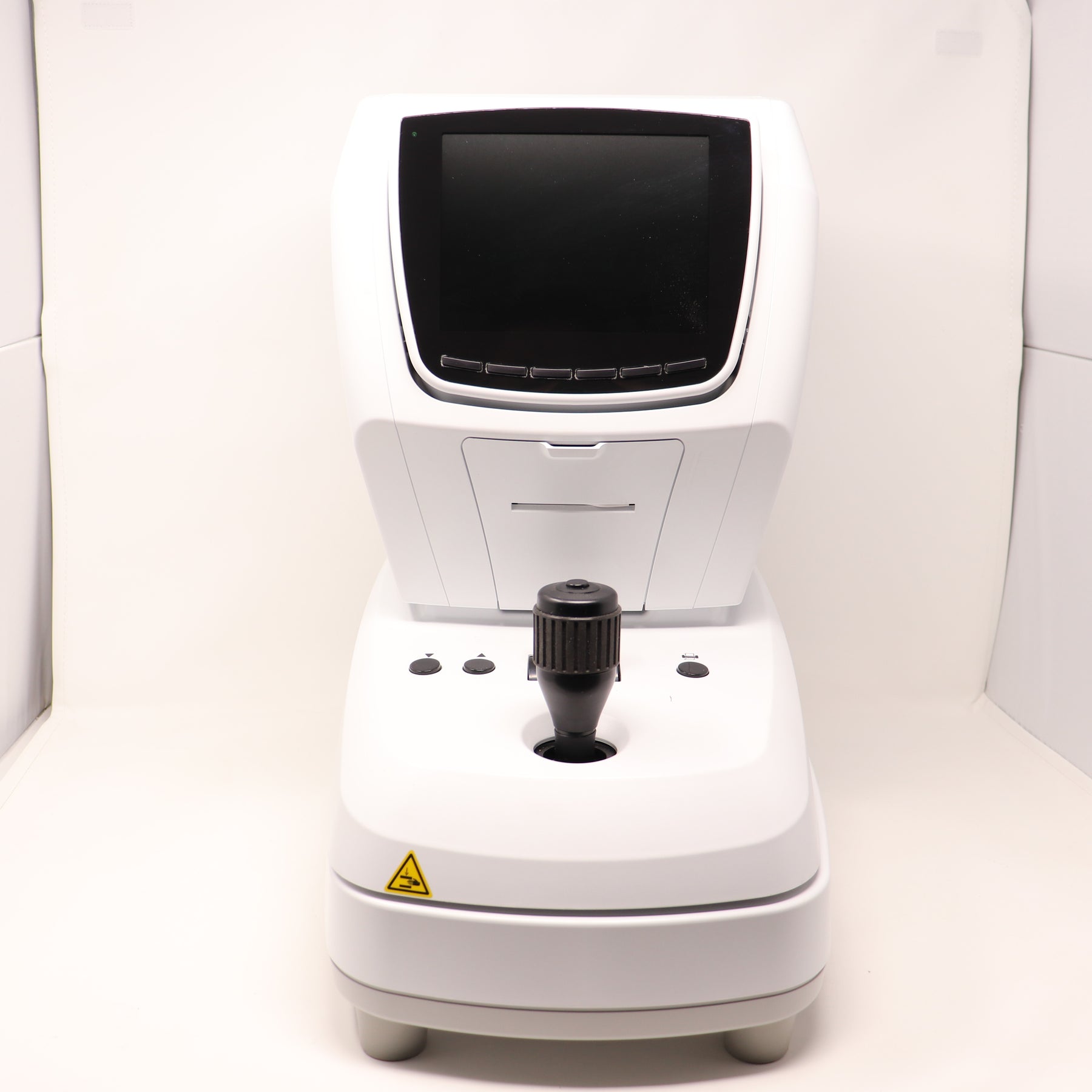

ZEISS VISUREF 100 - Autorefractor/Keratometer

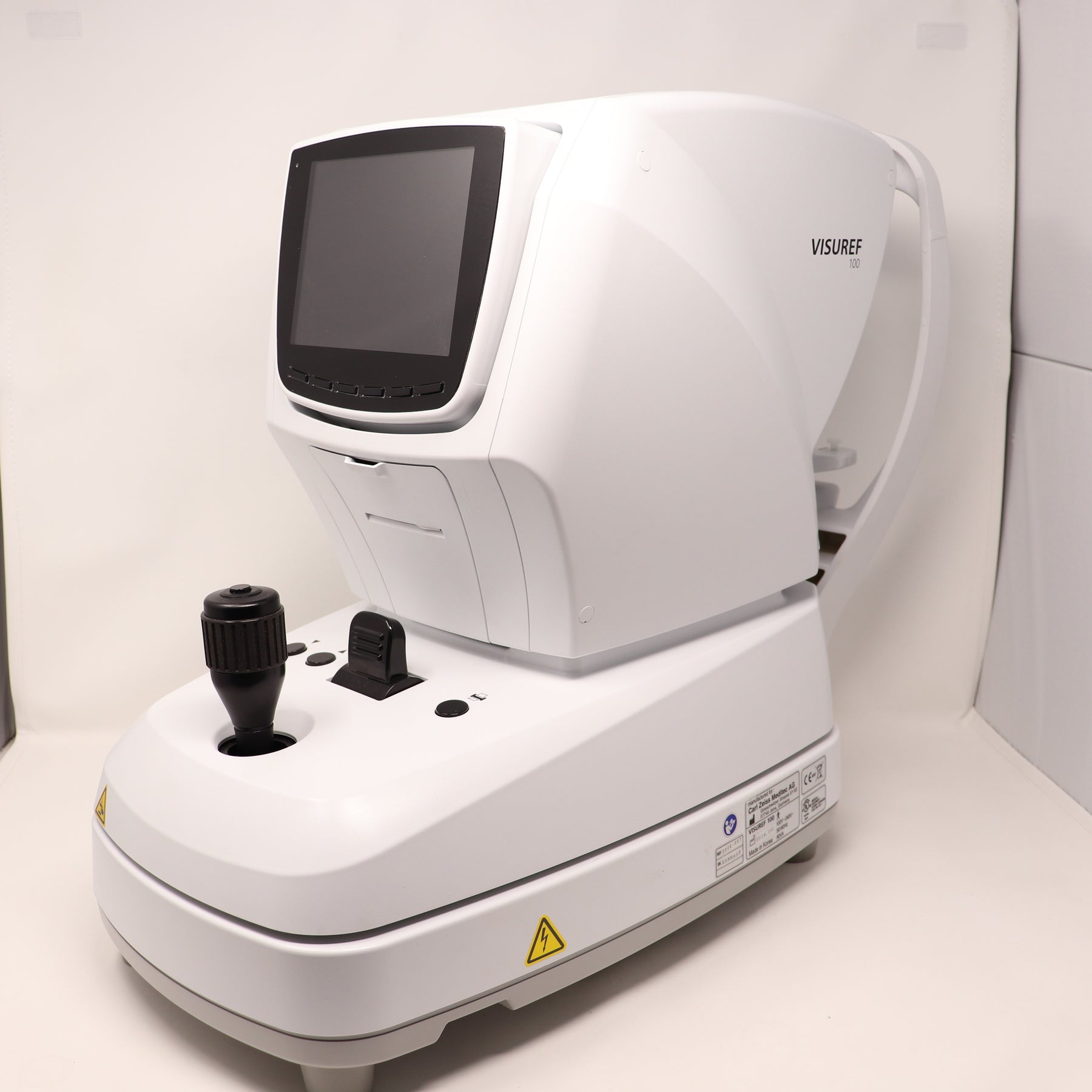

Zeiss Visuref 100
Autorefractor & Keratometer

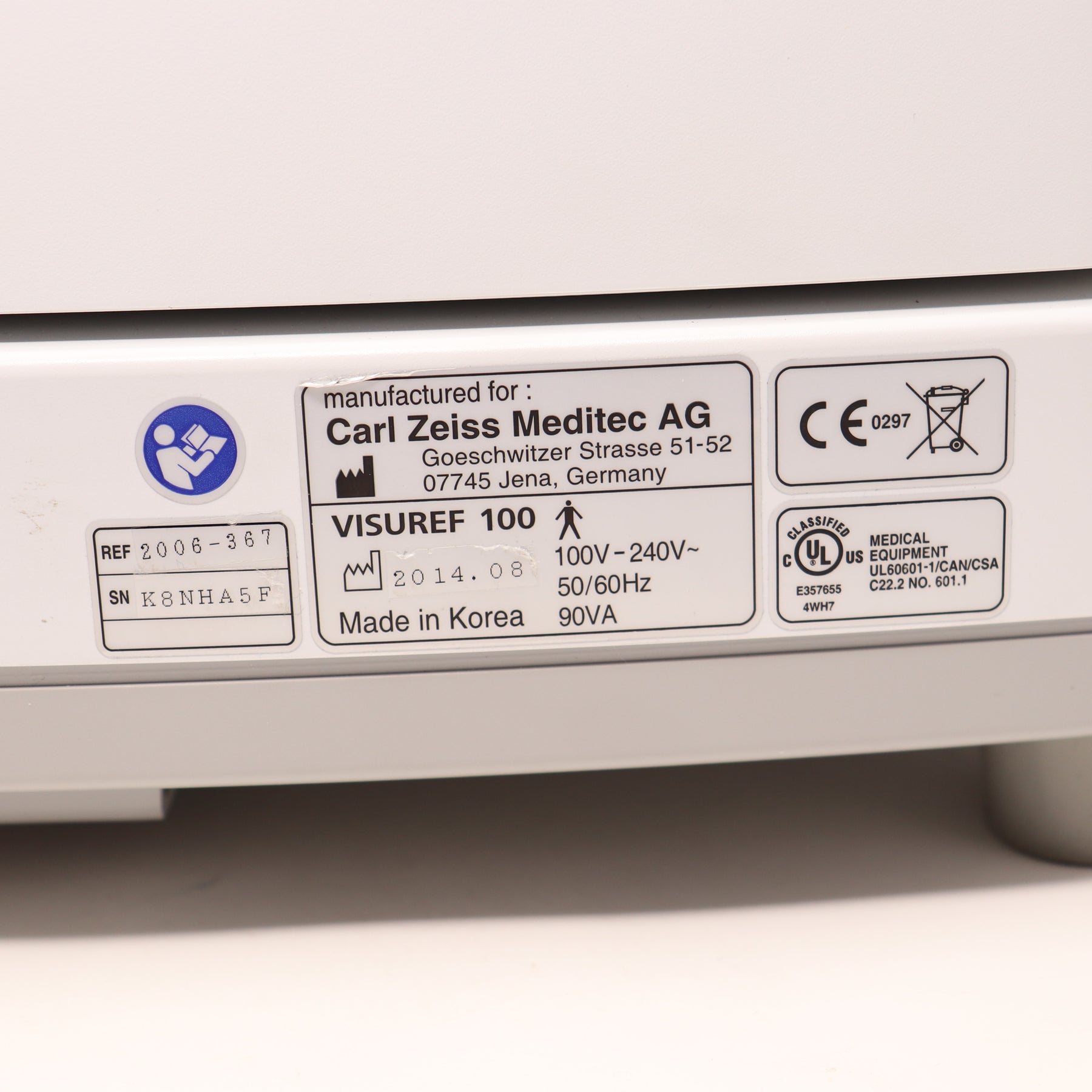

MPN: 2006-367

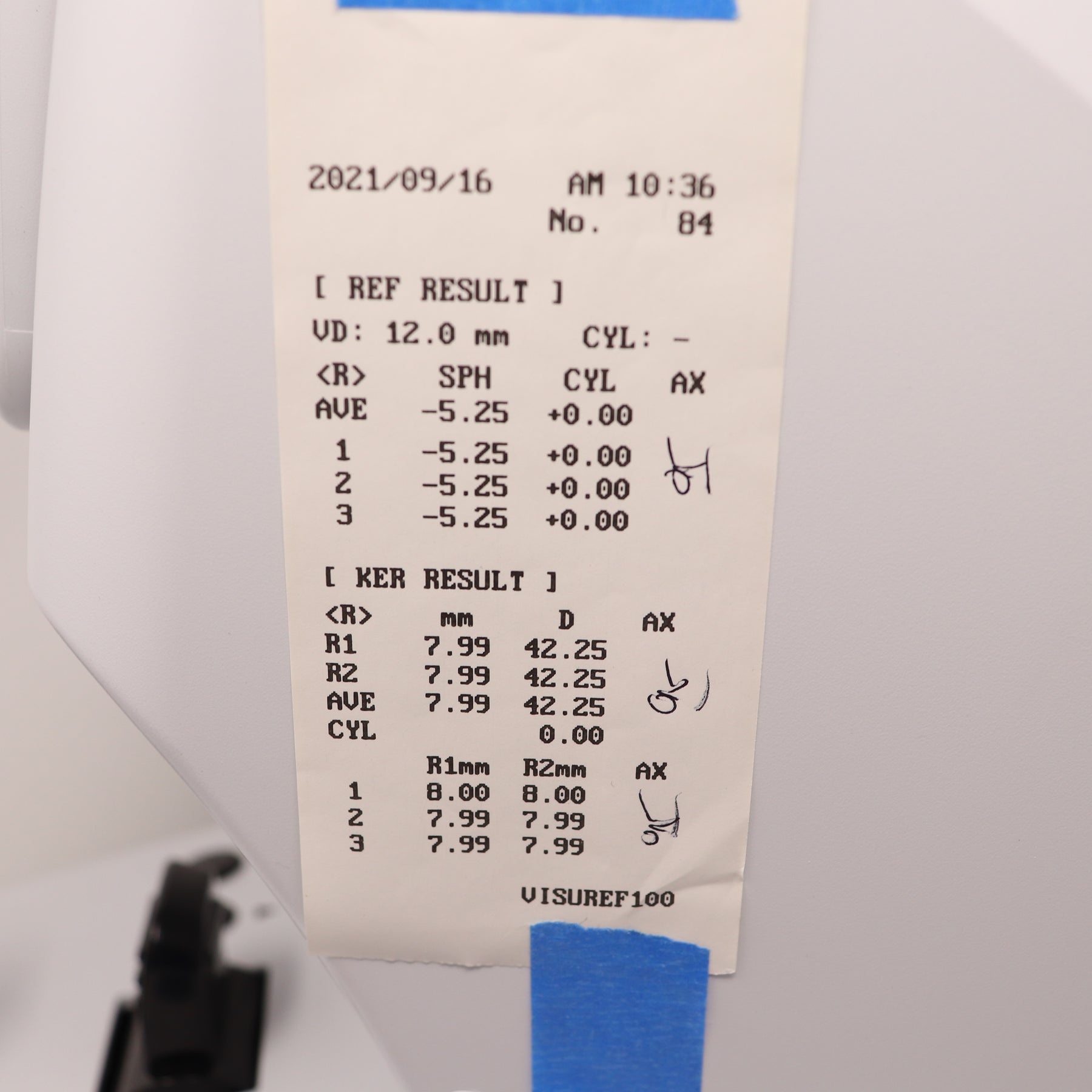

Condition: Lightly used in very good cosmetic, and working condition. All units have been in inspected, and tested with a reference test eye and passed within range.
Includes:
- Zeiss Visuref 100 unit

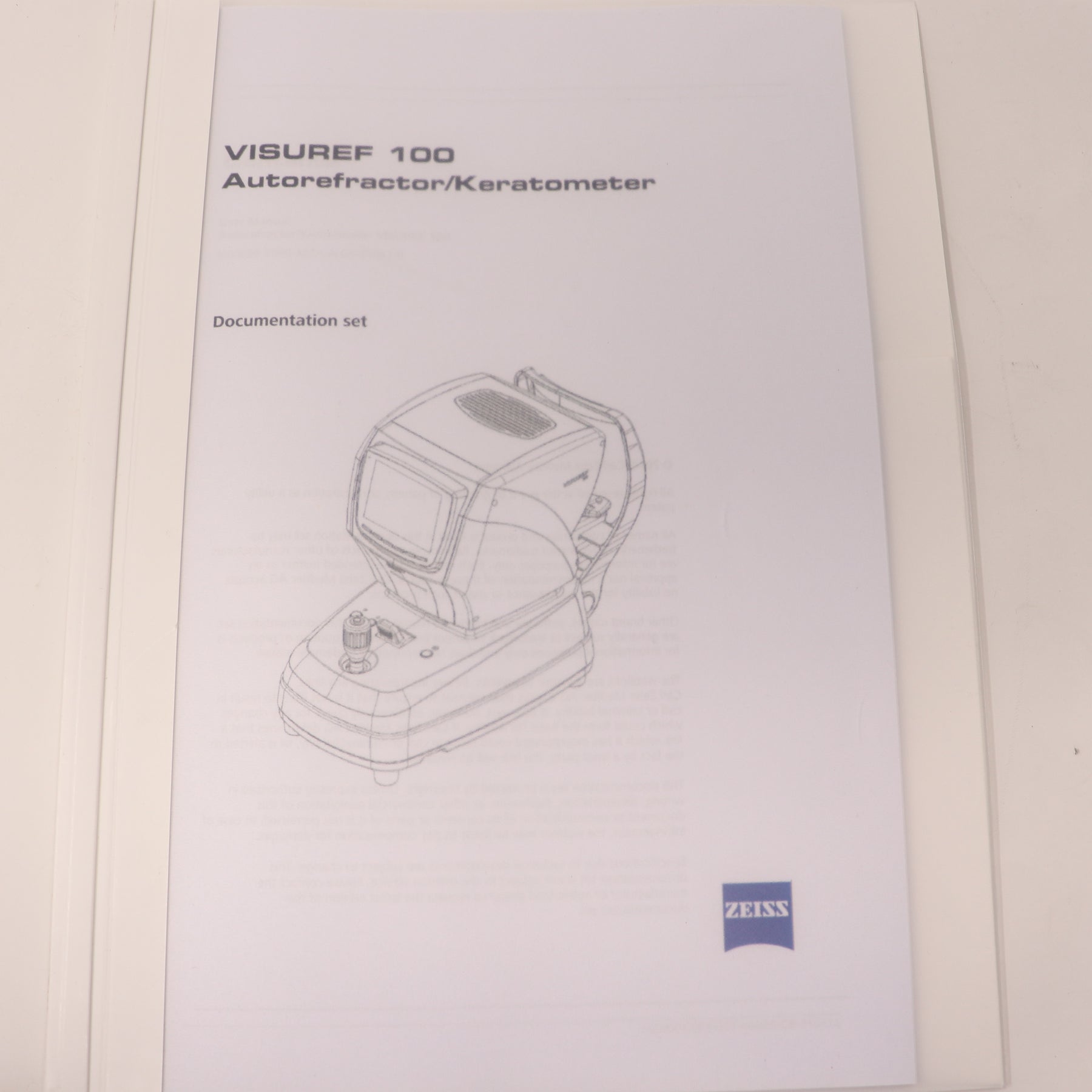

- Manual
- Power Cord
- Dust Cover IS NOT INCLUDED

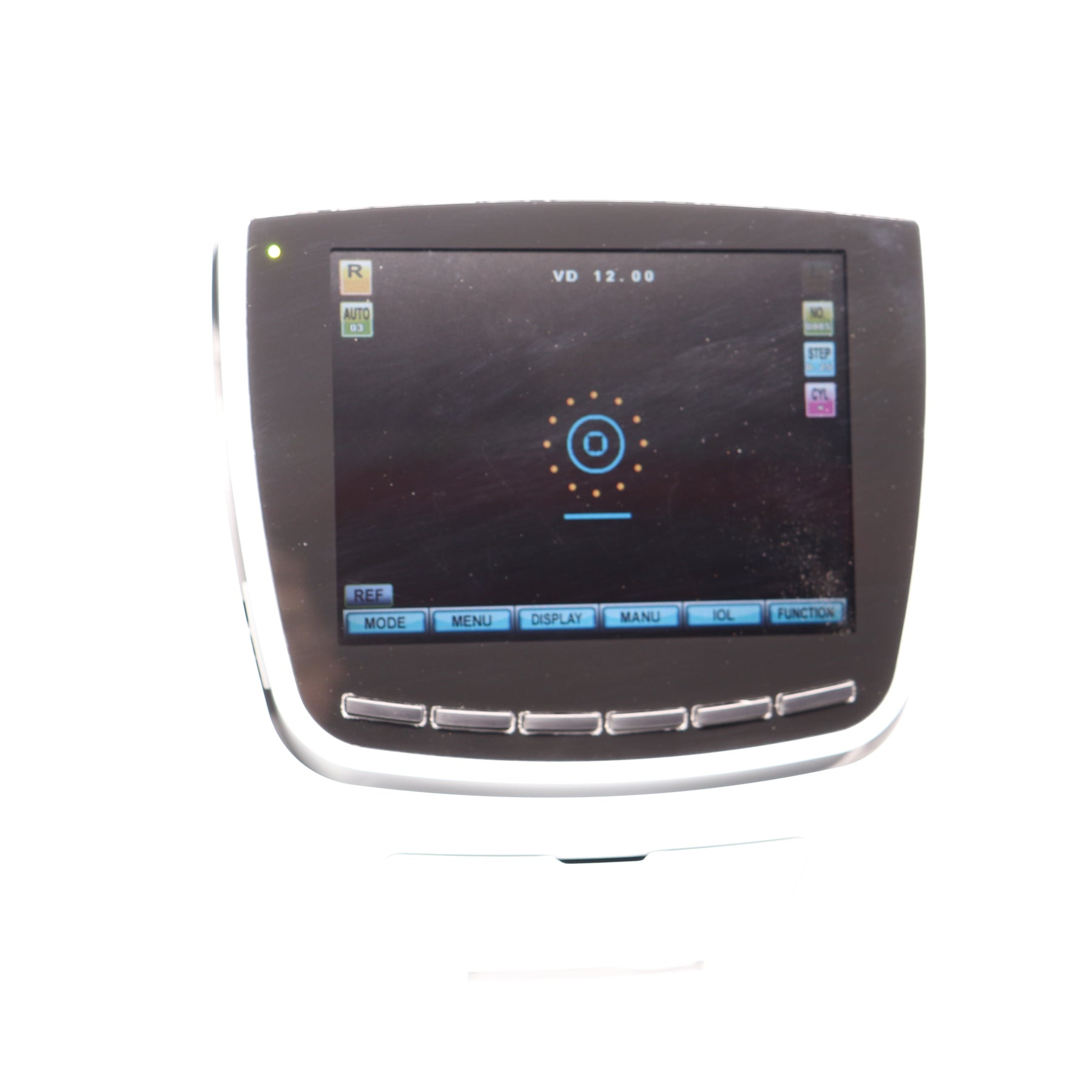

- 4 Operation Modes:
- (REF) Refraction
- (KER) Keratometry
- REF + KER
- (CLBC) Contact Lens Base Curve
| ZEISS VISUREF 100 | ||
| Refraction | ||
|---|---|---|
| Sphere (SPH) | -25 D to + 22 D in 0.12 / 0.25 D increments | |
| Cylinder (CYL) | 0 D to ± 10 D in 0.12 / 0.25 D increments | |
| Axis (AX) | 0° to 180° in 1° increments | |
| Vertex distance (VD) | 0.0, 10.0, 12.0, 13.5, 15.0 mm | |
| Pupil distance (PD) | 10 - 85 mm | |
| Minimum pupil diameter | 2 mm | |
| Keratometry | ||
| Corneal curvature | 5.0 - 10.2 mm in 0.01 mm increments | |
| Corneal refraction | 33 D to 67.5 D in 0.12 / 0.25 D increments | |
| Corneal astigmatism | 0 D to -15 D in 0.12 / 0.25 D increments | |
| Axis | 0° to 180° in 1° increments | |
| Corneal diameter | 2.0 - 12.0 mm in 0.1 mm increments | |
| Chinrest movement | 65 mm motorized | |
| Printer | Thermal, integrated | |
| Connectivity | 1 x RS232, 1 x USB, 1 x ext. video | |
| Power supply | AC 100 V - 240 V, 50/60 Hz | |
| Dimensions, weight | 275 mm x 525 mm x 450 mm (WDH), 18 kg | |
