Chemometec XcytoMatic 40 XM40 High-throughput cell density analyzer
Quantity:

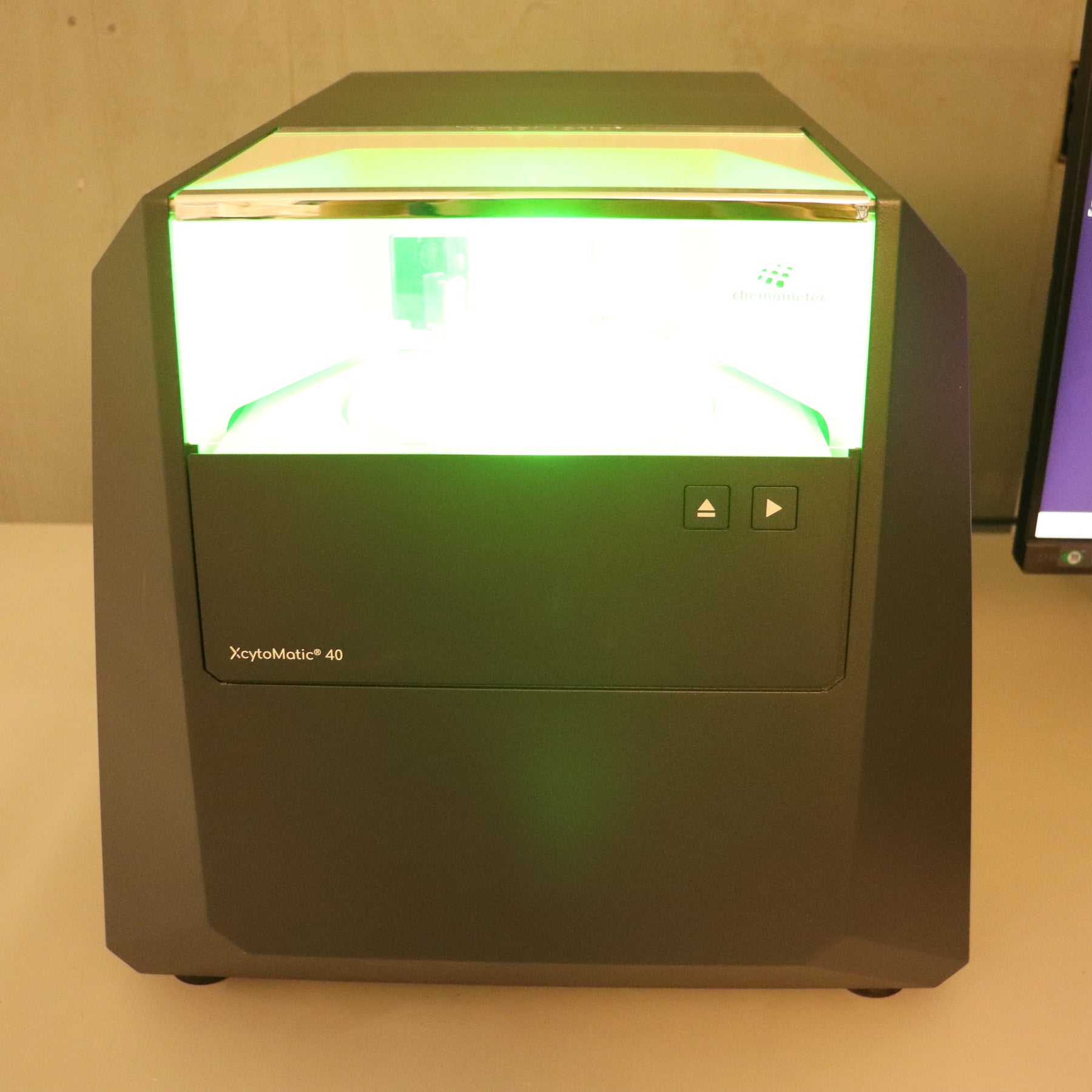

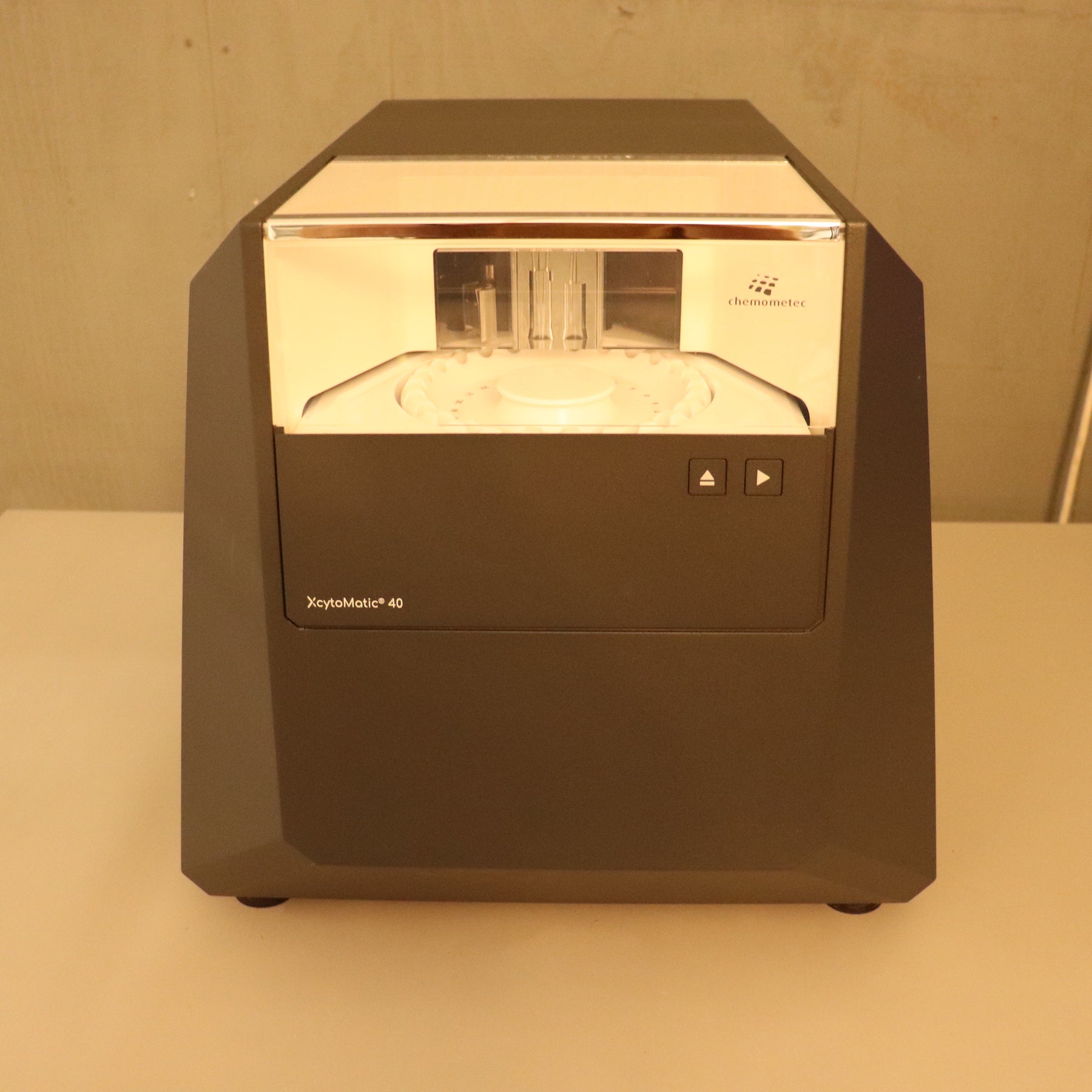

Chemometec XcytoMatic 40 High-throughput cell density analyzer

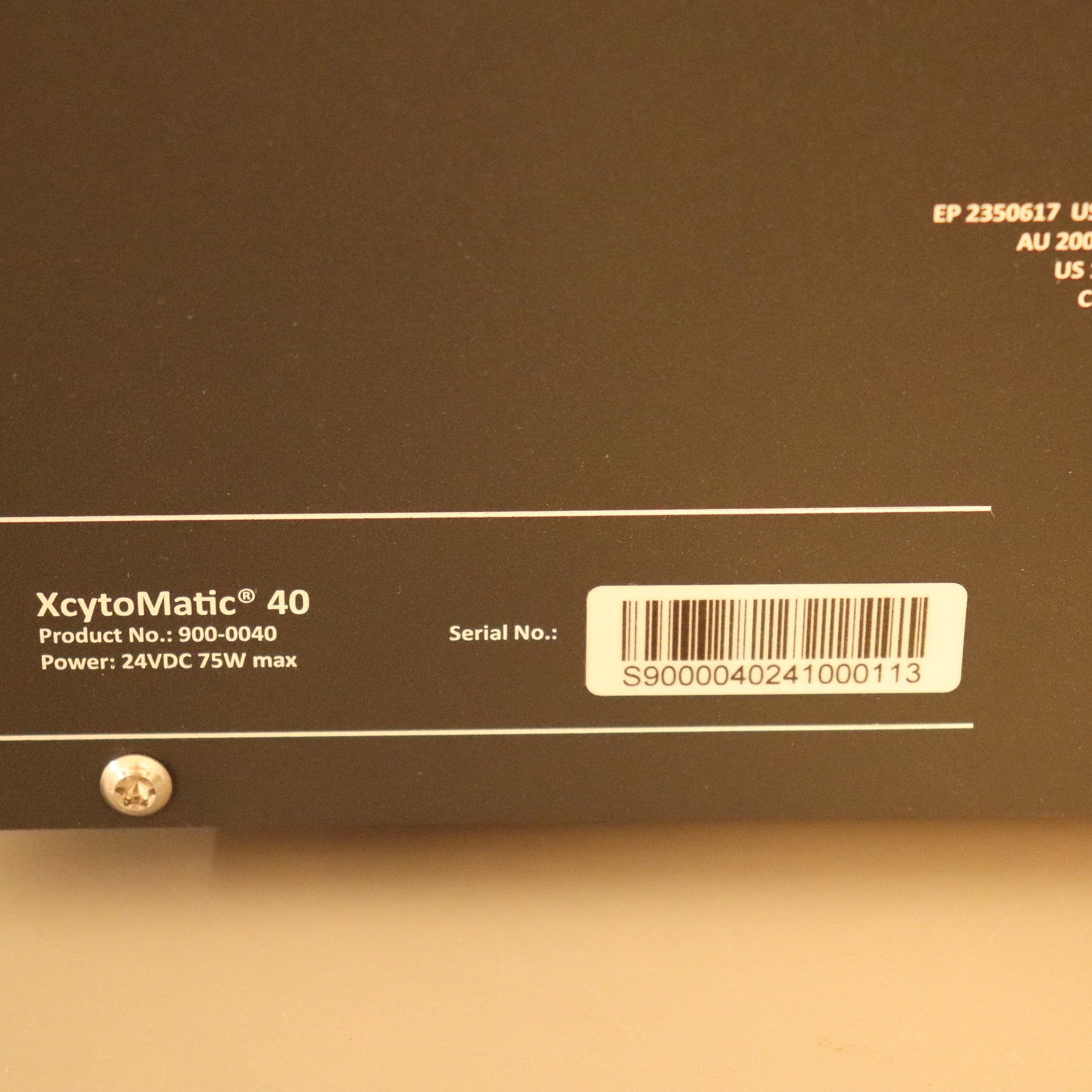

Model: XM40
PN: 900-0040
MFG: 10/24

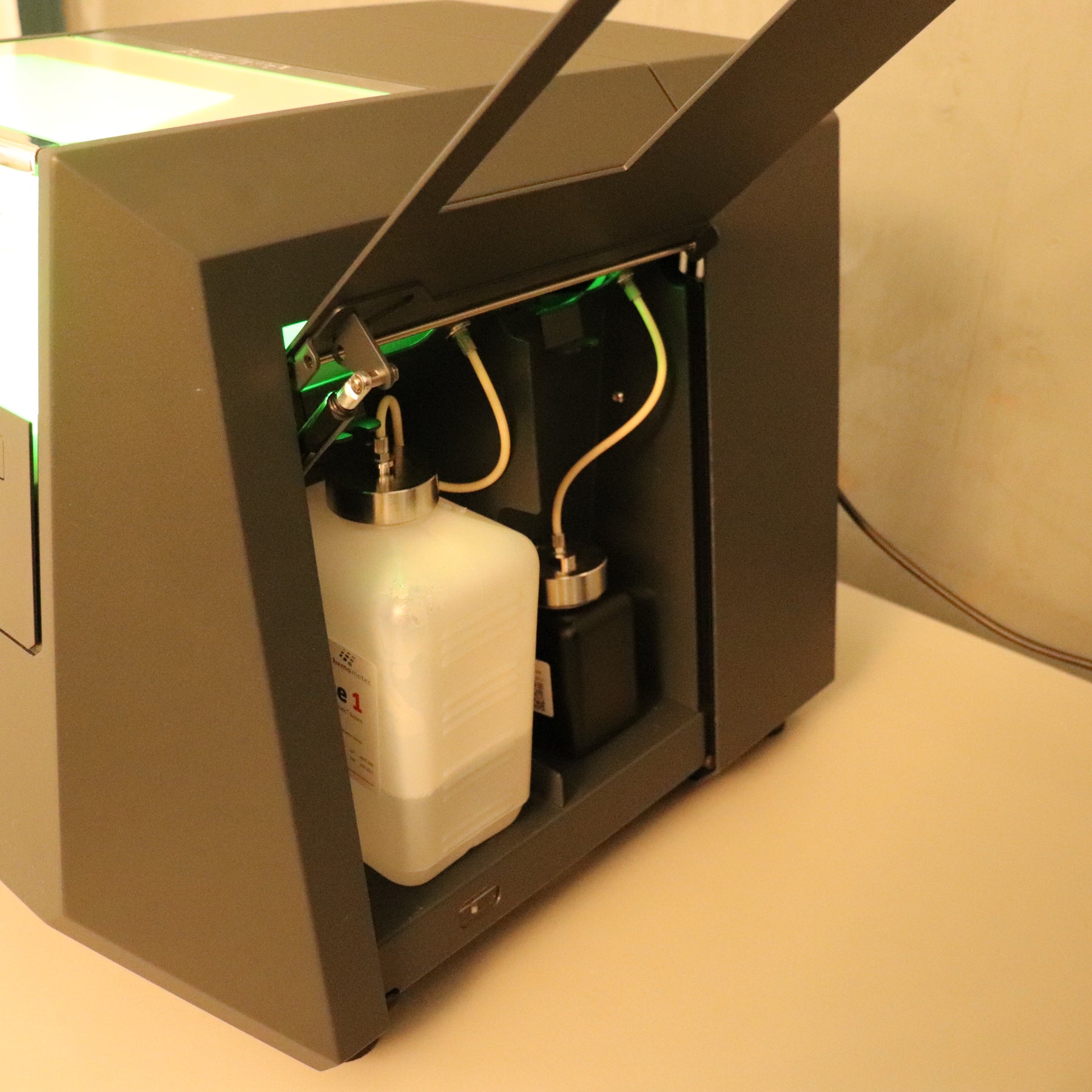

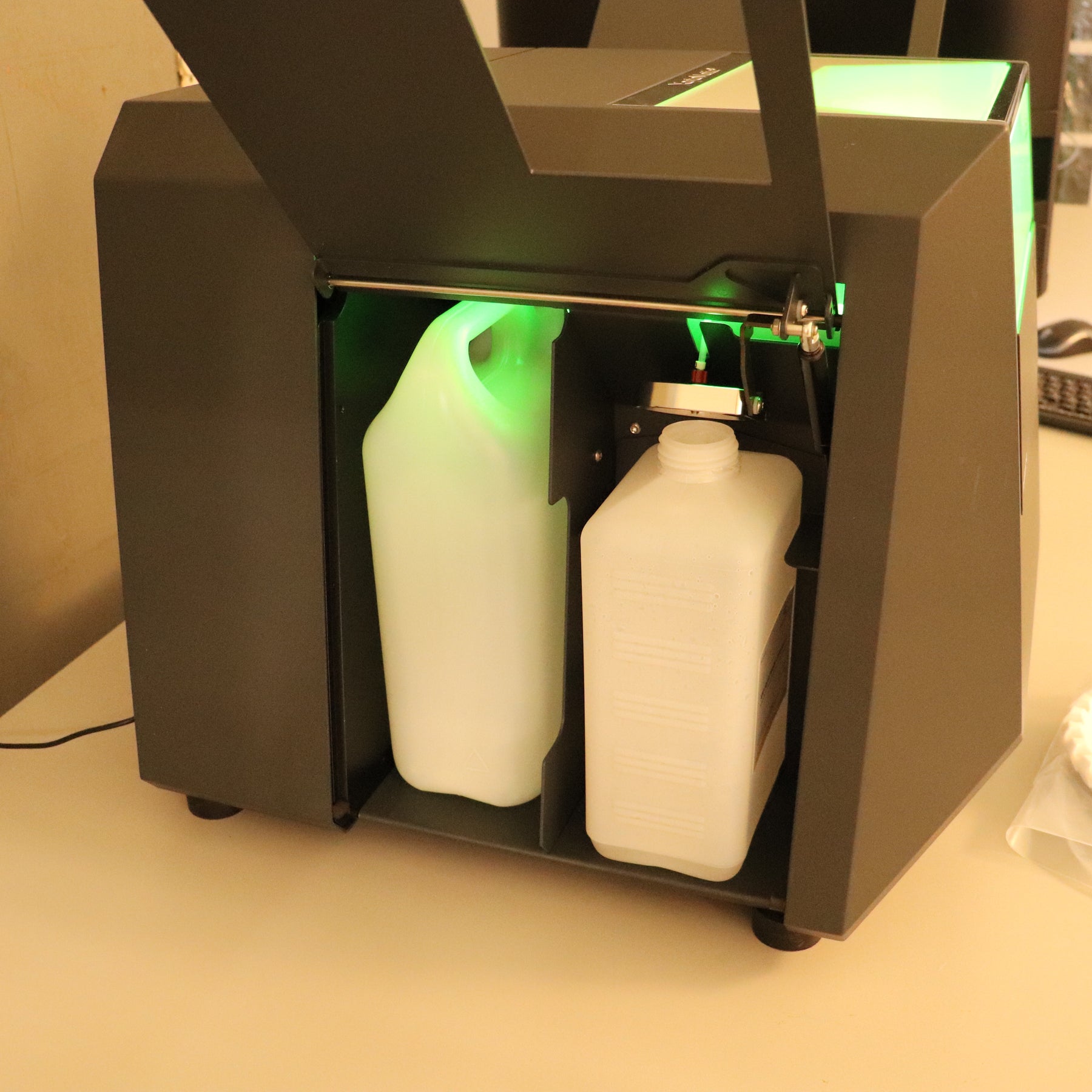

Condition: Used, tested in good working condition. Includes XM-View software. Shown consumables & bottles are not included. Unit has been purged, cleaned, sanitized, and prepared for transport.

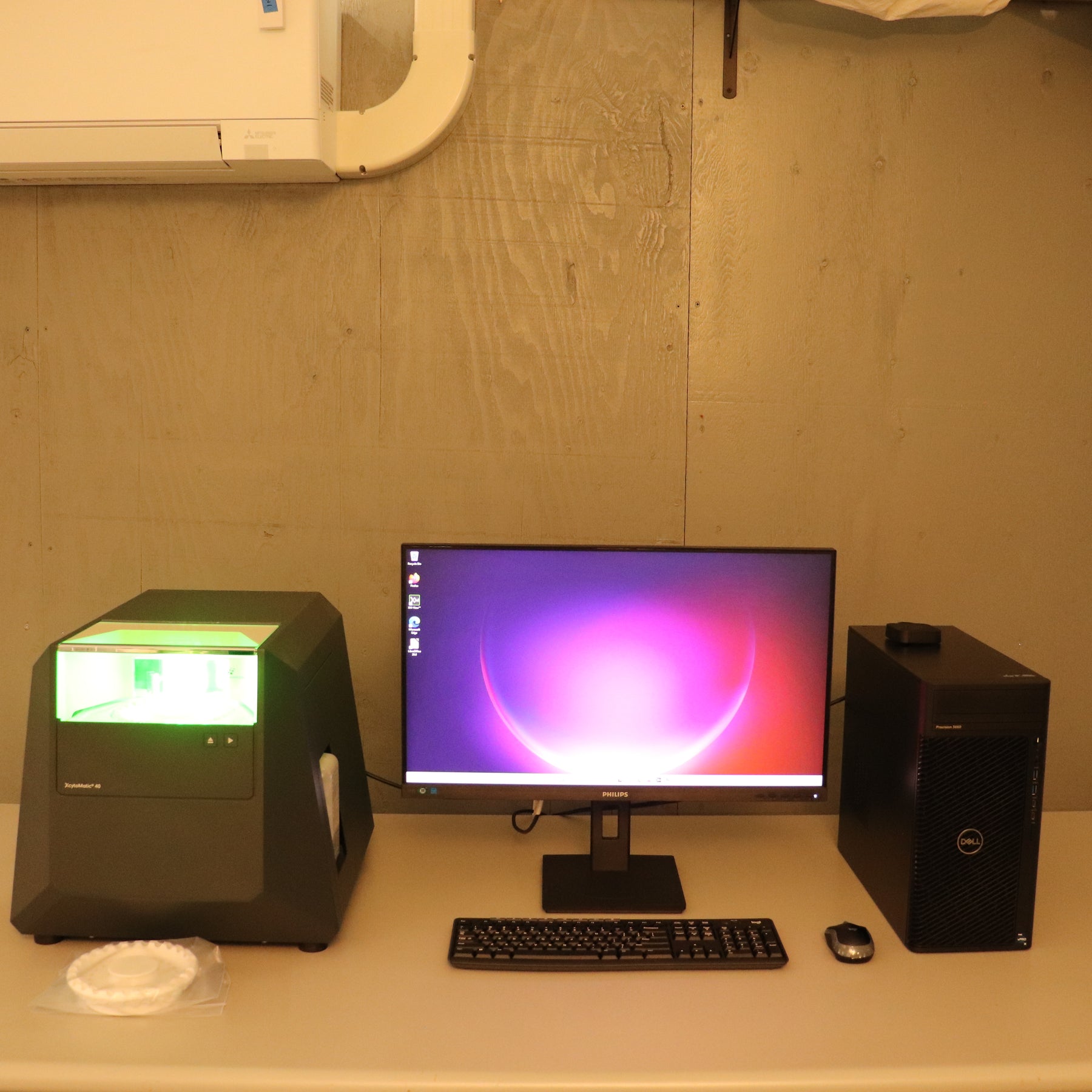

Includes
-

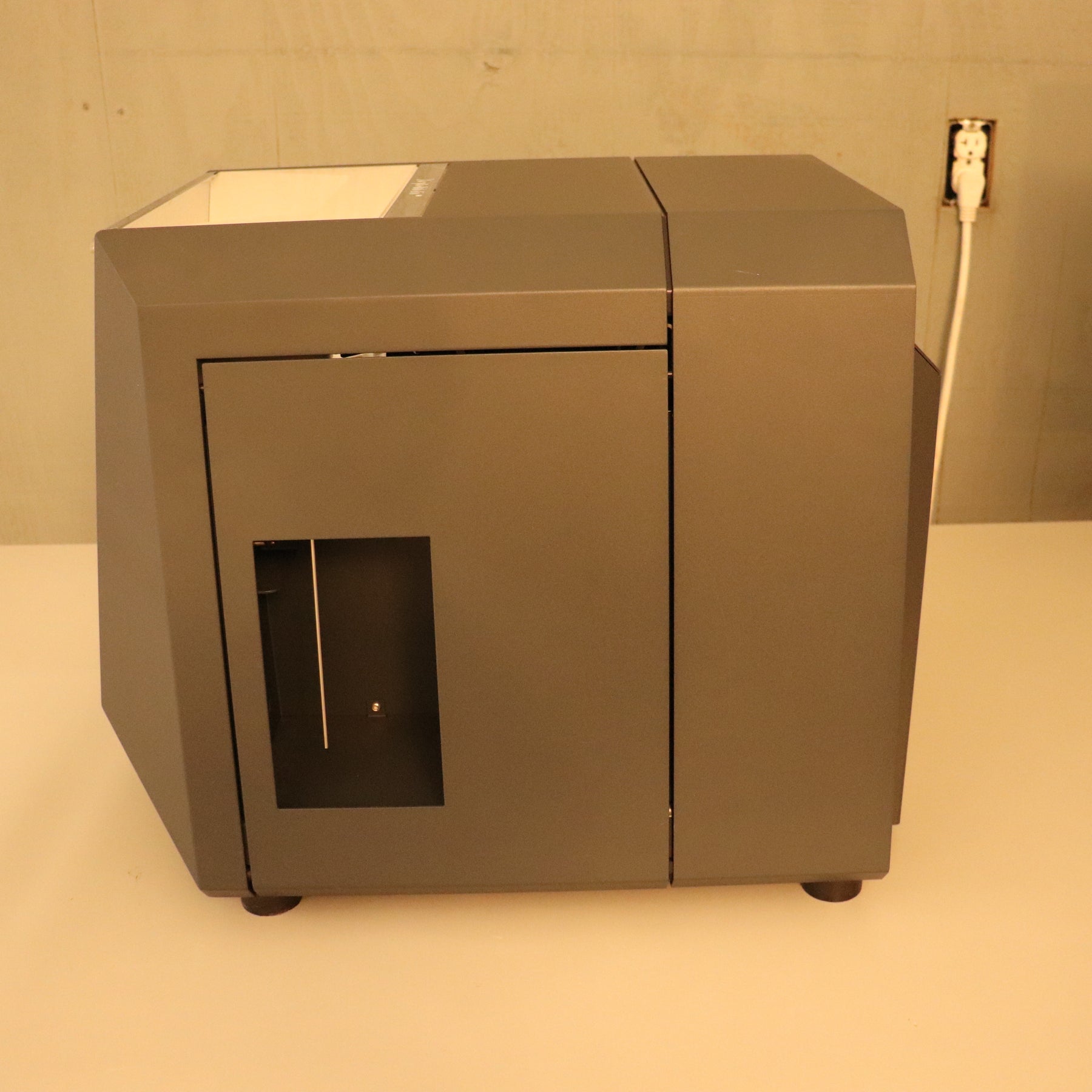

XcytoMatic 40 instrument
- AC Adapter
- USB Cable
- Extra Carousel

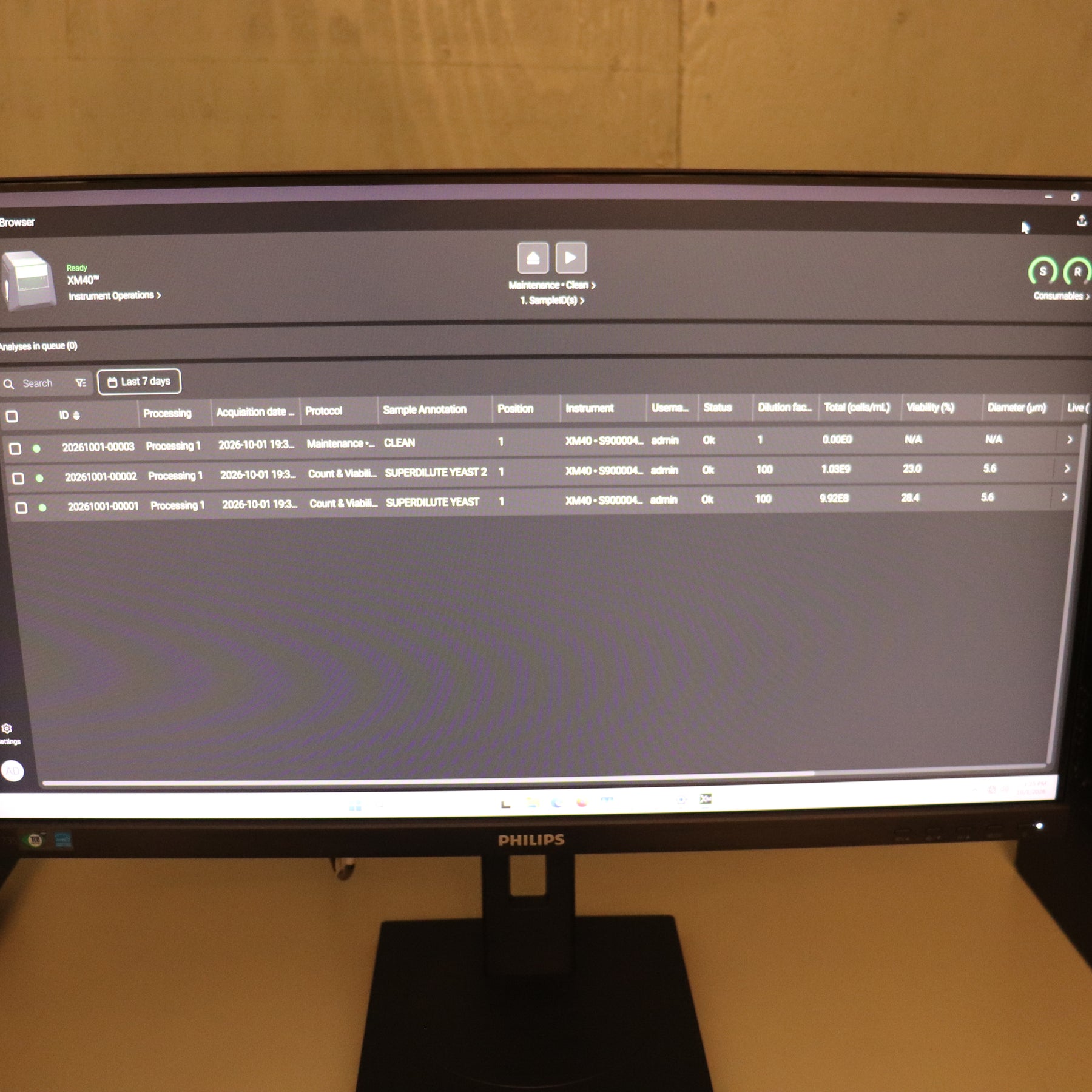

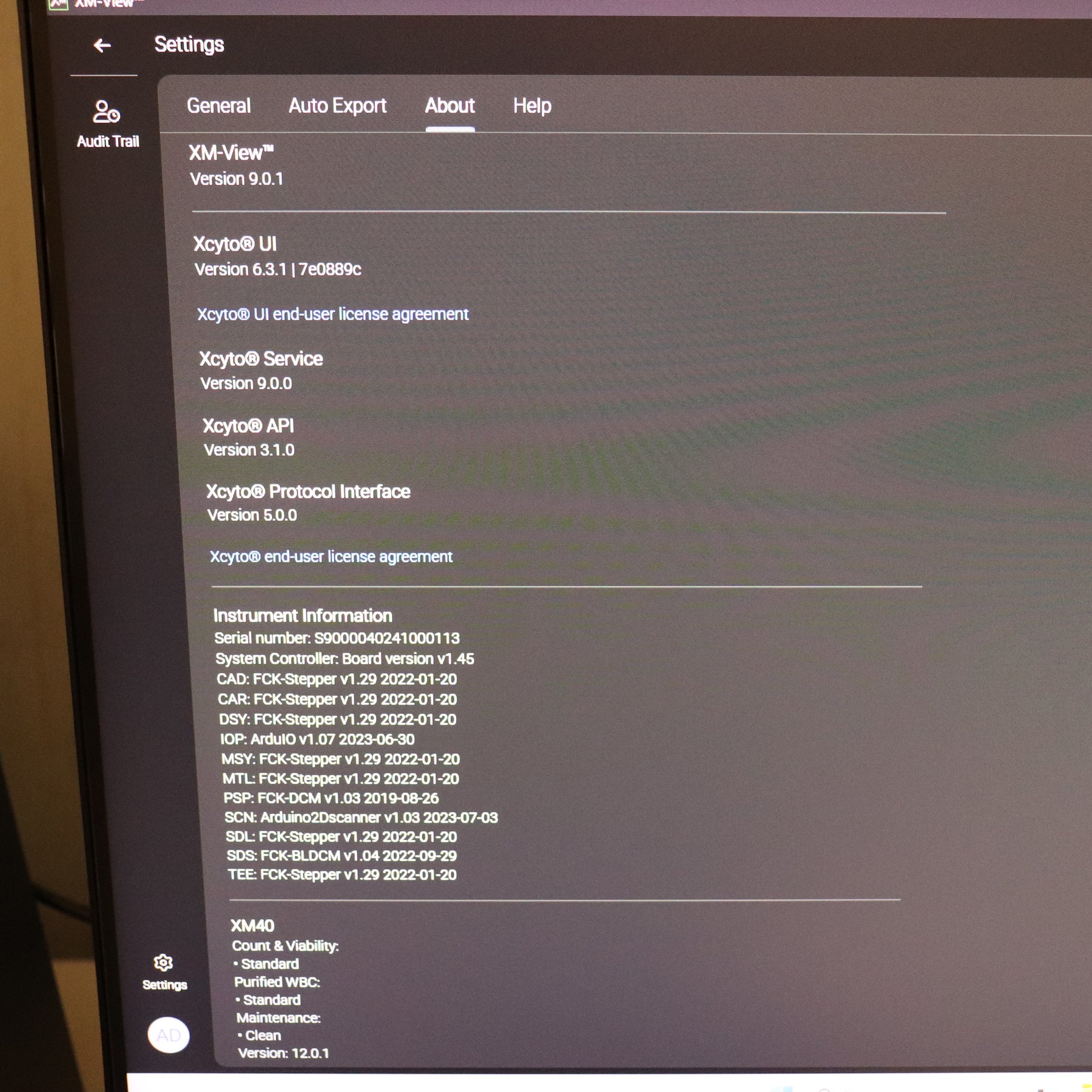

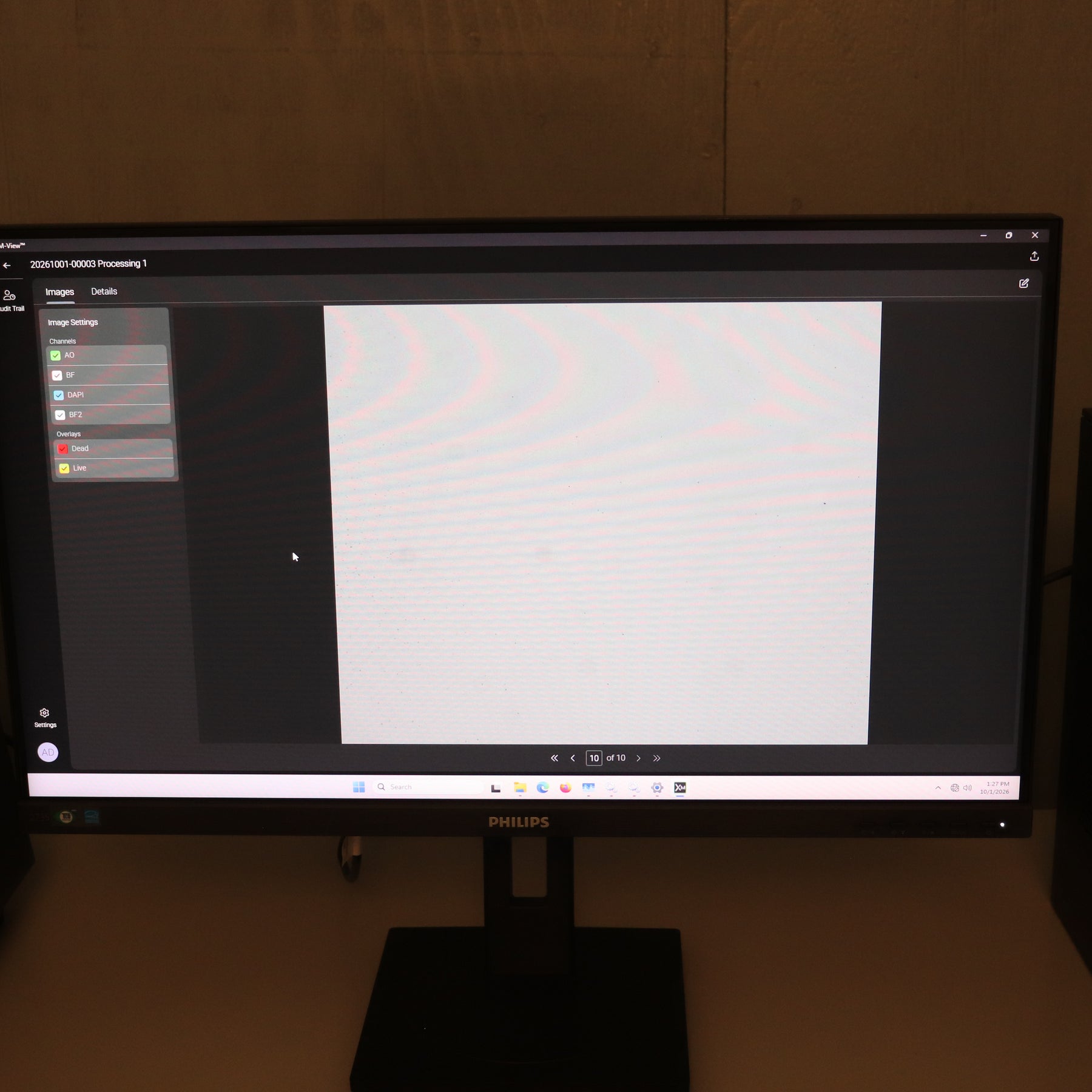

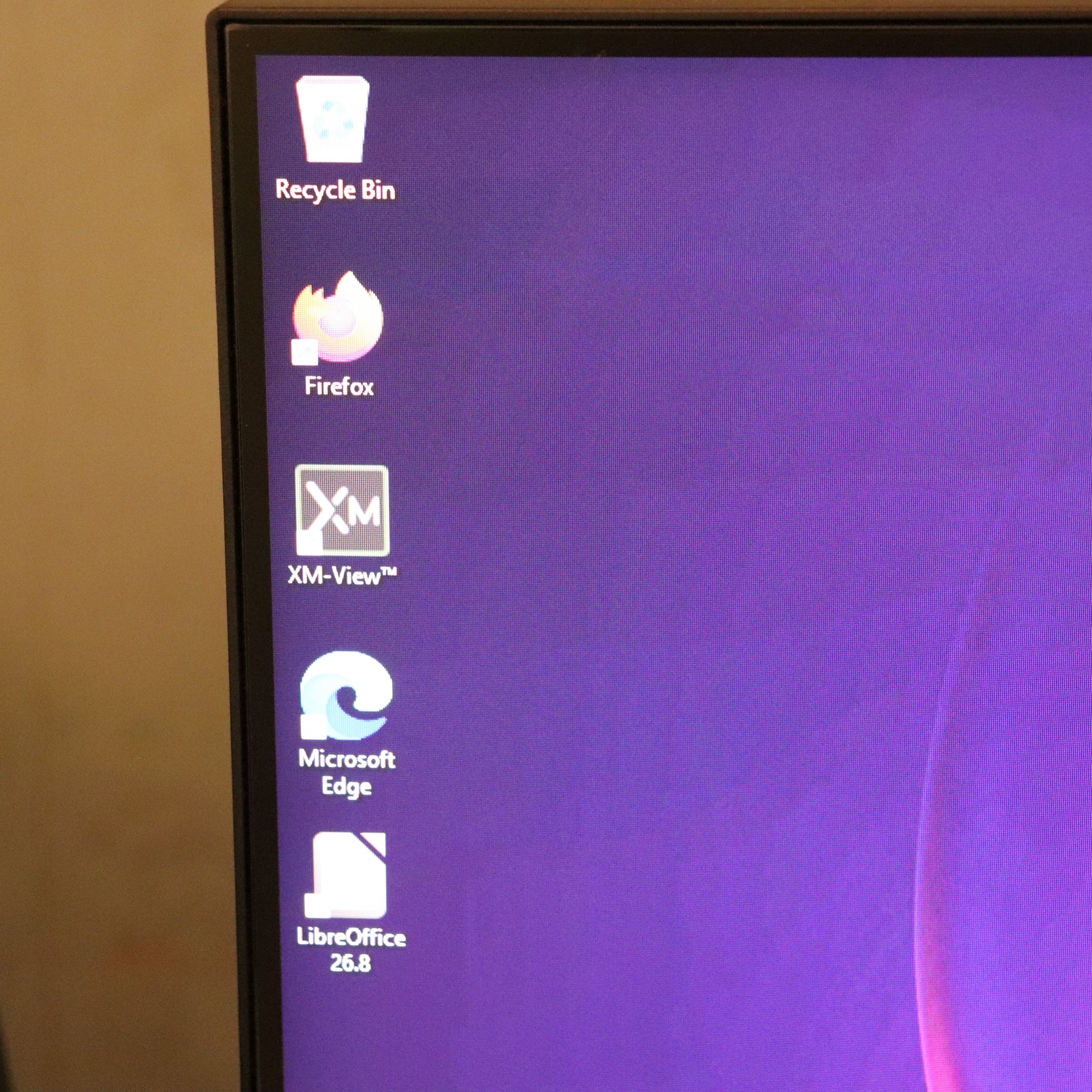

- PC w/ XM-view software 9.0.1
- Cell Count & Viality
- Standard
- Purified WBC
- Standard
- Maintenance
- Clean
- v12.0.1
- Cell Count & Viality
- Monitor
- Mouse
- Keyboard
Features
- Fast processing time (~100 samples/hour)
- Highest cell counting range yet: up to 100 million cells/ml
- Consistent results across instruments, users and laboratories
- Brightfield and fluorescent microscopy (trypan blue-free)
- 21 CFR Part 11/GMP-ready software
| Application type(s) | Cell count & viability analysis |
| Cell type(s) | Mammalian cell types (CHO, HEK, A3 and more…), primary cell types (PBMCs, Leukopak) |
| Cell diameter range | 7-32 µm |
| Software | XM-View™ |
| Consumable(s) | XM Cell Stain 2 |
| Analysis volume | 4.5 µl |
| Optimal range | 5 x 104 – 1 x 108 |
| Staining dye(s) | Acridine orange (AO) and 4′,6-diamidino-2-phenylindole (DAPI) |
| Sample volume | 50 μl |
| GMP Mode | 21 CFR Part 11 Ready Software |
| Excitation | DAPI wavelength: 365 nm, AO wavelength: 505 nm, BF wavelength: 430 nm |
| Optics | Lens with × 2.1 magnification, 2/3” CMOS camera |

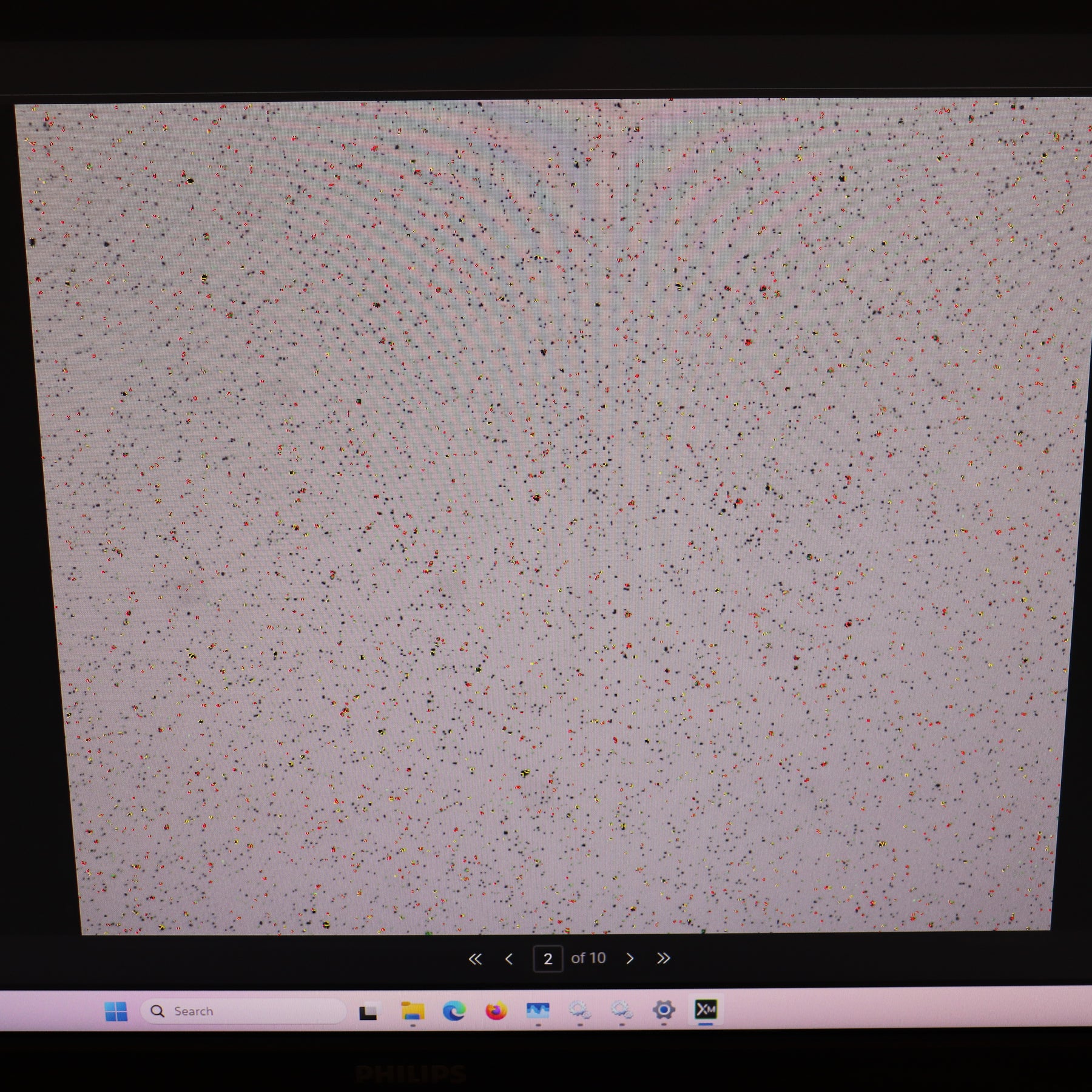

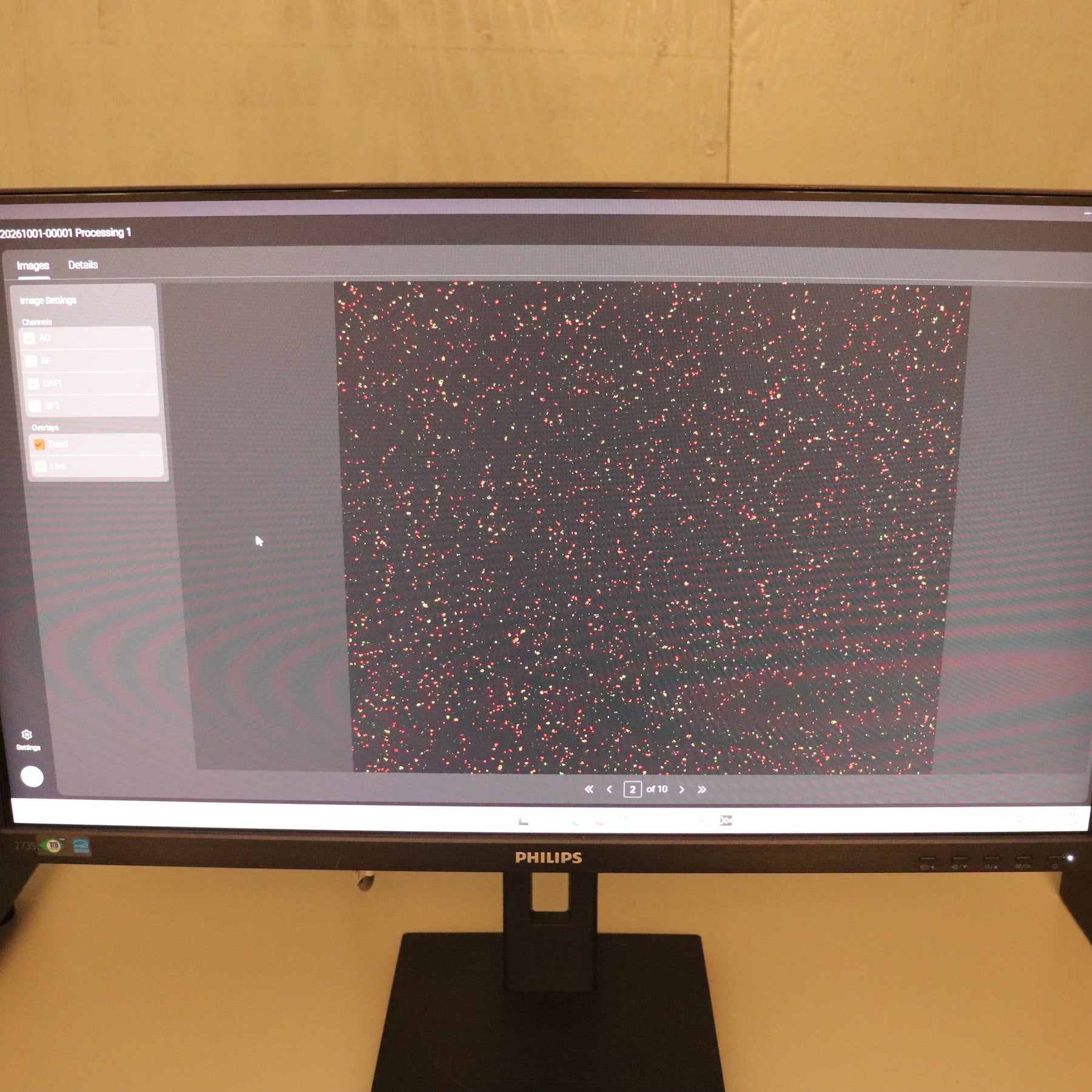

| Data output | Images, Data tables |
| Data export formats | .cm, .pdf, .xls |

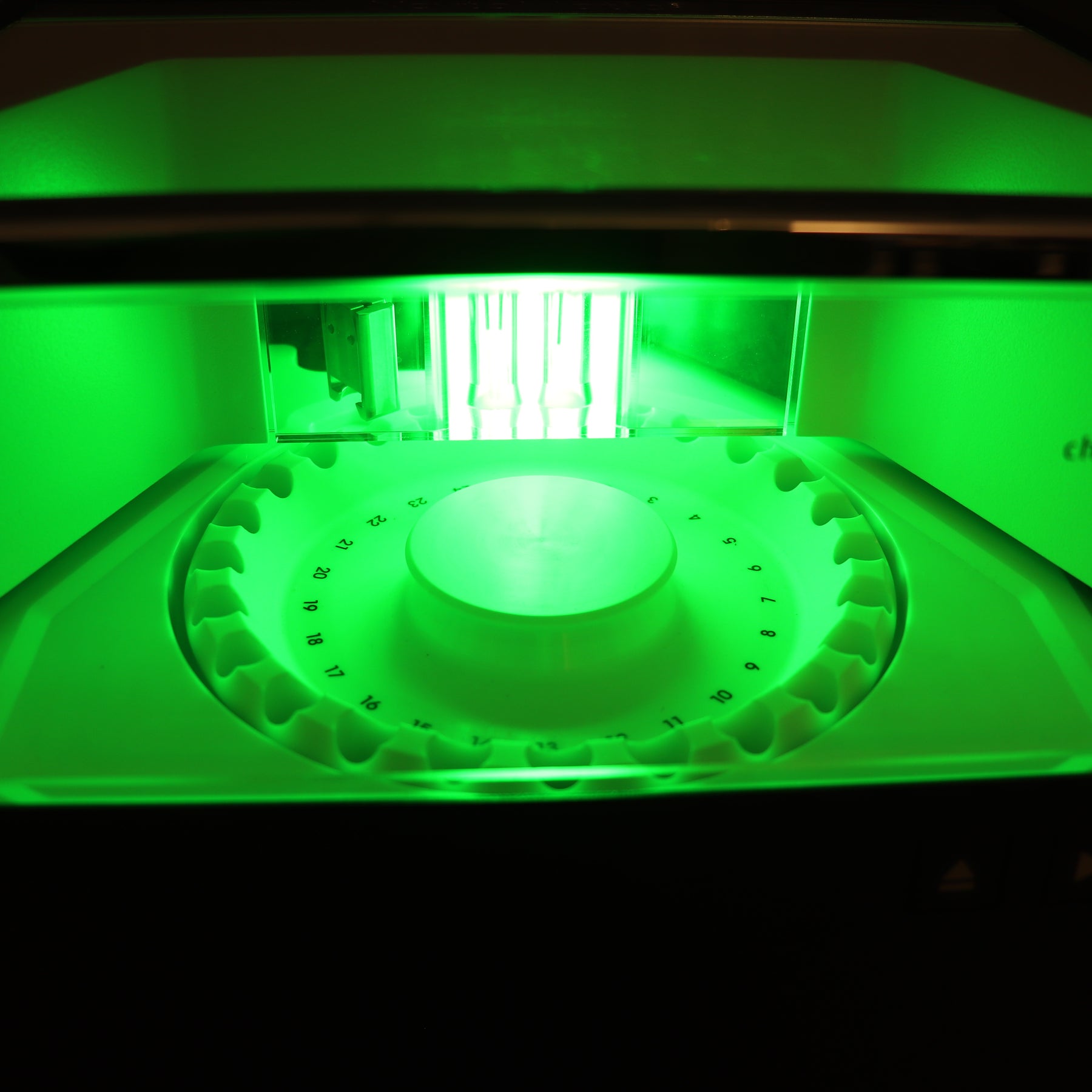

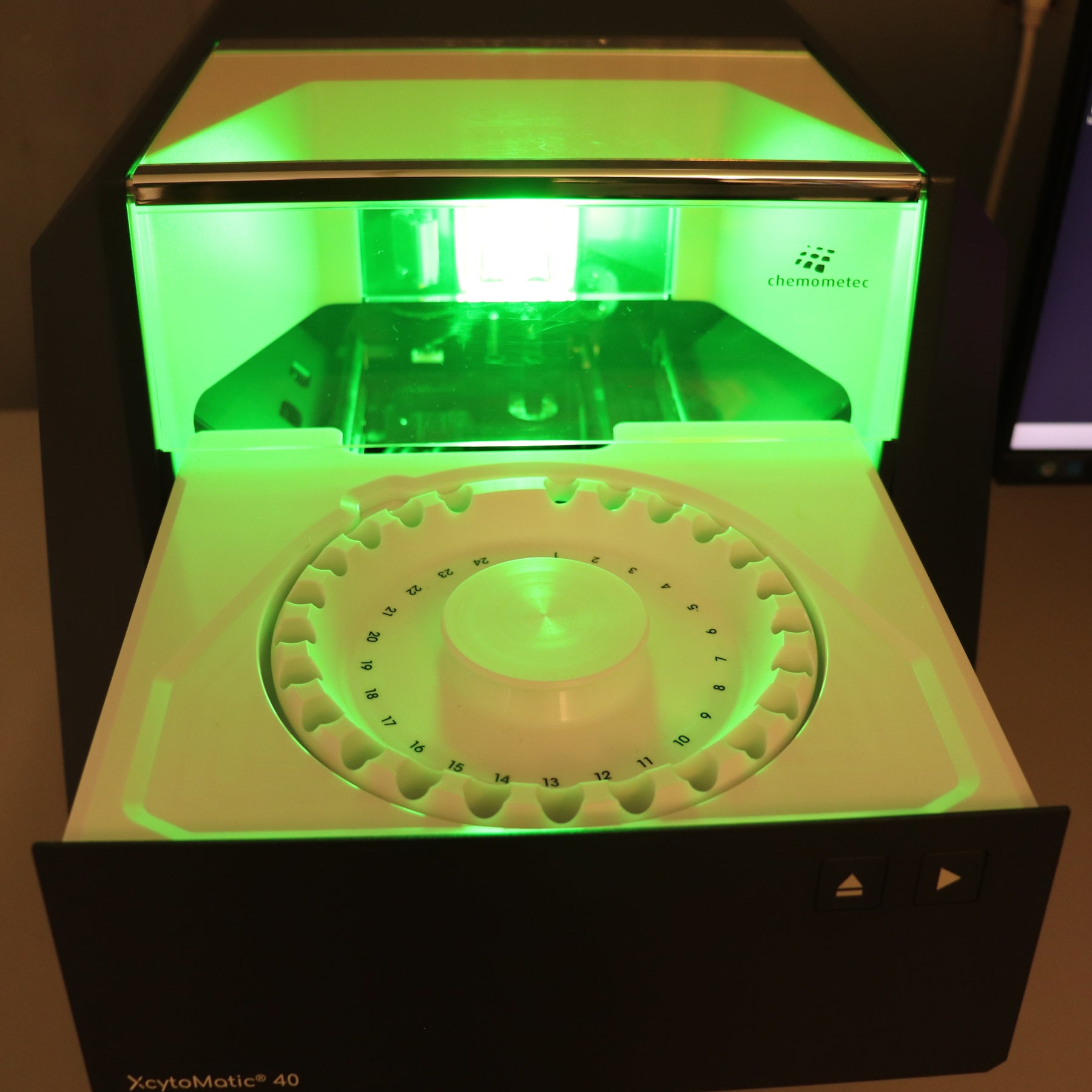

| Carrousel capacity | Up to 24 samples |
| Measurement capacity | <15 min / carrousel. 100 samples per hour |
| API | Available |
| Product Number |
900-0040 |
| Size |
H: 430 mm x W: 440 mm x D: 524 mm |
| Weight |
50 kg |
| Supply voltage |
24 VDC (100-240 V ~ 50-60 Hz) |
