Eppendorf DASbox DASGIP 4-Fold Mini Bioreactor System

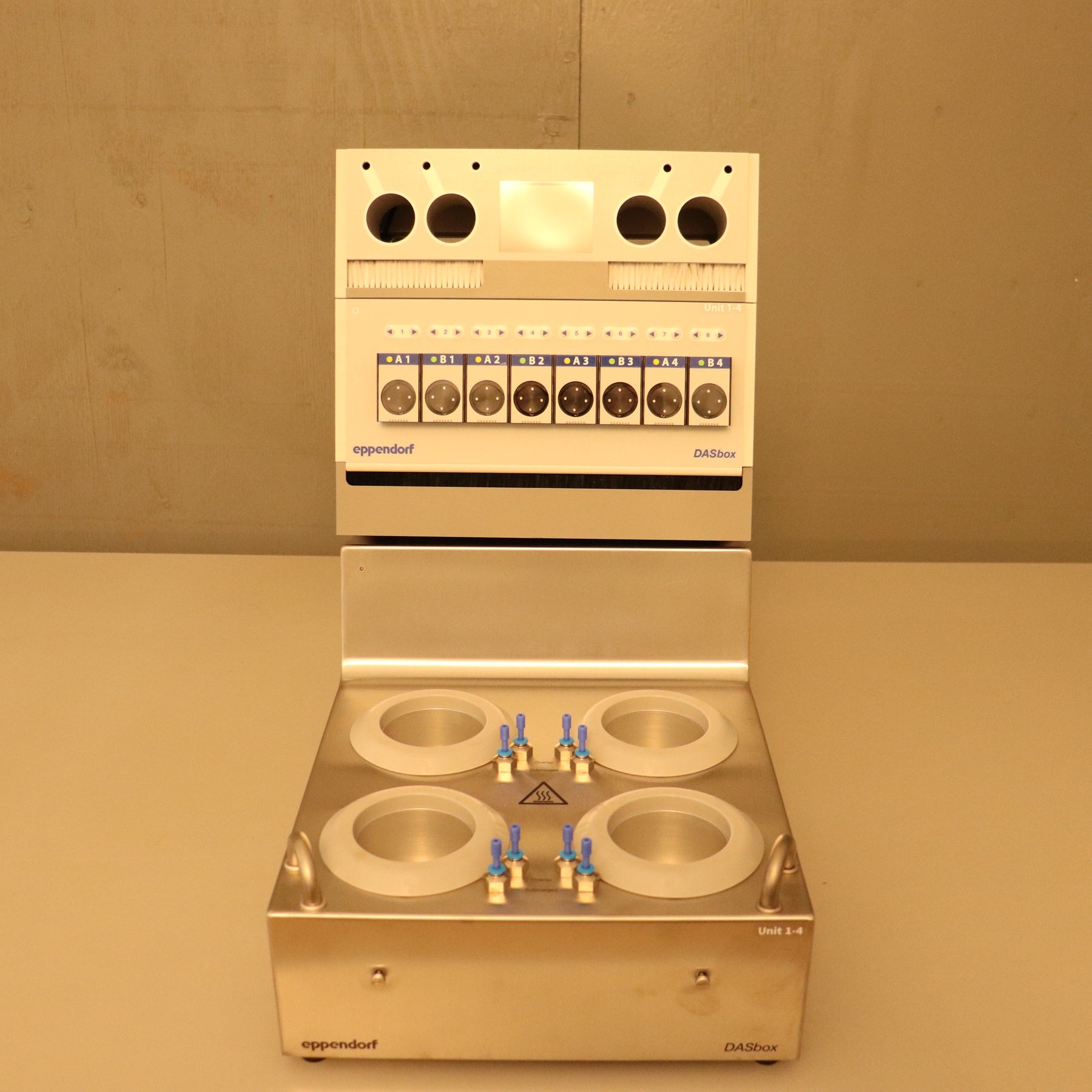

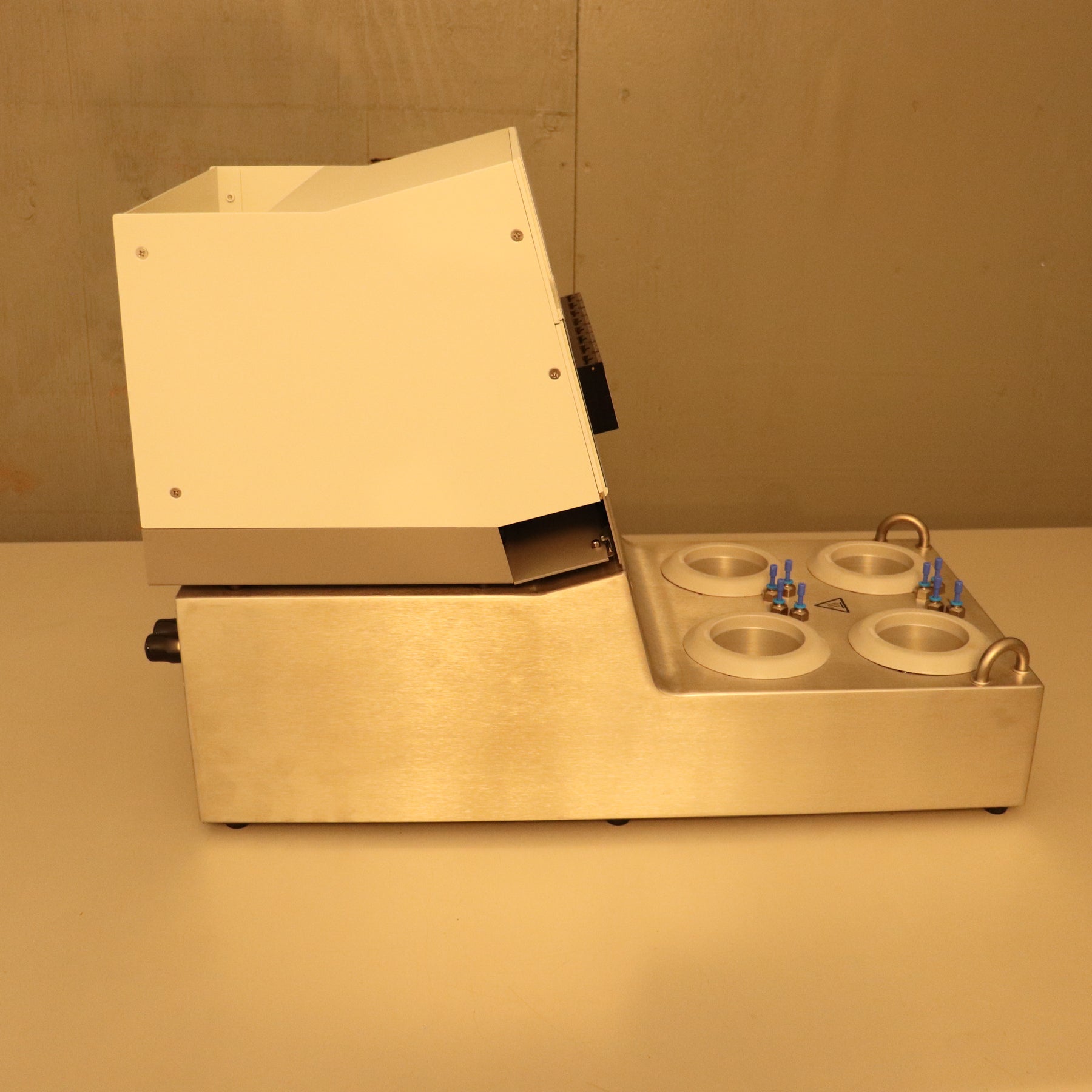

Eppendorf DASbox Mini Bioreactor System
Will work for both multi-use and single-use

Mfg Year: 2023
Application: Cell Culture

Specs:

• Vessel compatibility: Multi-use or single-use
  • Configured Type: Multi-use or single-use
  • Size: 0.3L
  • WV:
    • Multi-use: 60-250mL
    • Single-use: 100mL-250mL
  • Impeller: Pitched blade (Marine)
  • Exhaust Condenser: Yes, peltier
• Drive:
  • Multi-use: Direct
  • Single-use: Magnetic
• Agitation Speed:
  • Multi-use: 20-2500rpm (pitched blade impeller)
  • Single-use: 20-500rpm (pitched blade impeller)
• MFC gas flow rate: 0.04 - 5 sL/h, 0.04-3.5 sL/h CO2
• Gassing: Air, N2, O2 and/or CO2
• pH: Yes, includes both:
  • Multi-use: glass gel-filled
  • Single-use: optical
• DO: Yes, sensors not included
• Level: Yes, sensors not included
• Temp control: Liquid-free heating and cooling (Peltier)
• Temp range 10 °C-60 °C (at 25 °C room temp)

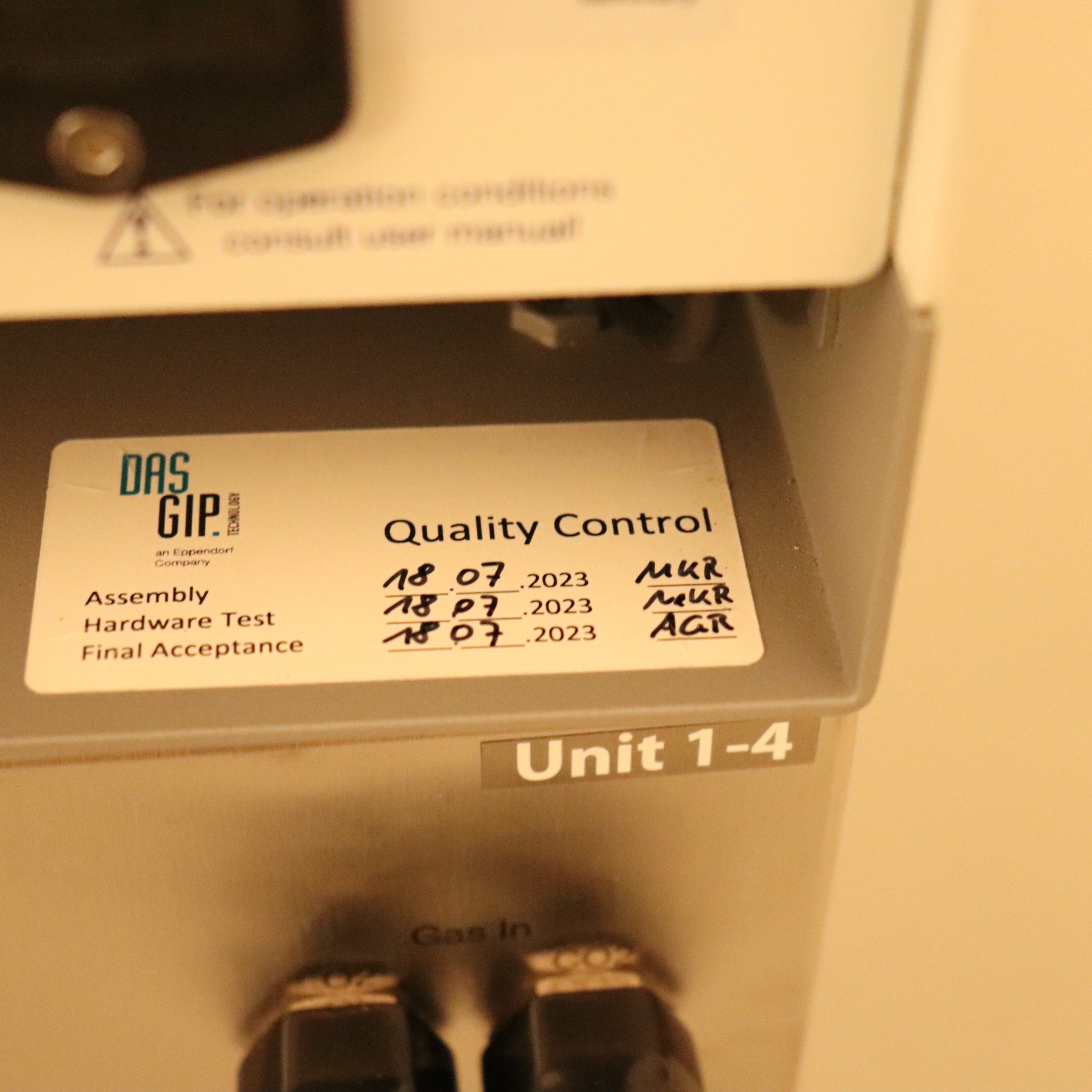

Condition: Extremely clean, late model 2023 used system.  System was throughly cleaned, sanitized, and tested.  All module & accessory functions have been tested and are in good working condition. Sensors were tested, and gave results within the expected range.  Modules were tested for all functions, ie: pumps, measurement, agitation, gassing, temp.  All modules are configured in DASWare, and functioned properly.

Vessels were disassembled, inspected, sanitized, and shaft bearings & o-rings were replaced.

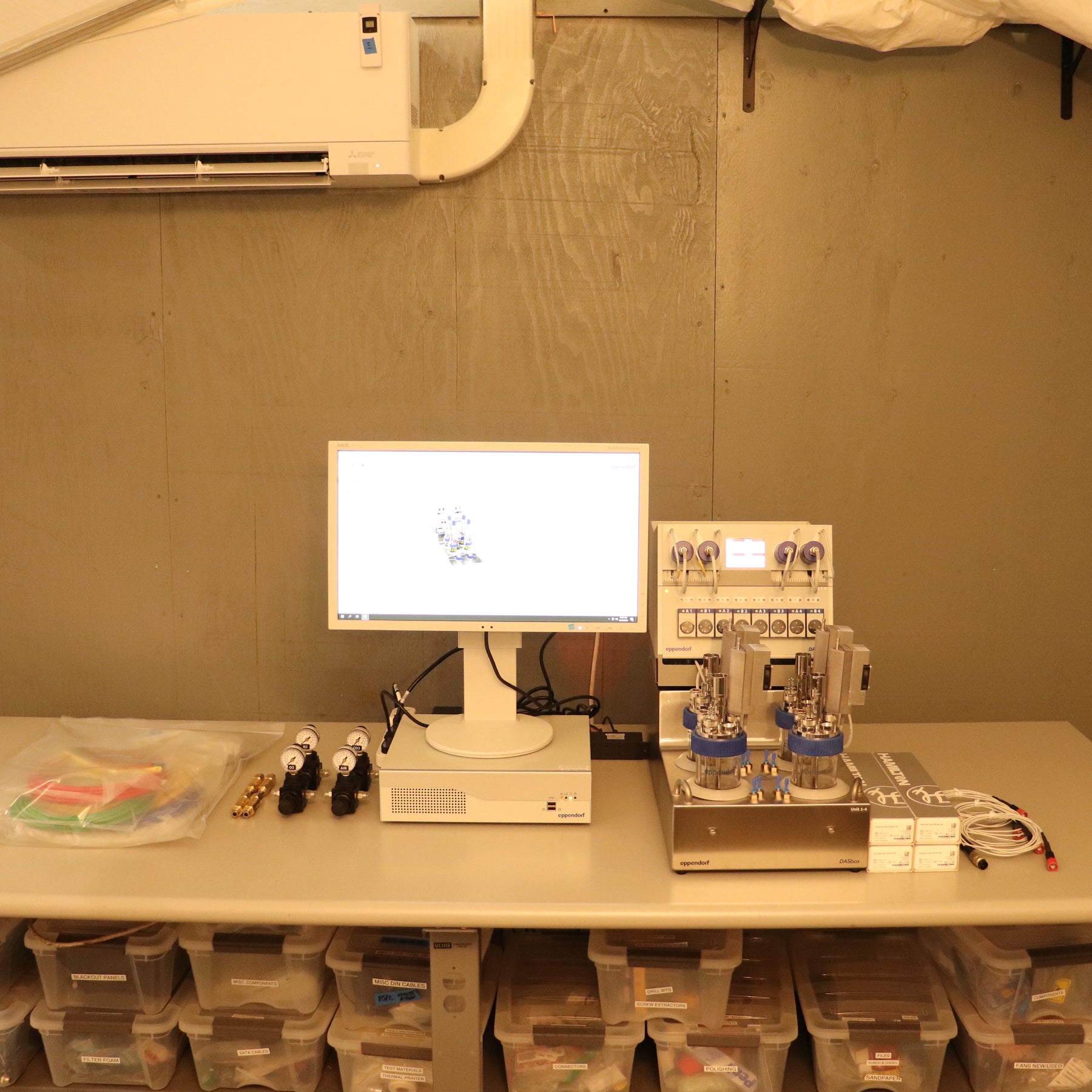

The process PC has database configurations for both multi-use, and single-use systems, so this particular system can accommodate both.  Pictures taken with multi-use accessories, see images at end for included single use accessories

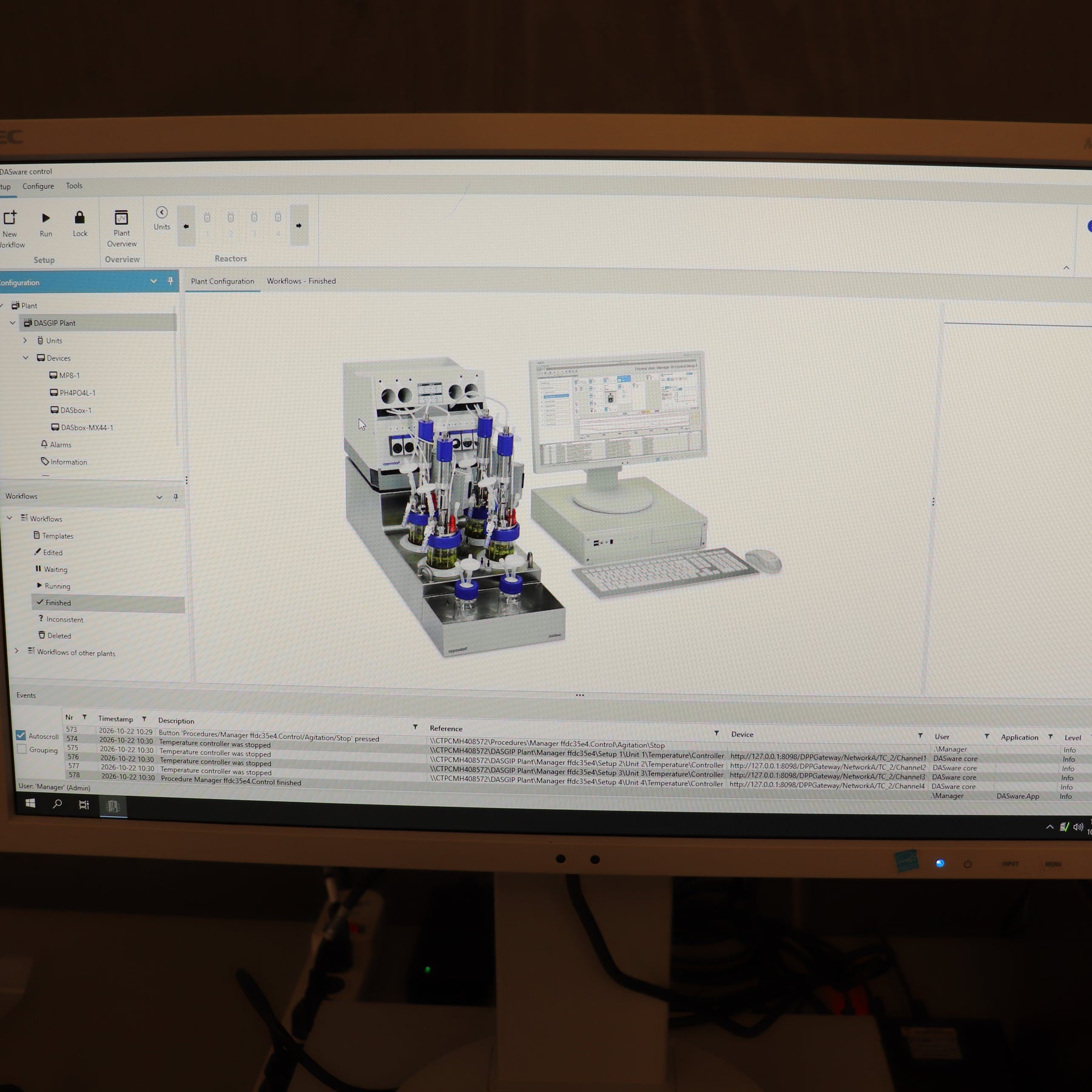

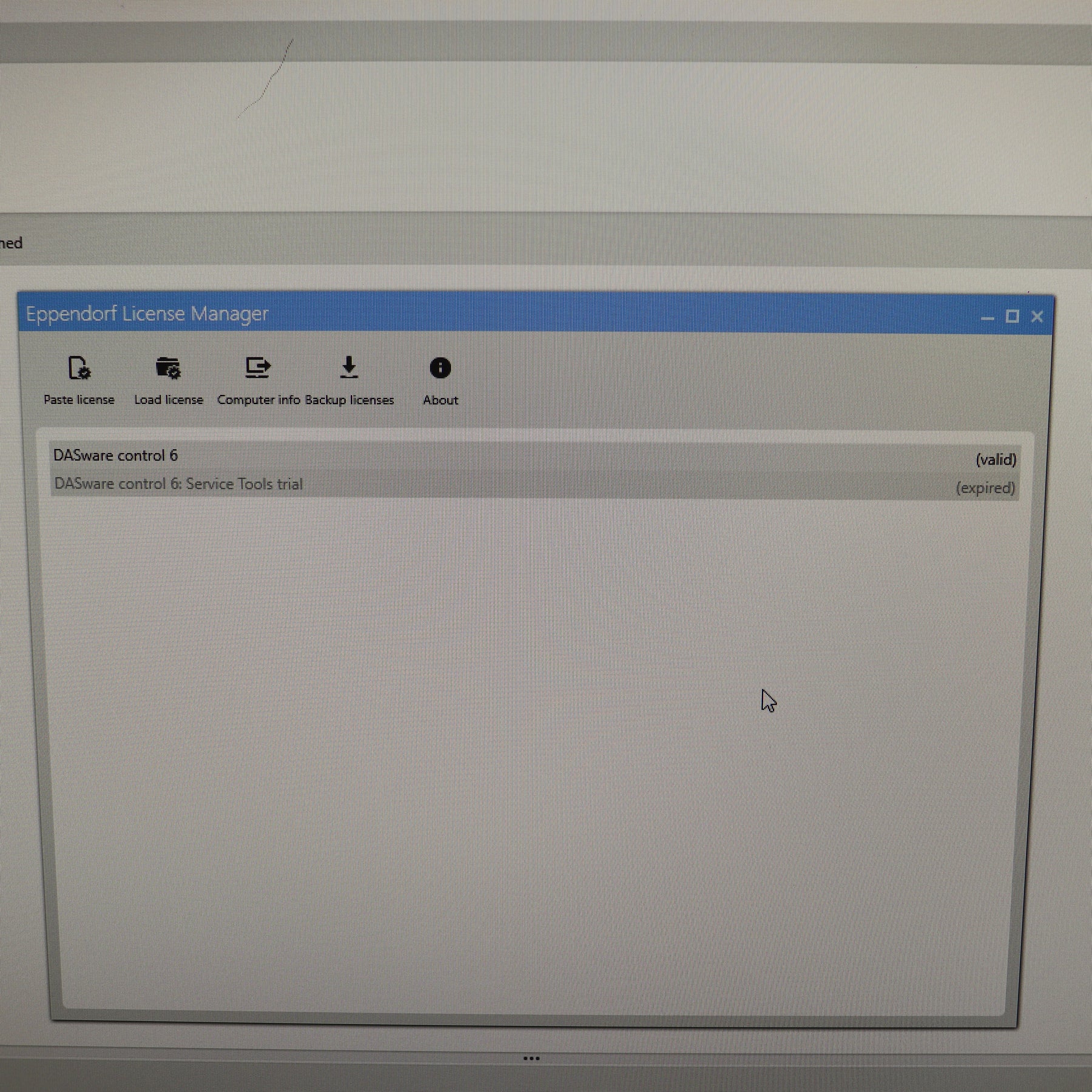

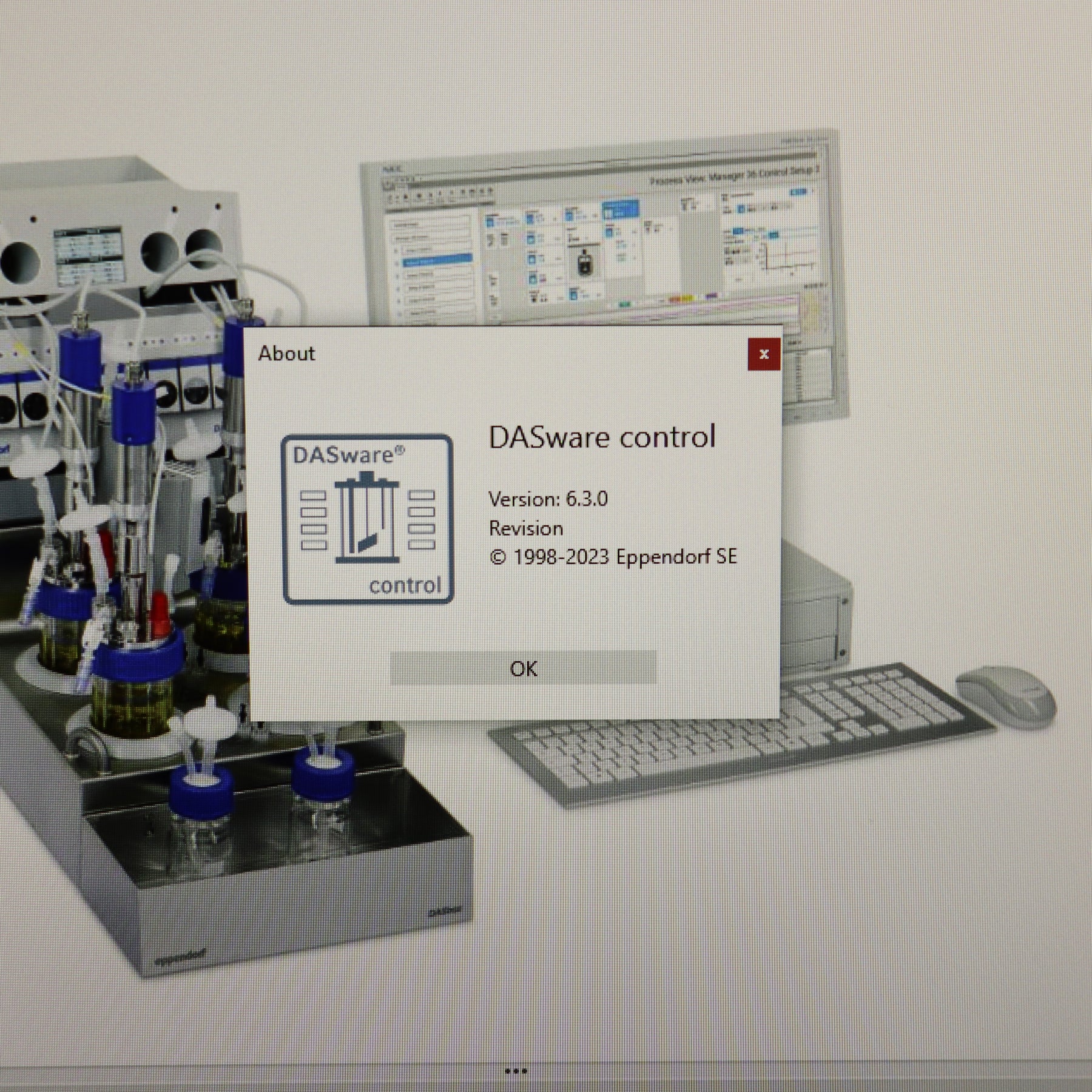

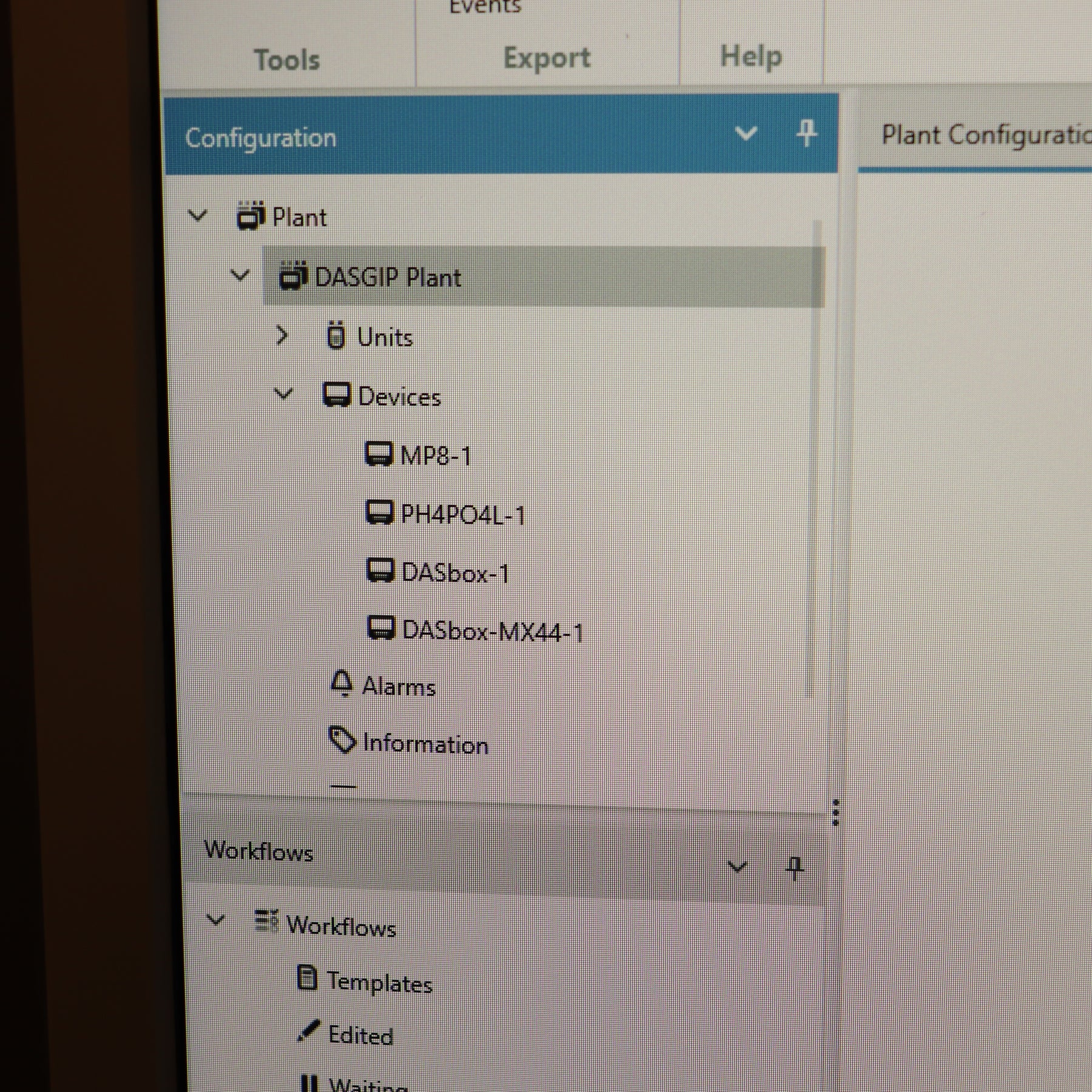

Module connections will come with labels on I/O ports and cables to help facilitate wiring for simple installation.  v6 Win 10 Process PC has a DASWare Control 6.3 configured for a 4-fold DASbox multi -use autoclavable or single-use system. Setup process, including initial calibration procedure is detailed in the manuals.

Included Components

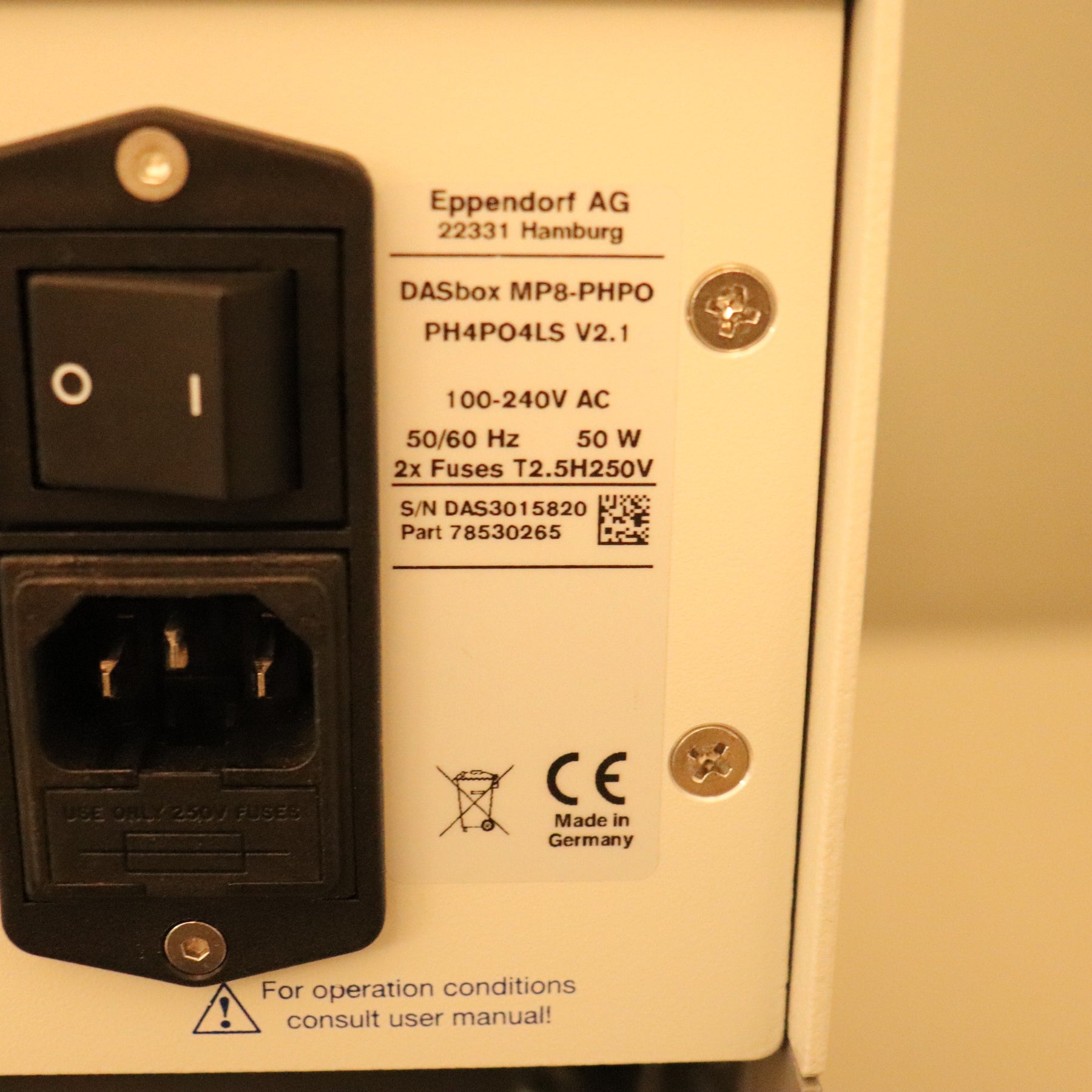

• MP8-PHPO PH4PO4LS v2.1

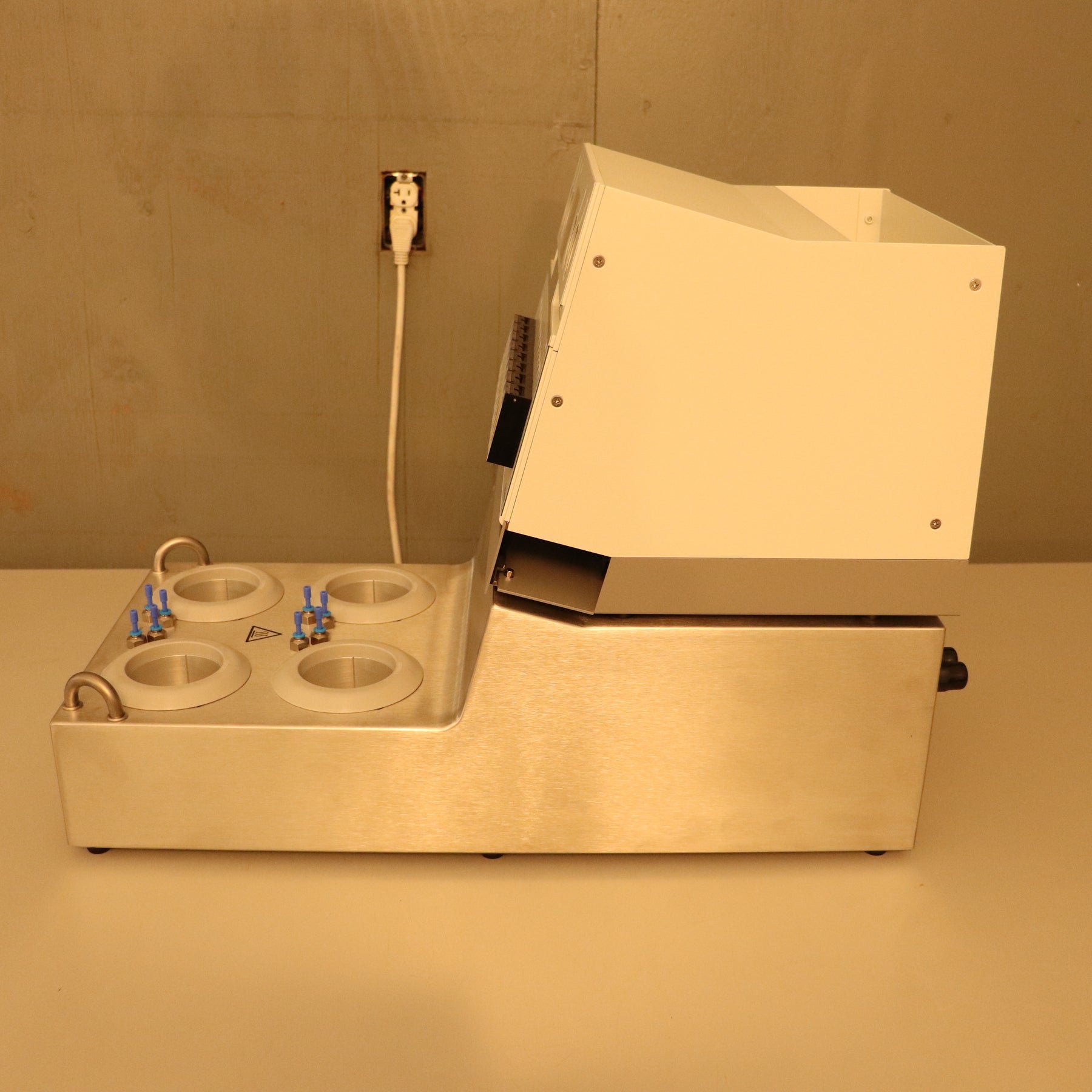

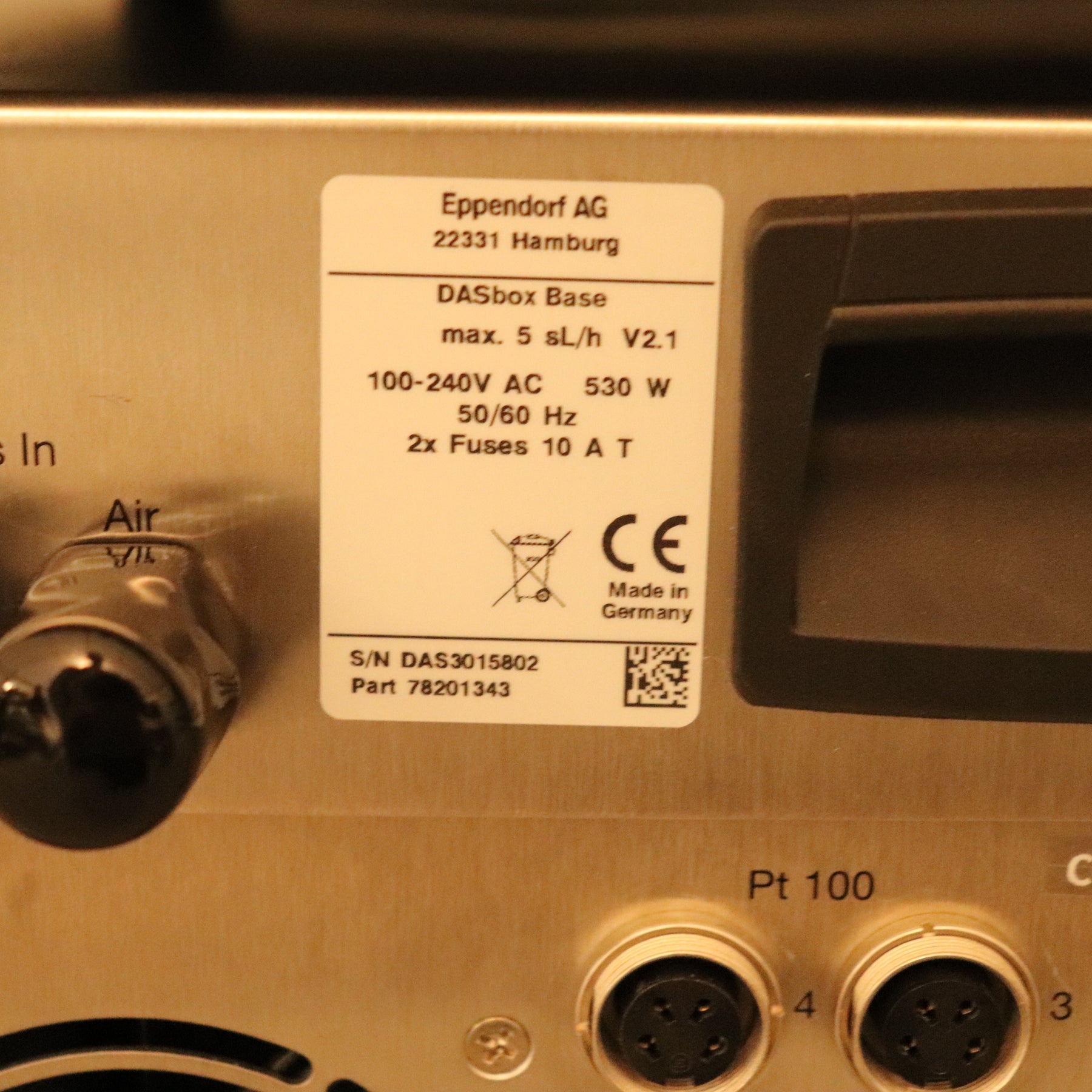

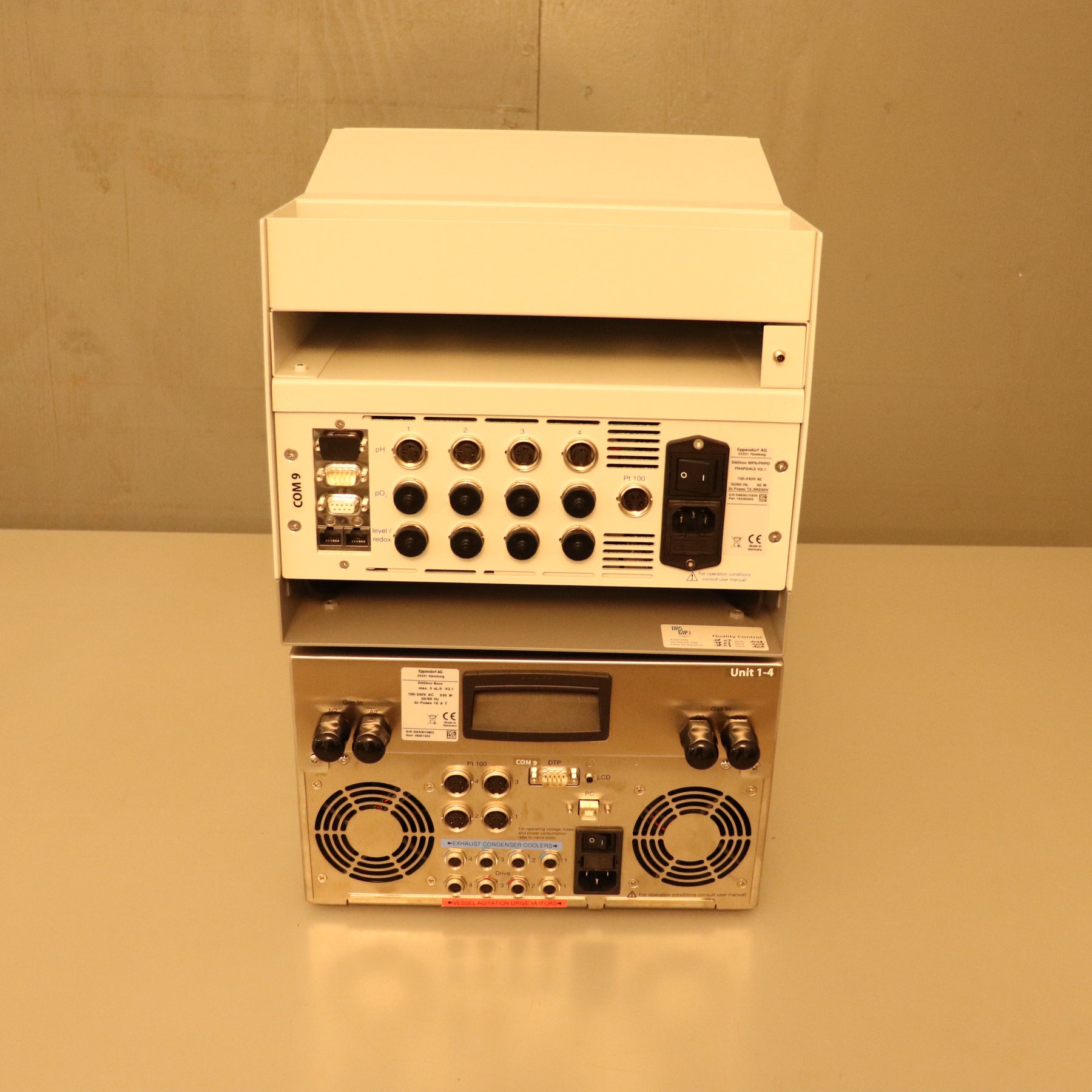

• DASbox base v2.1
  • 5 sL/h max

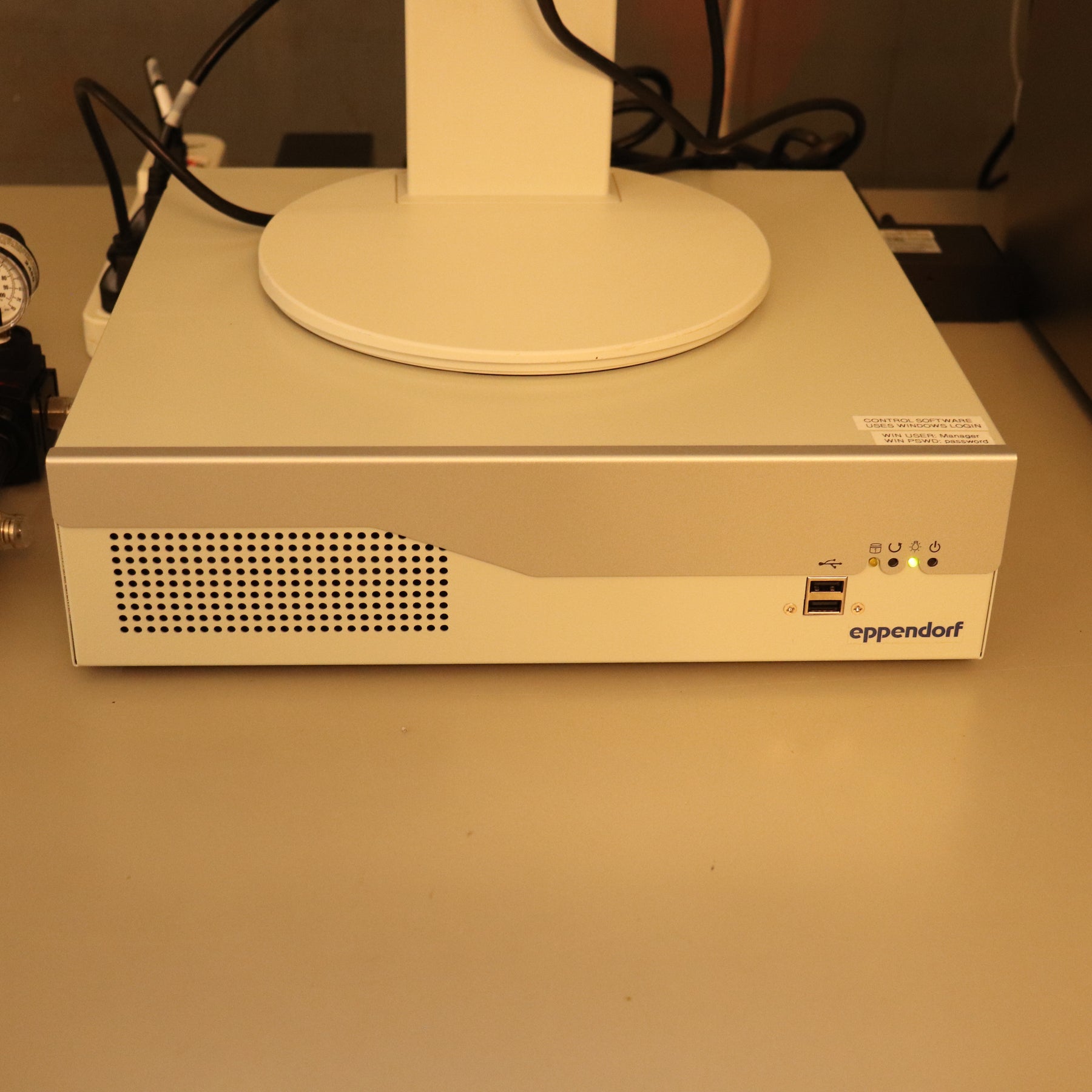

• Win 10 v6.0 process control pc confugred for 4-fold multi-use or single-useDASbox system.  DASWare Control v6.3

• Monitor, mouse, keyboard

Vessels

Included Vessels:

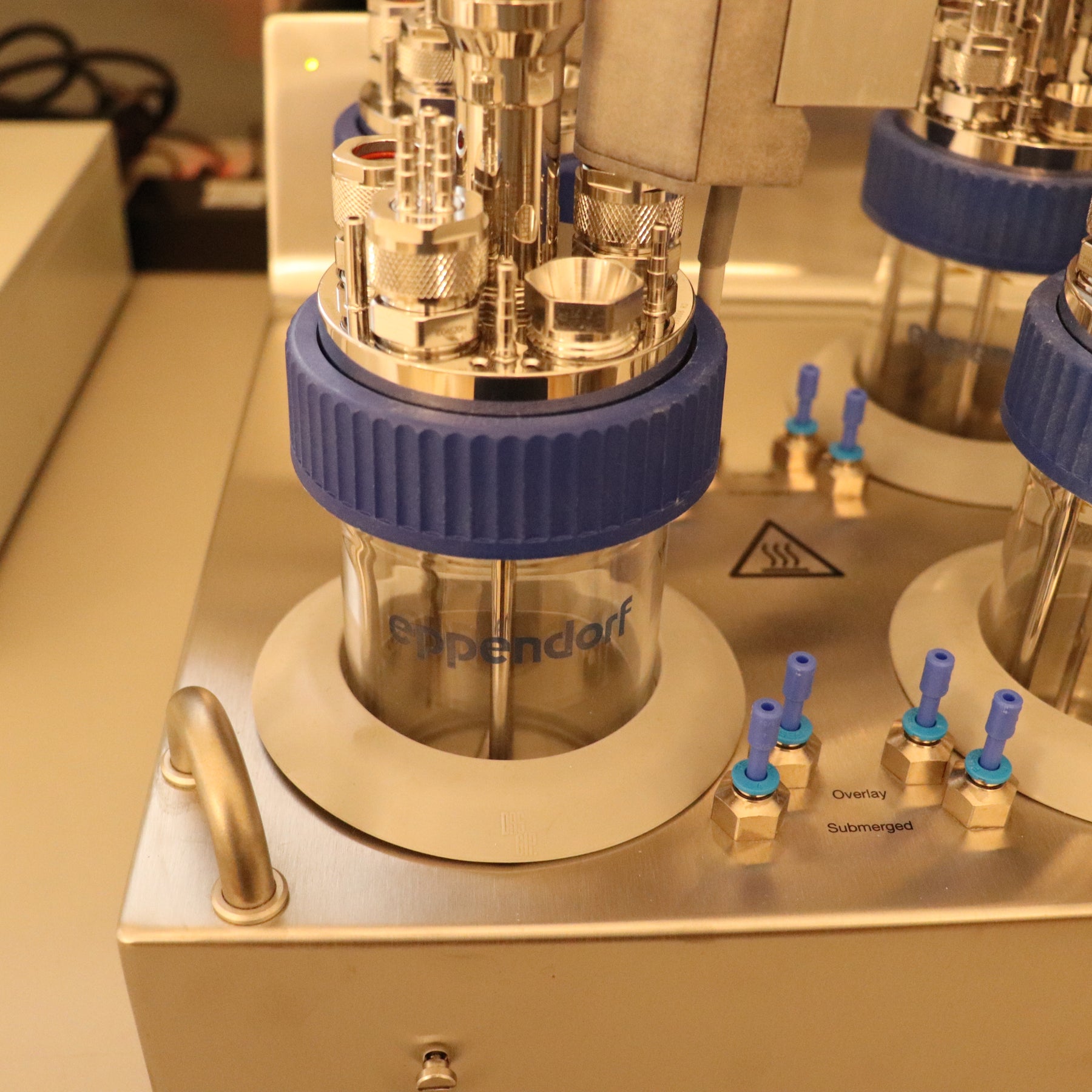

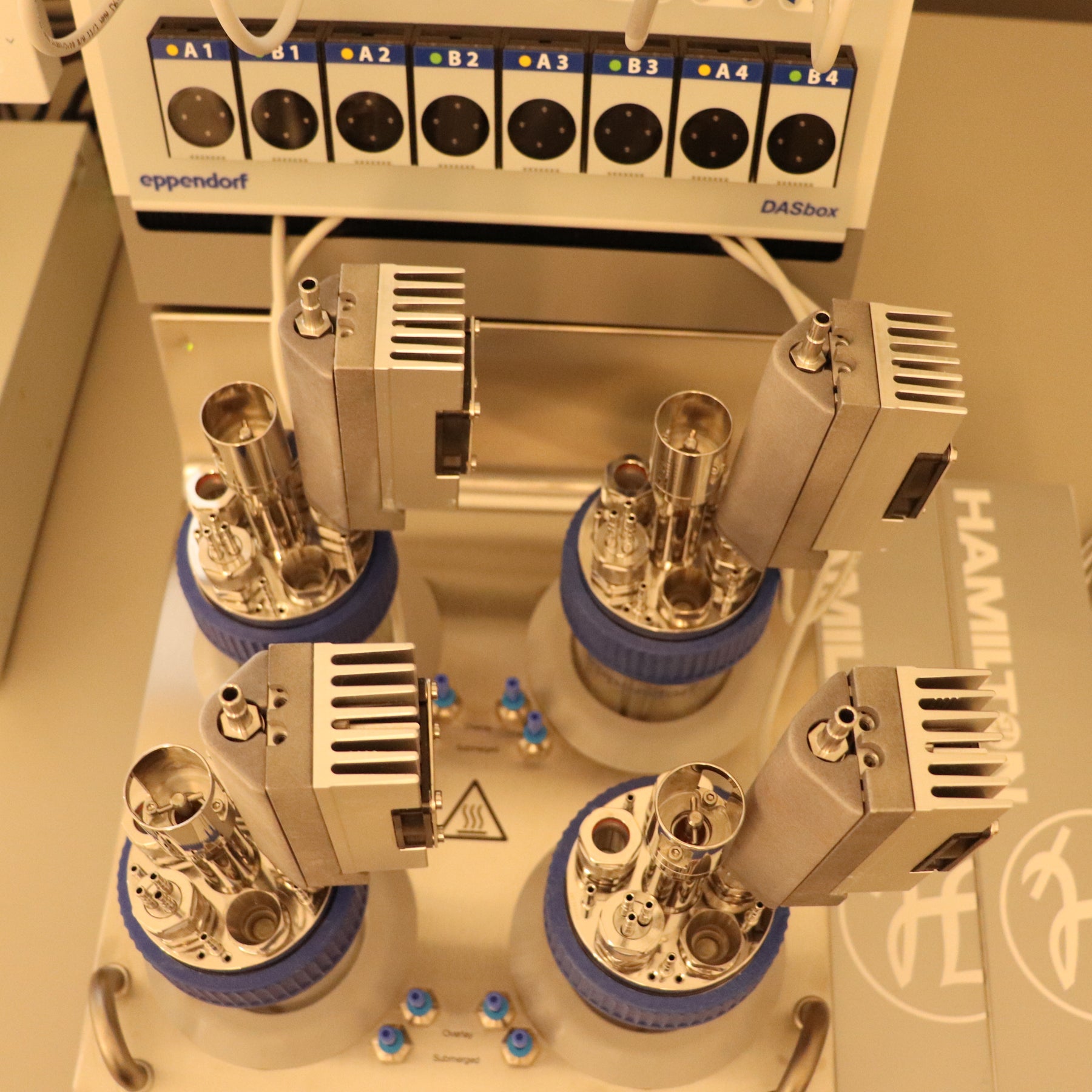

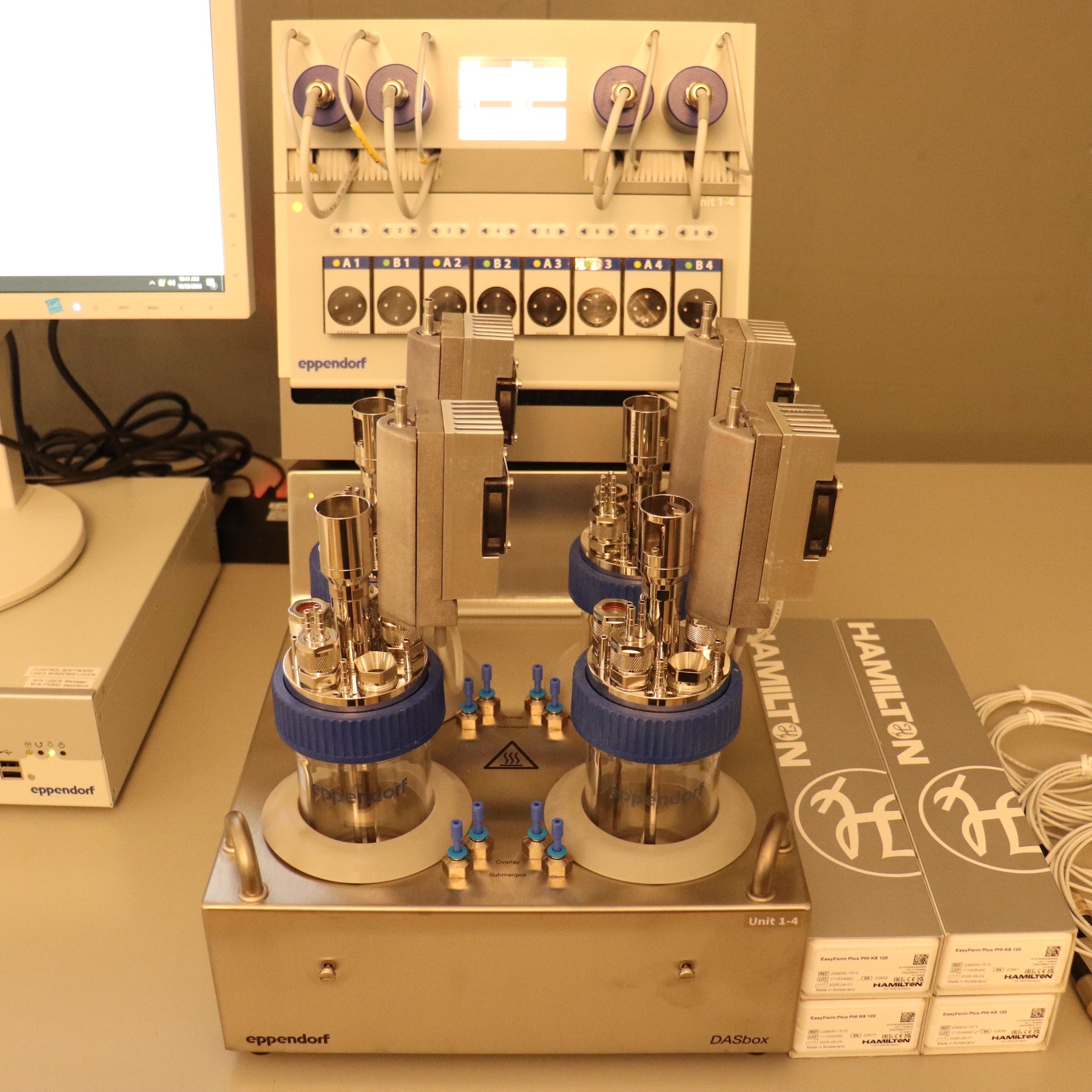

• (4x) Multi-use Glass 0.3L Vessels
  • • pn: 76SR0250ODLS
  • (4x) Glass Vessel
    • pn: 78903227
  • (4x) Blue Screw Cap, 80mm
    • pn: 78903226
  • (4x) Headplate
    • pn: 78107301
  • (4x) Triple Port w/3x 4x85mm Tubing
    • pn: 78706414
  • (4x) PG13.5 Threaded ID12mm Compression Fitting
    • pn: 78532284
  • (4x) PG13.5 Threaded ID4mm Compression Fitting
    •  pn: 78532282
  • (4x) L-Sparger, L180mm
    • pn: 77102052
  • (4x) PG13.5 Threaded ID 12mm Septum Holder Fitting
    • pn: 77102006
  • (4x) Drive Shaft, direct drive, L120mm
    • pn: 78525123
  • (4x) Pitched Blade Impeller
    • 3-blade, 30° pitch, stainless steel, 5mm
    • pn: 78107325

Included Sensors

pH Sensors

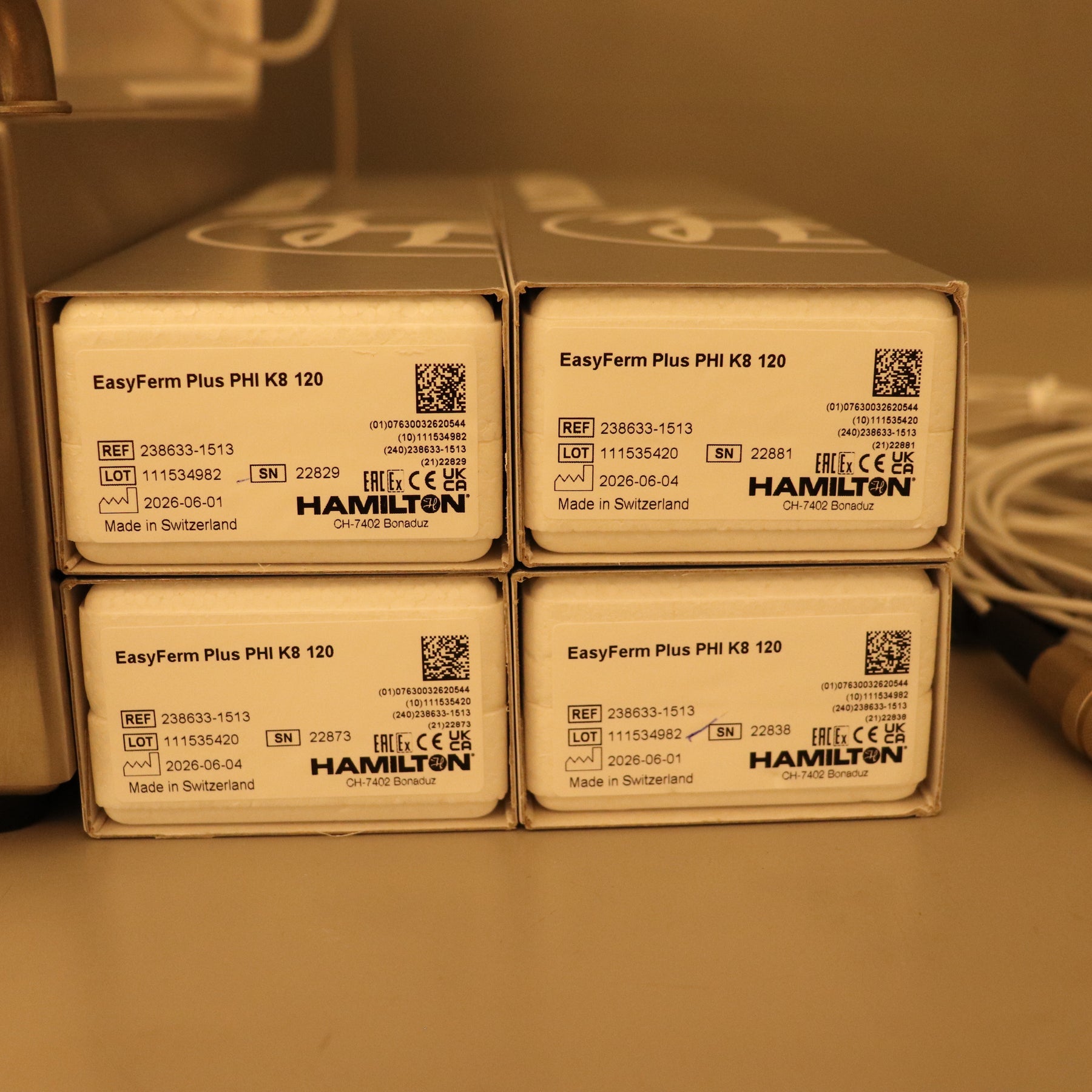

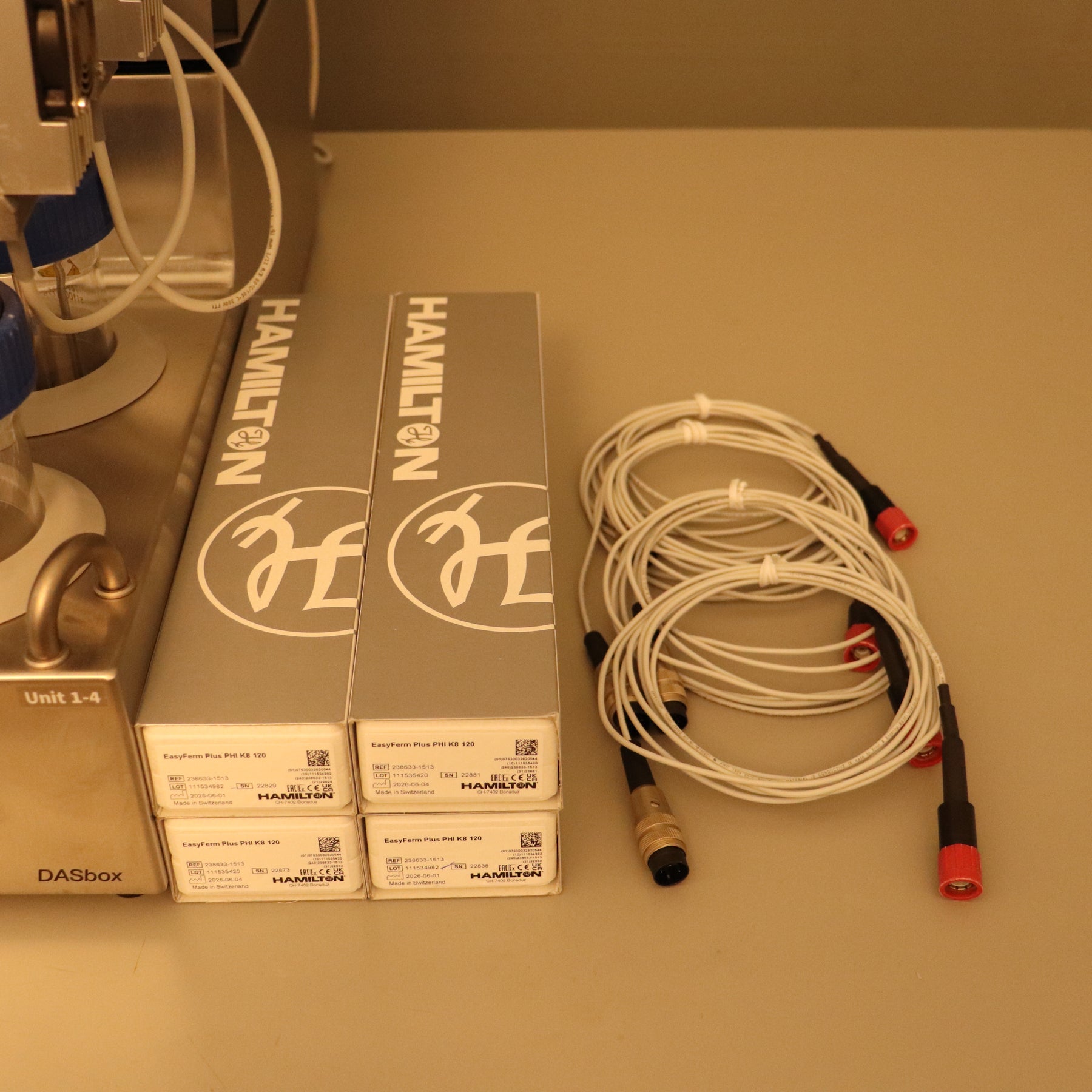

• (8x) Hamilton pH Sensor EasyFerm Plus PHI K8 120 w/K8 Connector
  • pn: 78103205

• (8x) Eppendorf pH Sensor Cables 78100251, w/AK9 Connector
  • pn: 78522020

Temp Sensors

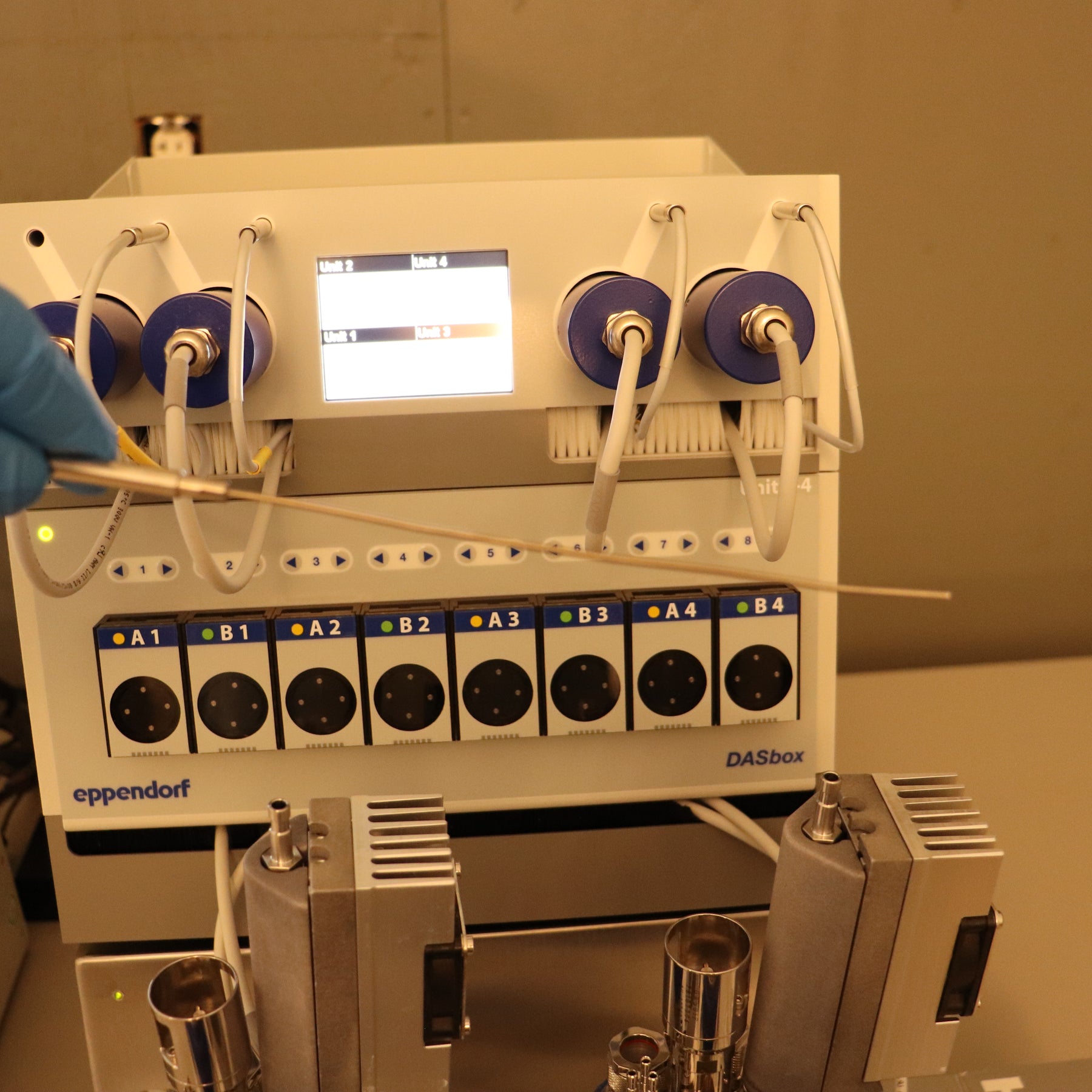

• (10x) Platinum RTD Temp Sensor, 150mm w/ Attached 1.8m Cable
  • pn: 78103314


Included Accessories

• (4x) Actuator Unit for Peltier Exhaust Condenser w/ Attached 1.6m Cable
  • pn: 78201321
• (4x) Exhaust Condenser Adapter w/ Insulator for 0.3L Vessels
  • pn: 78201323

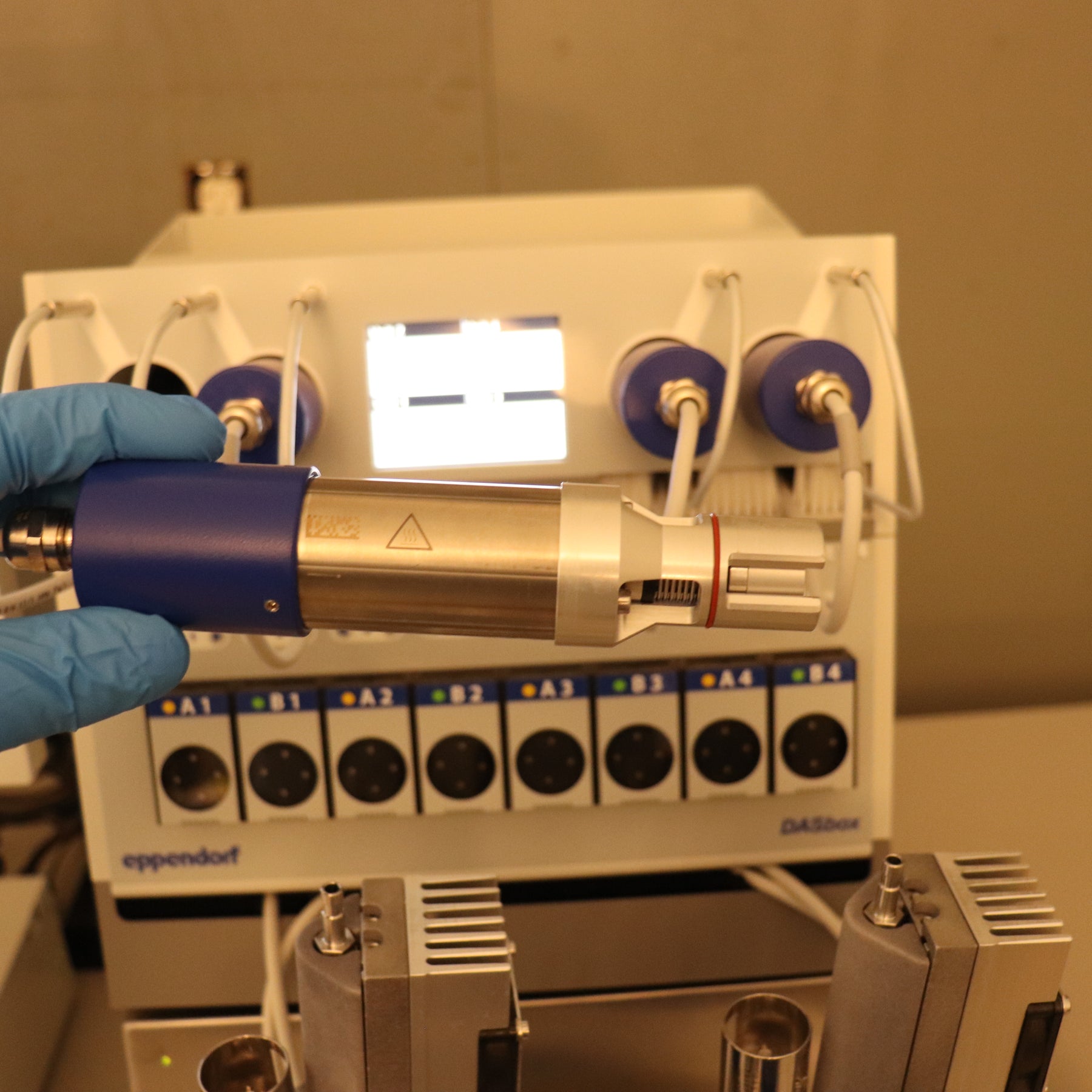

• (4x) Direct Overhead Drives w/ Attached 1.6m Cables
  • pn: 78515185
• (4x) Inline filter (78704188)

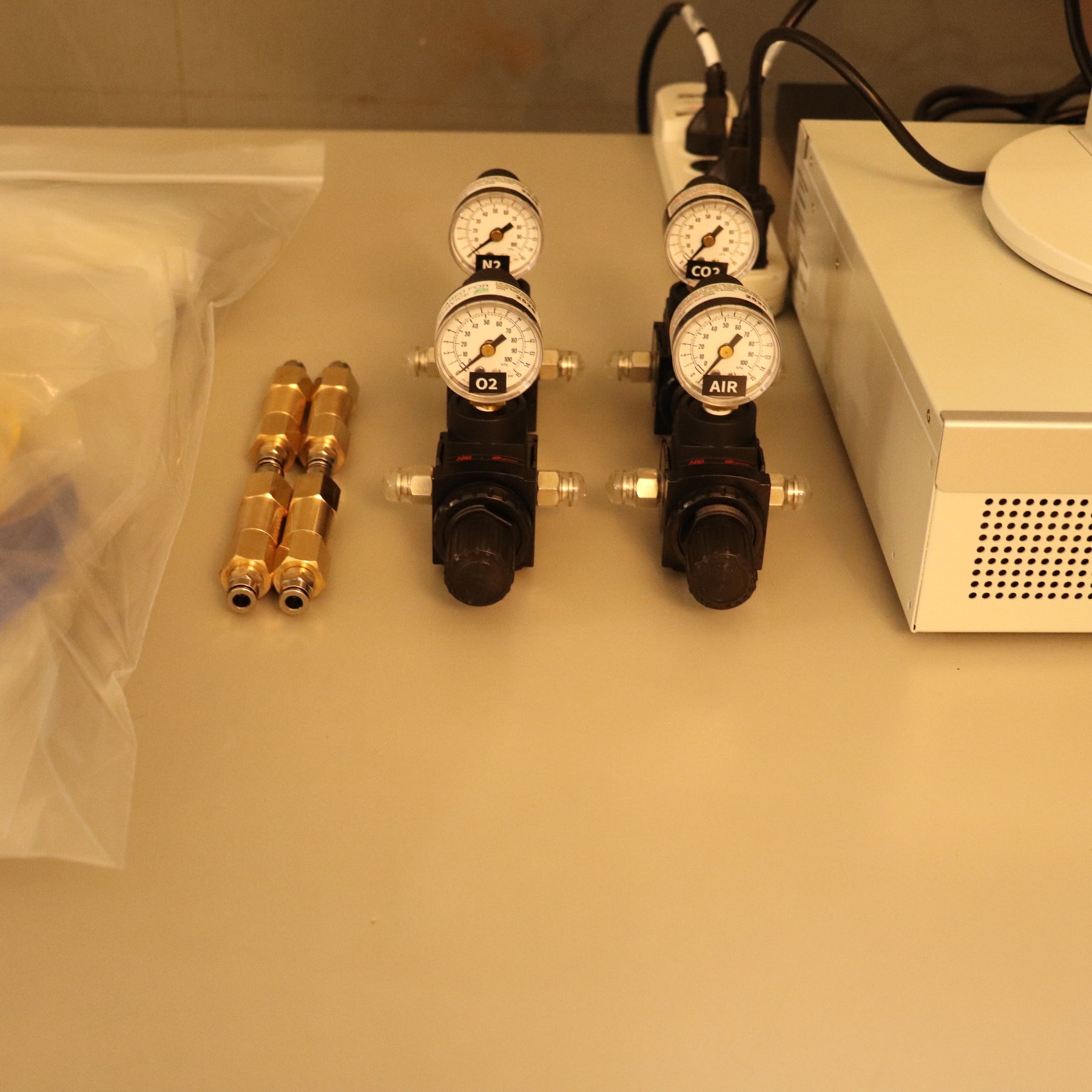

  • (4x) gauges

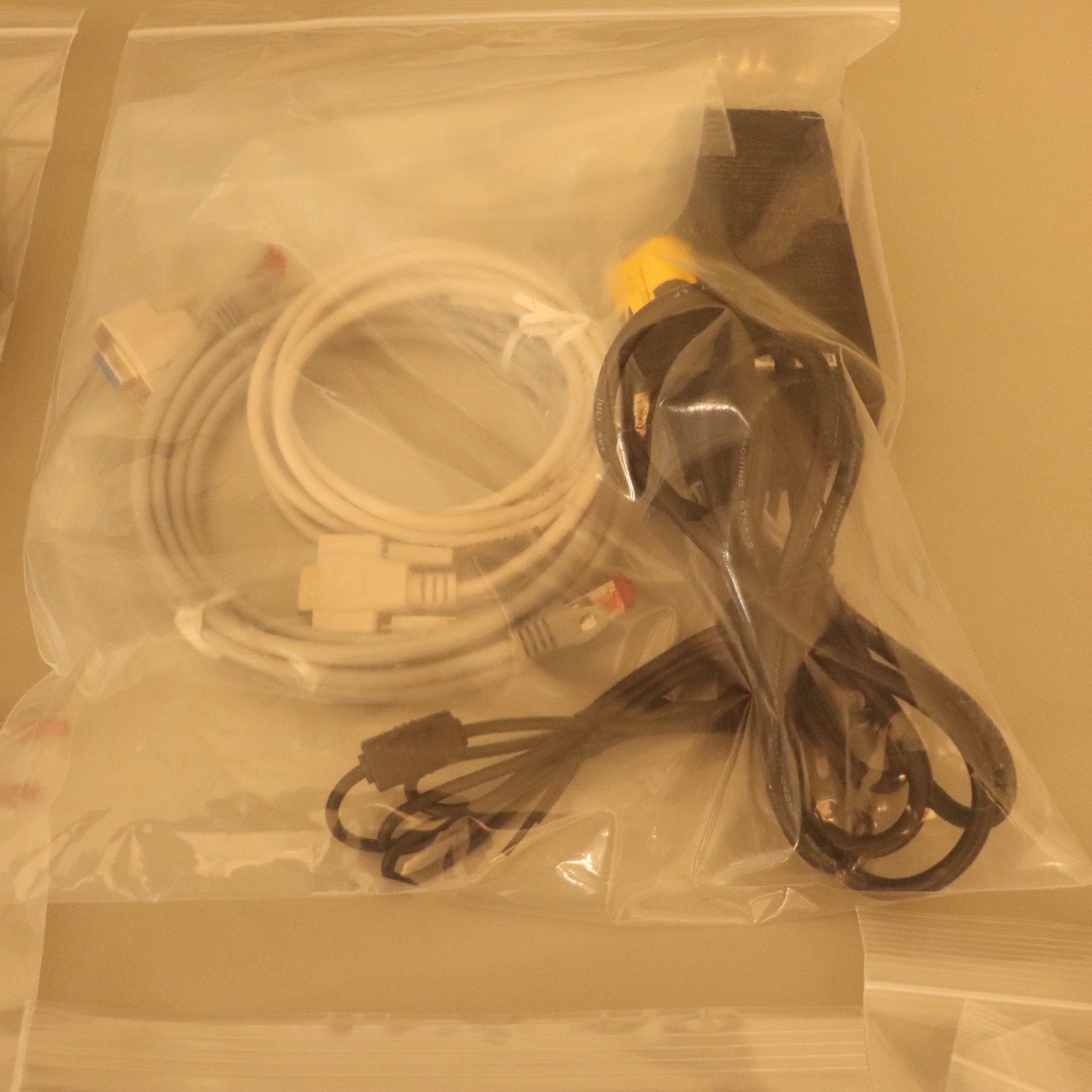

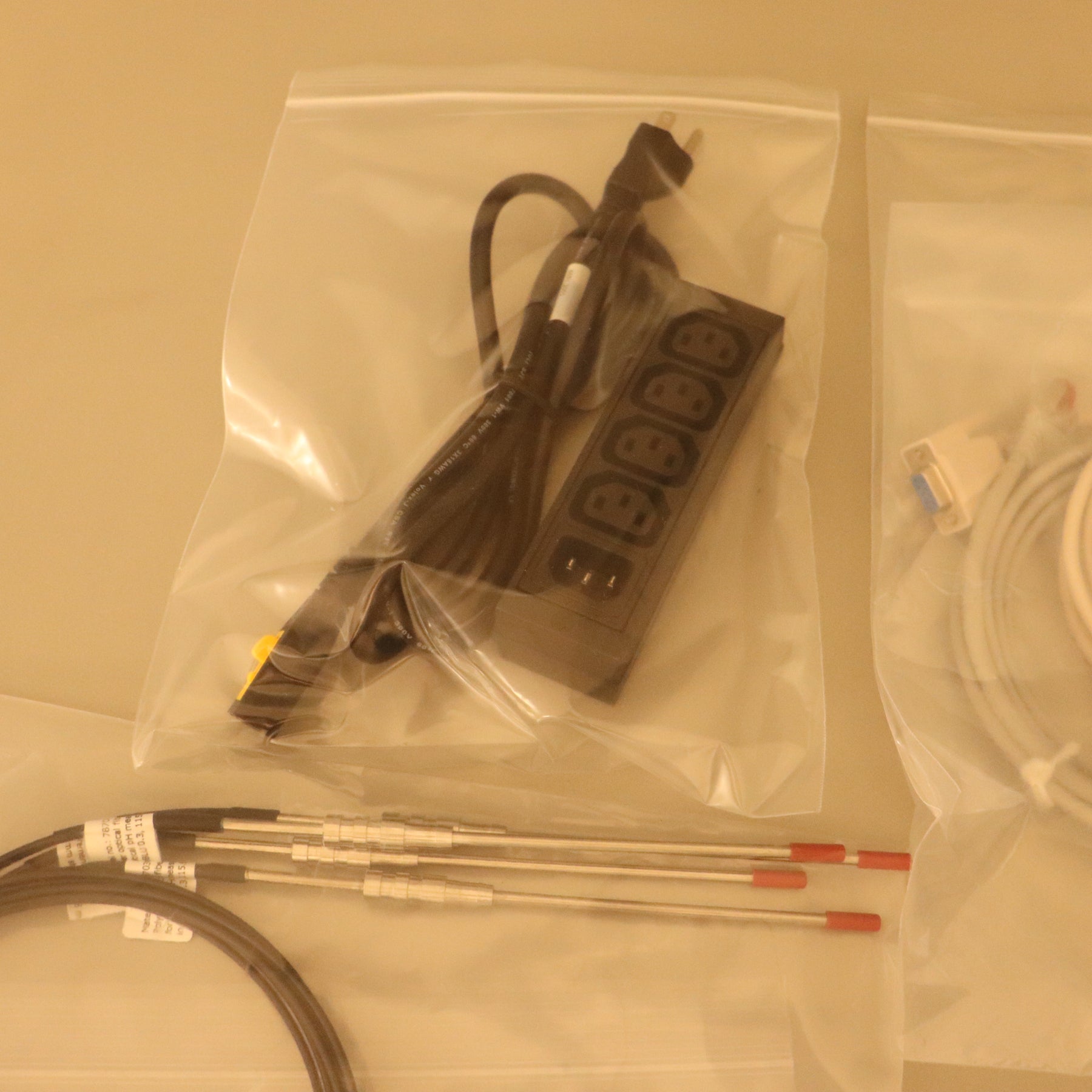

• Power and data cables

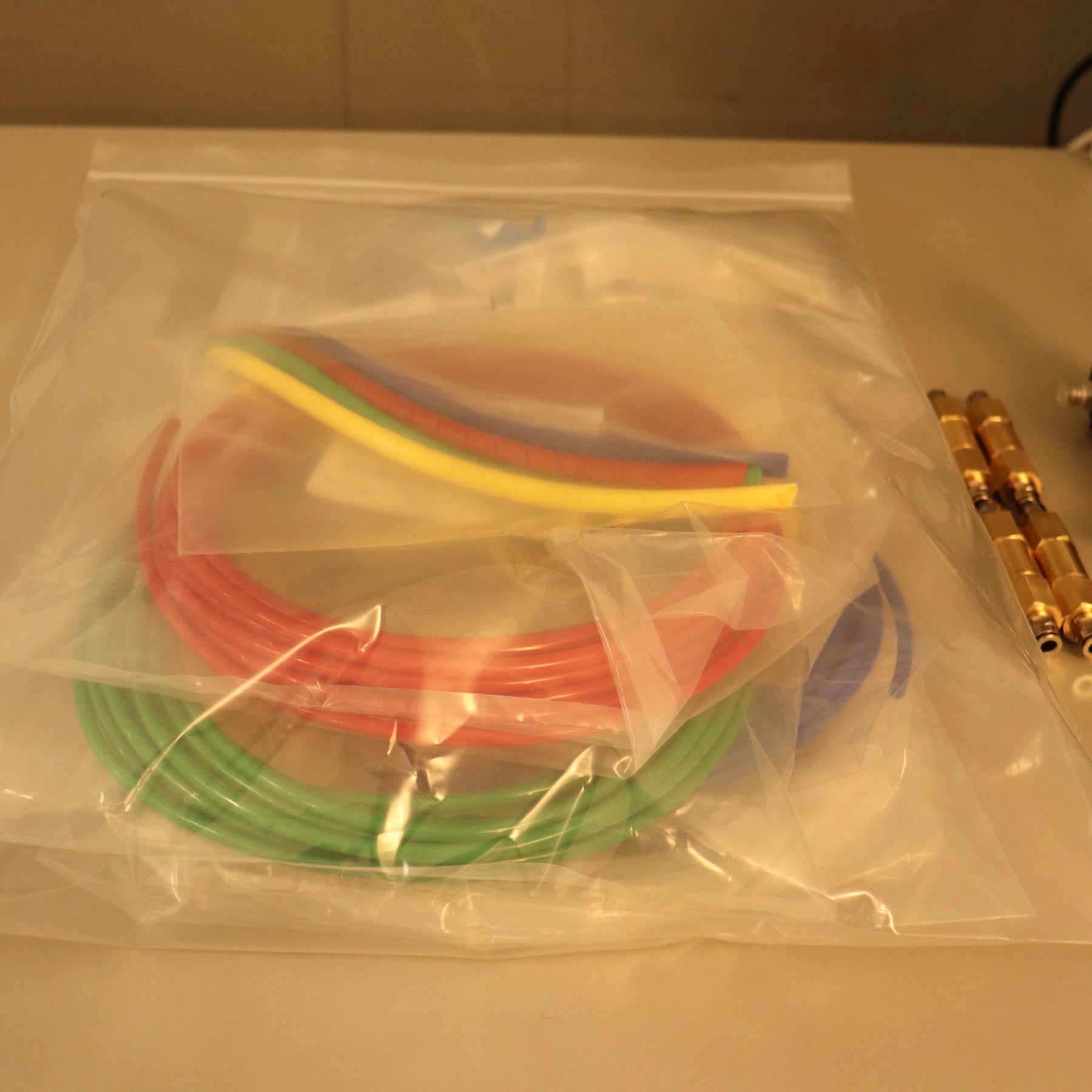

• Gas Tubing
  • From the Dasbox block the the regulators

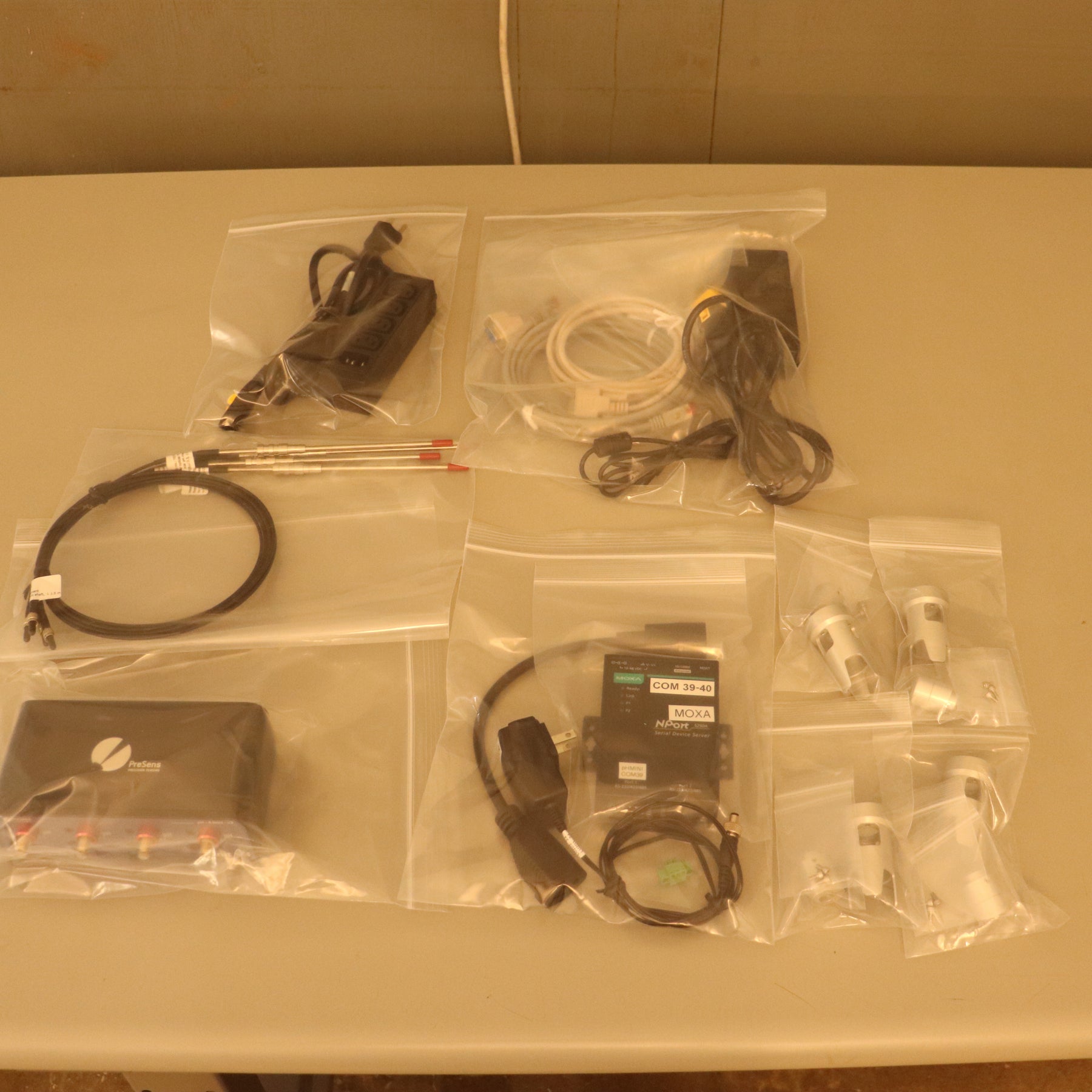

Single-use accessories

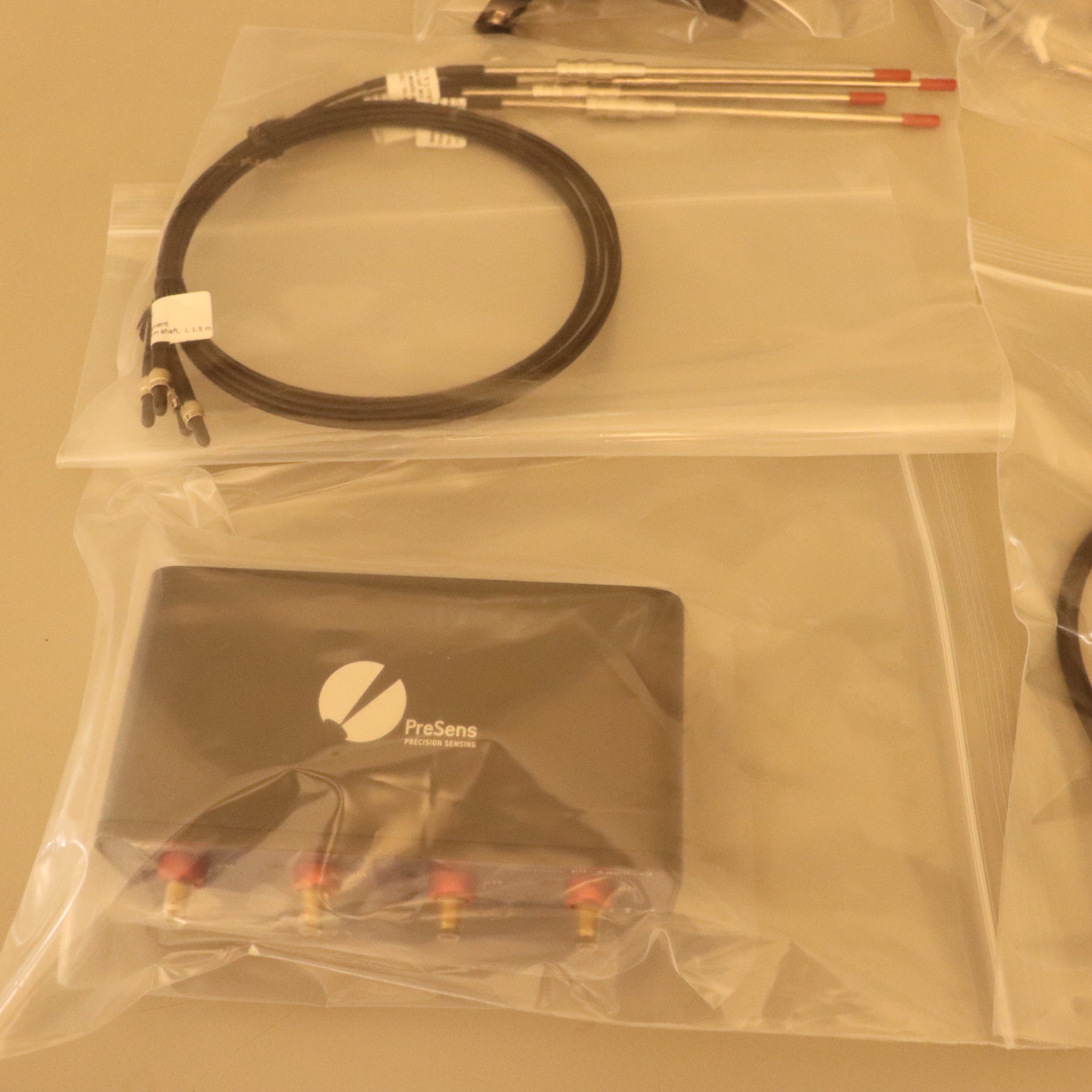

• Presens optical pH module pH-4 mini v3

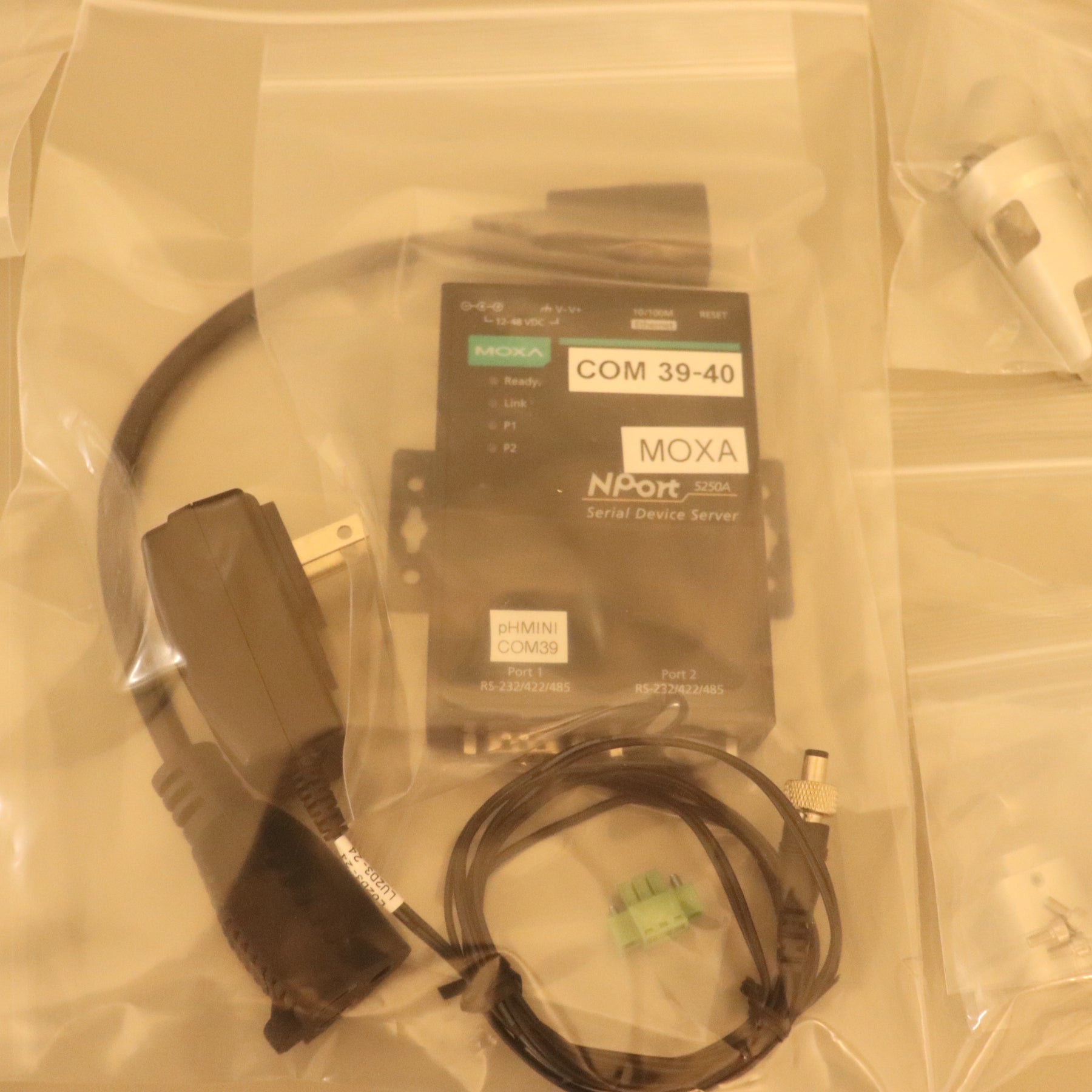

  • Moxa NPort 5250A
  • 7-Port USb hub EX-1177HMVS
  • (4x) Optical pH sensors for 0.3L SU vessels (78703030)
    • 115.5mm Shaft

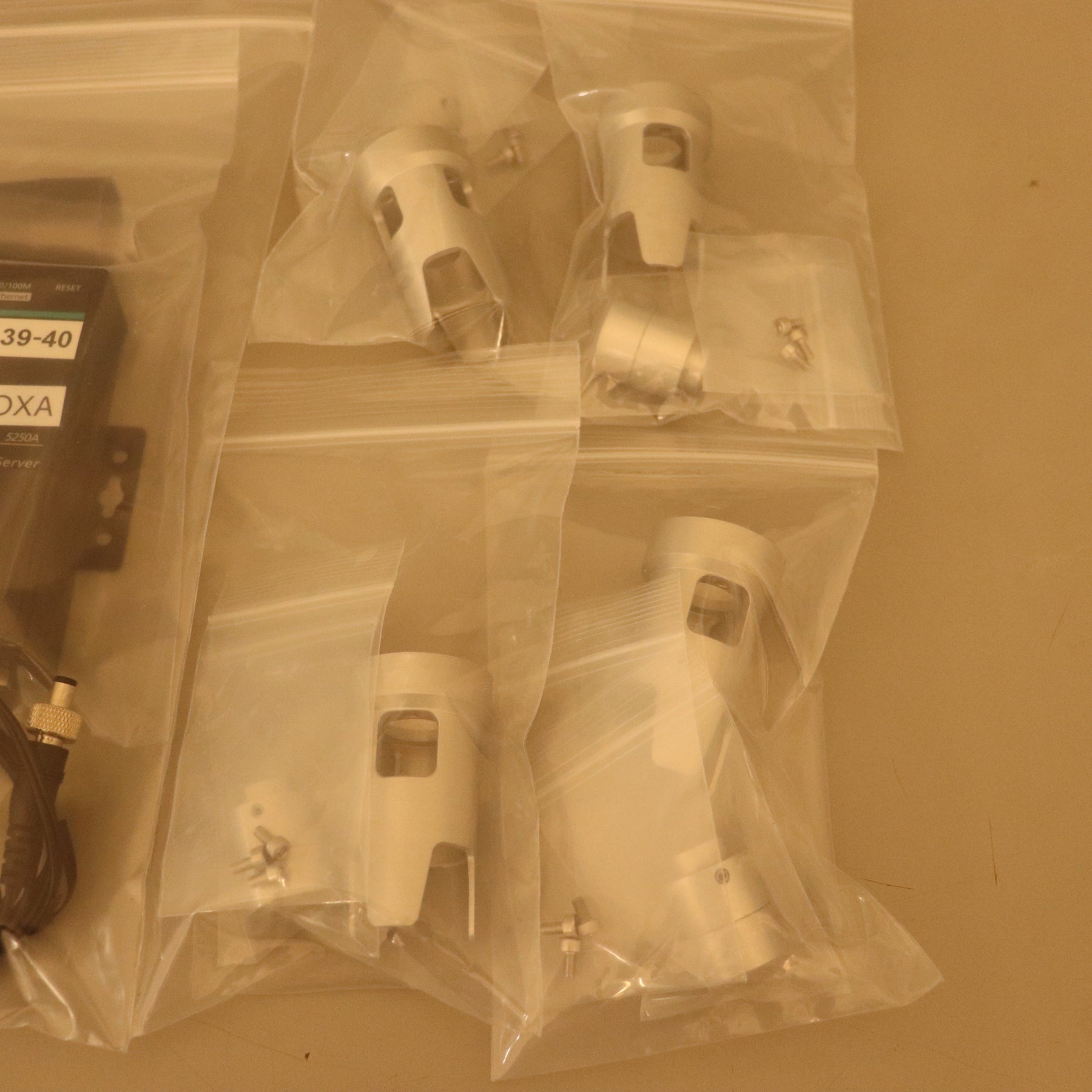

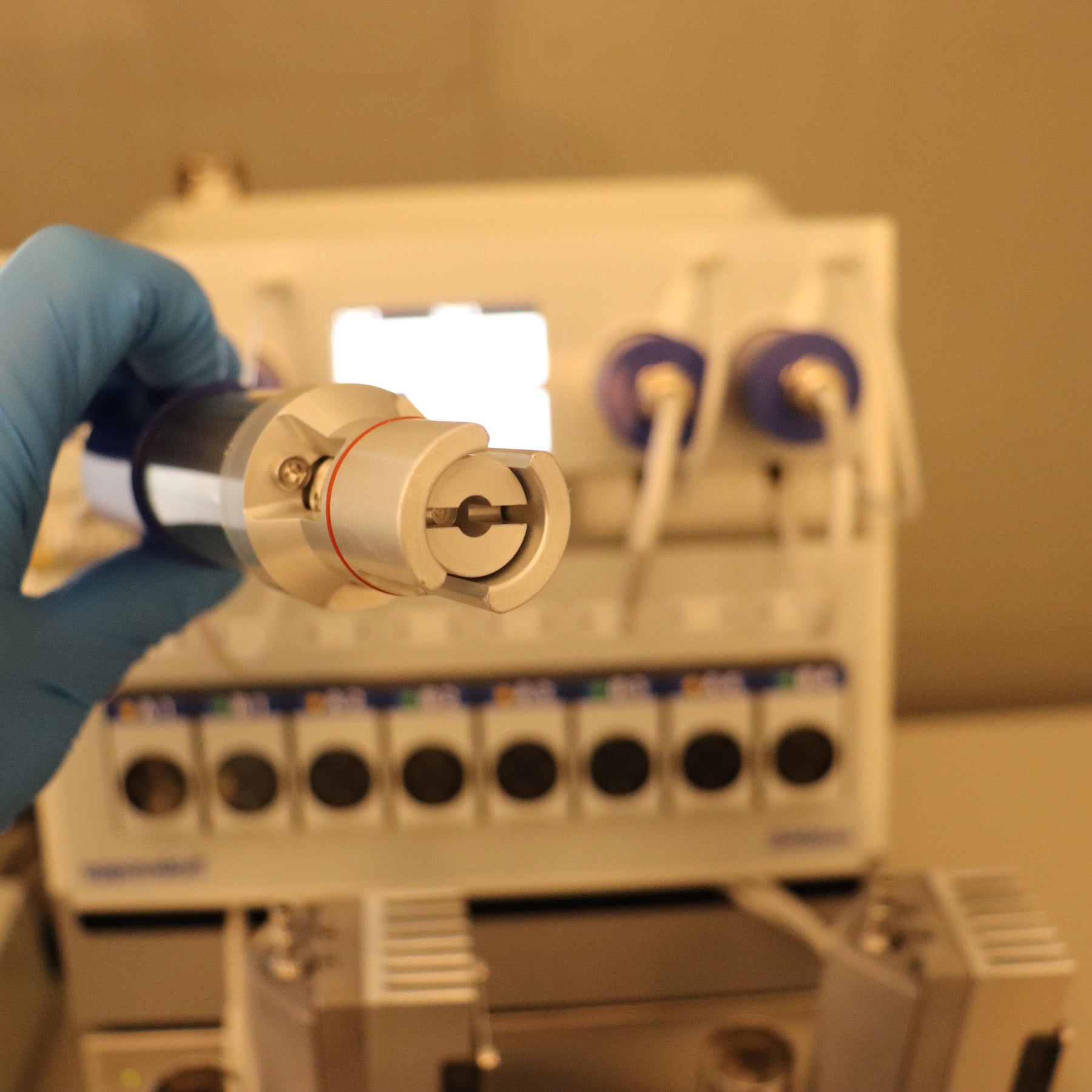

  • (4x) Magnetic drive adapters with couplers

Description:

The Eppendorf DASbox Mini Bioreactor System is built for small-volume process development where control, speed, and reproducibility matter. Designed as a parallel bioreactor platform, the DASbox allows users to run multiple experiments side by side while maintaining precise control over key process parameters. Eppendorf positions the system for research and development in small working volumes, with support for both cell culture and microbial applications, making it a strong fit for screening studies, process optimization, Design of Experiments work, and scale-down modeling.

This configuration is especially well suited for cell culture labs that want the efficiency of parallel development without the footprint of a larger bench-scale system. The installed setup includes a 4-fold DASbox base, single-use 0.3 L vessel compatibility, magnetic overhead drive, peltier-based liquid-free heating and cooling, optical pH capability, and a Windows 10 process computer with DASWare Control 6.3. In this format, the system offers a compact way to compare media, gassing conditions, agitation settings, and other process variables across multiple runs while conserving cell material and media volume.

A major advantage of the DASbox platform is flexibility. The system can be operated with reusable glass or BioBLU single-use bioreactors and highlights easy conversion between the two formats. For labs that need a compact development system today but want room to adapt workflows later, that flexibility is one of the platform’s biggest strengths.
