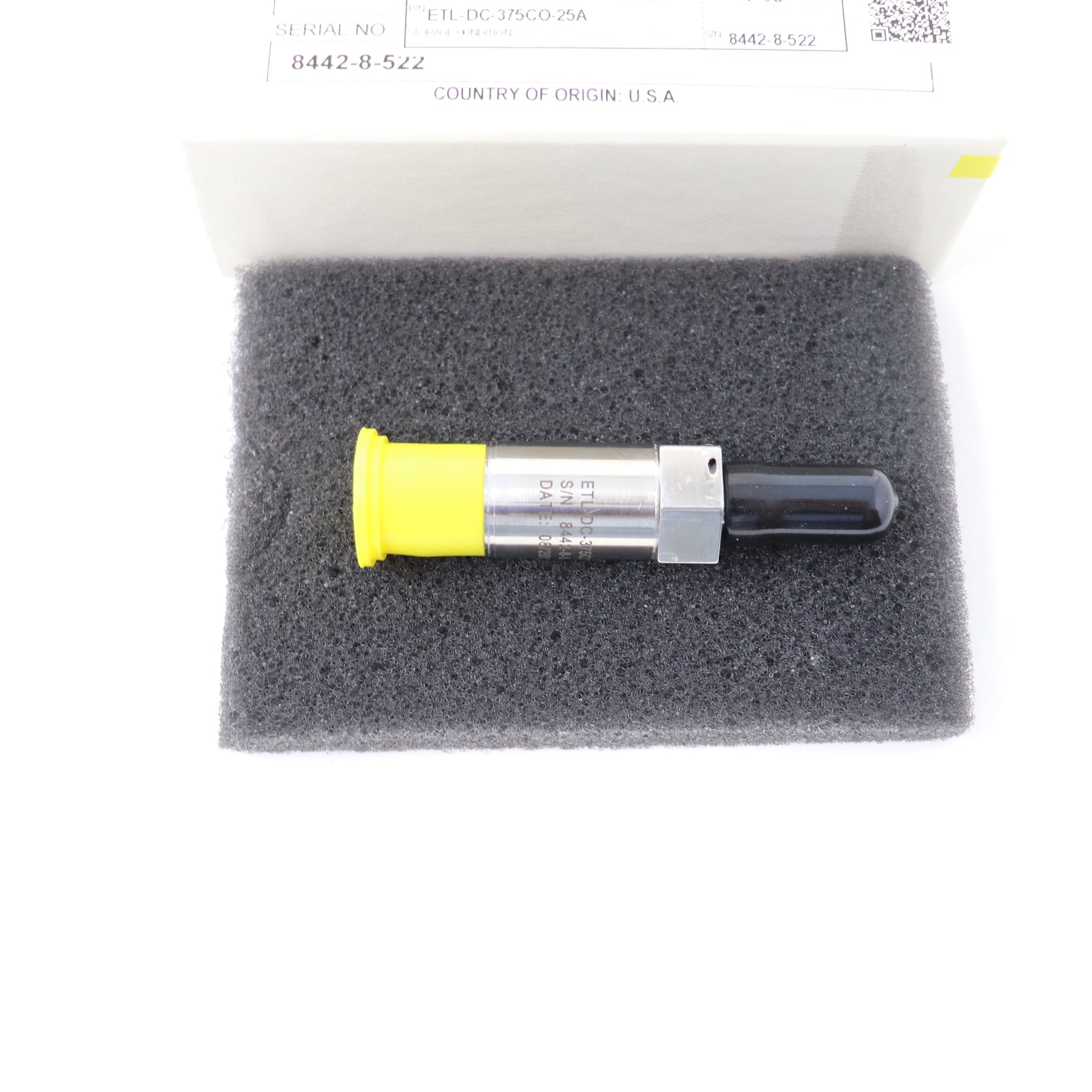

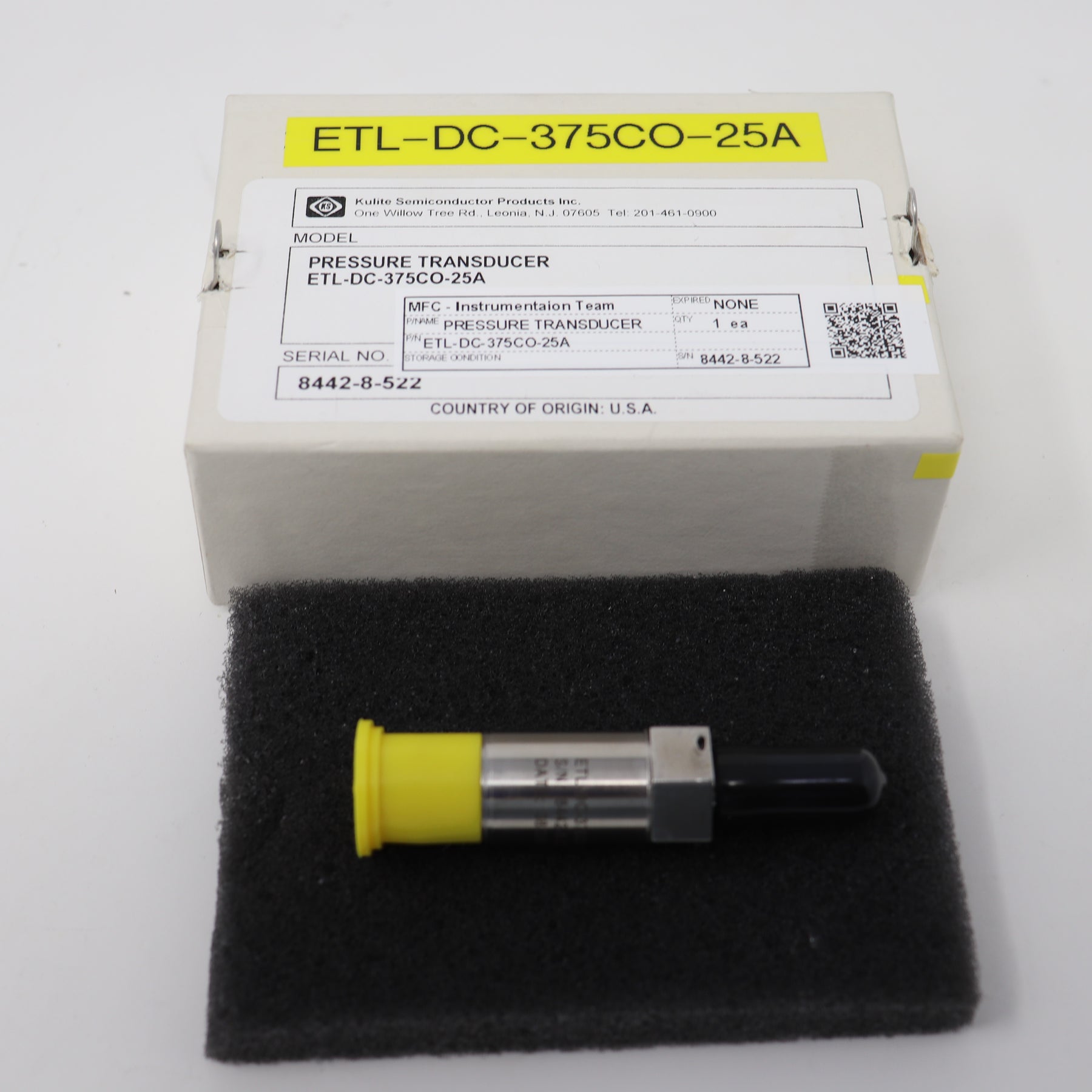

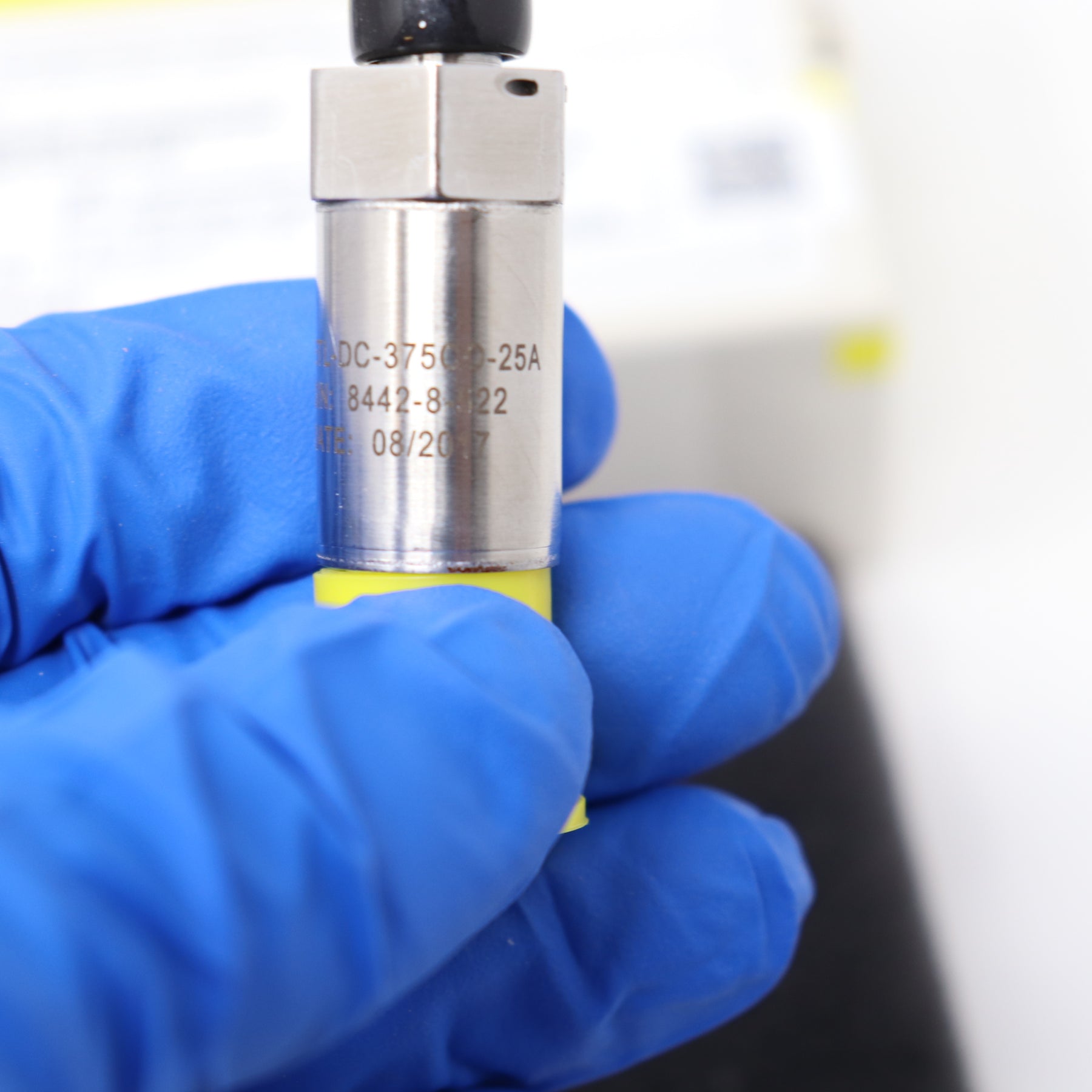

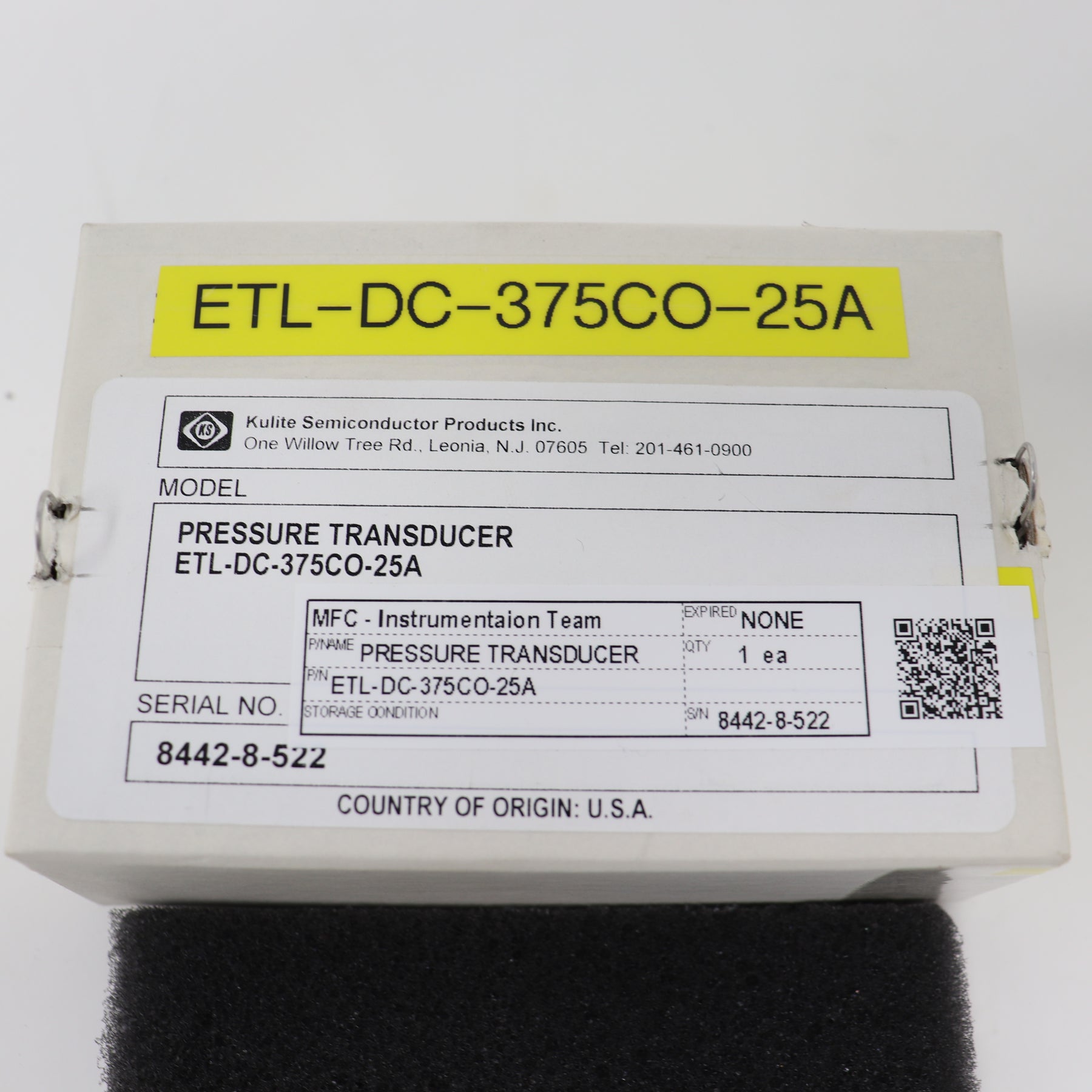

KULITE 5 VDC OUTPUT PRESSURE TRANSDUCER ETL-DC-375CO-25A

KULITE 5 VDC OUTPUT PRESSURE TRANSDUCER SENSOR

PN: ETL-DC-375CO-25A

Condition: Used, tested in working condition. MFG 2017

• Operational Mode: Absolute
• Pressure Range: 25PSI, 1.7BAR
• Output: 5 VDC Output
• Hybrid Microelectronic Regulator-Amplifier
• Patented Leadless Technology VIS®
• All Welded Construction
• Secondary Containment On Absolute And Sealed Gage Units
• Aerospace Quality Components
• Connector: 3/8-24 UNJF
• Connection: 4 Wire (ETL-375)

Description:

ETL-375 Series transducers are miniature, threaded instruments. The sensing subassembly is protected from mechanical damage by a solid screen which has been shown to have minimal influence on the frequency response of the sensor. The ETL Series uses Kulite's Patented Leadless Technology.
