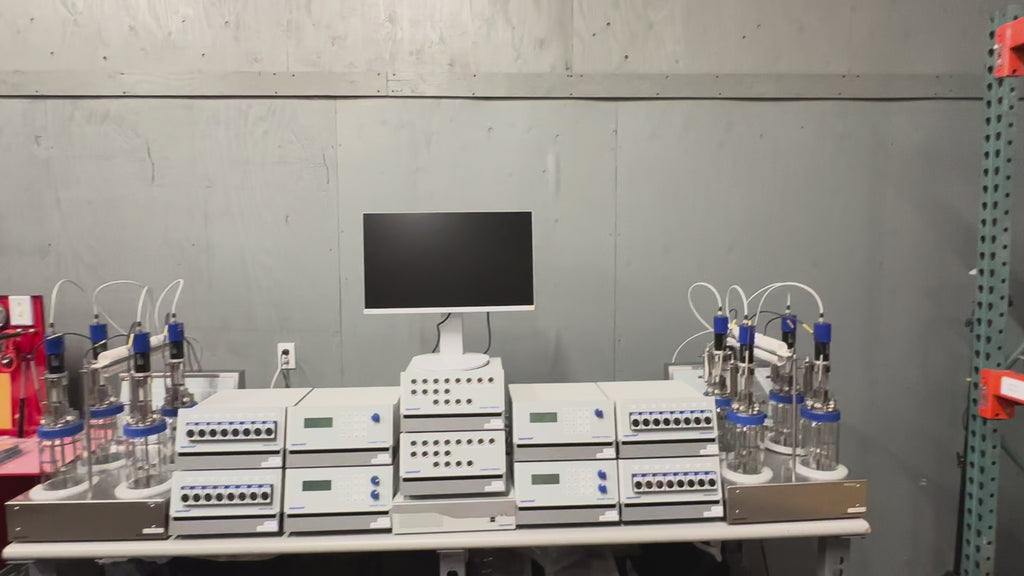

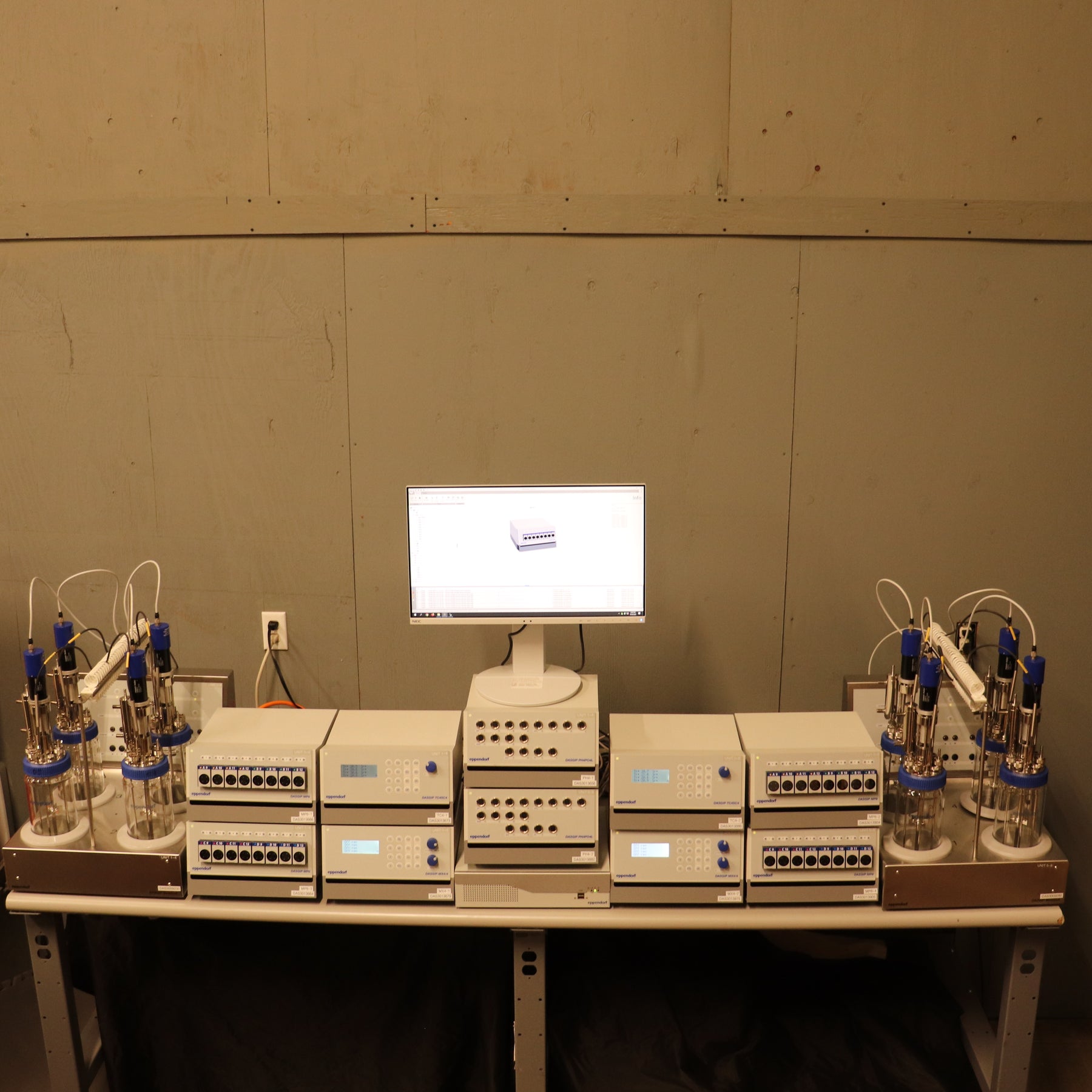

Eppendorf DASGIP 8-Fold Parallel Bioreactor System with Process Computer

Eppendorf DASGIP 8-Fold Parallel Bioreactor System with Process Computer

Mfg Year: 2021
Application: Microbio
Vessels: Glass Multi-Use
Number of Vessels: 8, 1.5L
Flow Rate: max 250sL/h

Specs:

• Vessel compatibility: Multi-Use, Single-Use
  • Included Size: 1.5L, Multi-Use glass
  • WV: 400mL-1.5L
  • Impeller: 2x Rushton
  • Exhaust Condenser: Yes
• Drive: Direct Drive
• MFC gas flow rate: Max 250 sL/h
• Gas mixing: Air, N2, O2 and/or CO2
• Temp control: Bioblock
• Temp range (at 25 °C room temp): 5 K above cooling agent temperature, Max temp 99°C

Condition: System is used, has been tested to be in very good working condition.  Modules will come with labels on DTP in/out ports and cables to help facilitate wiring the modules together.  v6 Win 10 Process PC has DASWare Control 5 (v5.6.4)Professional license for an 8-fold system. Setup process, including initial calibration procedure is detailed in the manuals. Digital manuals are available on the process PC.  System was throughly tested & cleaned. Vessels were disassembled, inspected, sanitized, and shaft bearings & o-rings were replaced where necessary.  All sensors were tested, and gave results within the expected range.  Modules were tested for all functions, ie: pumps, measurement, gassing, temp.  All modules were configured in DASWare, and functioned properly.

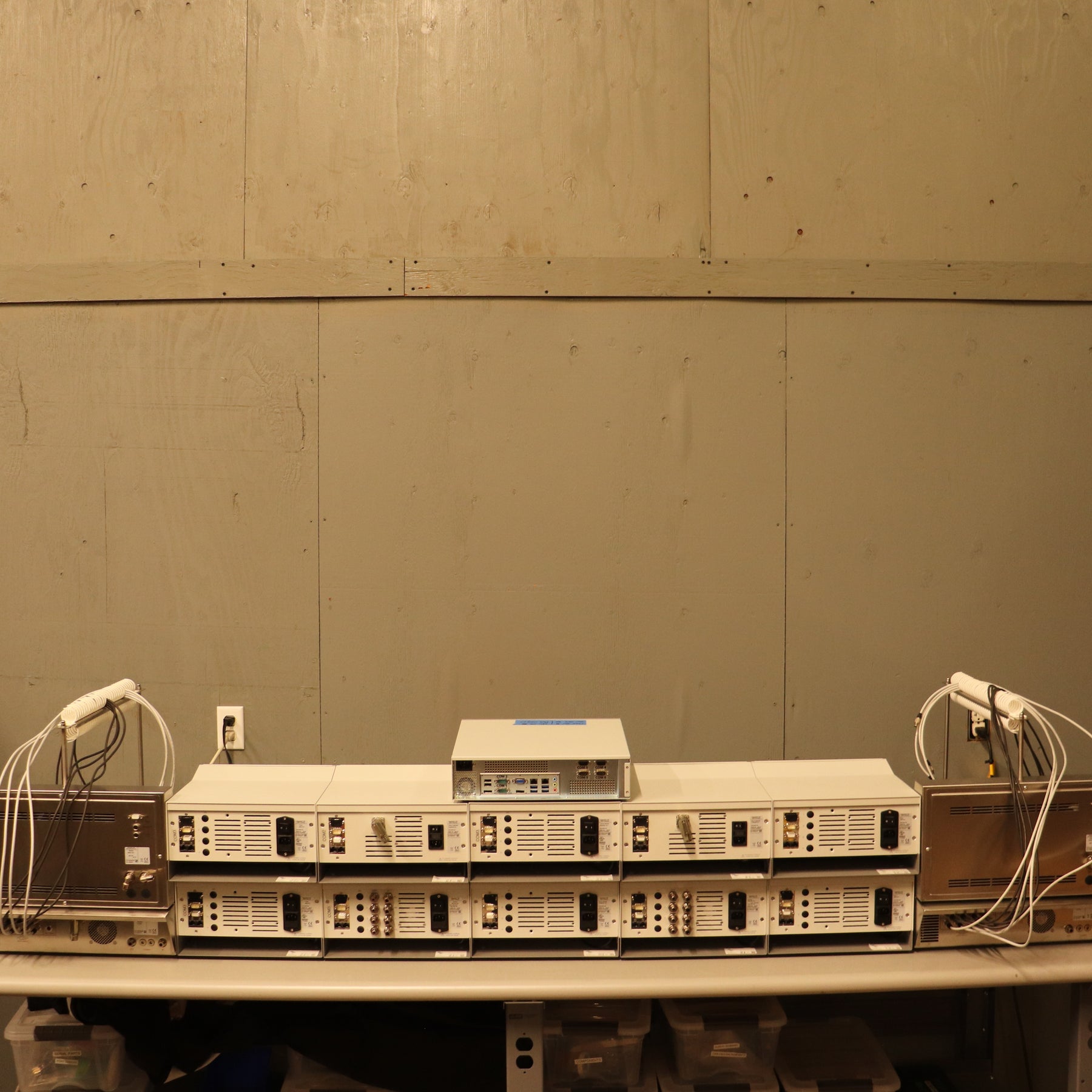

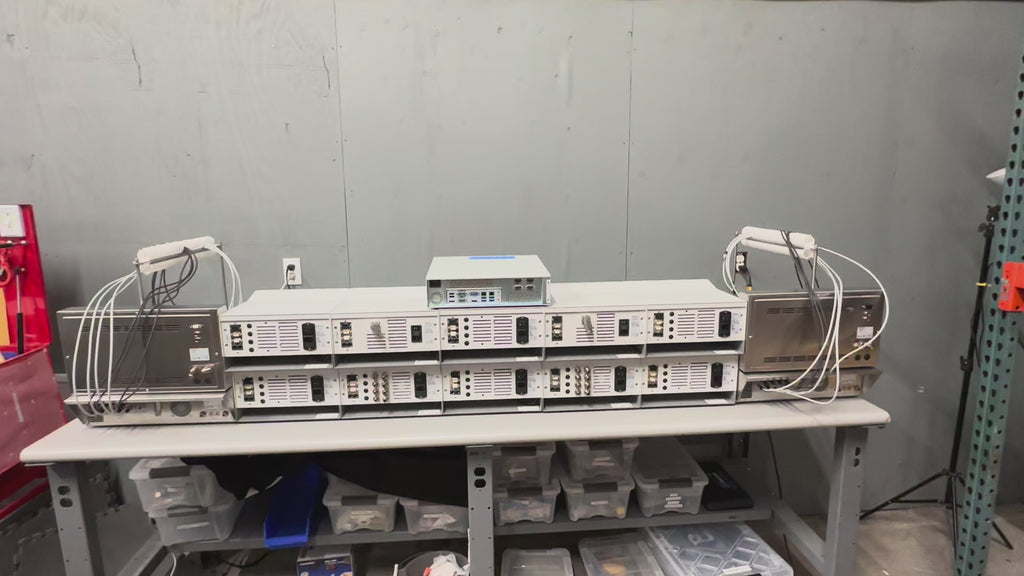

Included Components:

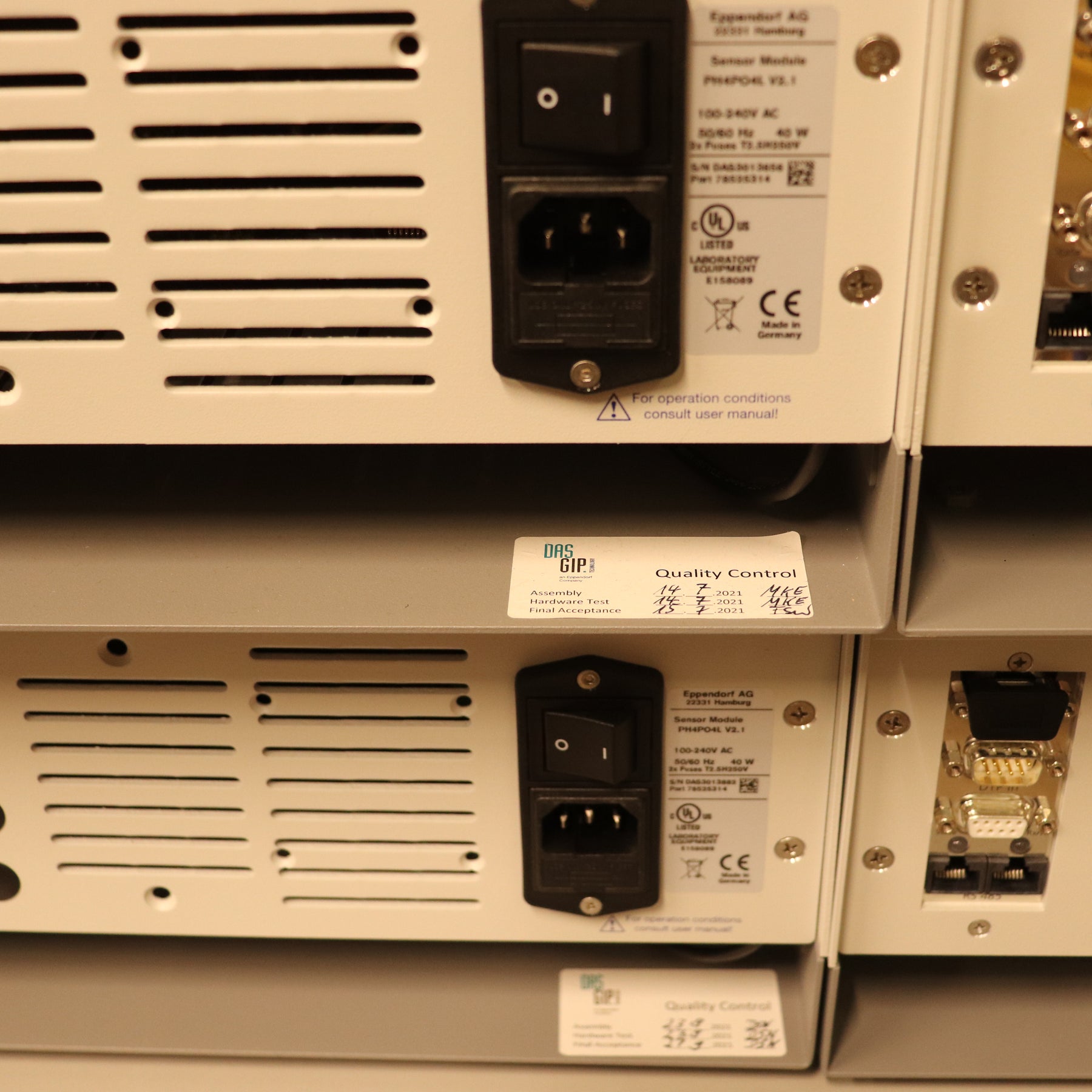

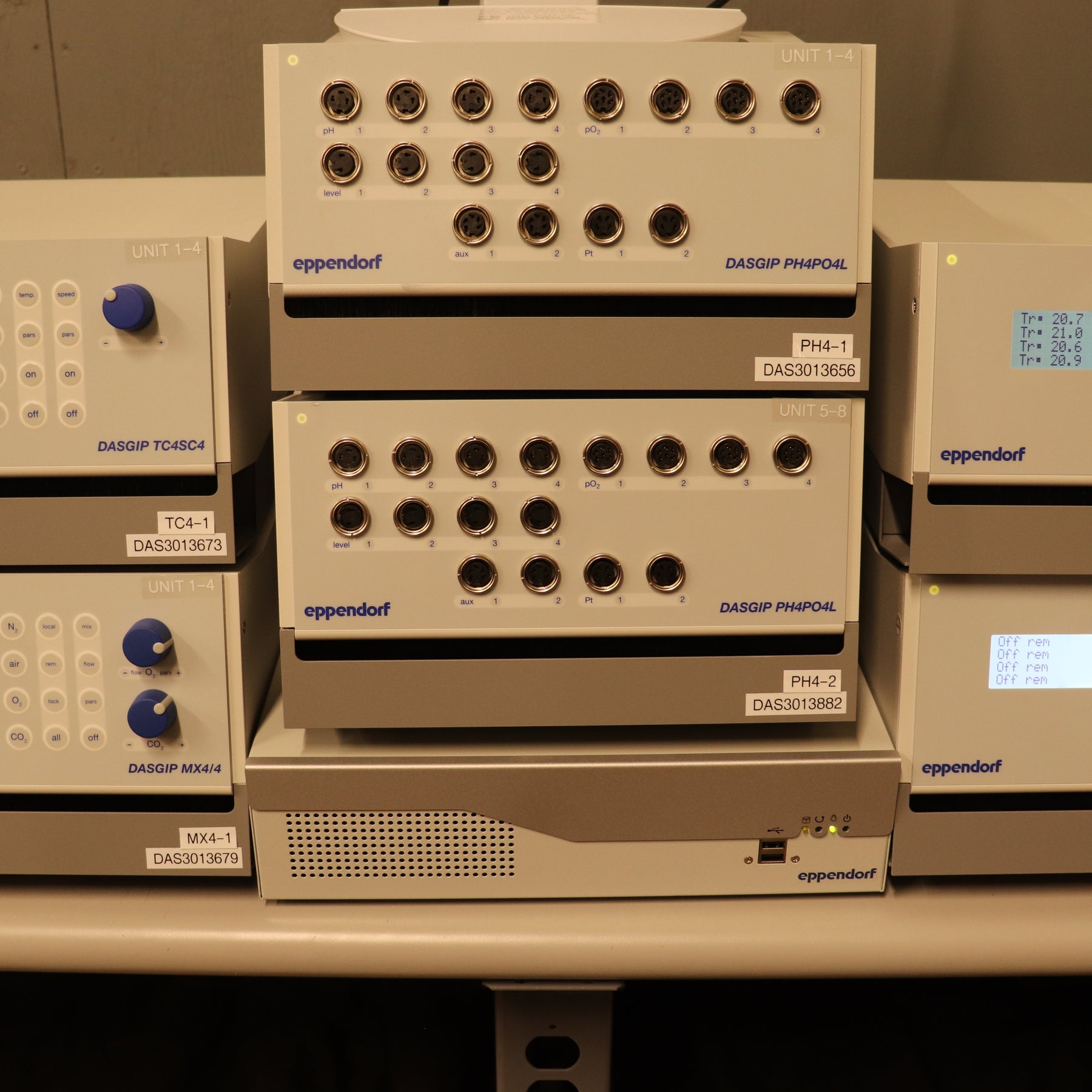

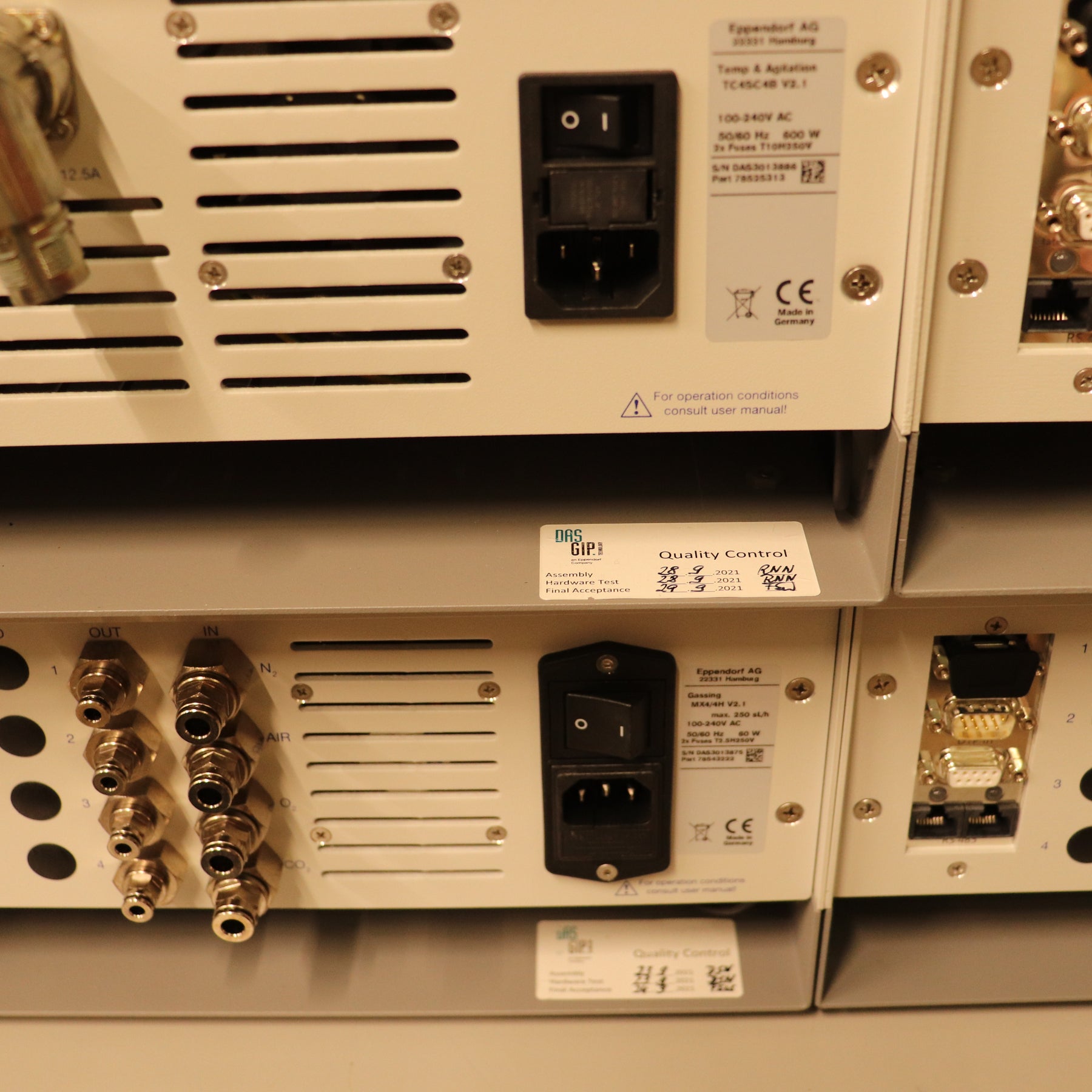

• (2x) PH4P04L V2.1 Sensor Module(pH, DO, Level) SN: DAS3013656, DAS301383

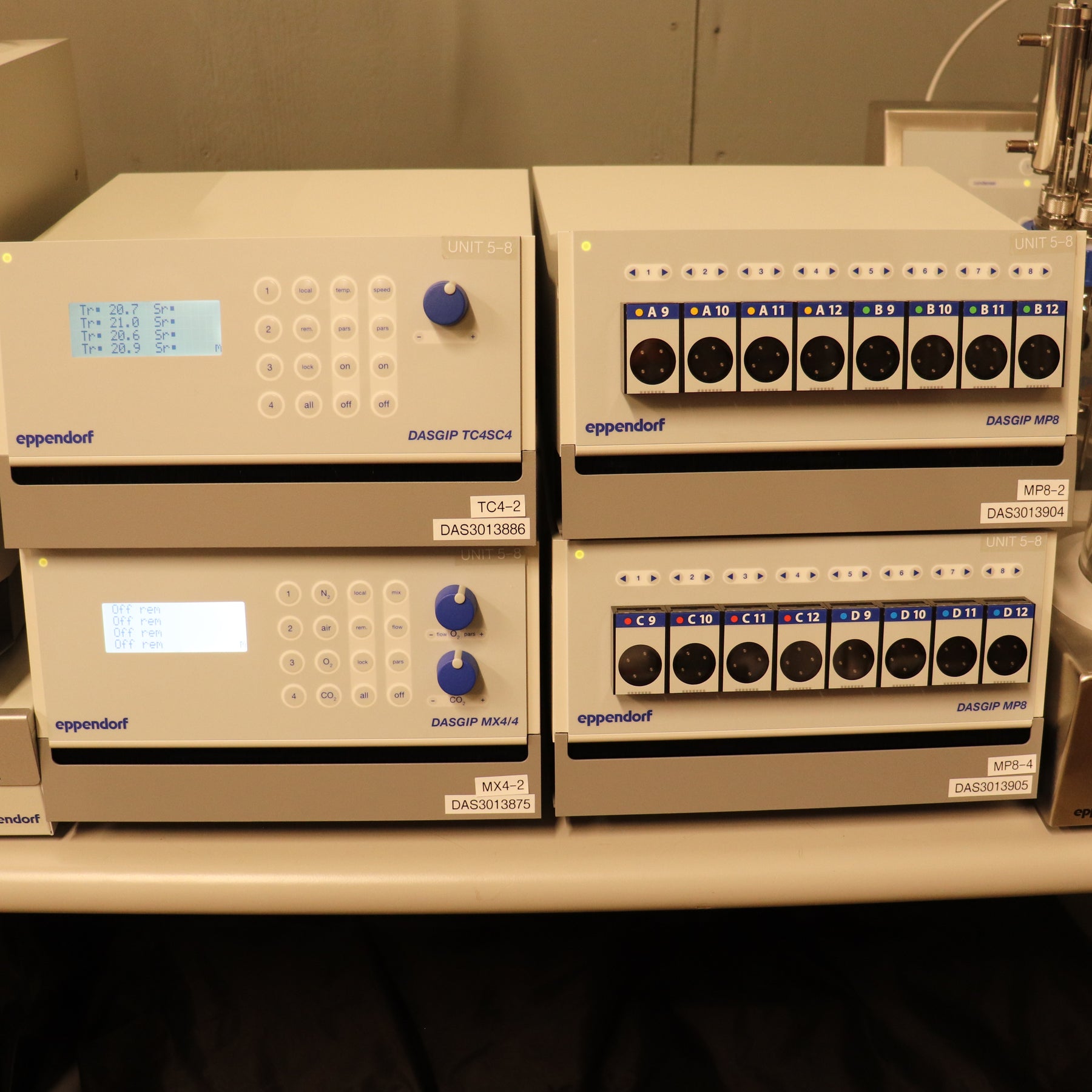

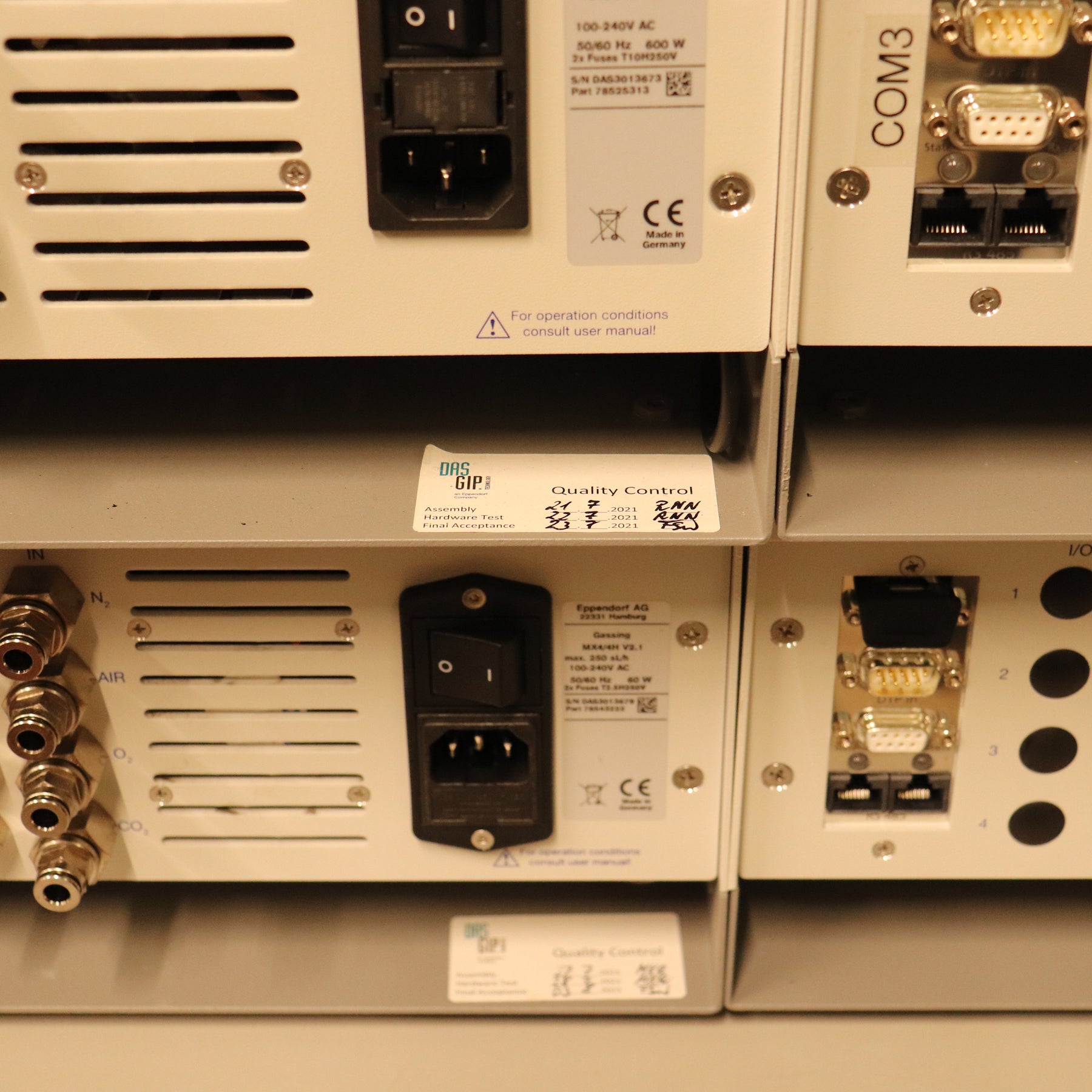

• (2x) MX4/4H V2.1 Gas Mixing System (250 sL/h Max) SN: DAS3013679, DAS3013875
• (2x) TC4SC4B V2.1 Temperature and Agitation Controller SN: DAS3013673, DAS3013886
• (2x) Bioblock w/ CWD4 2.0

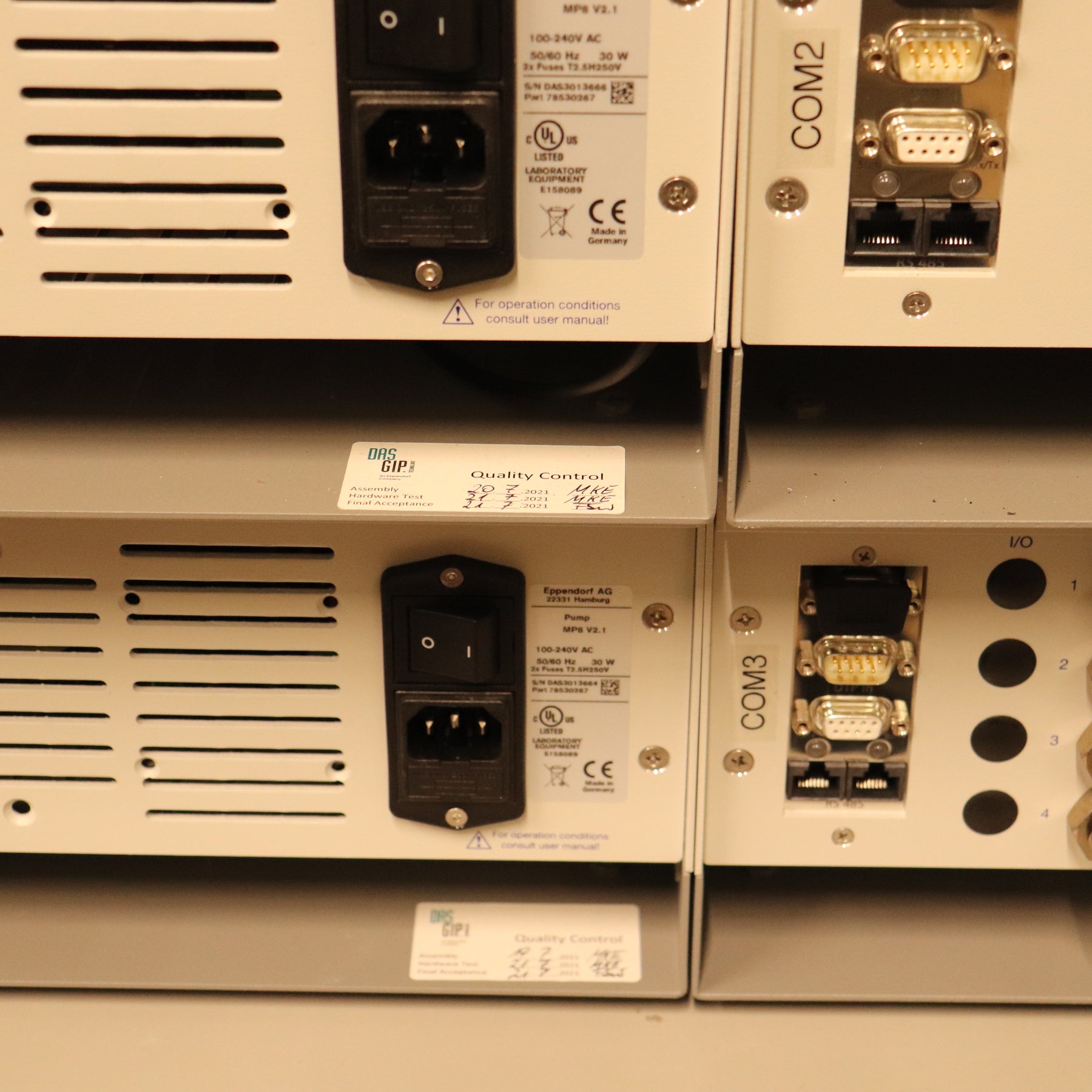

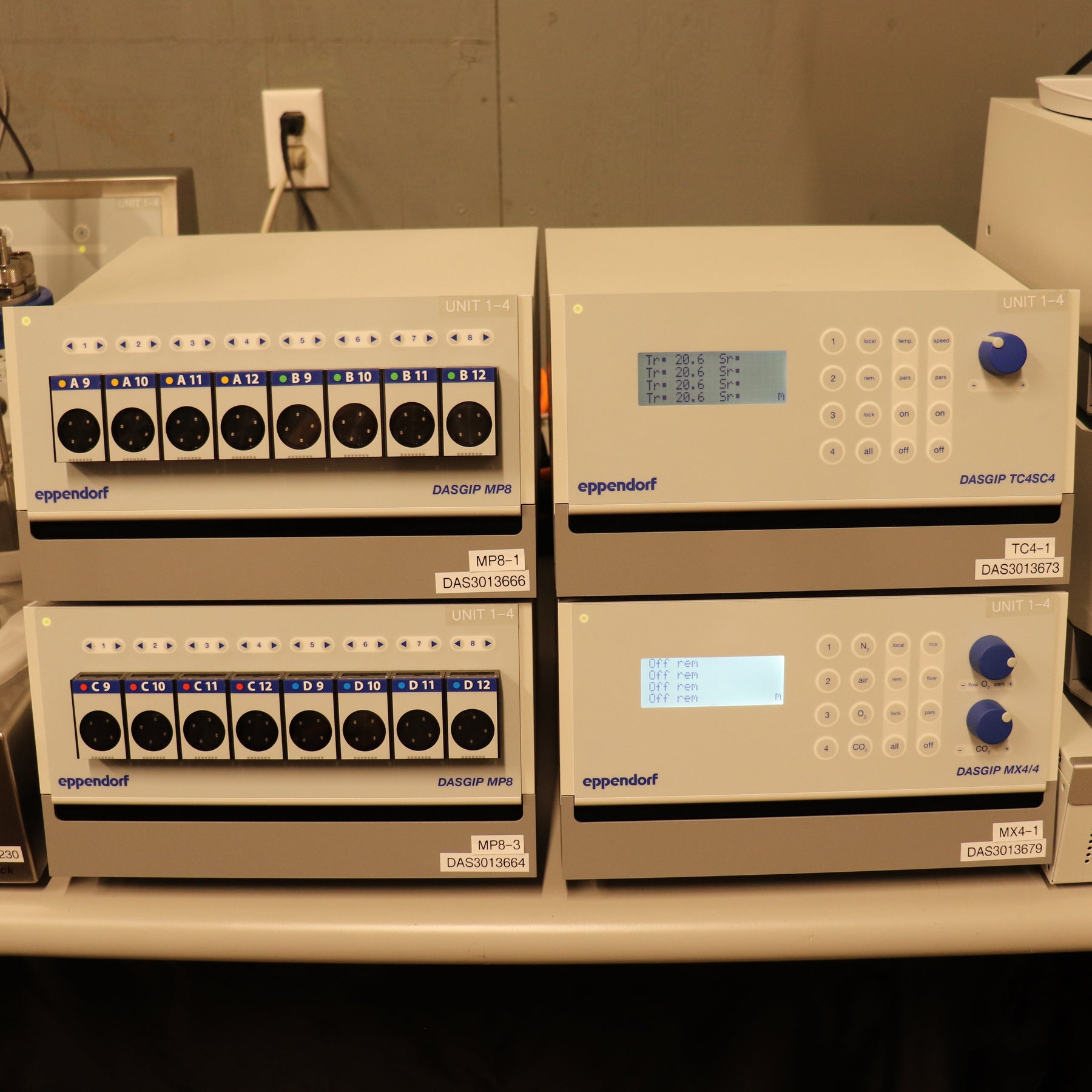

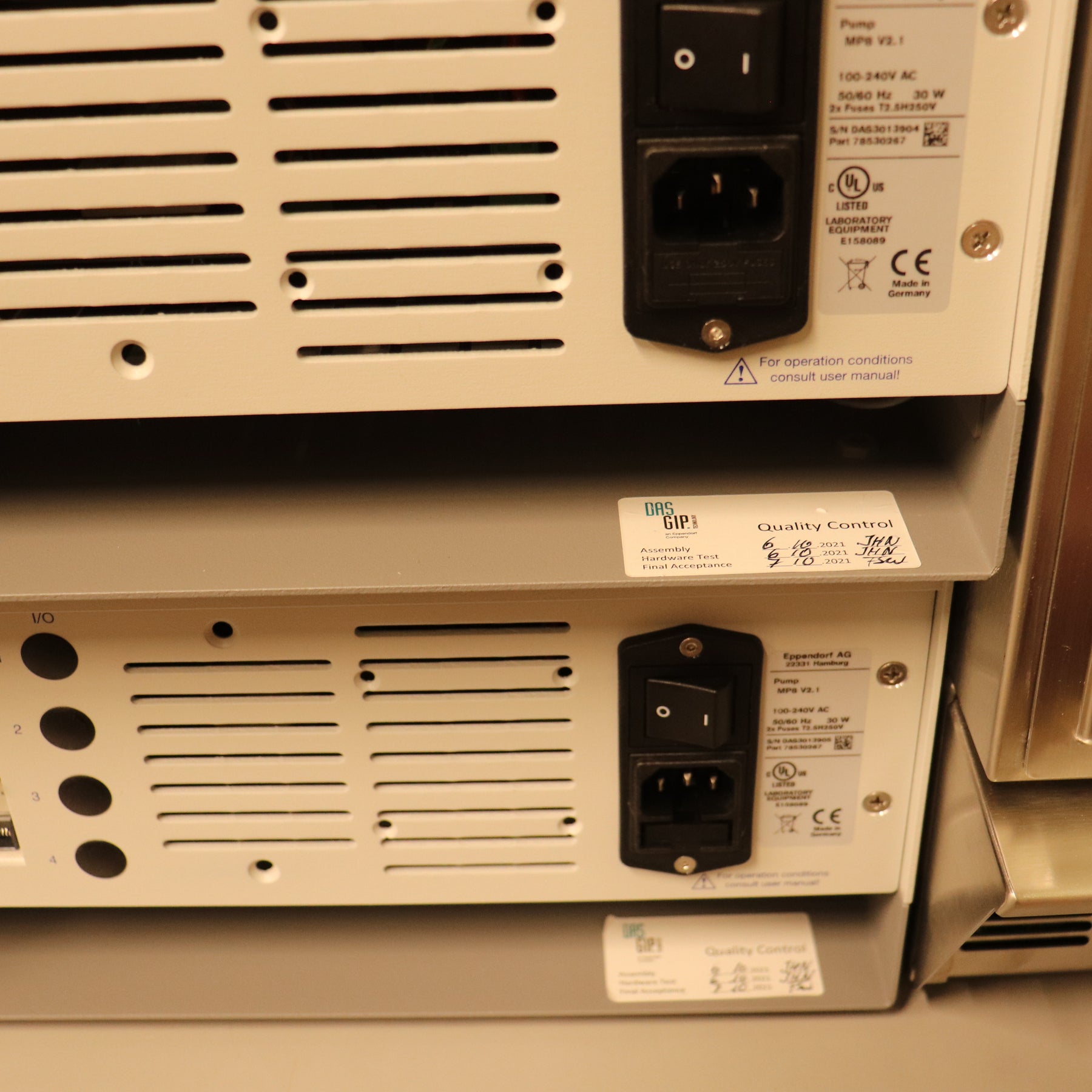

• (4x) MP8 V2.1 Pumps SN: DAS3013664, DAS3013666, DAS3013904, DAS3013905

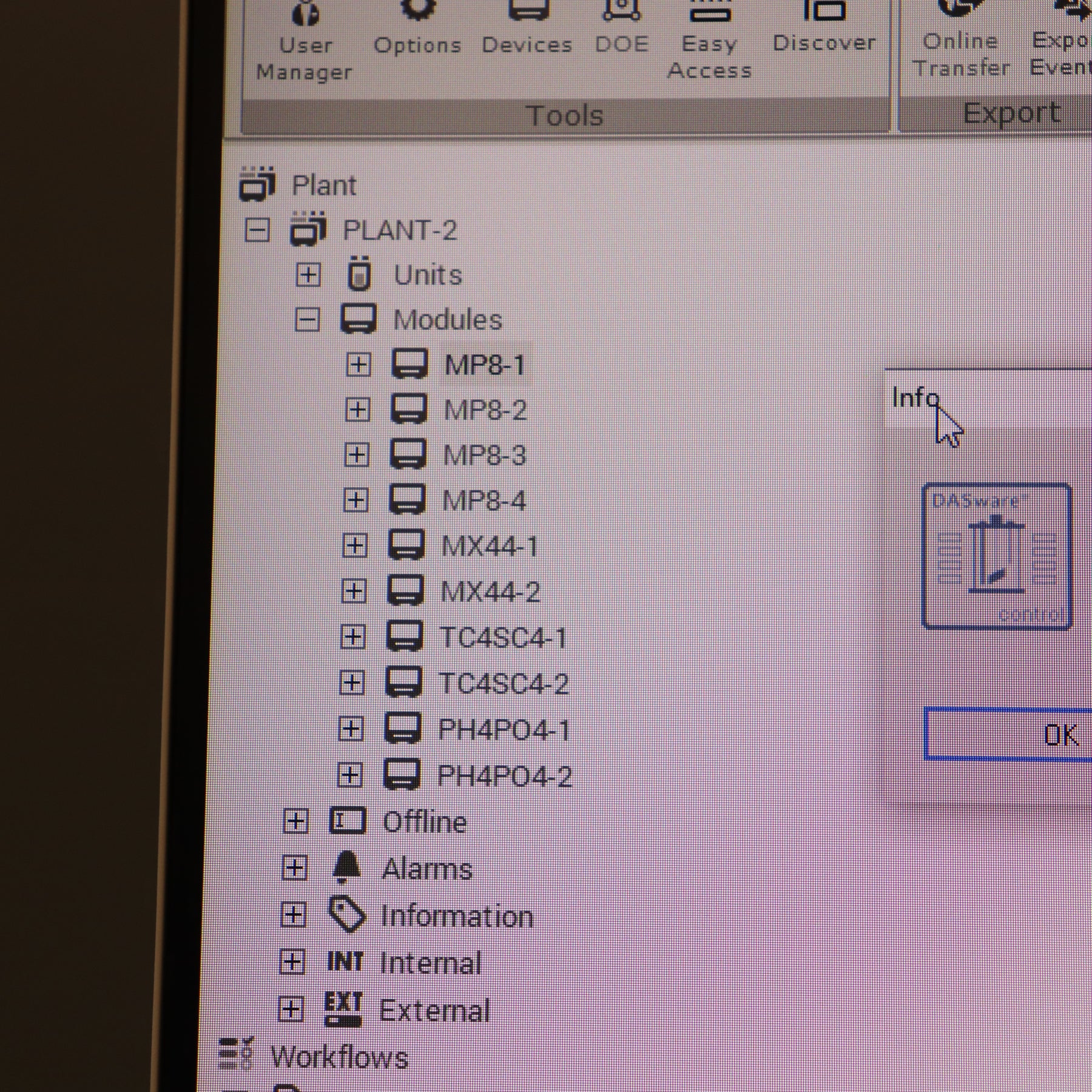

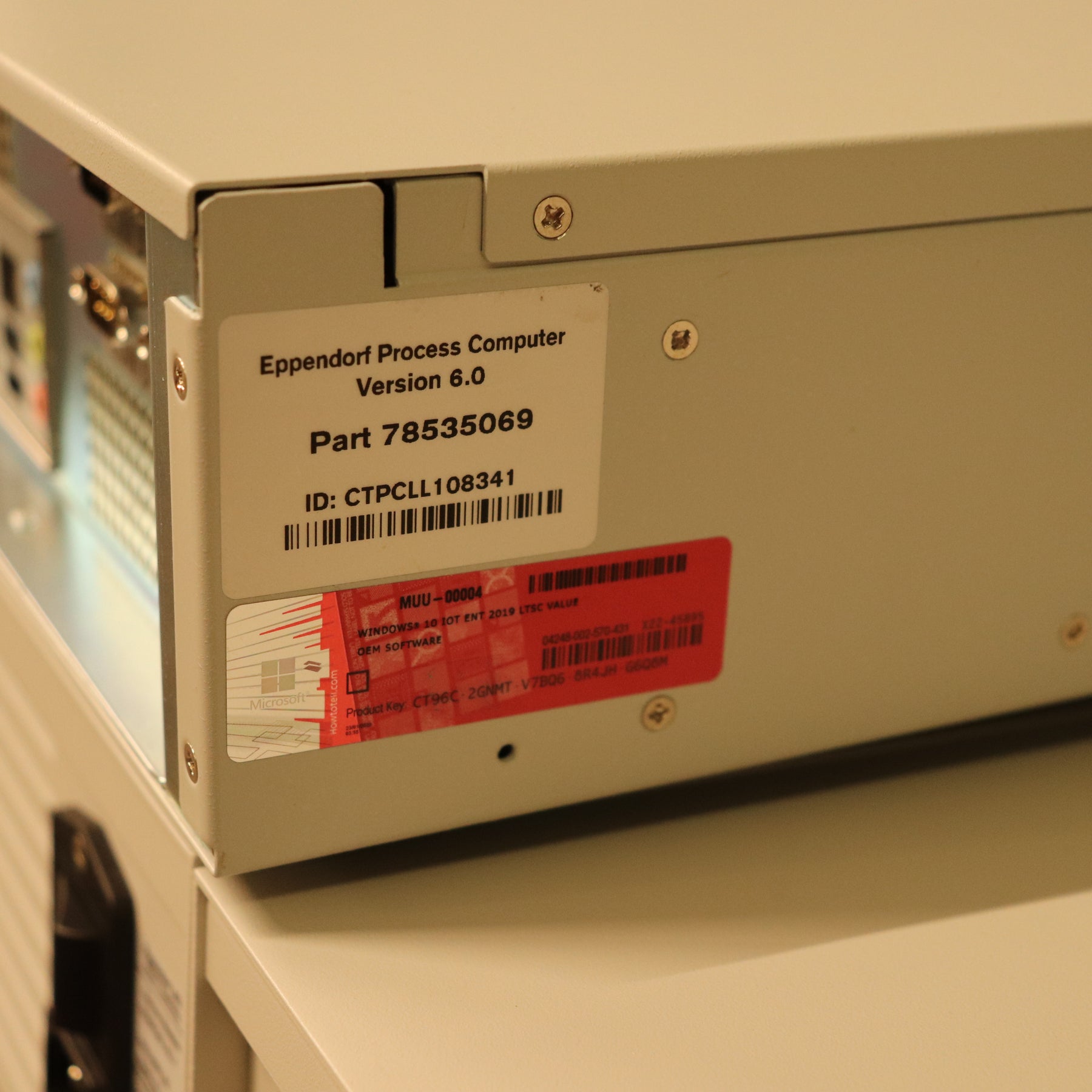

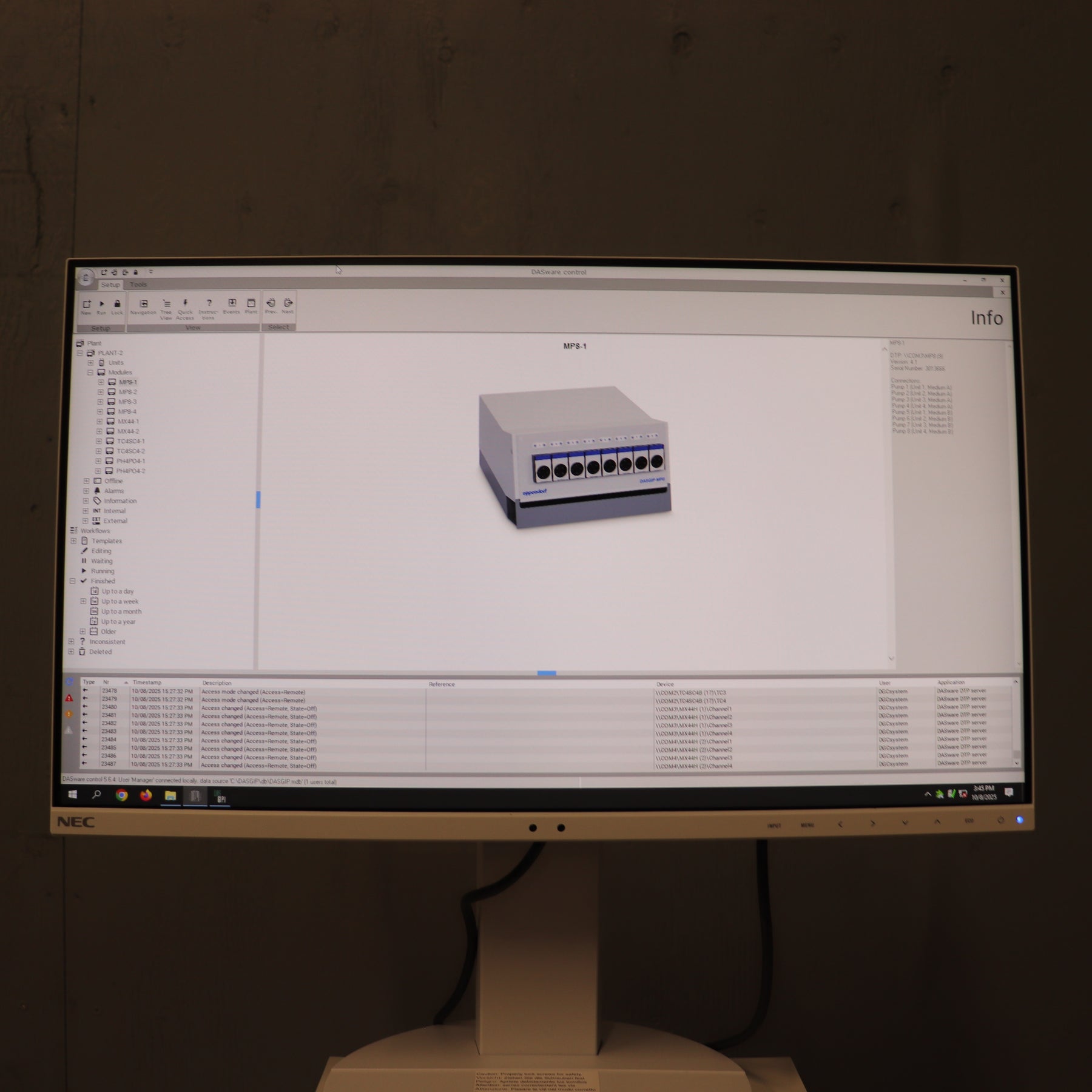

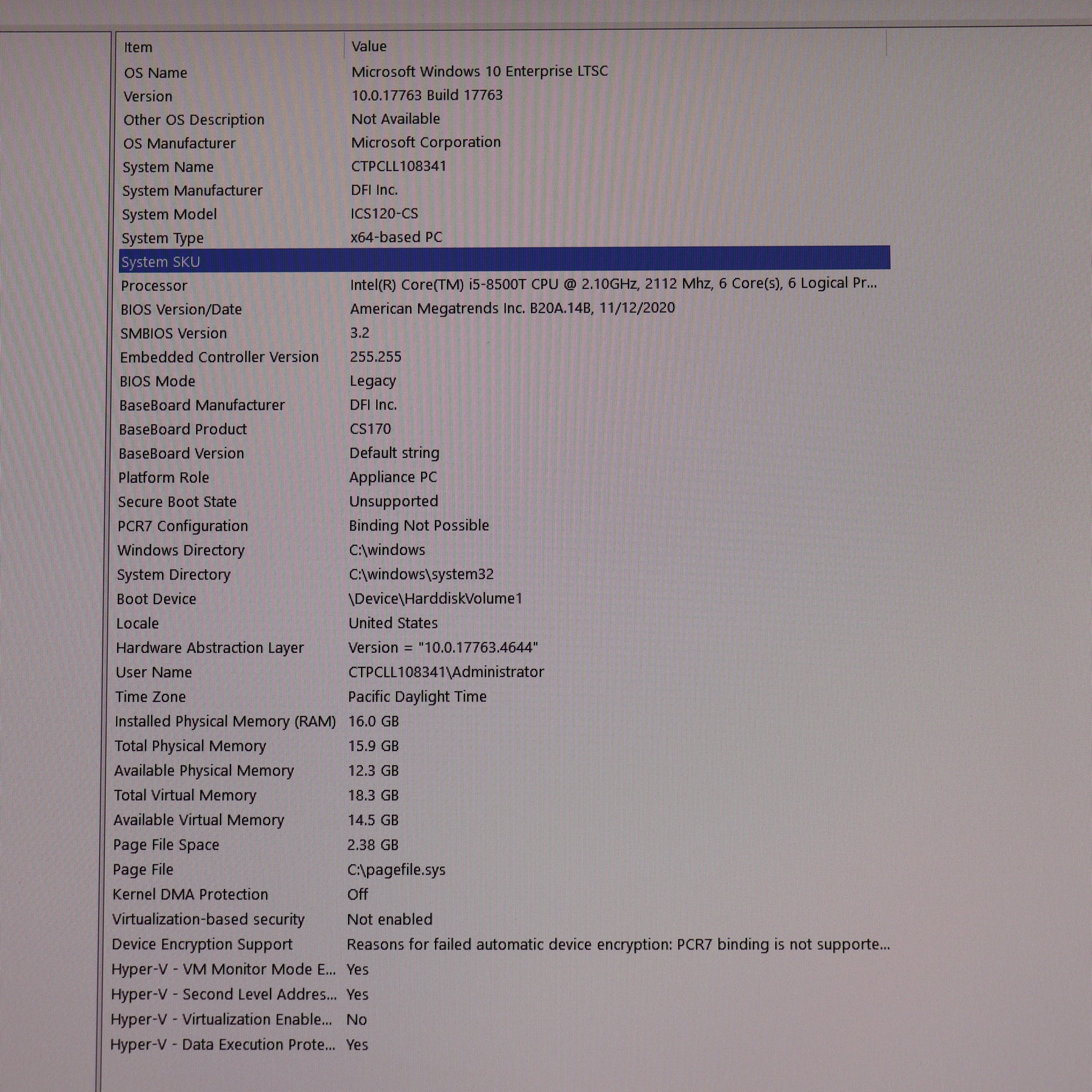

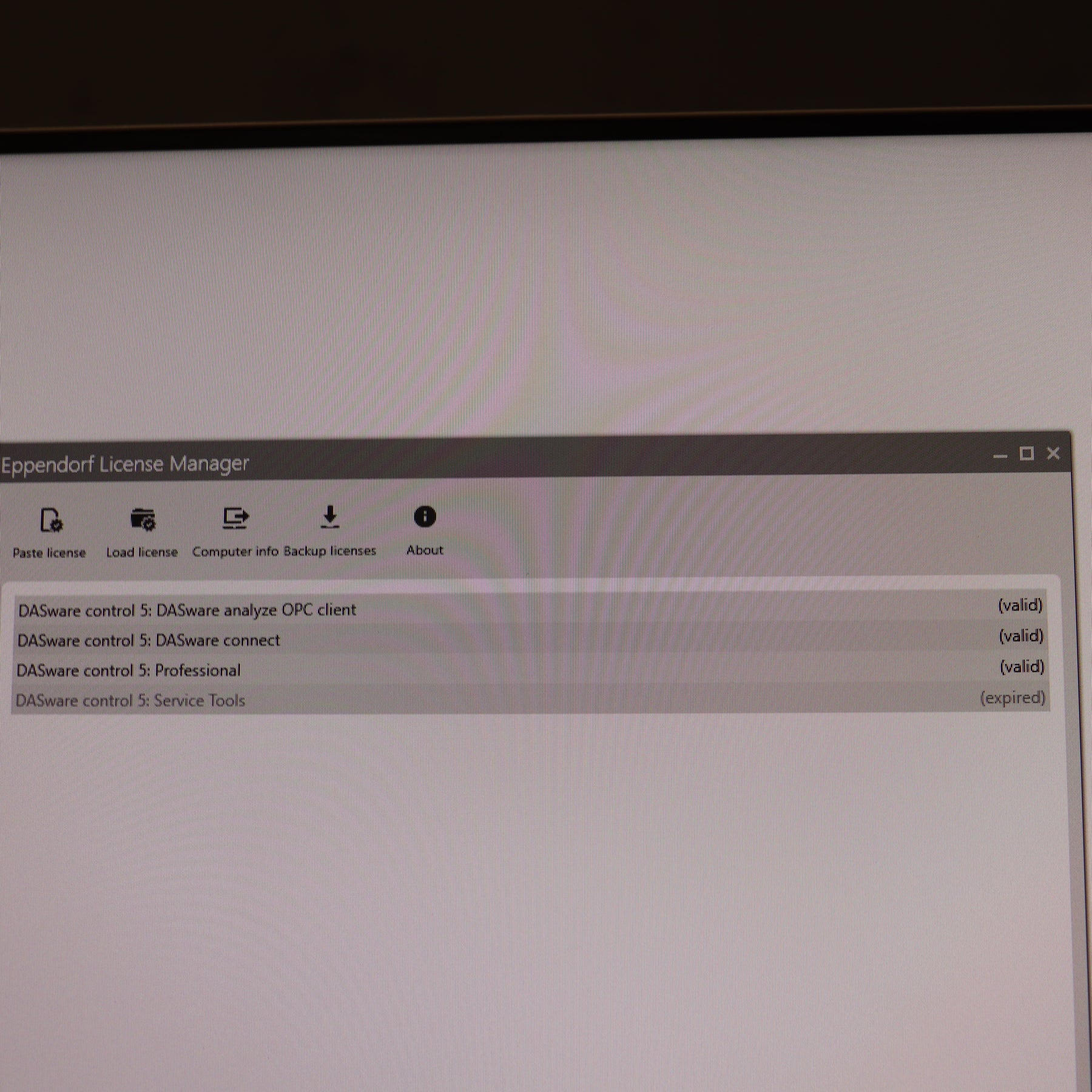

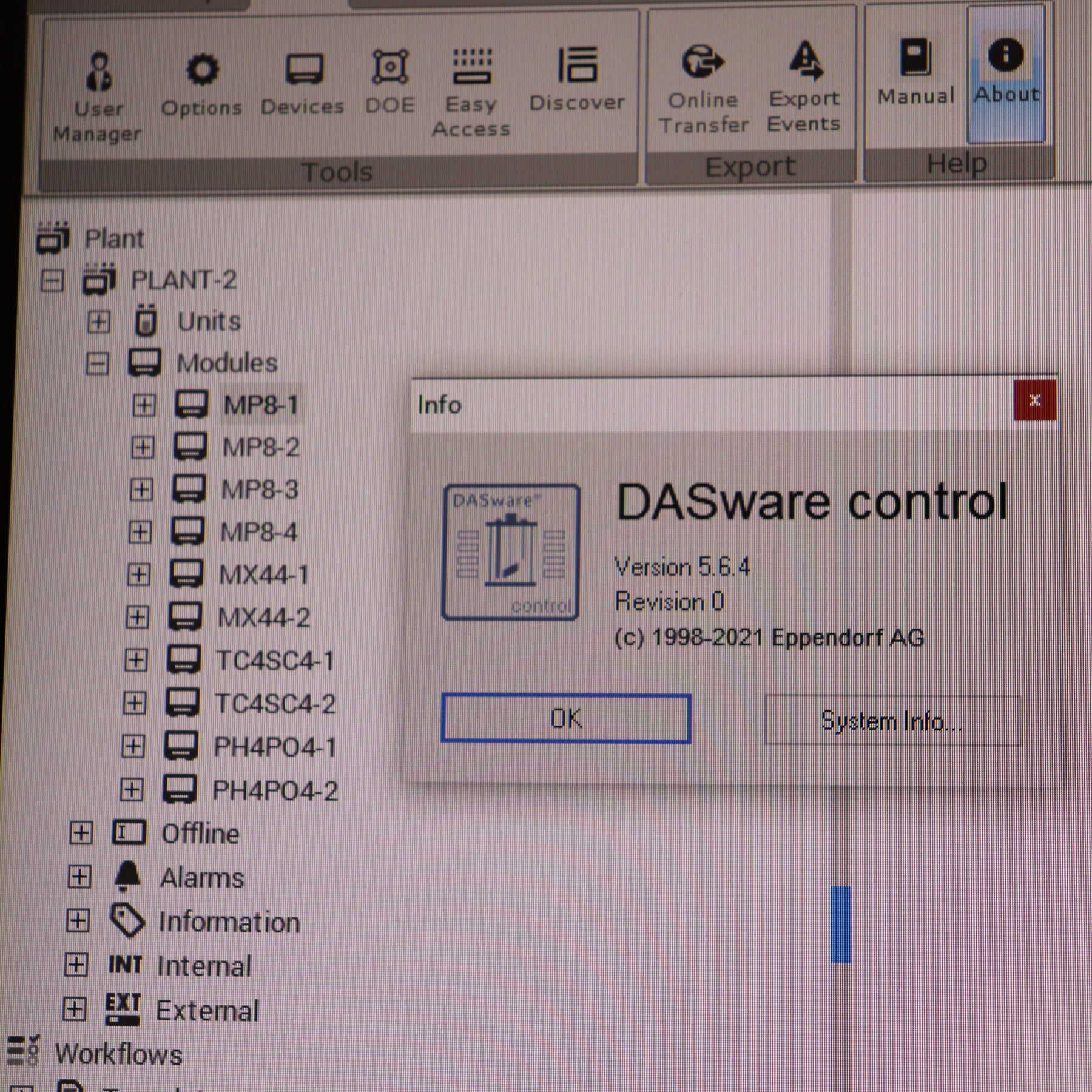

• (1x) Win 10 v6.0 Process Control PC with 8-Fold system license.  DASWare Control 5.6.4 Professional license.
• (1x) OEM Monitor w/ stand

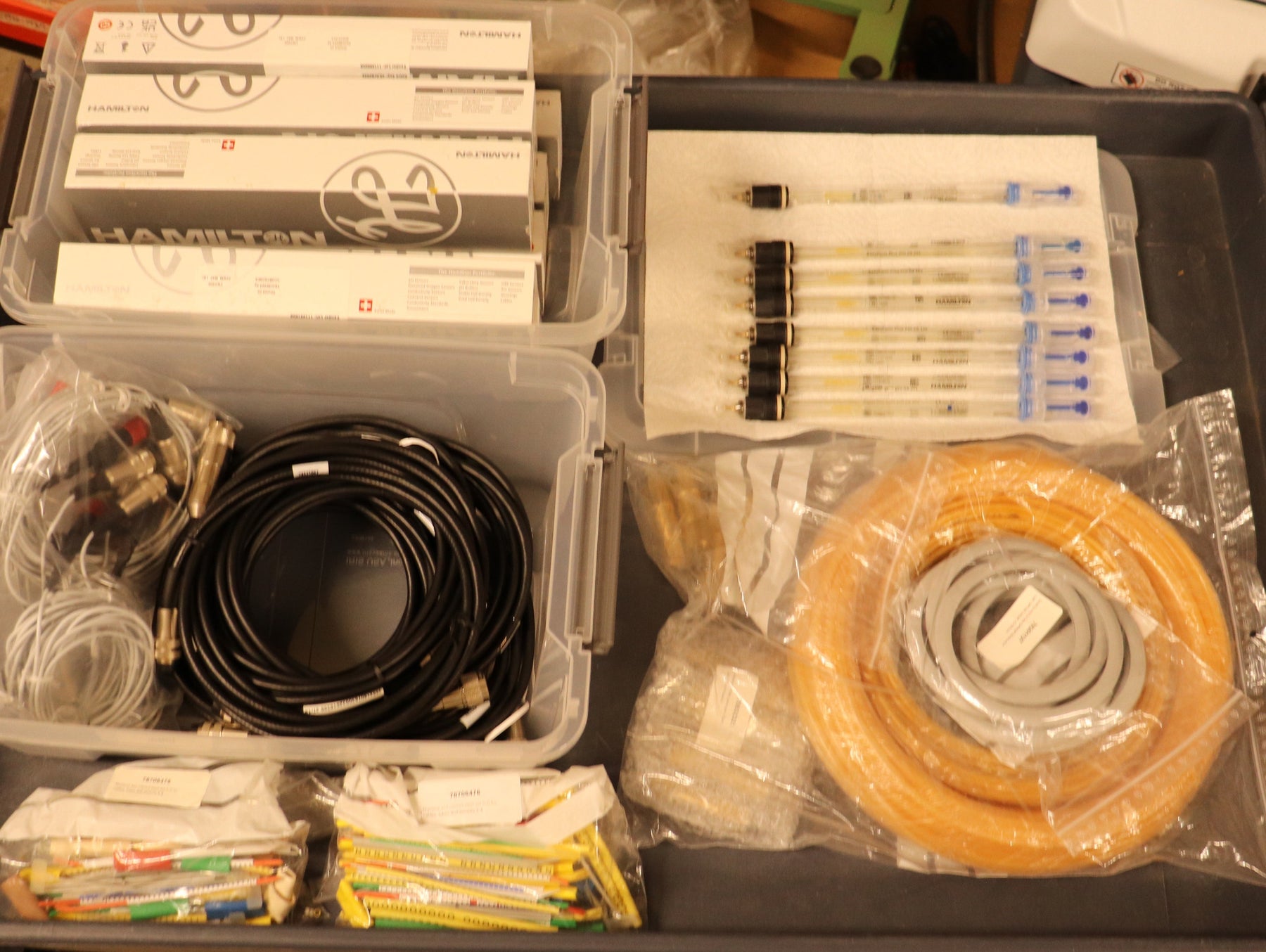

Included Sensors/ Accessories:

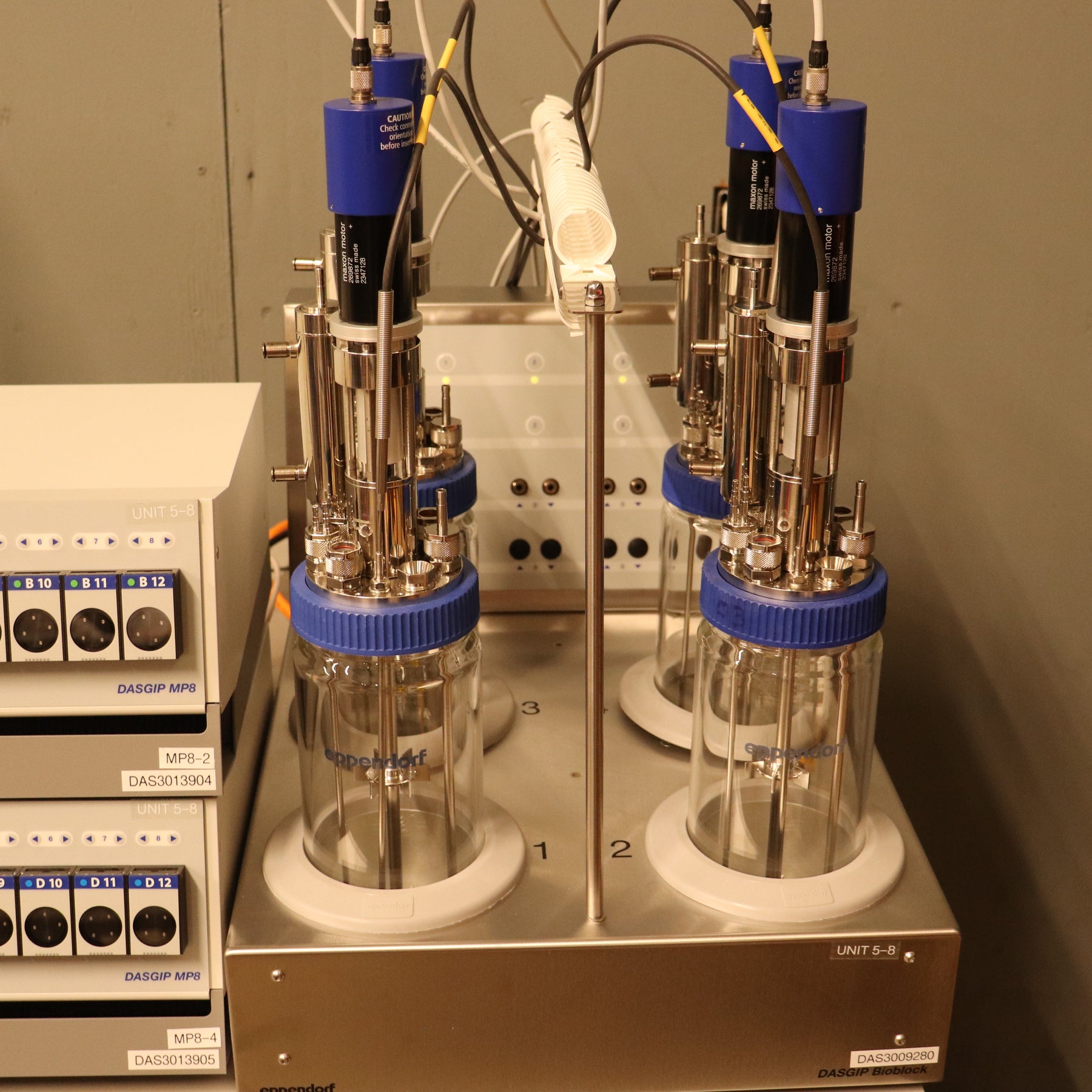

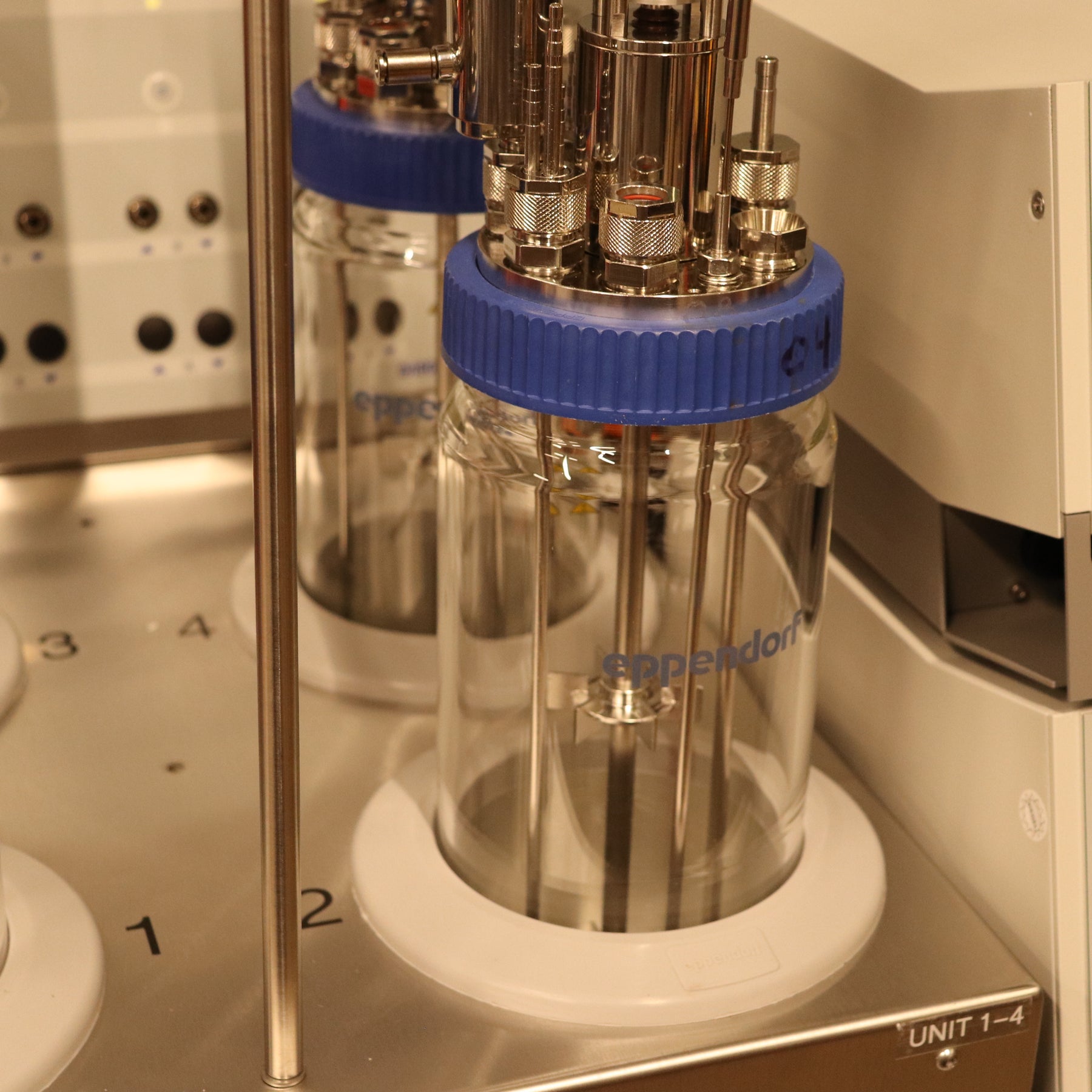

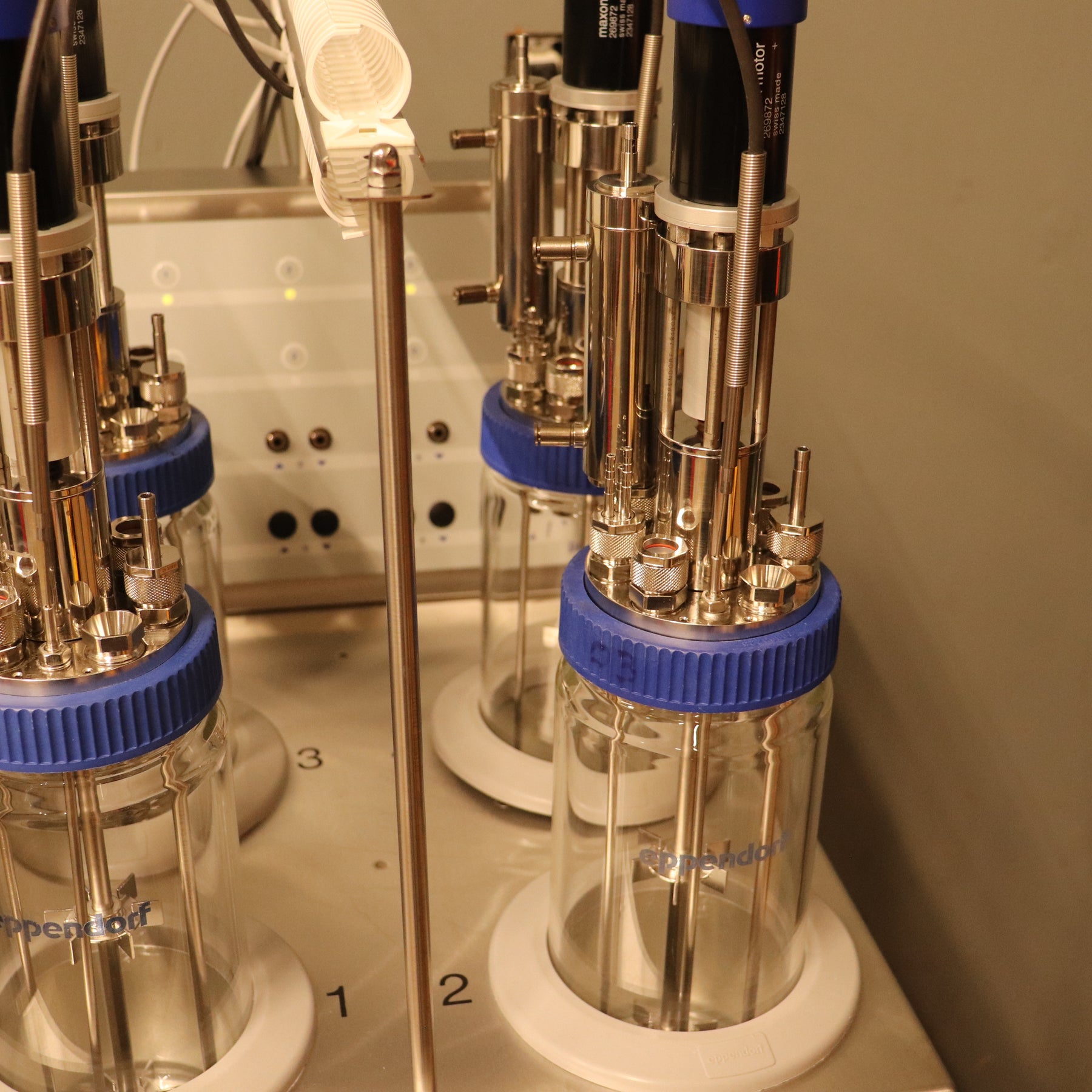

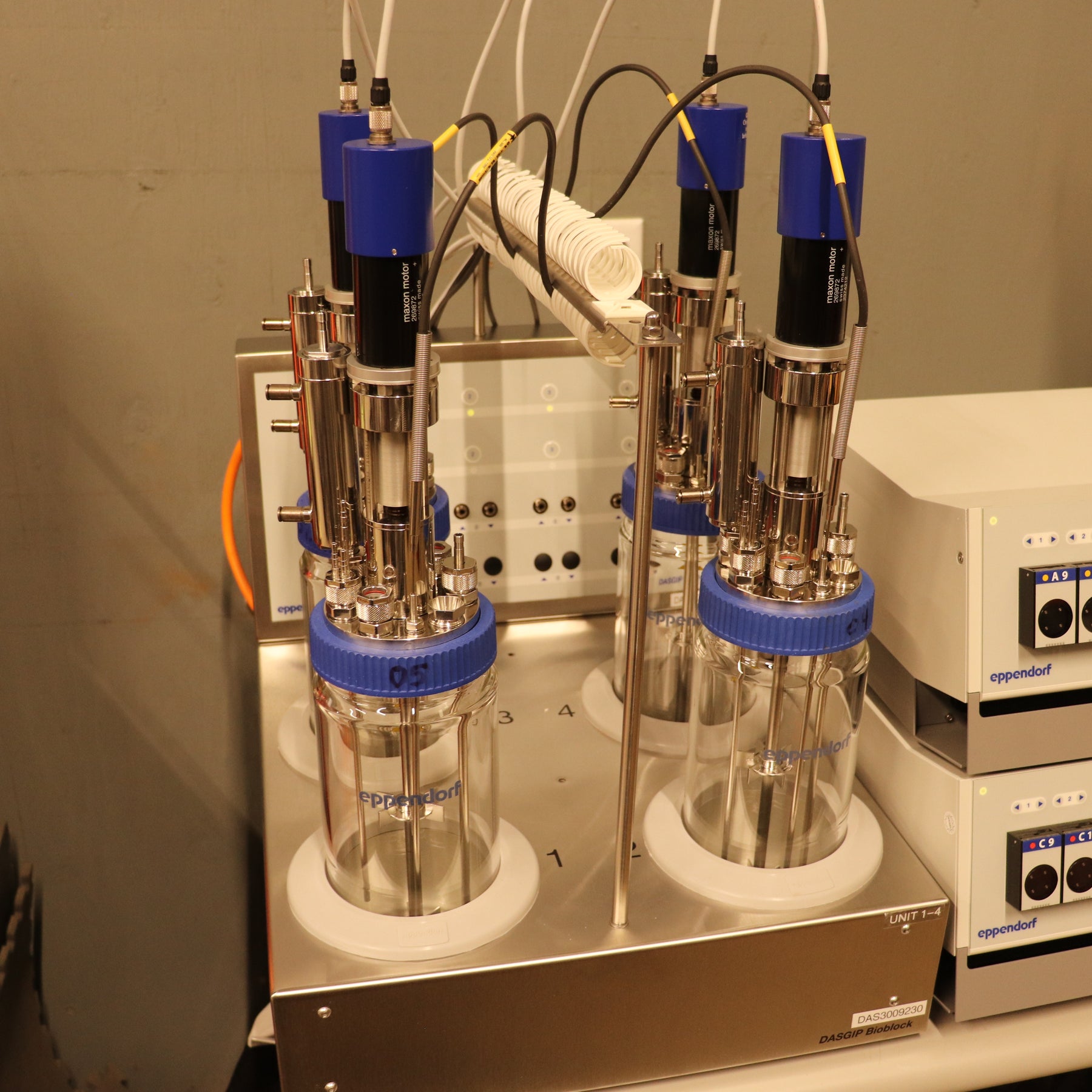

• (8x) 1.5L Glass Vessels (SR1000ODLS)
  • (8x) Exhaust Condensers w/ PG13.5 compression fitting 77102050
  • (8x) 4mm OD Triple Port w/ 3x 85mm SS Pipe 78706414
  • (8x) Thermowells 77102029
  • (8x) Downward Bore L-Spargers w/ PG13.5 Compression fitting 78107183
  • (16x) PG13.5 compression fittings for sensors PG13.5 threaded ID12mm 78532284
  • (8x) Septum holder PG13.5  77102006
  • (8x) SS pipe 270mm OD4mm w/ PG13.5 compression fitting 7810710
• (8x) RE40 Overhead Agitation Drives 78525188

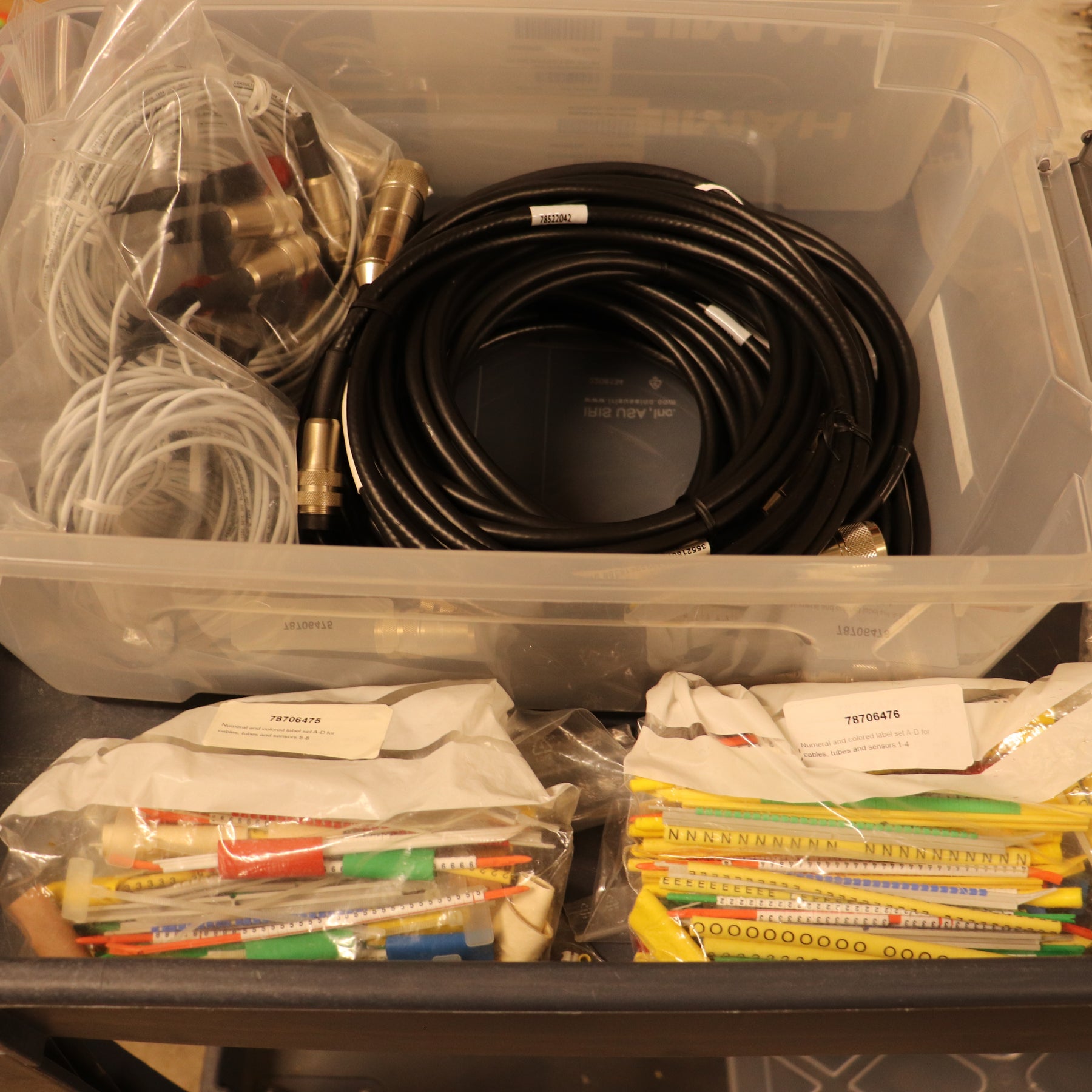

• (8x) Overhead Drive Cables 78100253
• (8x) Platinum RTD Temperature Sensors/ 1300mm cable 78103308
• (8x) pH/Redox Sensor Cable (AK9) 76DGPHRDAK9
• (8x) DO Sensor Cables (optical) 78522042

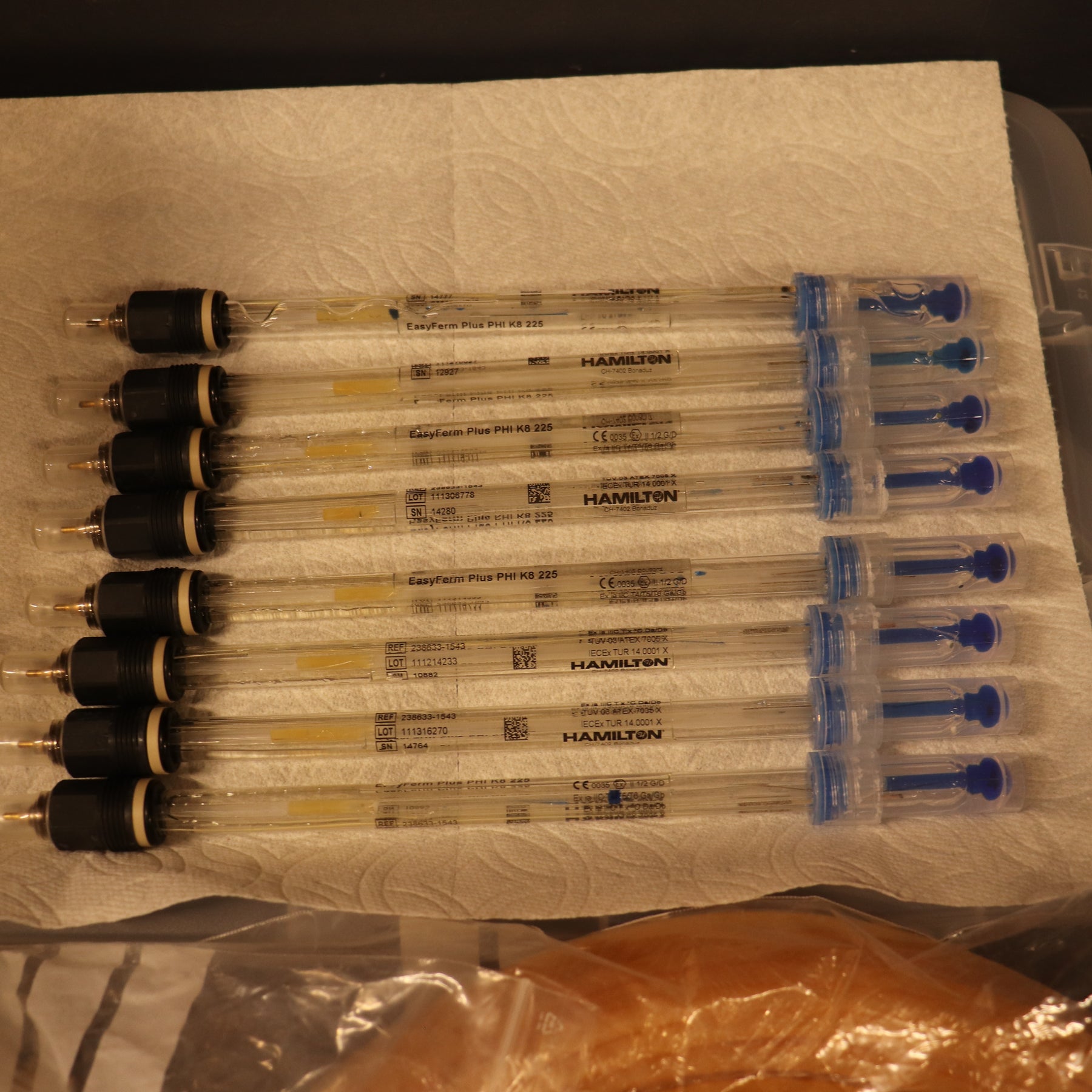

• (8x) pH Sensors Hamilton 225mm 78103230

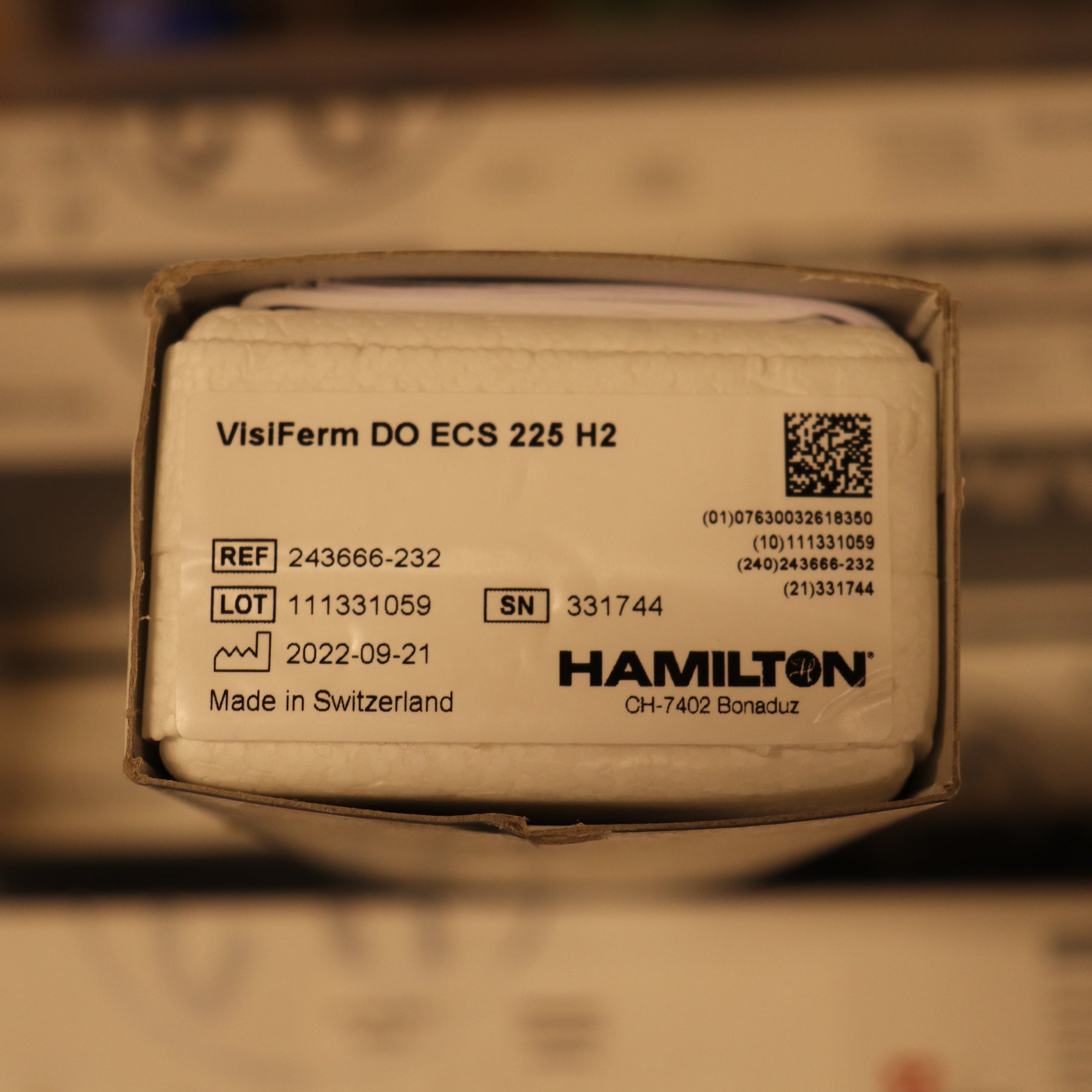

• (8x) DO Sensors Hamilton Visiferm Optical H2 225mm 78108055 (new)
• (4x) Autoclave Rack for 2x Vessels, 8x vessels total(not pictured)
• Misc Data Cables & Power Cords

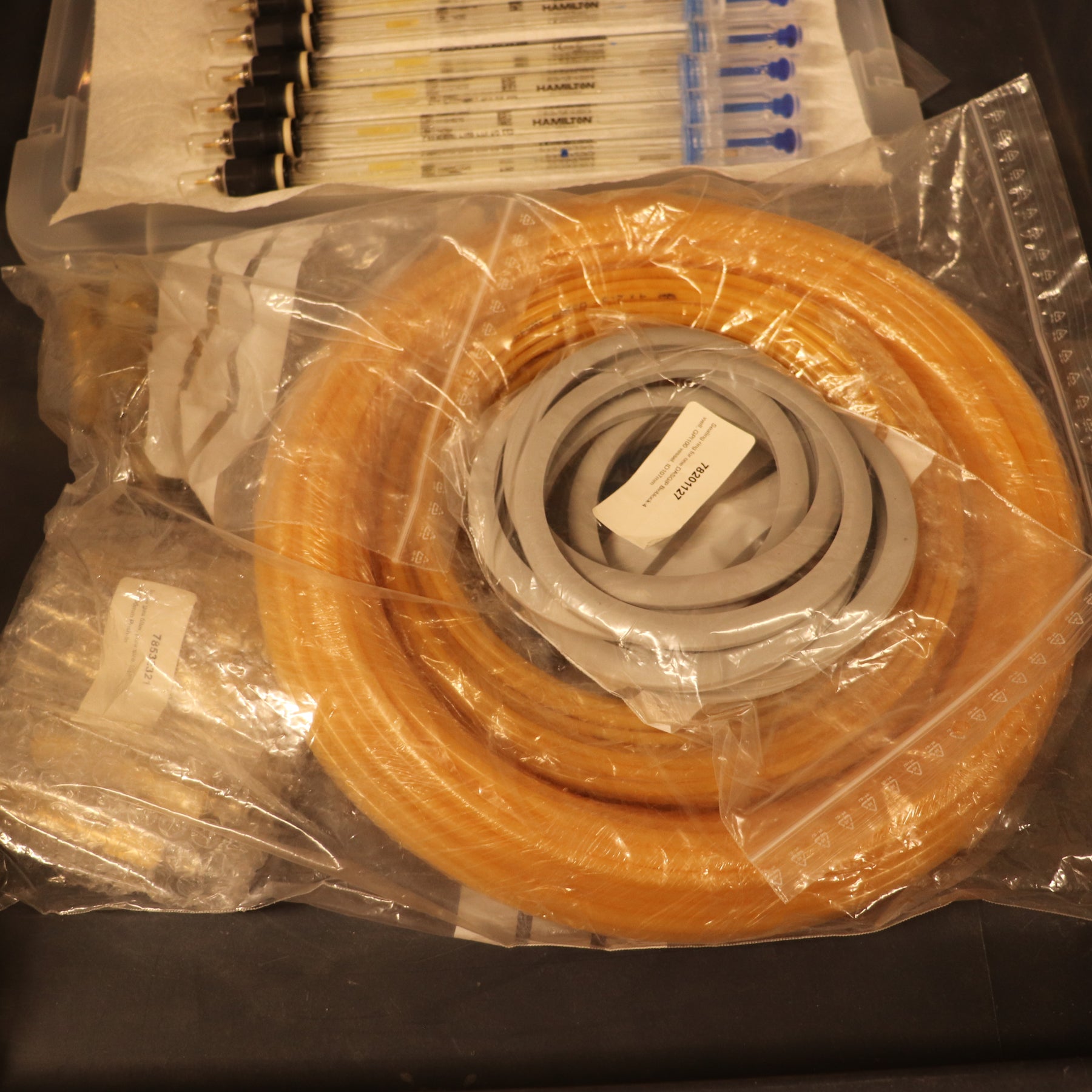

• Misc Tubing
