Eppendorf DASGIP 4-Fold Parallel PH4PO4ORD4L Bioreactor System with PC

Sale price$67,000.00
Quantity:

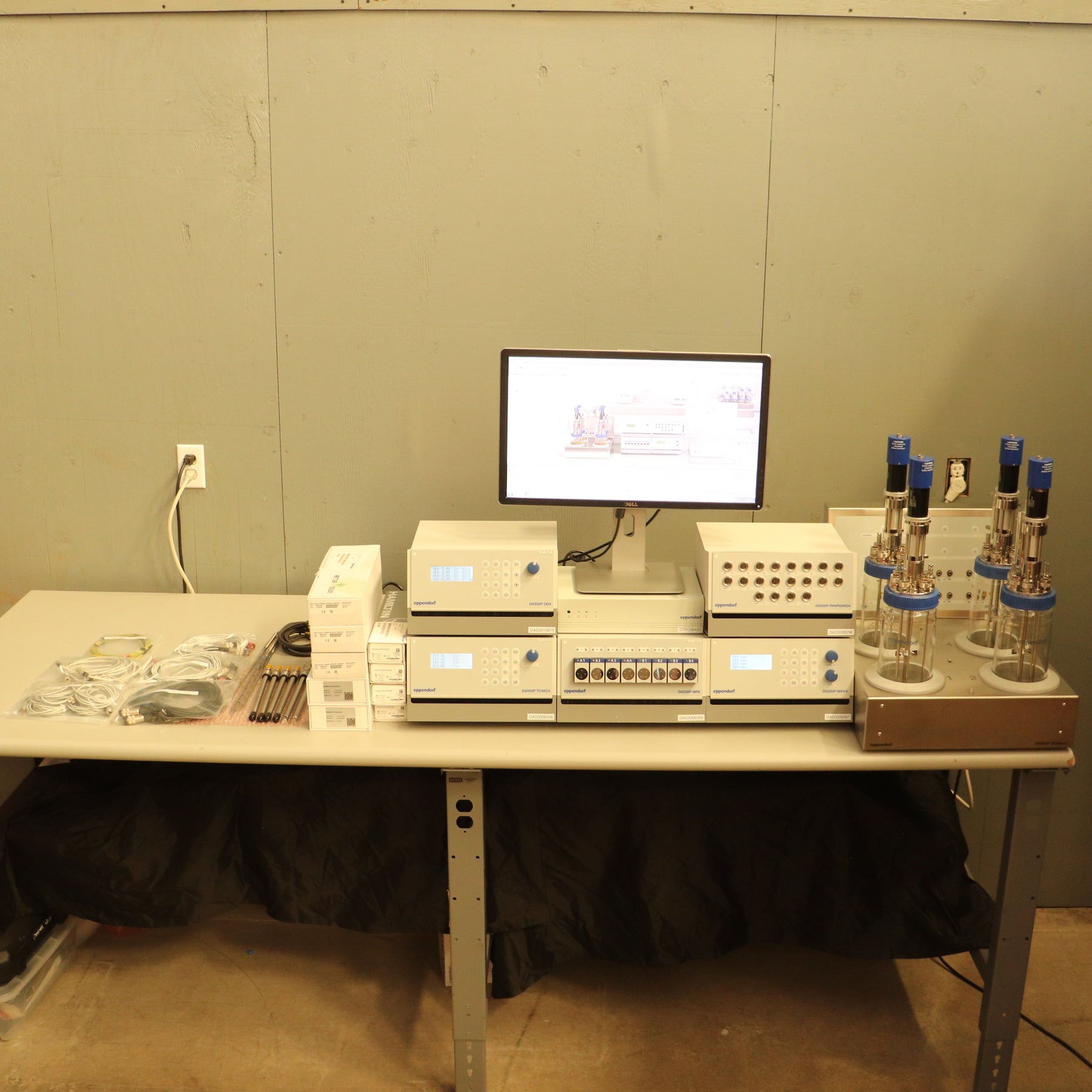

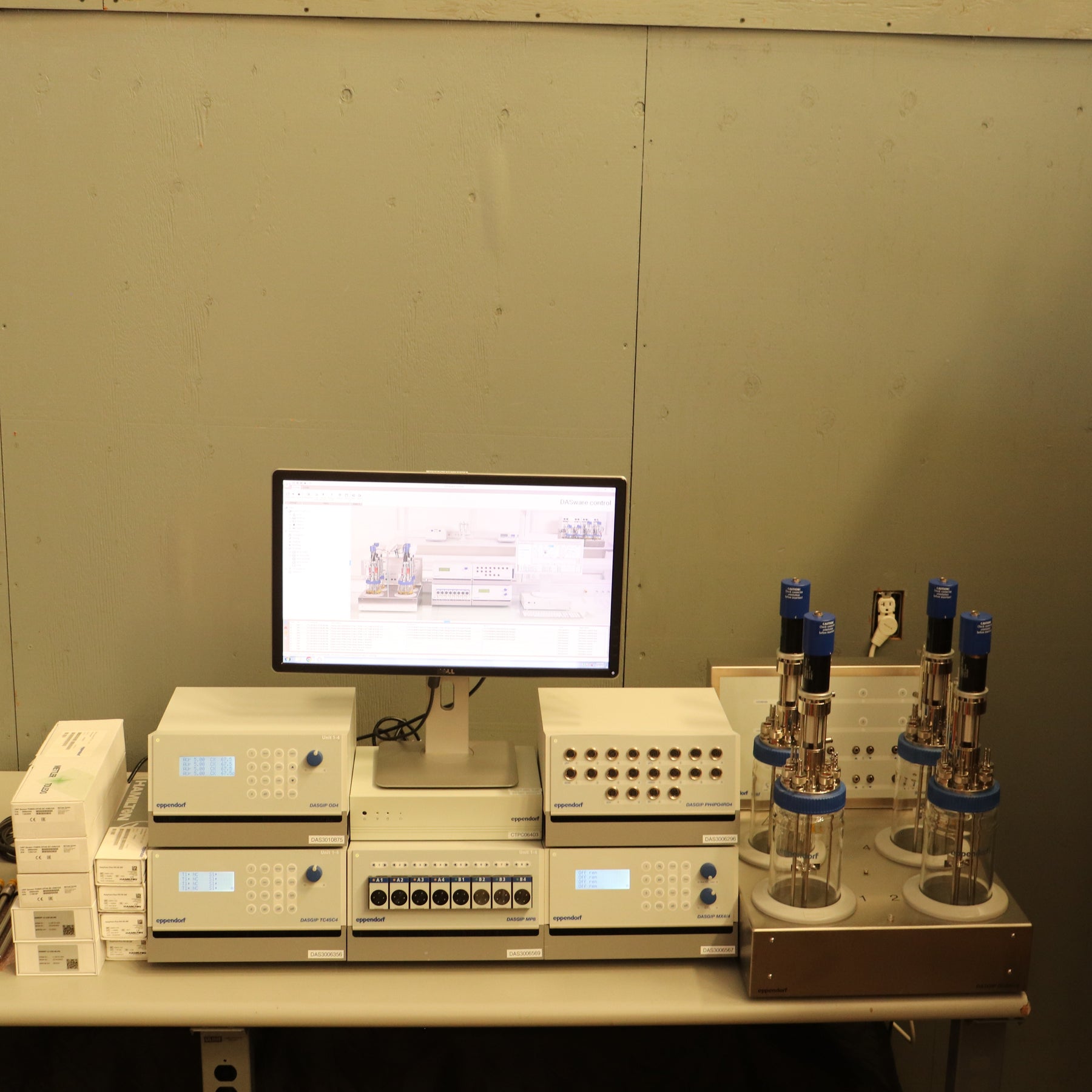

Eppendorf DASGIP 4-Fold Parallel Bioreactor System with Process Computer

Mfg Year: 2016
Application: Microbio
Vessels: Glass Multi-Use
Number of Vessels: 4
Flow Rate: max 250sL/h

Specs:

  • Vessel compatibility: Multi-Use, Single-Use
    • Included Size: 1.5L, Multi-Use glass
    • WV: 400mL-1.5L

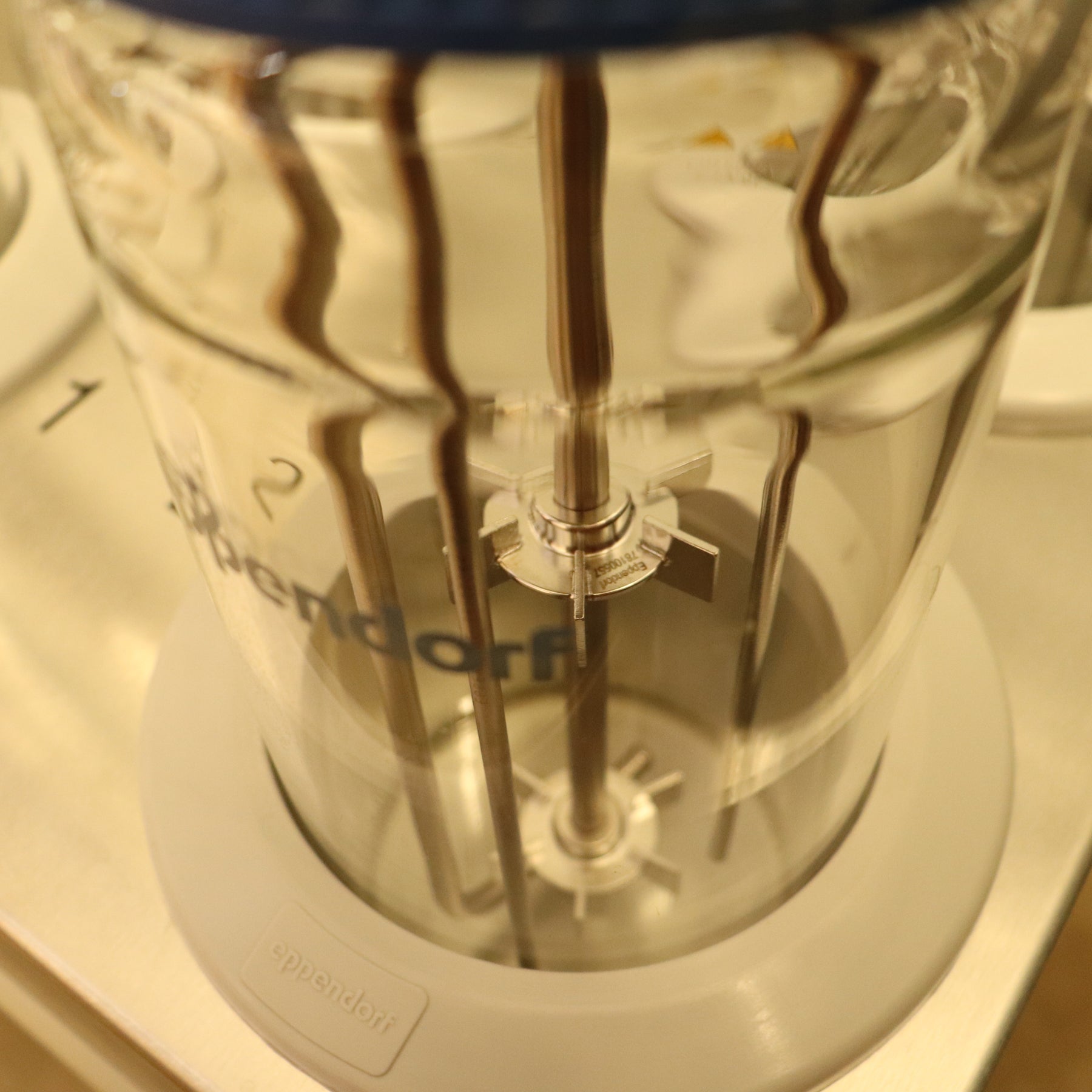

    • Impeller: 2x Rushton
    • Exhaust Condenser: Yes
  • Drive: Direct Drive
  • MFC gas flow rate: Max 250 sL/h
  • Gas mixing: Air, N2, O2 and/or CO2
  • Temp control: Bioblock
  • Temp range (at 25 °C room temp): 5 K above cooling agent temperature, Max temp 99°C

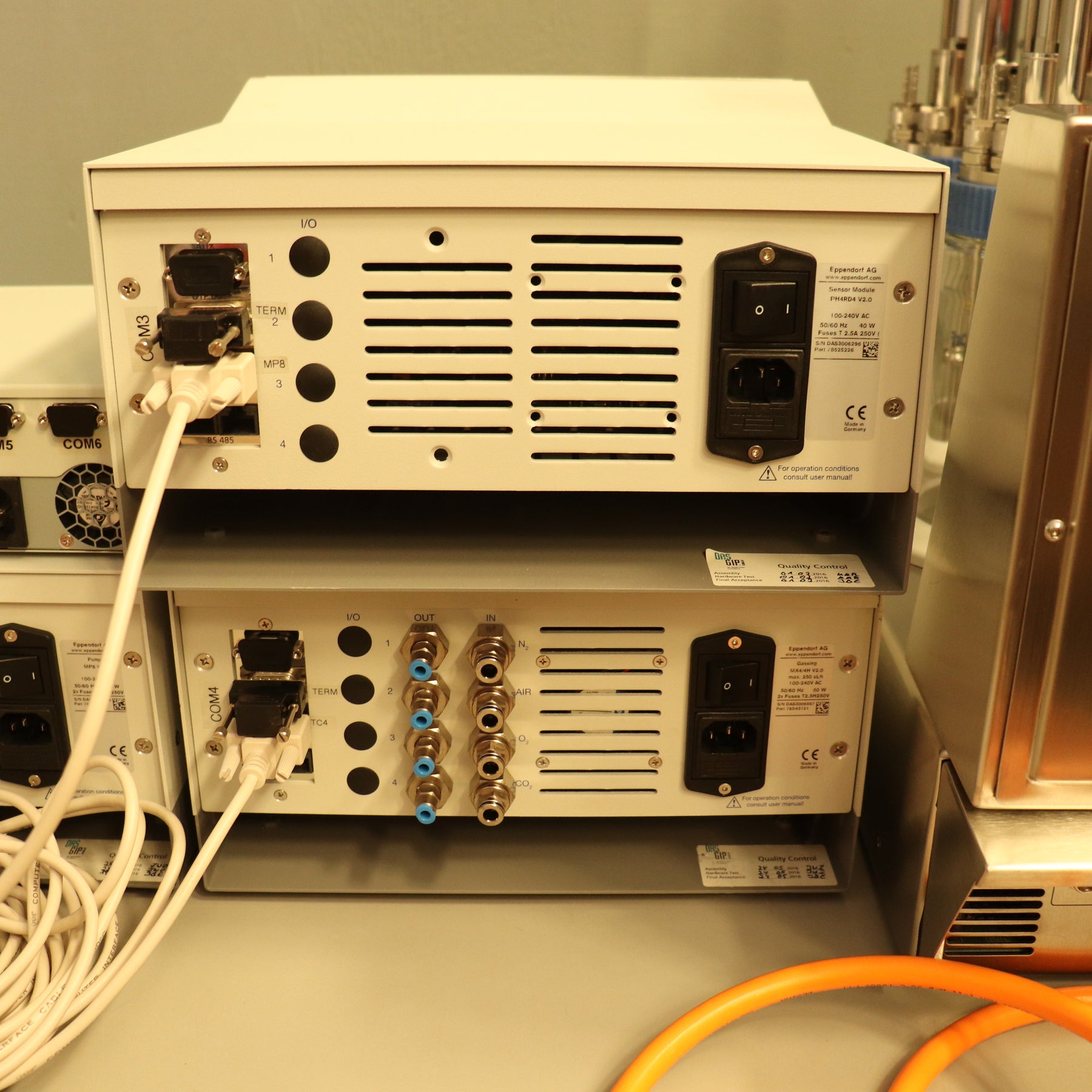

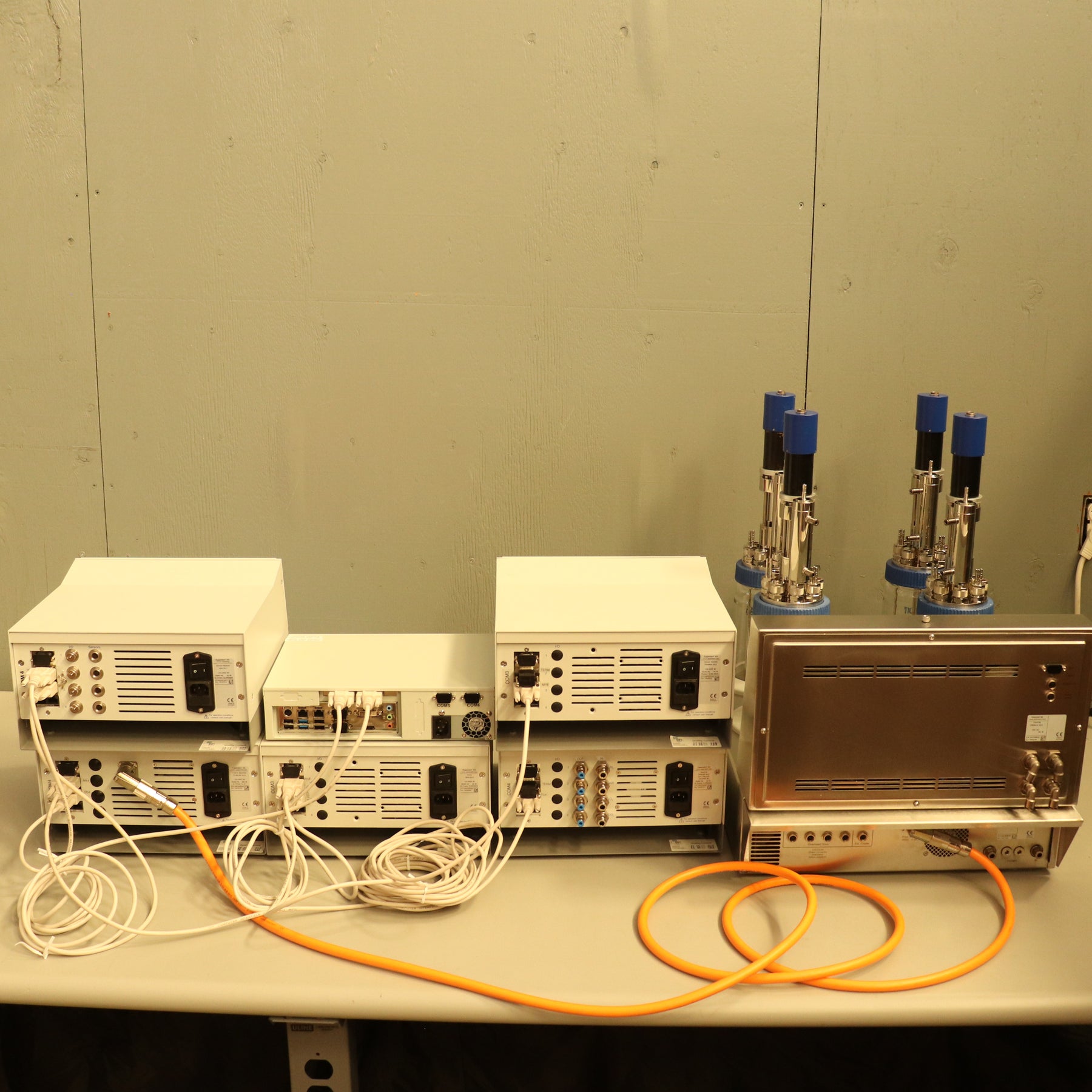

Condition: System is used, has been tested to be in very good working condition.  Modules will come with labels on DTP in/out ports and cables to help facilitate wiring the modules together.  Process PC has DASWare Control 5 (v5.6.4)Standard license for a 4-fold system. Setup process, including initial calibration procedure is detailed in the manuals. Digital manuals are available on the process PC.  System was throughly tested & cleaned. Vessels were disassembled, inspected, sanitized, and o-rings were replaced where necessary.  All sensors were tested, and gave results within the expected range.  Modules were tested for all functions, ie: pumps, measurement, gassing.  All modules were configured in DASWare, and functioned properly.

Included Components

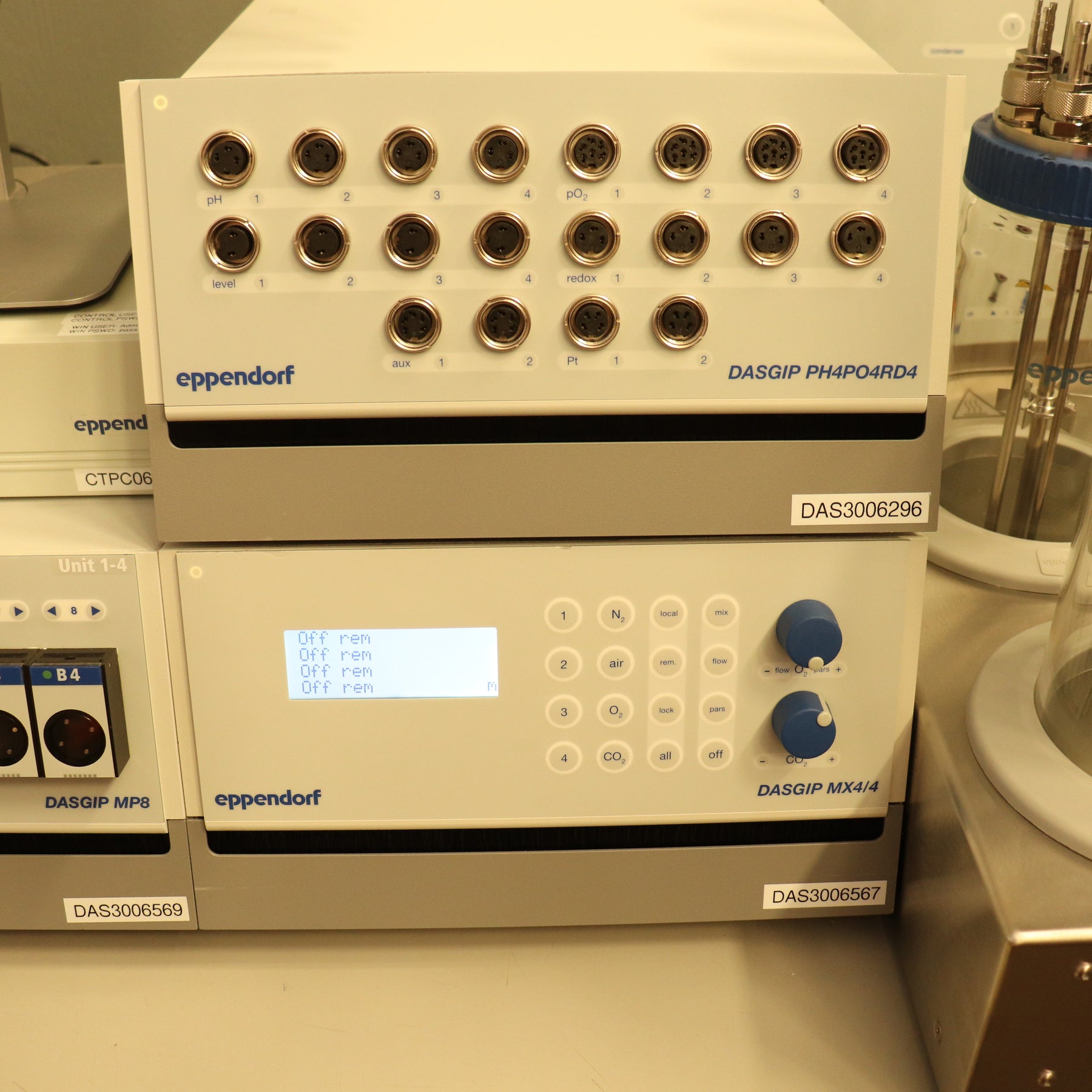

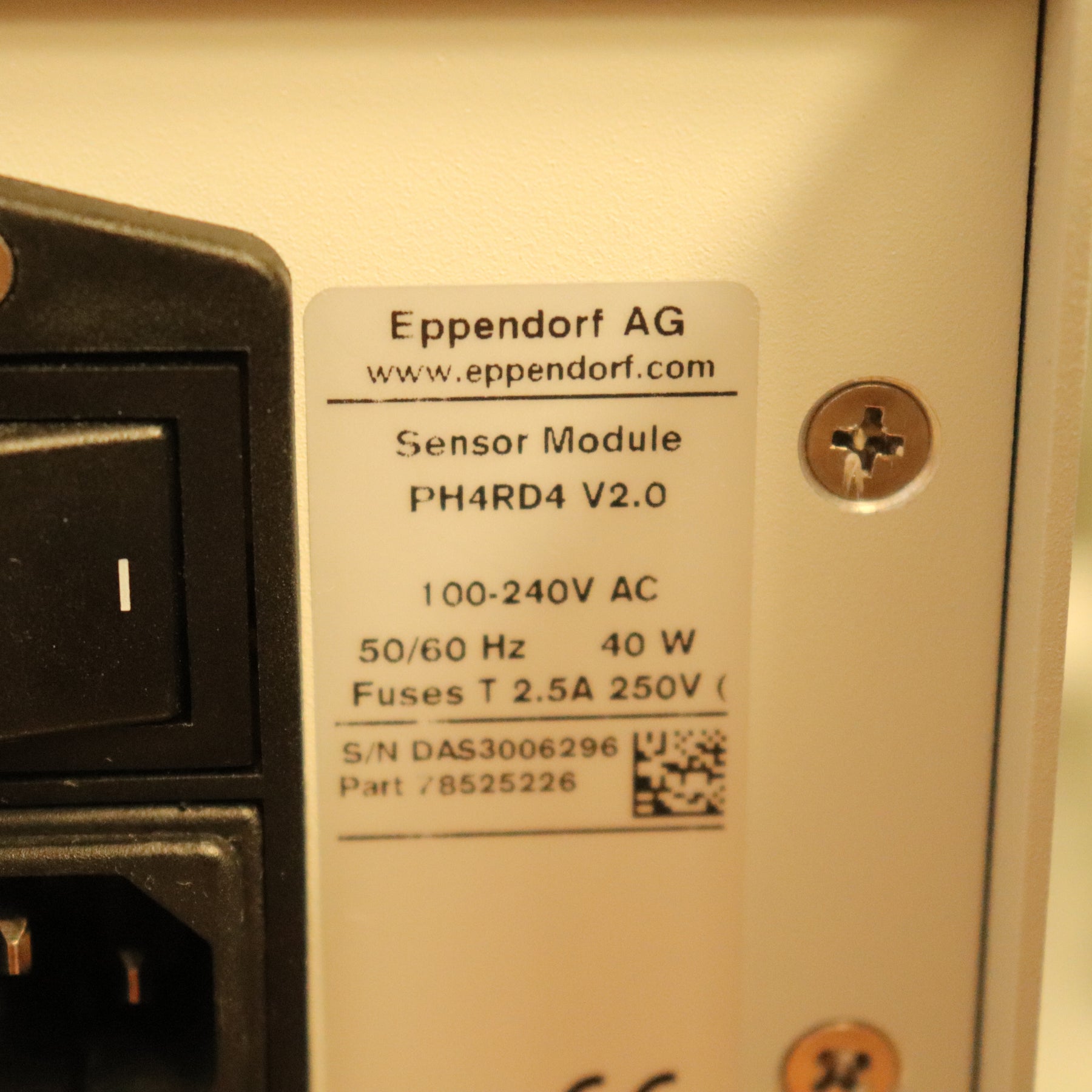

  • (1x) PH4P04RD4L V2.0 Sensor Module (pH, DO, Level, ORP)

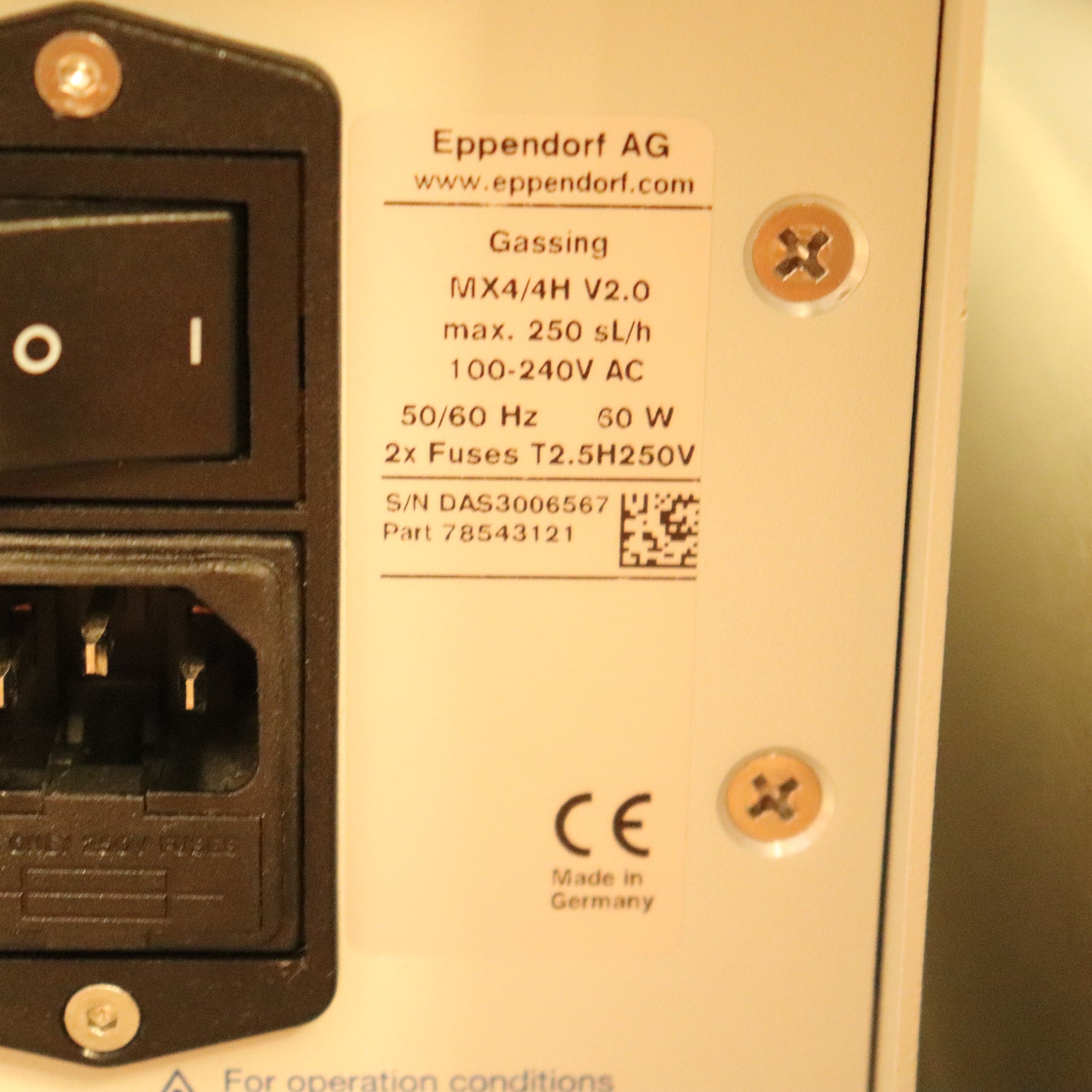

  • (1x) MX4/4H V2.0 Gas Mixing System (250 sL/h Max)

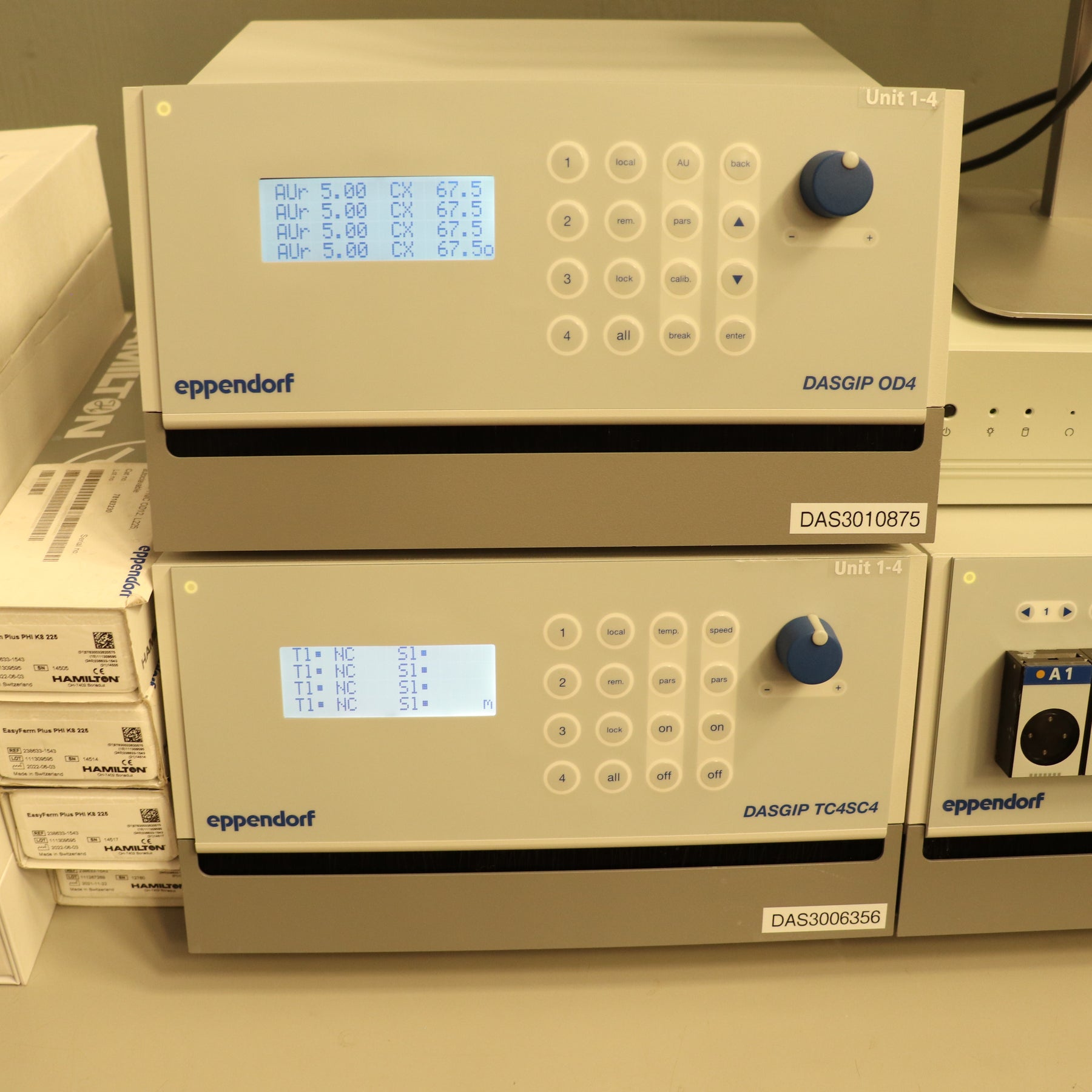

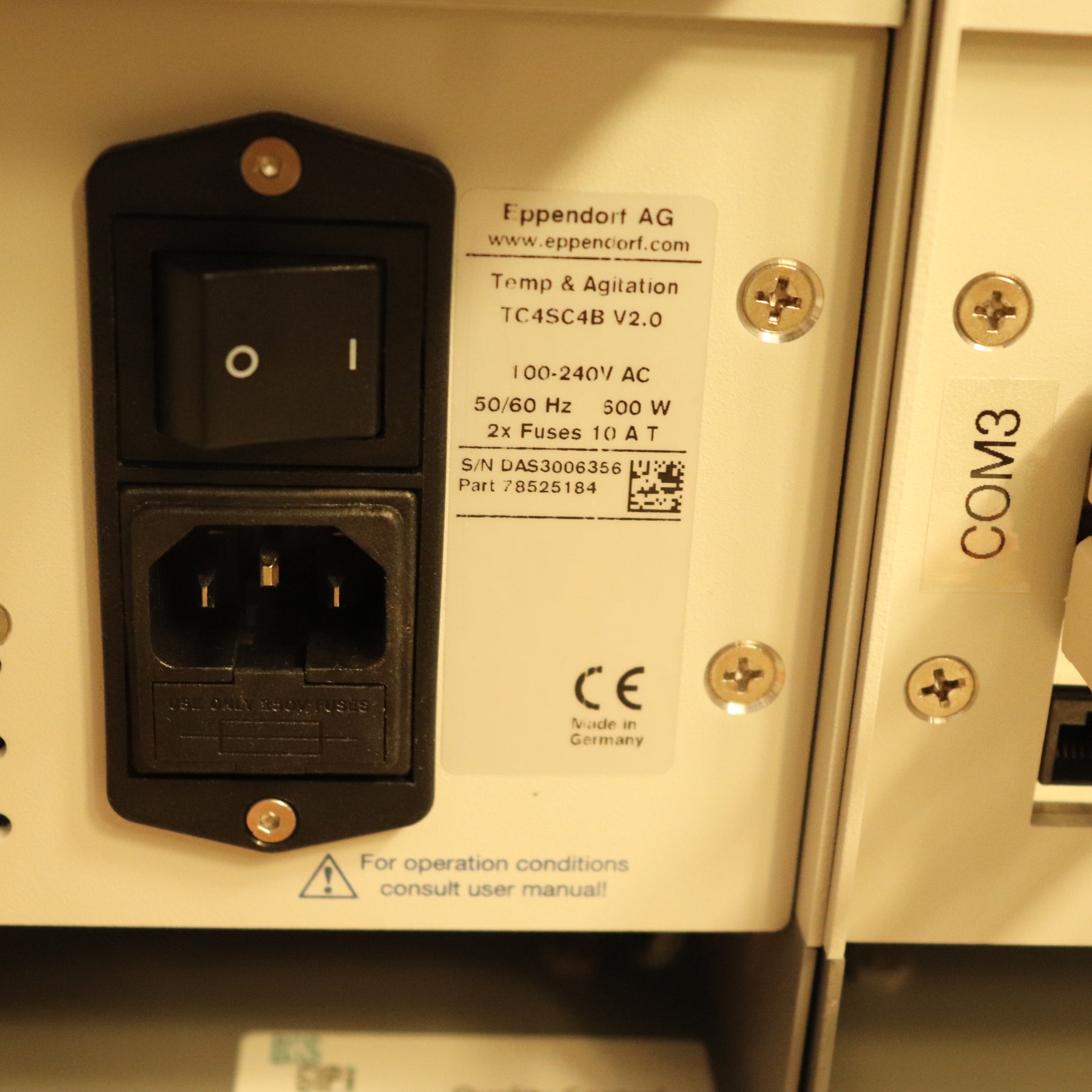

  • (1x) TC4SC4B V2.0 Temperature and Agitation Controller

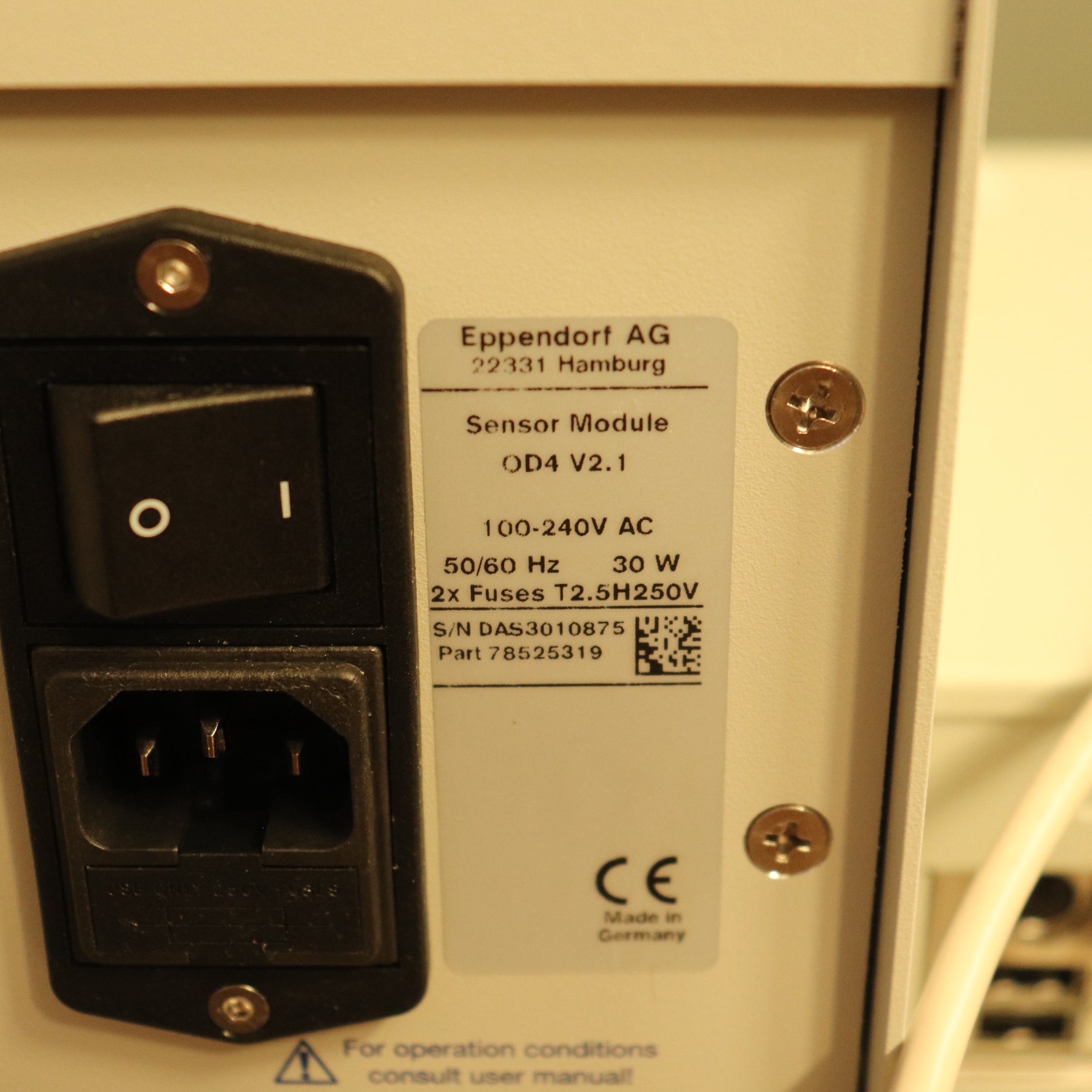

  • (1x) OD4 V2.1 Optical Density Module

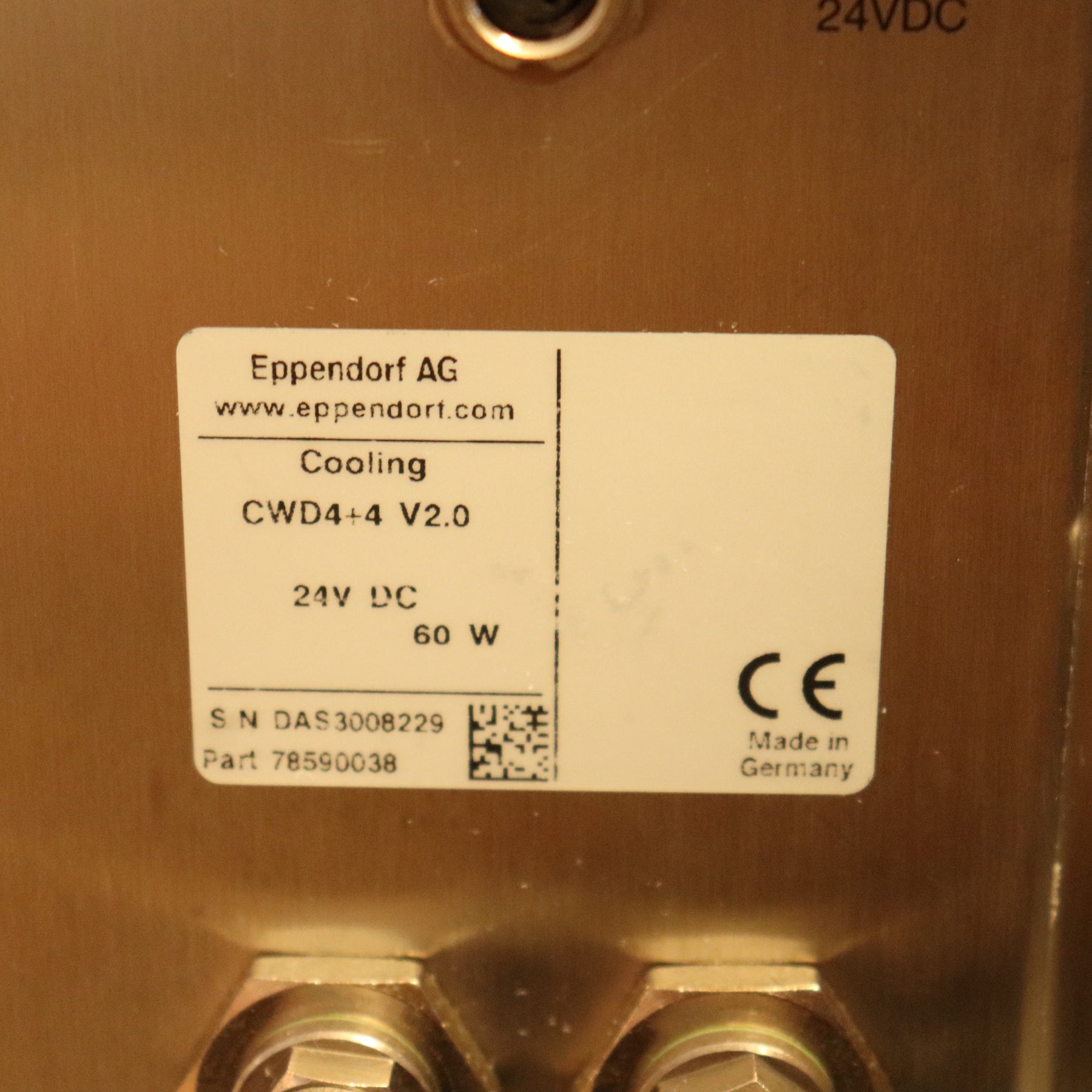

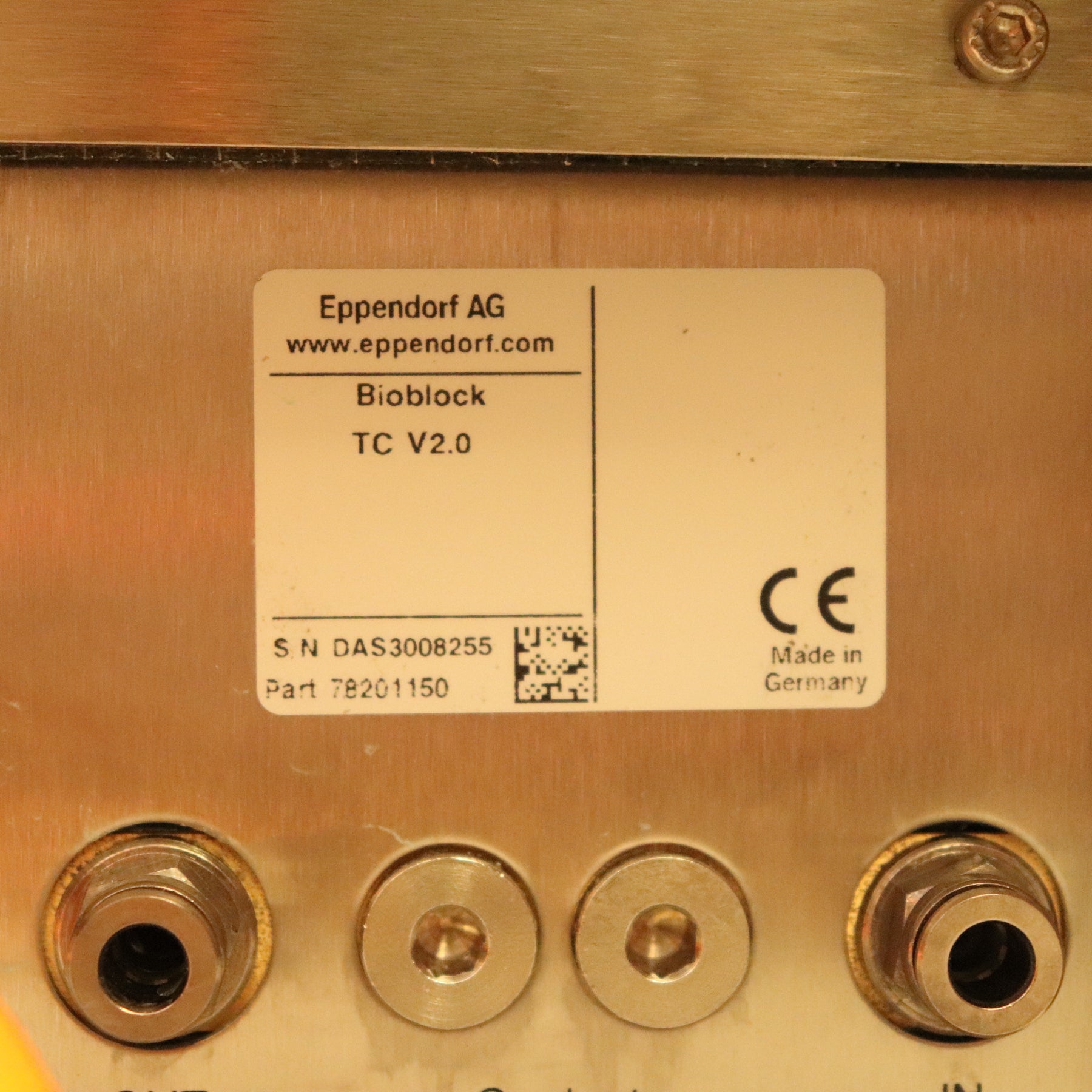

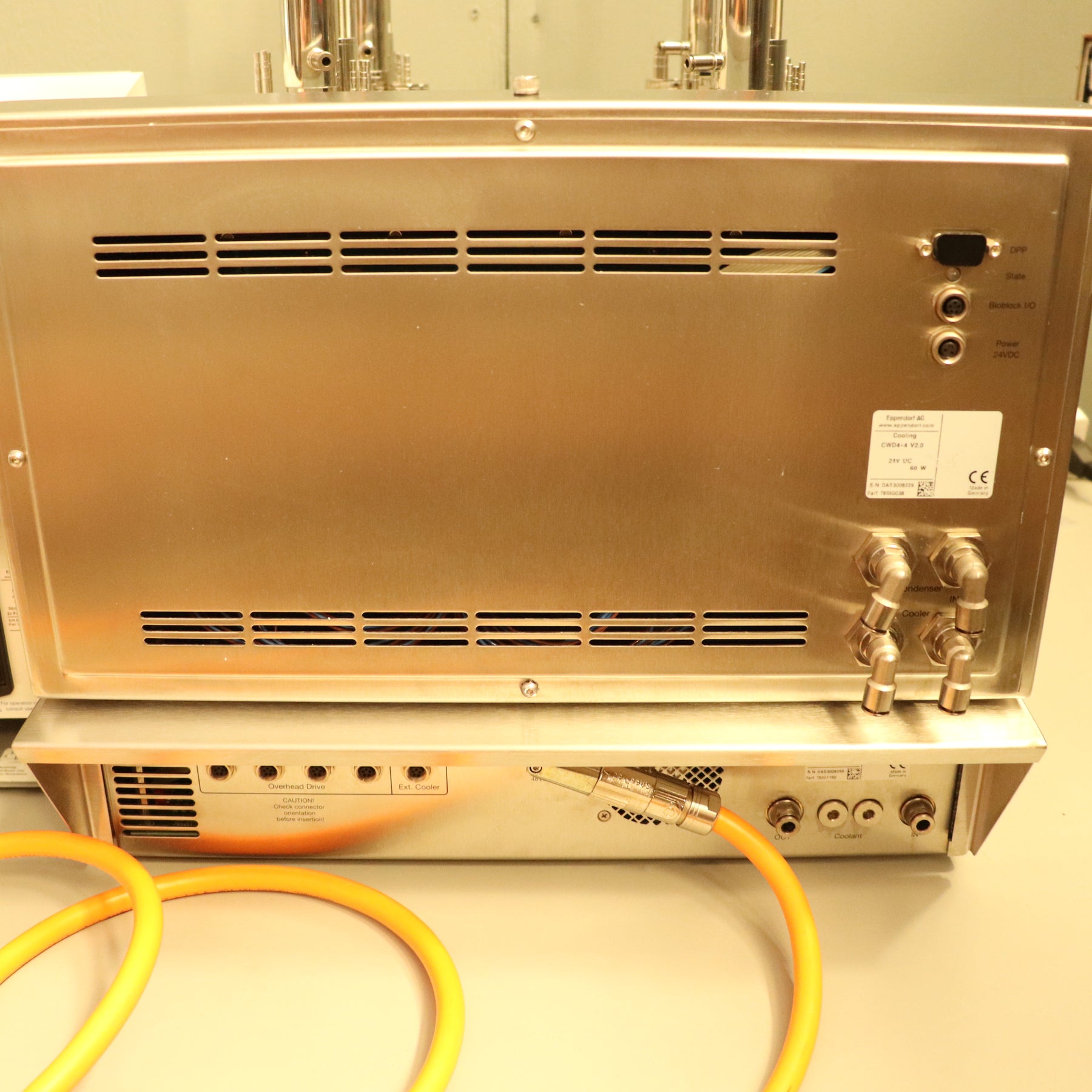

  • (1x) Bioblock w/ CWD4

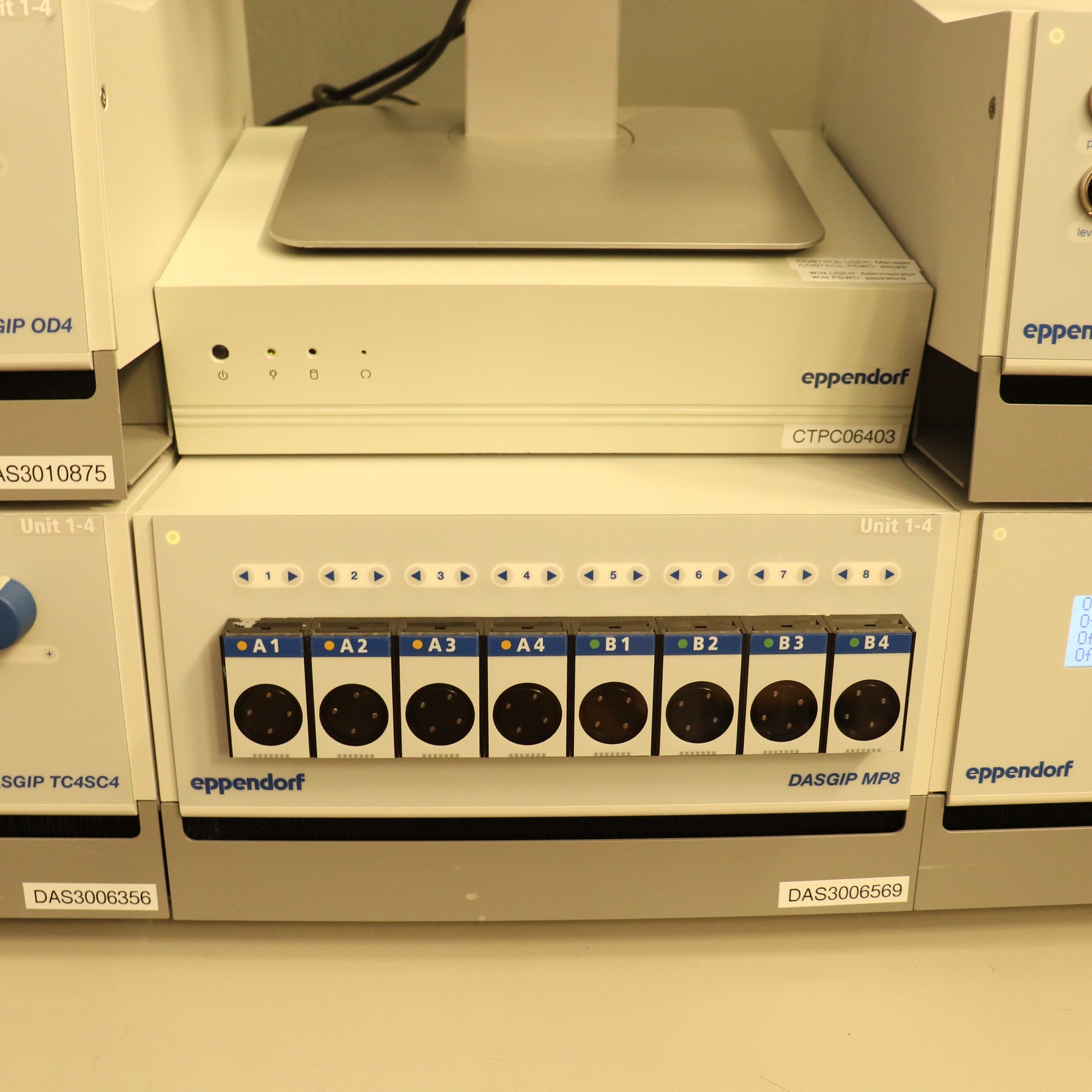

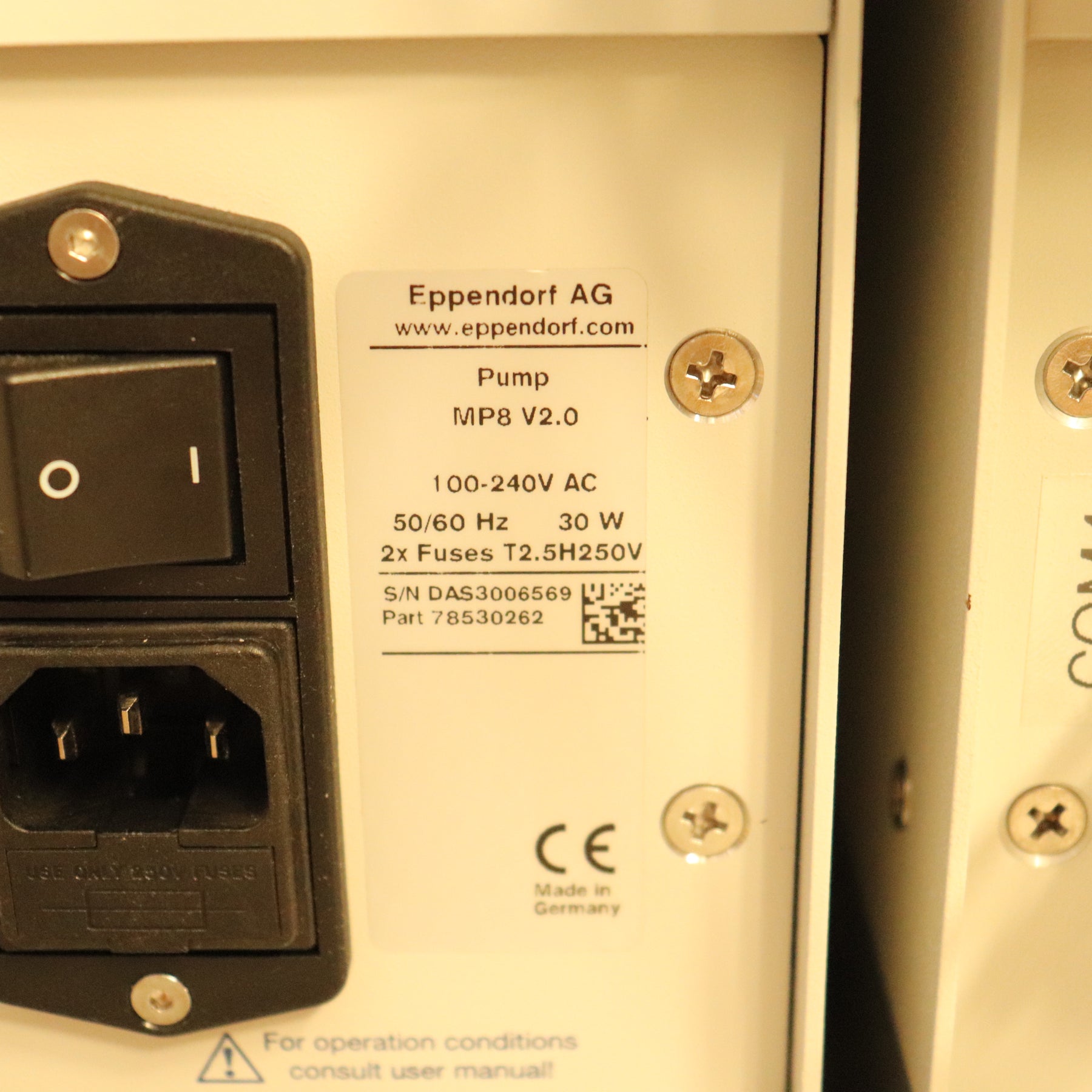

  • (1x) MP8 V2.0 Pump

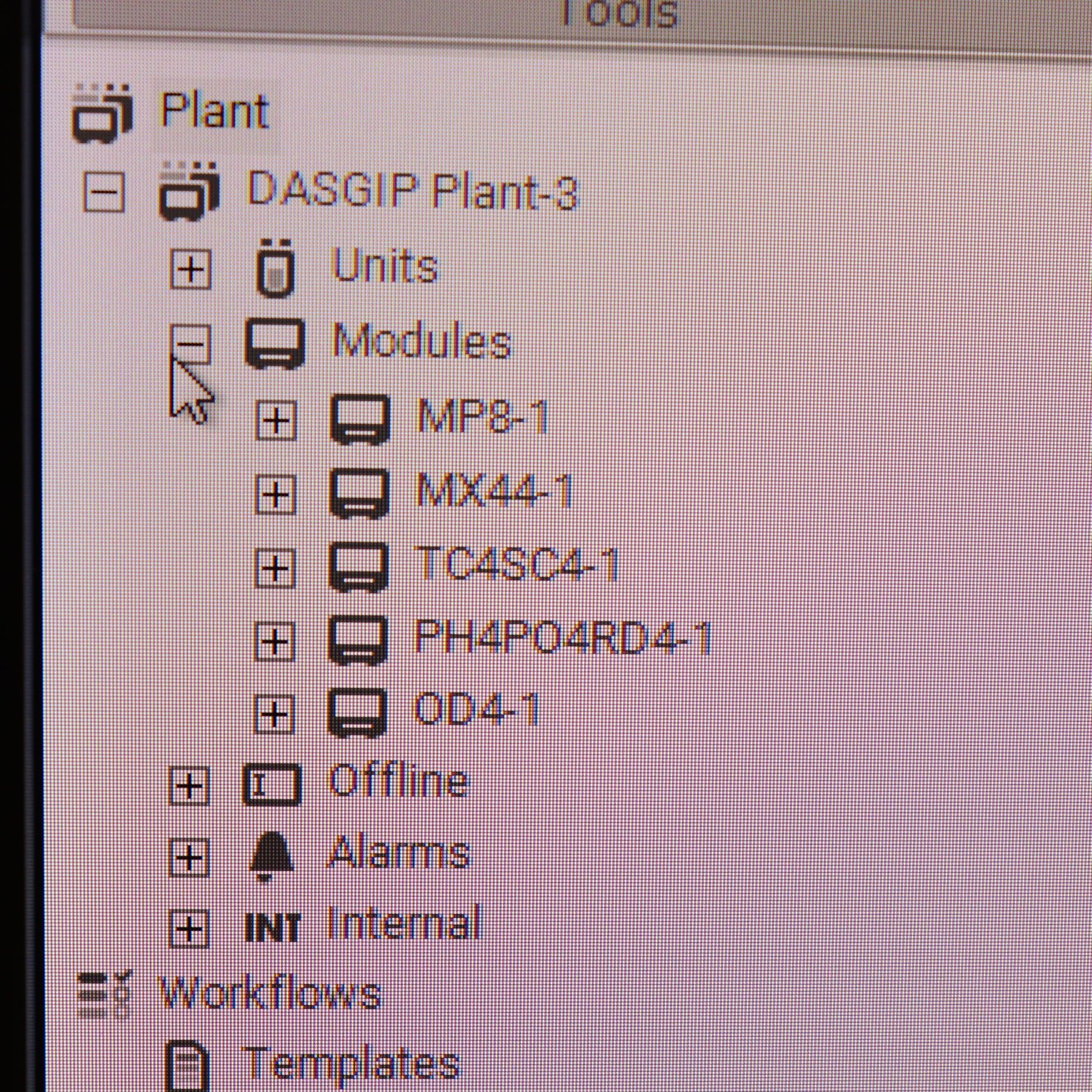

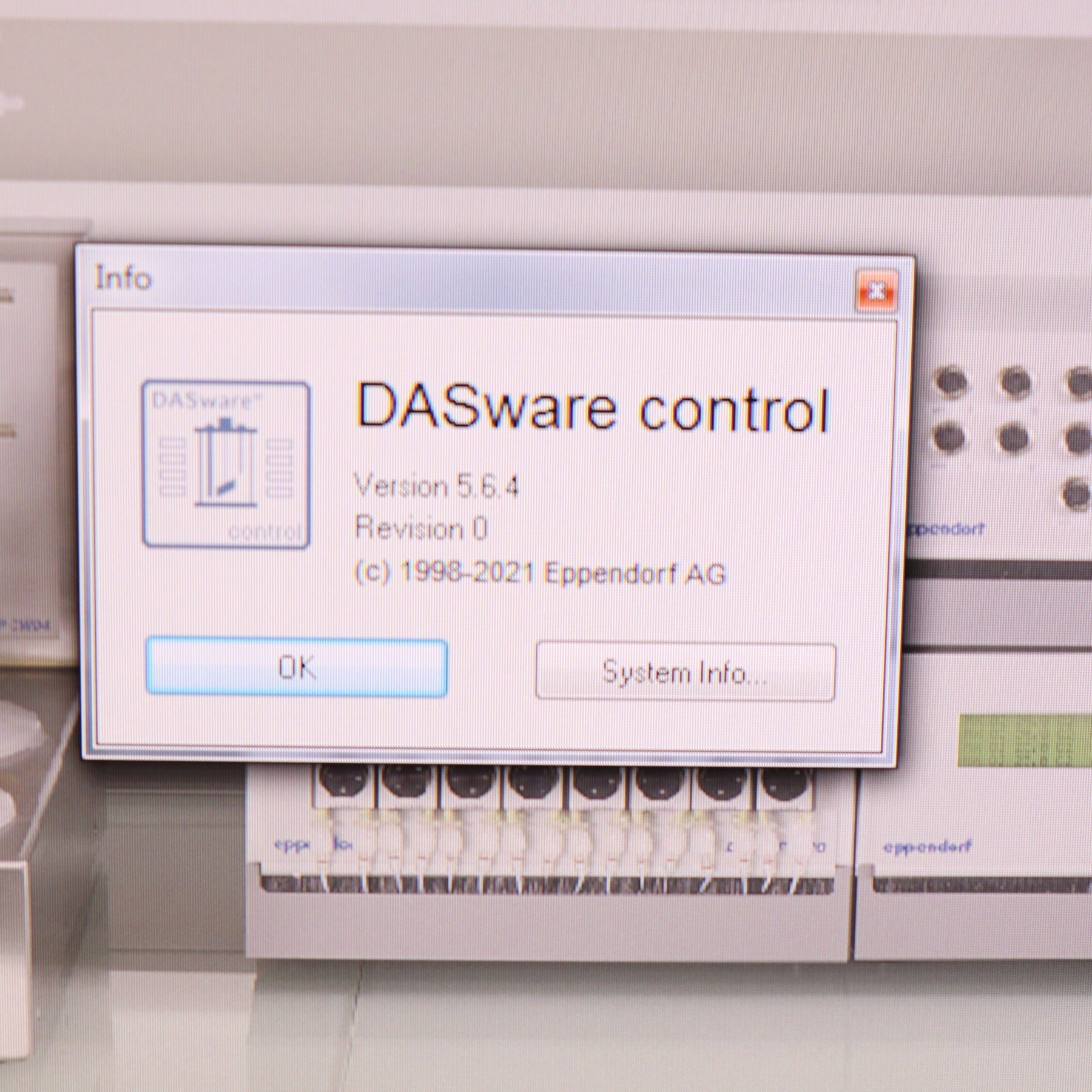

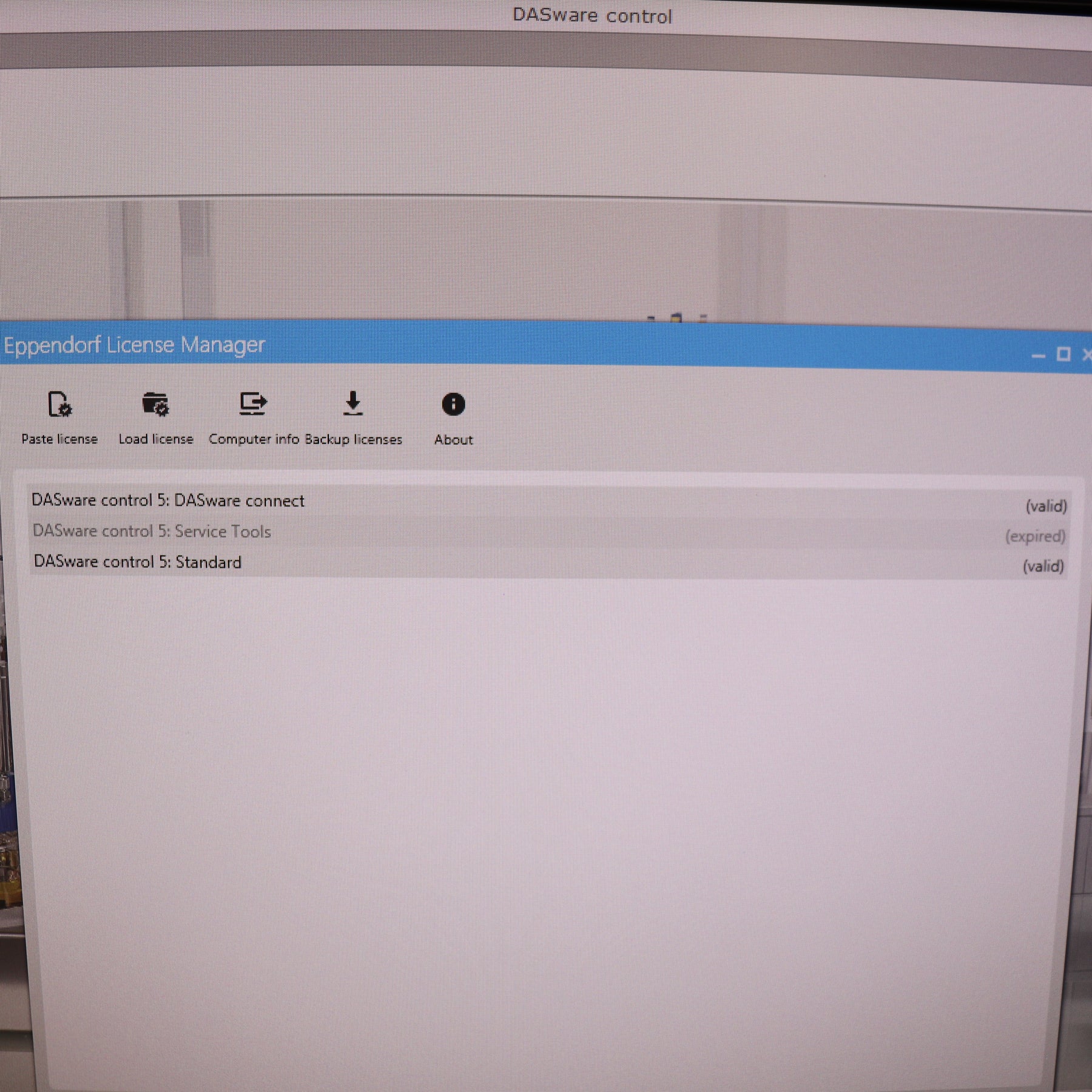

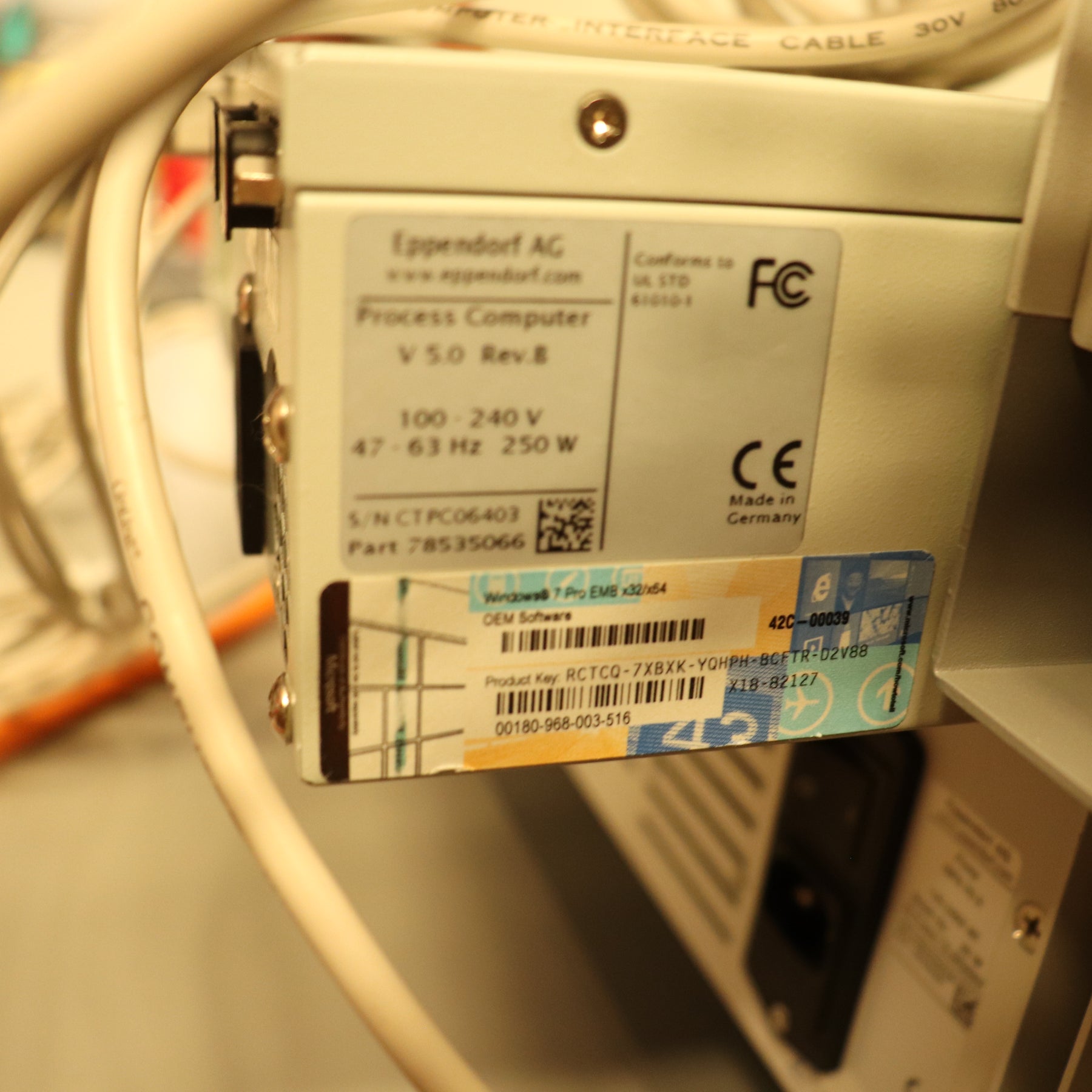

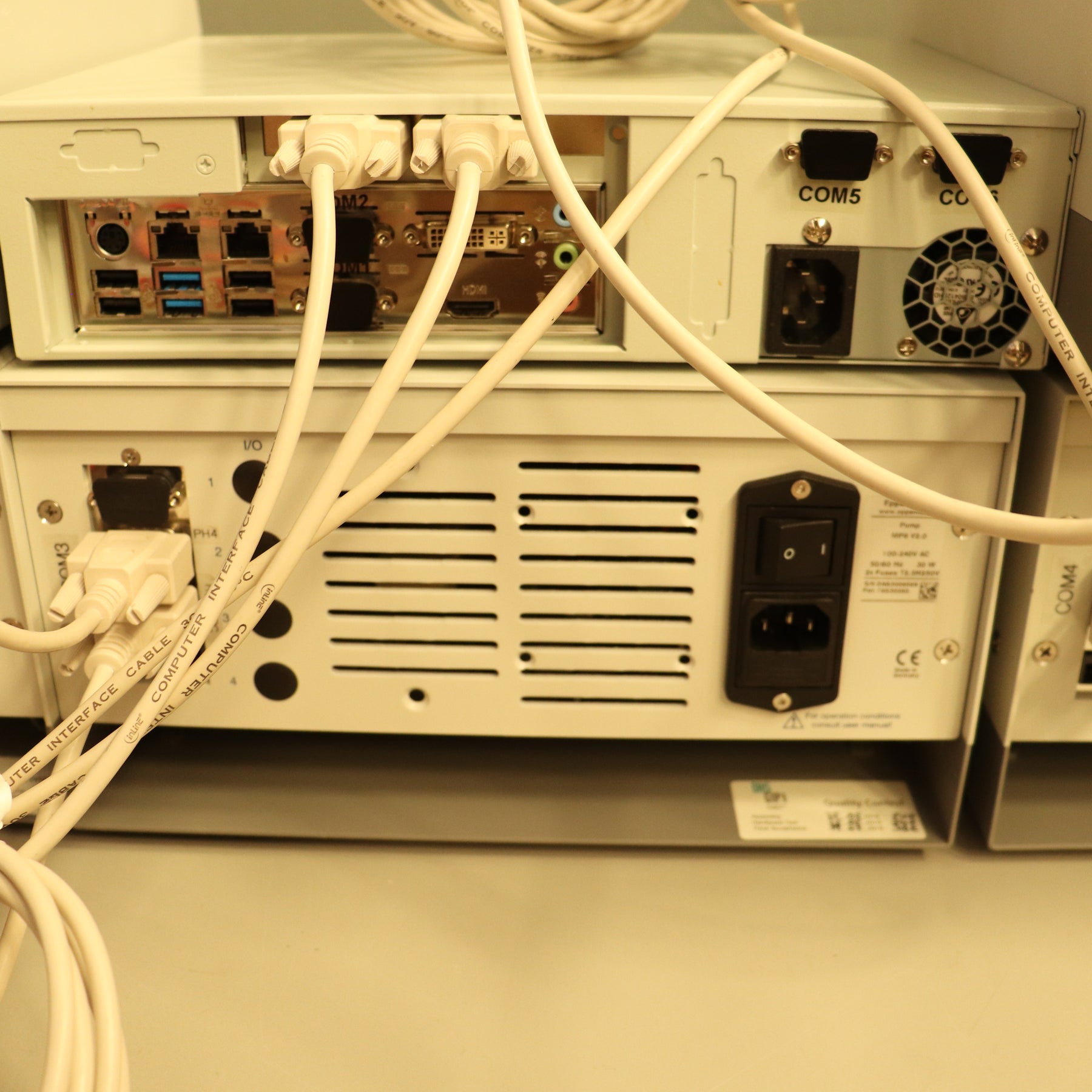

  • (1x) DASWare v5.0 Win 7 Process Control PC with 4-Fold system license.  DASWare Control 5.6.4 Standard license.
  • (1x) OEM Monitor

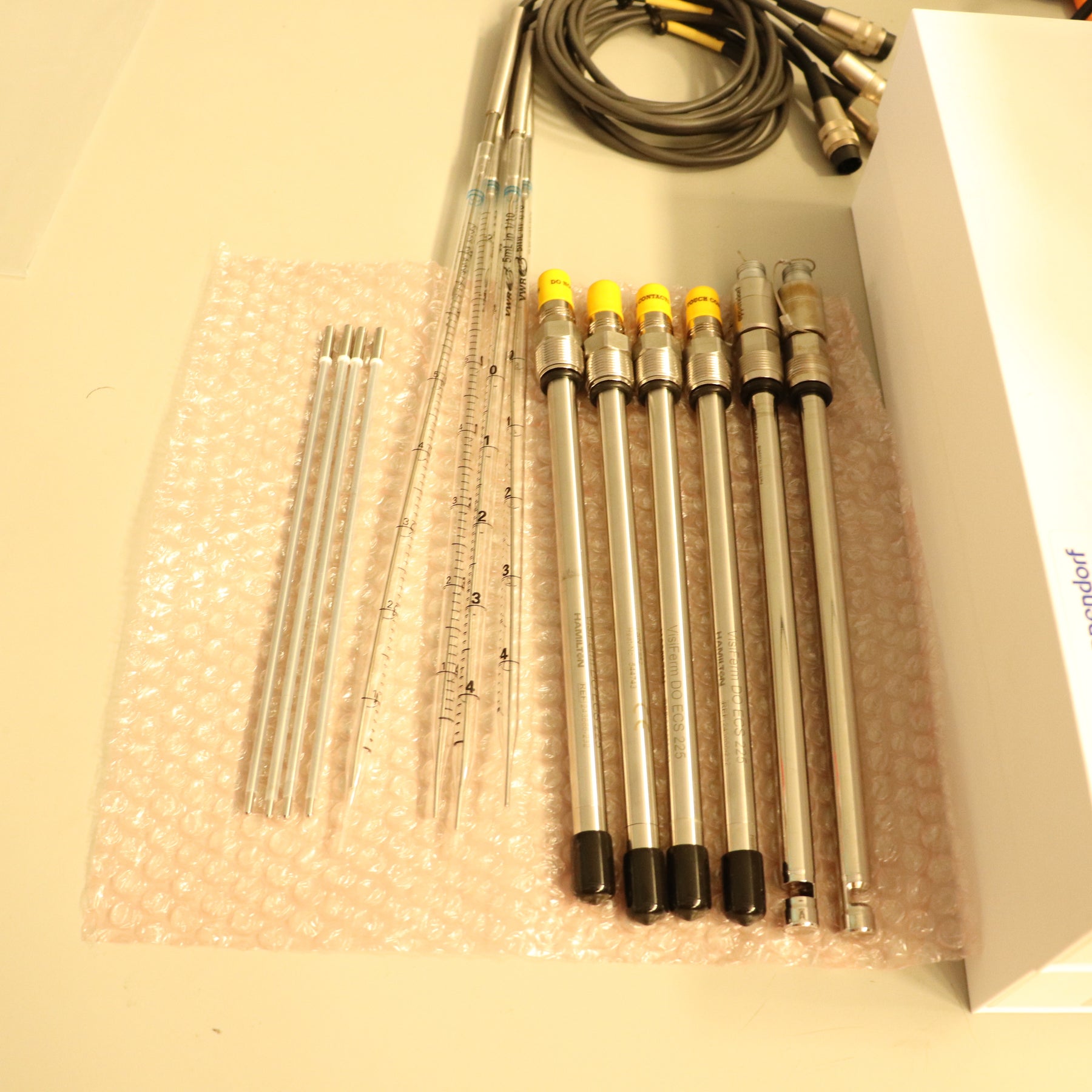

Included Sensors/ Accessories:

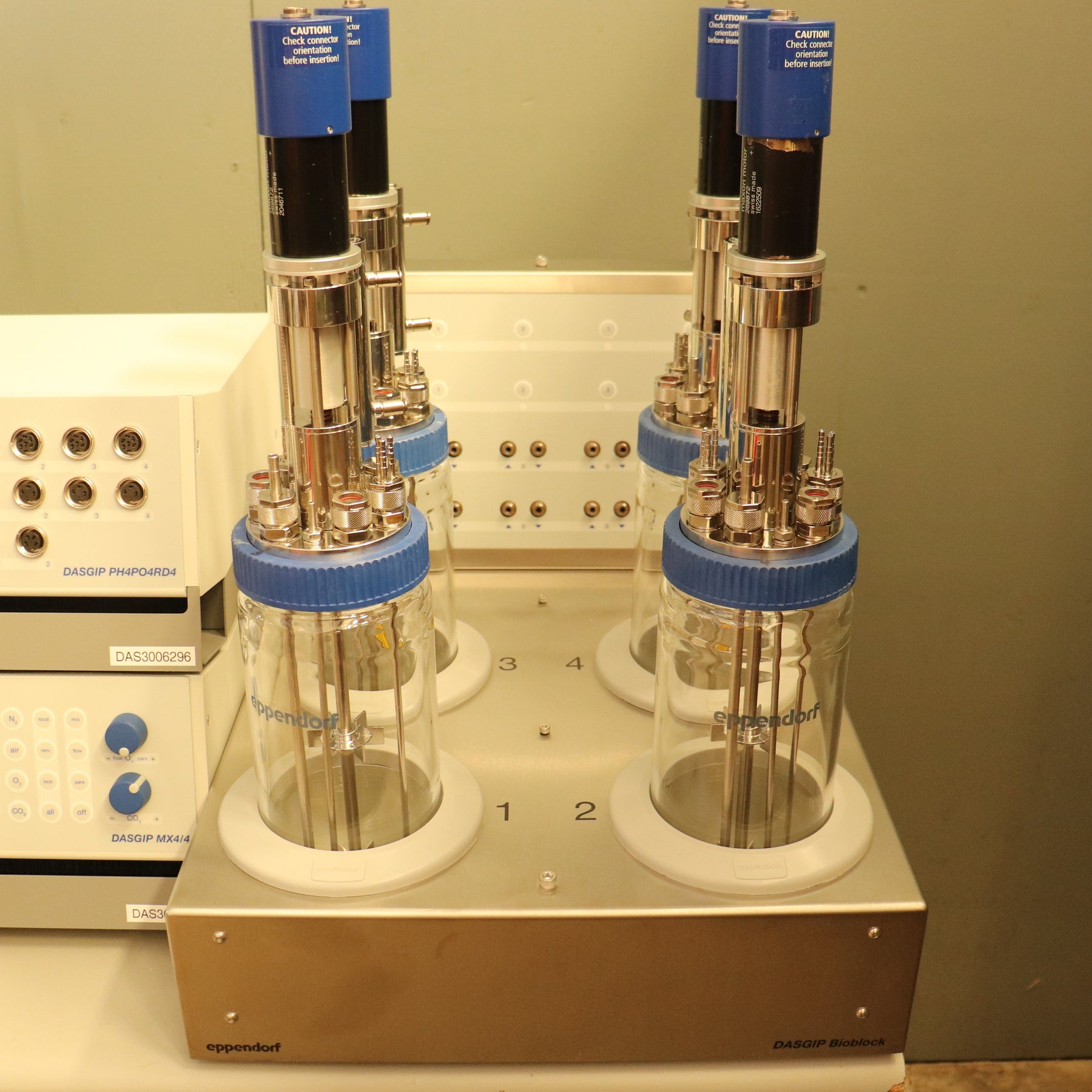

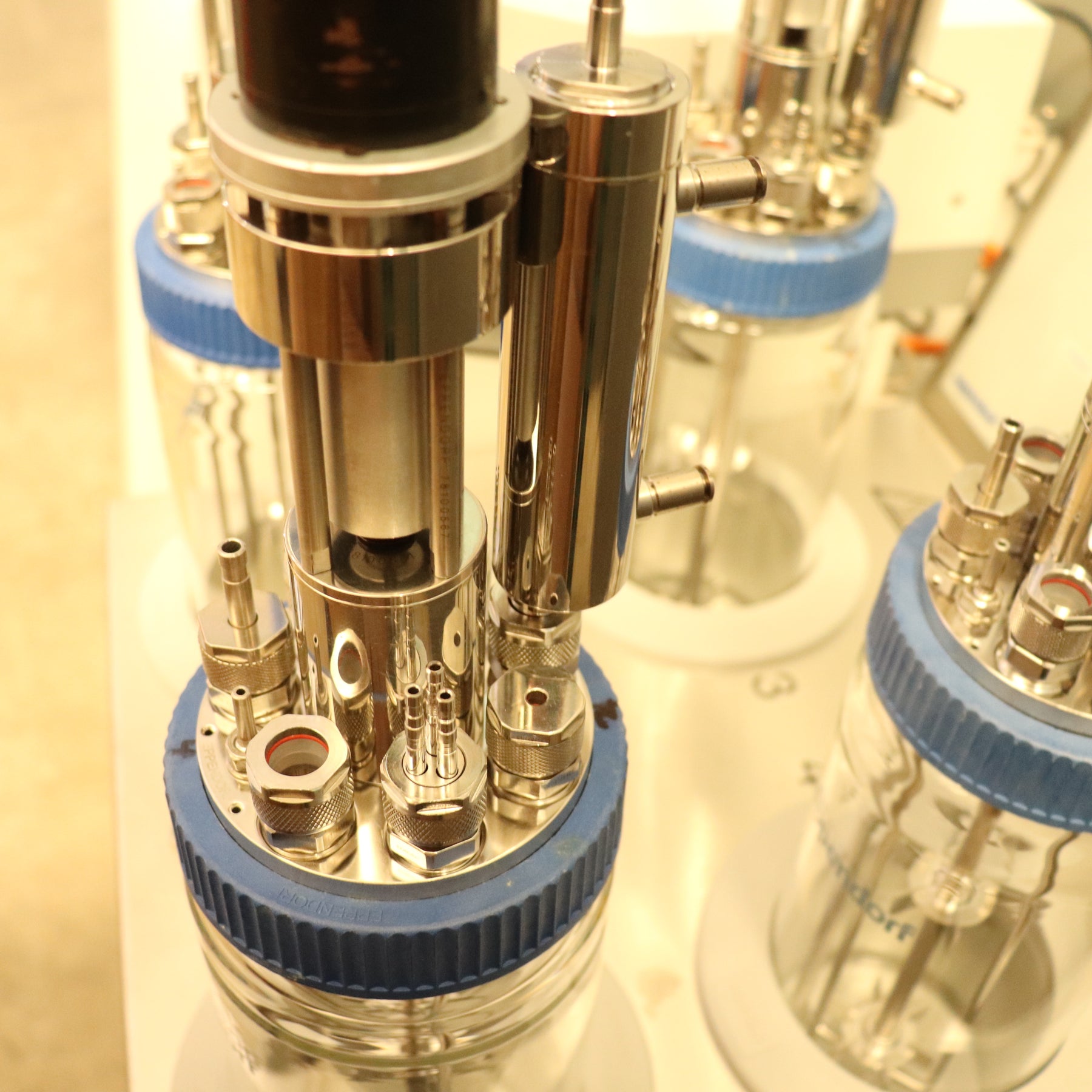

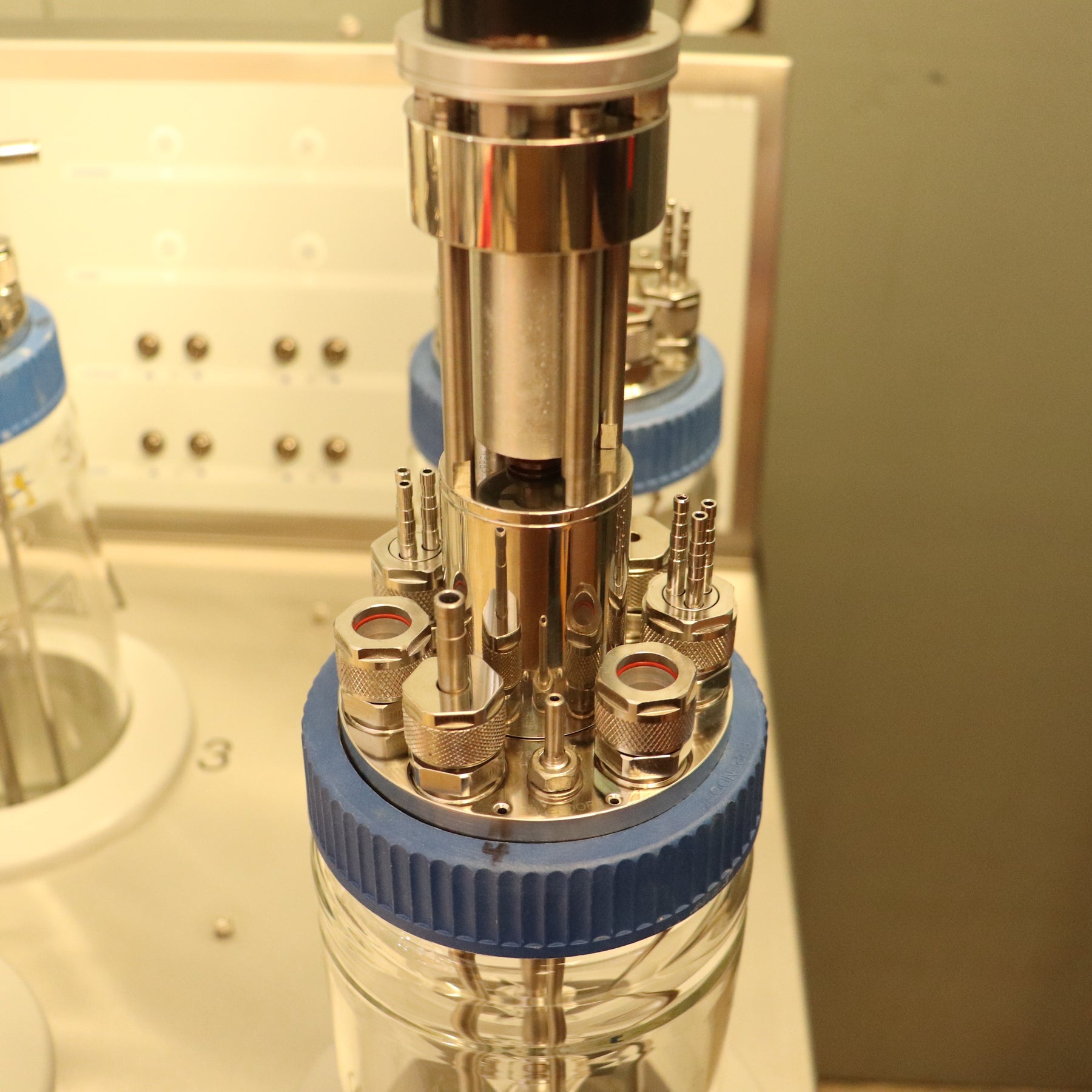

  • (4x) 1.5L Glass Vessels (SR1000ODLS)
    • (4x) Exhaust Condensers
    • (12x) Sensor Compression Adapters (78532284)
    • (4x) 4mm OD Triple Port Compression Fitting w/ 2x 80mm and 1x 270mm SS Pipe
    • (4x) 4mm OD Triple Port Compression Fitting w/ 3x 80mm SS Pipe
    • (4x) Thermowells
    • (4x) L-Downward Bore Spargers
  • (4x) RE40 Direct Overhead Drives
  • (4x) Overhead Drive Cables 78100253
  • (4x) Platinum RTD Temperature Sensors 78103304
  • (4x) Level Sensors w/ Compression Fitting  200mm 78103146
  • (8x) pH/Redox Sensor Cable (AK9) 76DGPHRDAK9
  • (4x) DO Sensor Cables 78522042
  • (4x) Level Sensor Cables 78522031
  • (4x) OD Sensor Cables 78100252

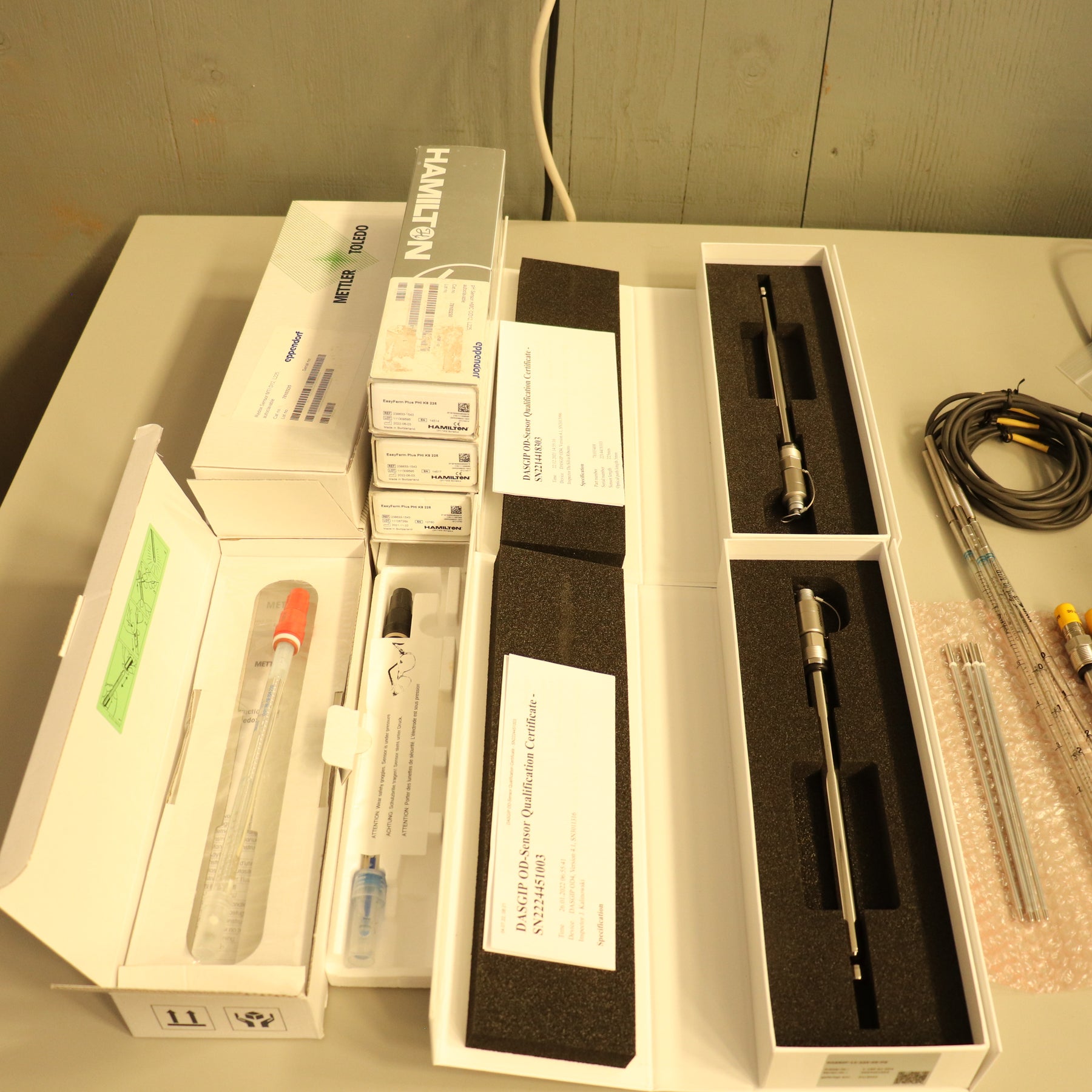

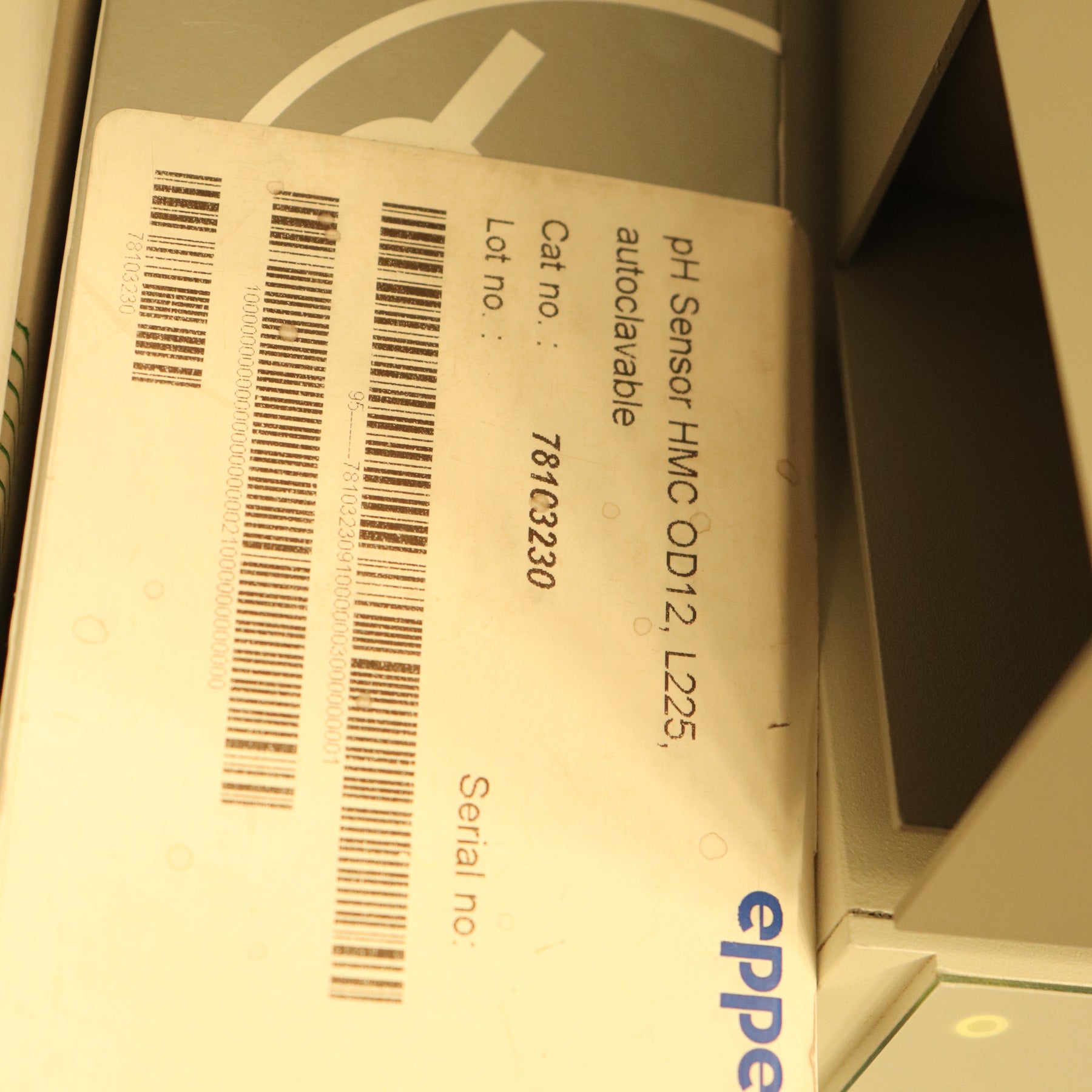

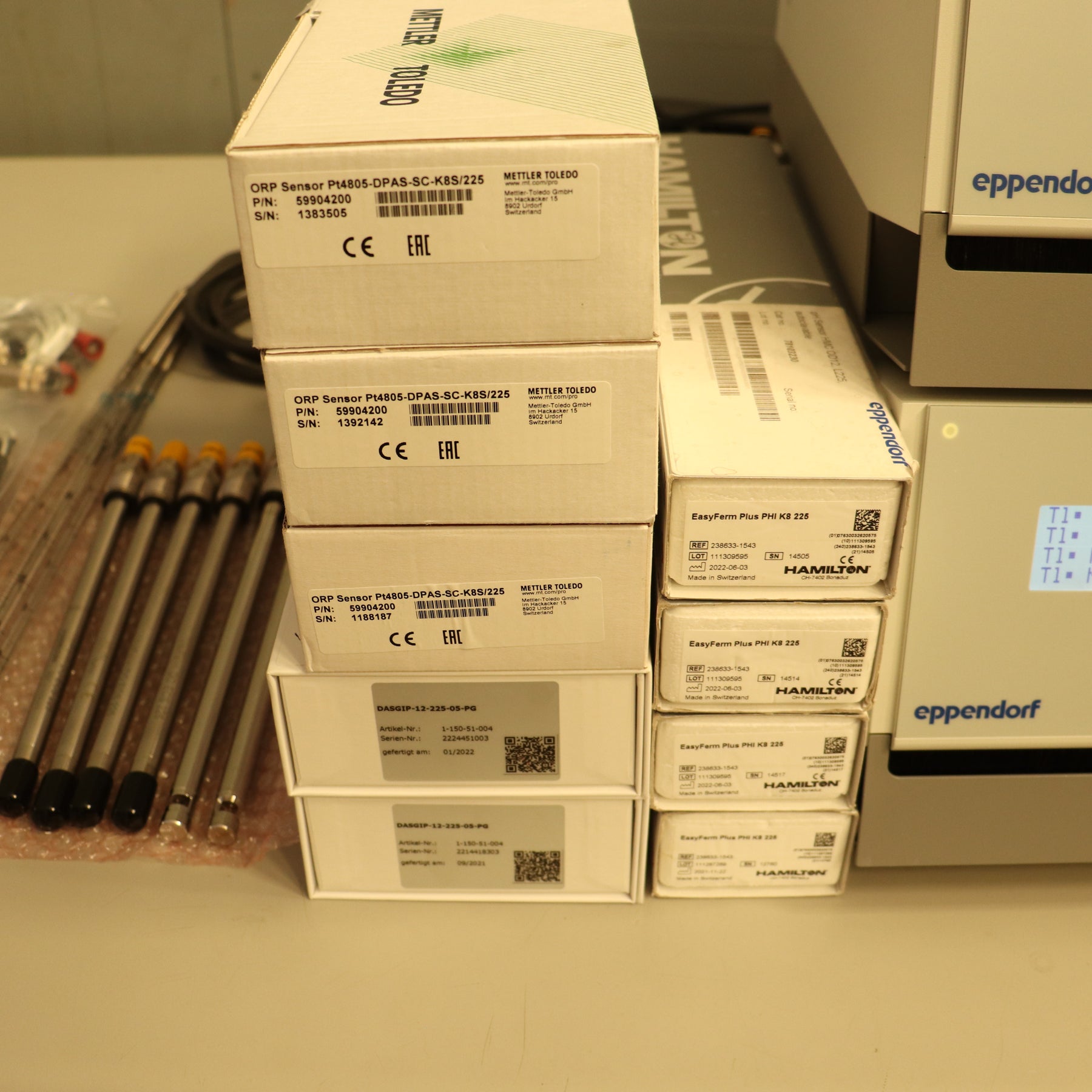

  • (4x) pH Sensors Hamilton 225mm 78103230
    • New, open box
  • (4x) DO Sensors Hamilton Visiferm Optical, H0 cap 225mm 78108059
    • Used

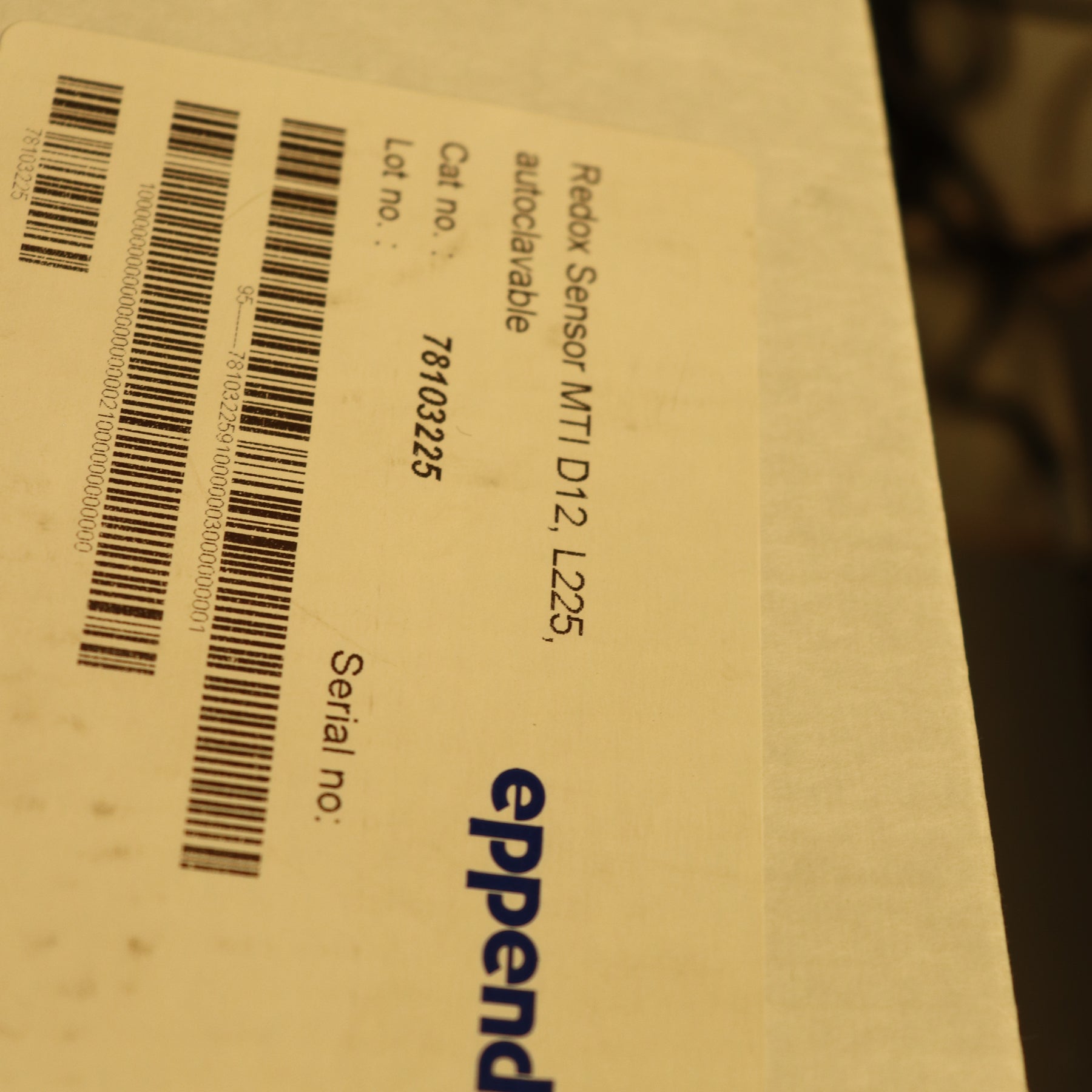

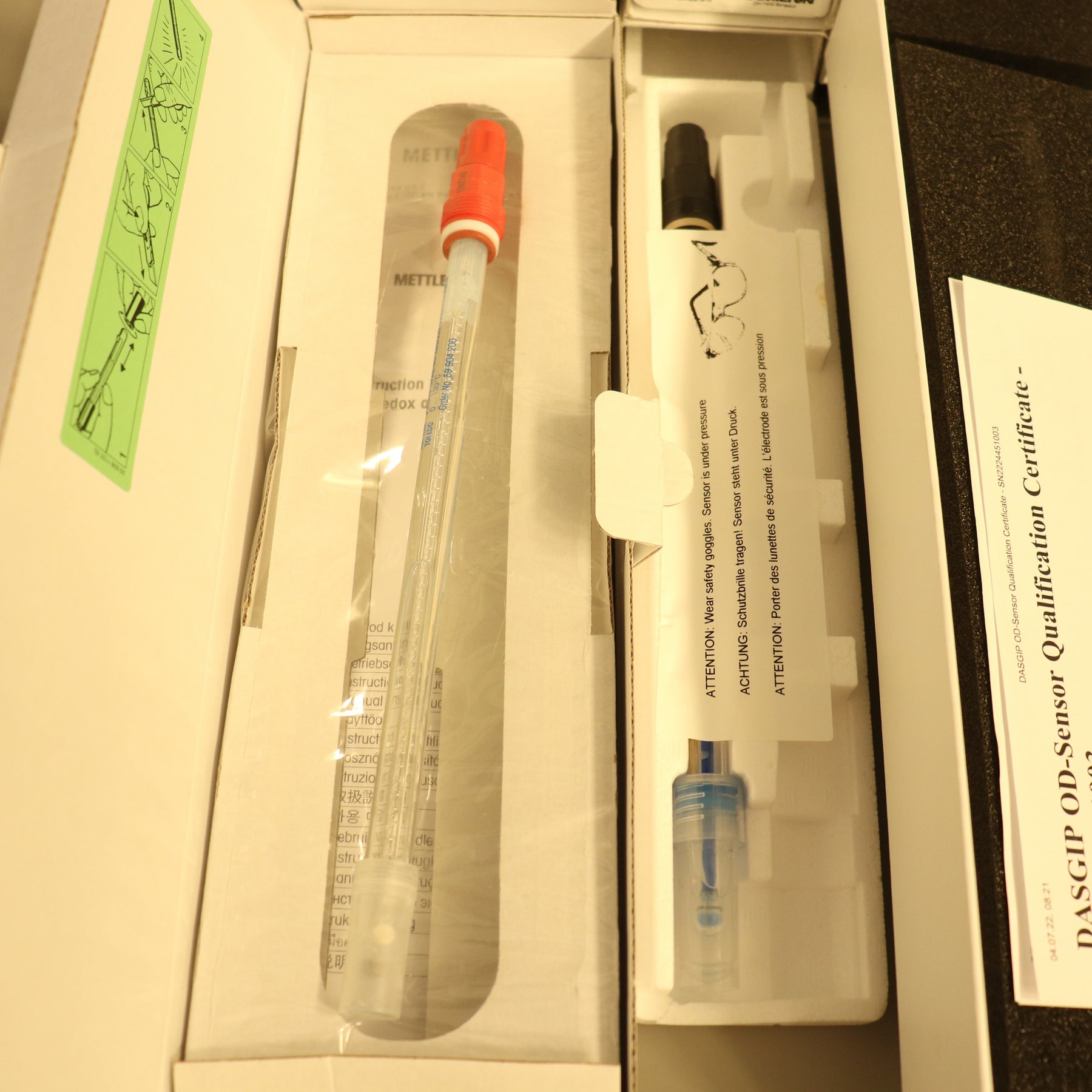

  • (3x) Redox Sensors MTI D12 L225 78103225
    • New, open box

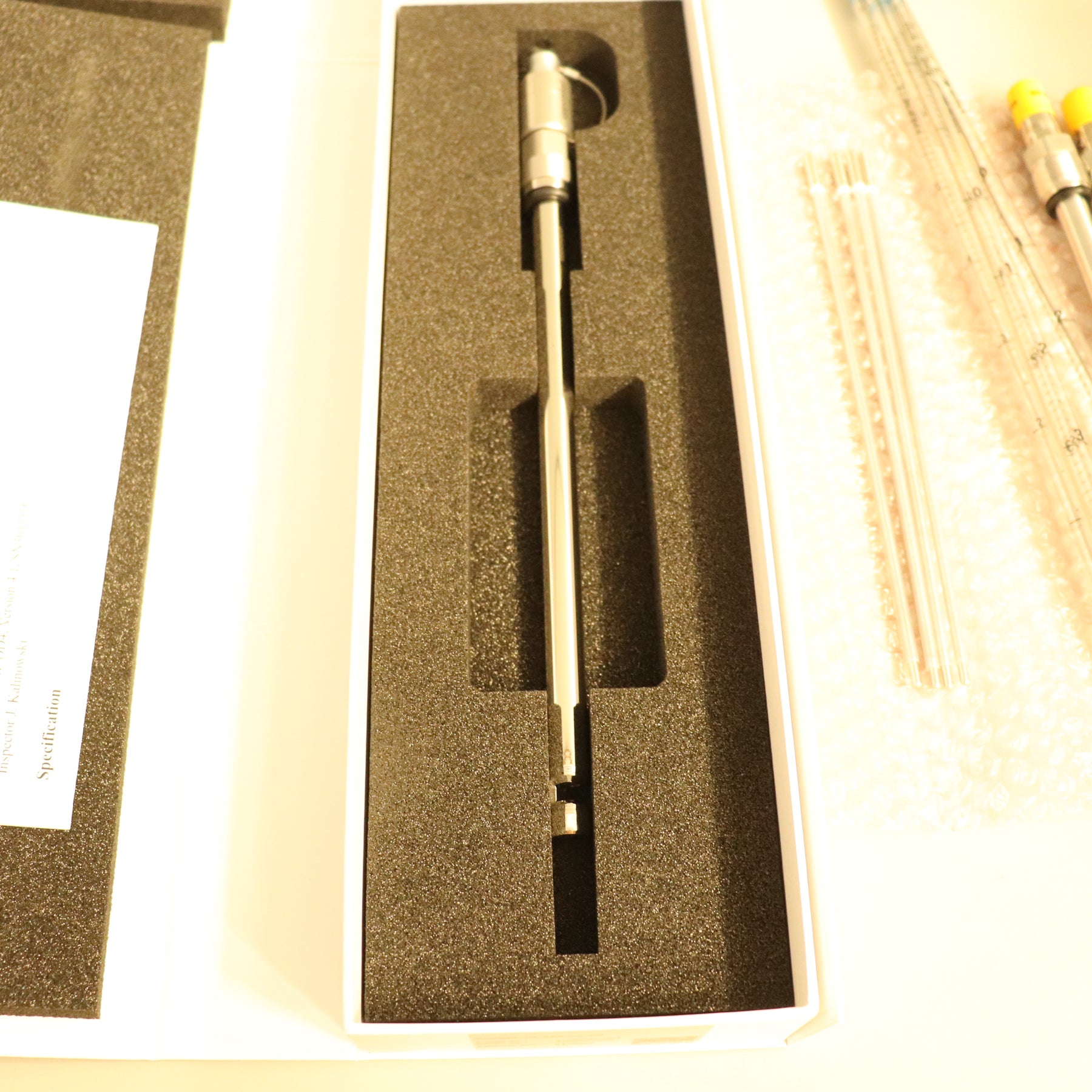

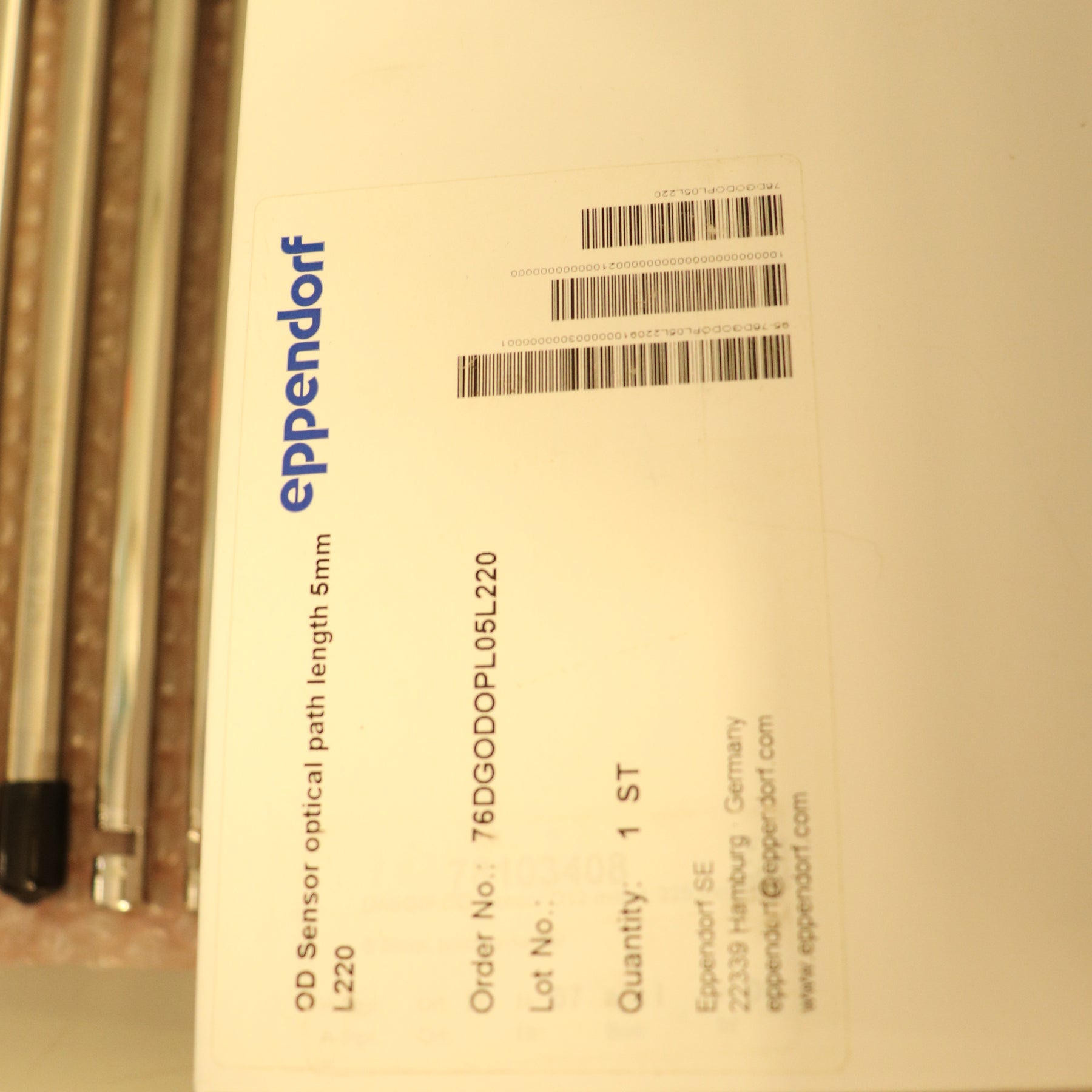

  • (4x) OD Sensors 220mm, 5mm optical path 76DGODOPL05L220
    • (2x) New, open box, (2x) Used
  • Data Cables & Power Cords
  • Misc Tubing (not pictured)
