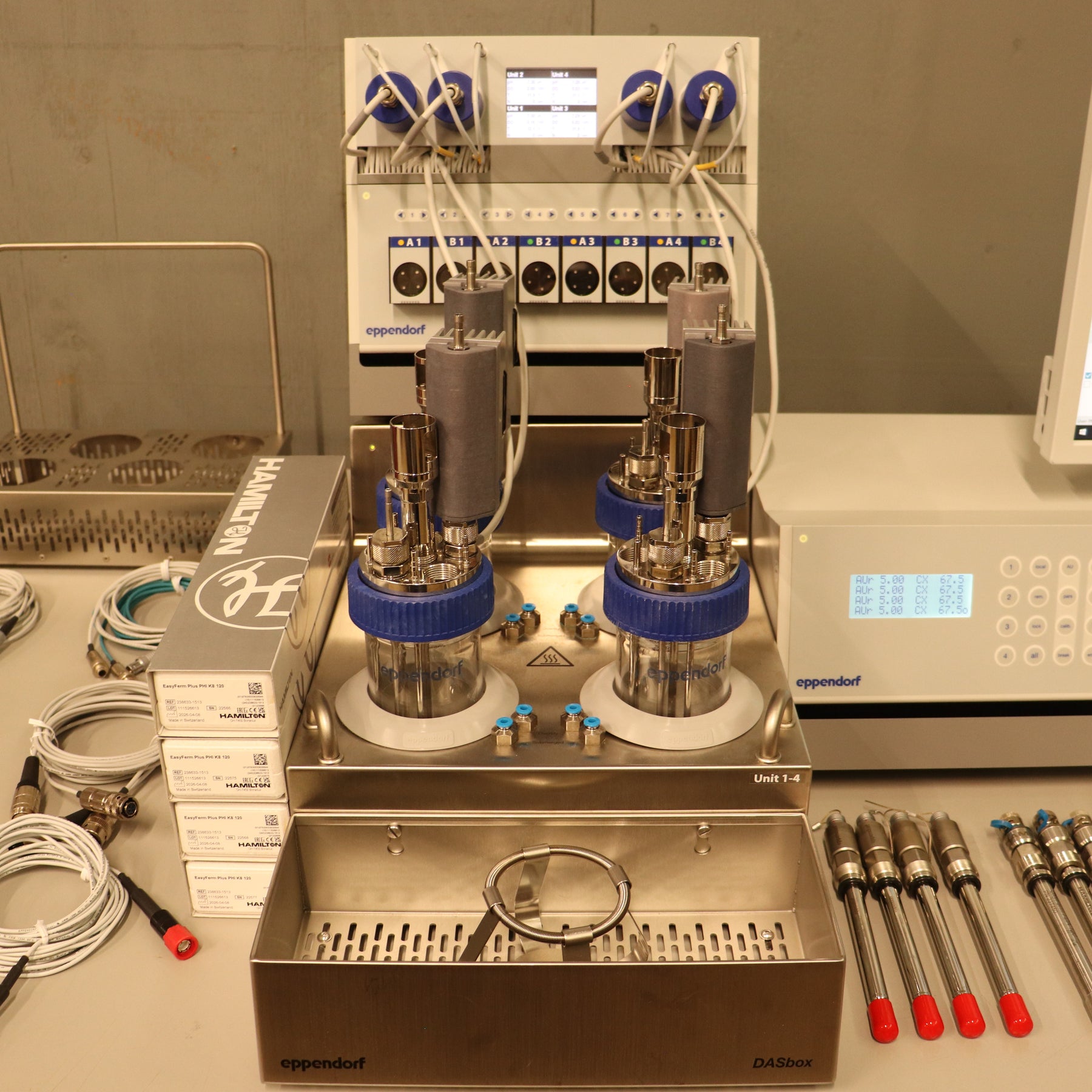

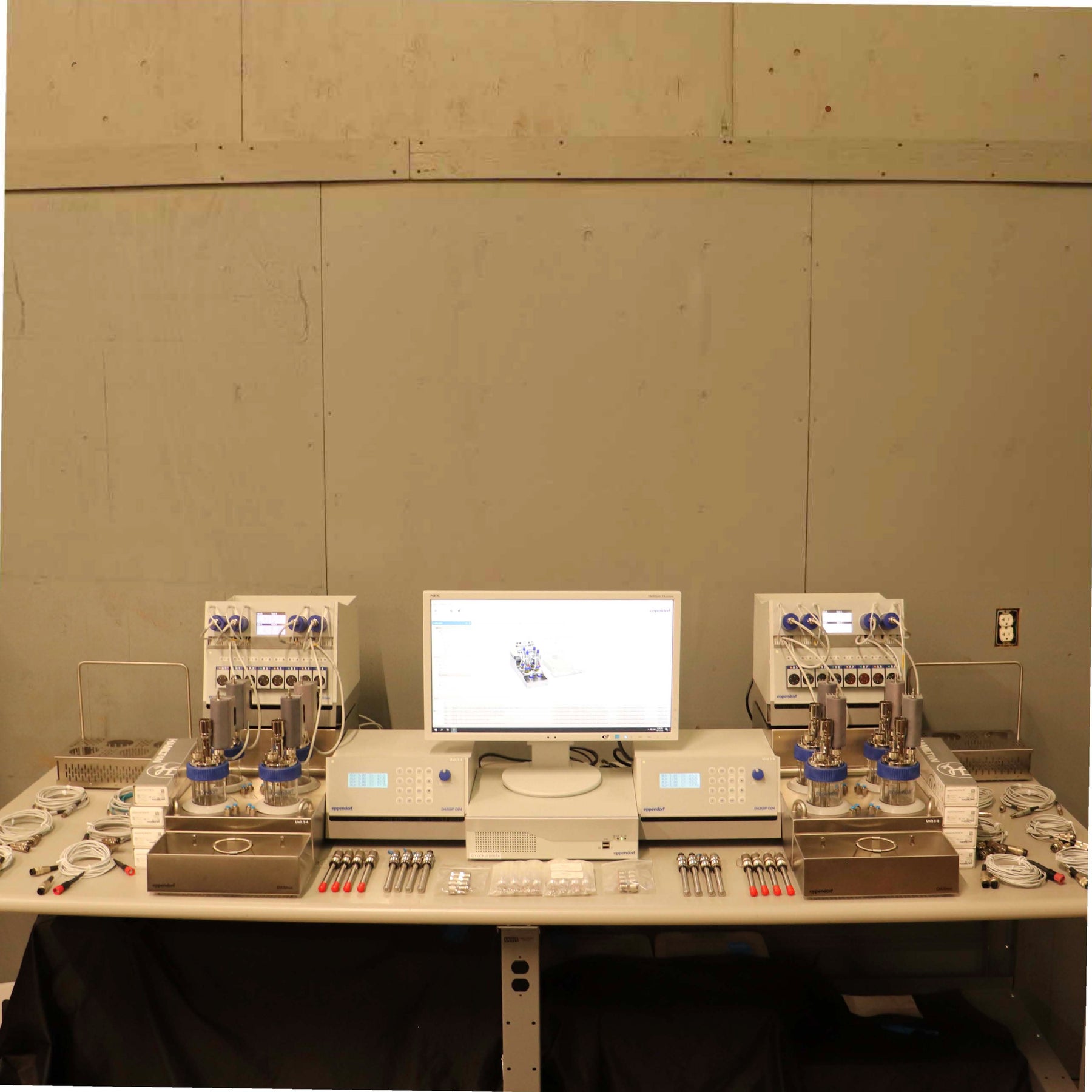

Eppendorf 8-Fold DASbox DASGIP Mini Bioreactor System

Eppendorf 8-Fold DASbox Mini Bioreactor System

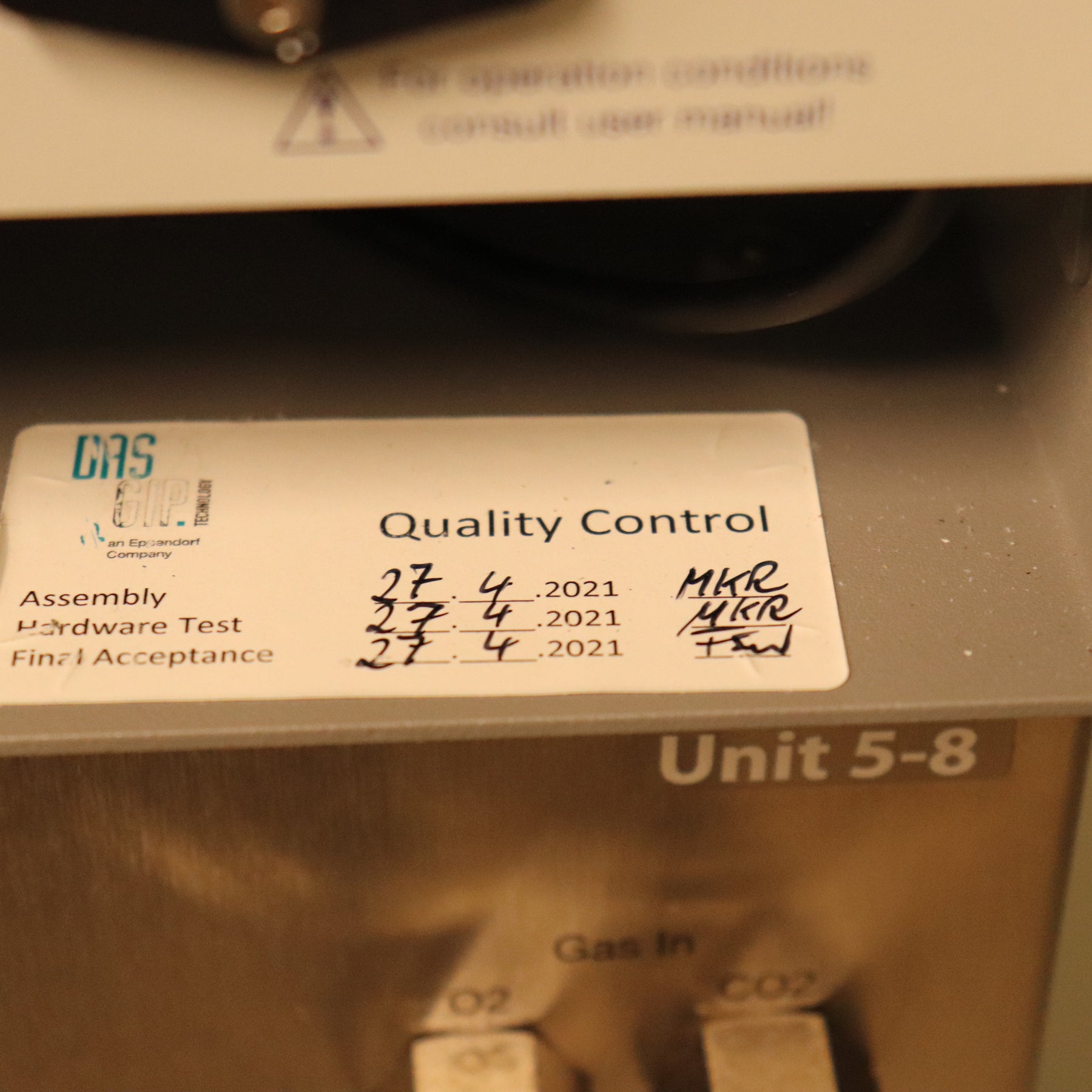

Mfg Year: 2021
Application: Microbio or Cell Culture

Specs:

• Vessel compatibility: Multi-use
  • Configured Type: Multi-use
  • Size: 0.3L
  • WV:  60mL-250mL
  • Impeller: None
  • Exhaust Condenser: Yes, Peltier
• Drive: Direct
• Agitation Speed: 20-2500rpm
• MFC gas flow rate: 0.2-25 sL/h, 0.2-18 sL/h CO2
• Gassing: Air, N2, O2 and/or CO2
• pH: Yes, Sensors Are Included
• DO: Yes, Sensors Are Included
• Level: Yes, Sensors Are NOT Included
• OD: Yes, Sensors Are Included
• Temp: Yes, Sensors Are Included
• Temp control: Liquid-free Heating and Cooling (Peltier)
• Temp range 10 °C-60 °C (at 25 °C room temp)

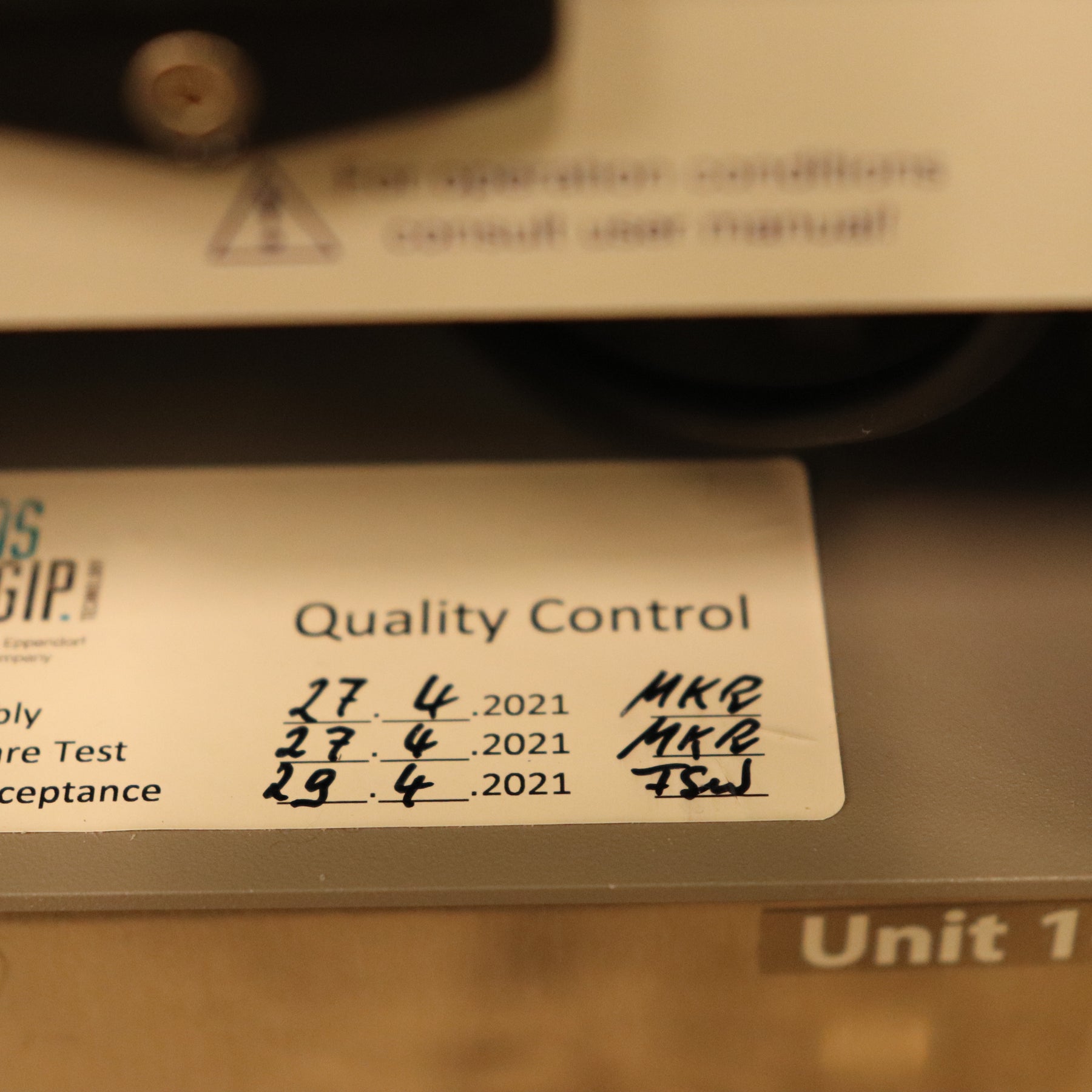

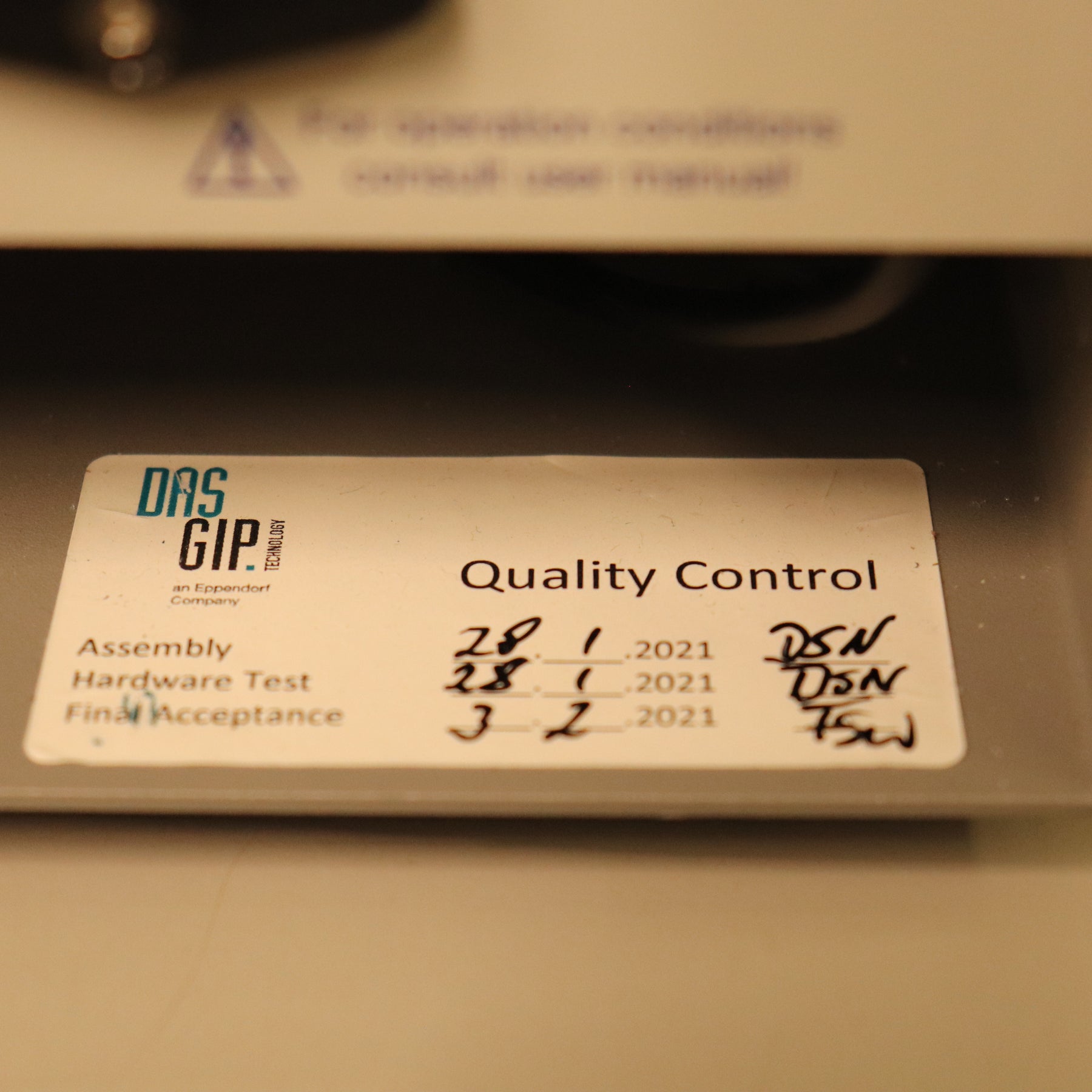

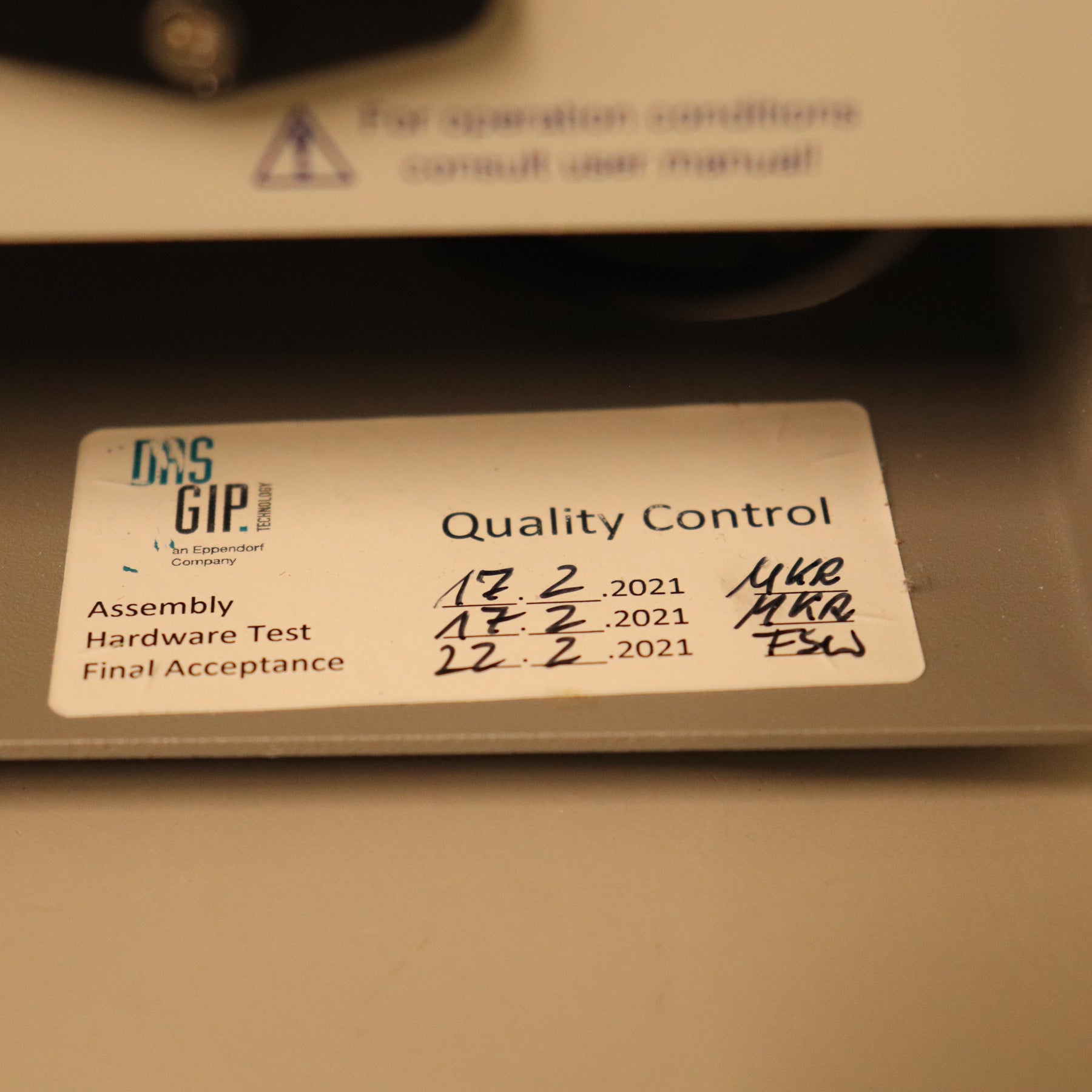

Condition: Late model 2021, recently off lease system.  System was throughly cleaned, sanitized, and tested.  All modules are configured in DASWare, and function properly.  Modules were tested for all functions, ie: pumps, measurement, agitation, gassing, temp.

pH sensors are new, direct from Hamilton. OD sensors are used, 8/8 were tested to be operating properly.  DO sensors are used, 5/8 Sensors were tested and gave results within the expected range.  3/8 DO sensors are waiting on replacement membrane kits and electrolyte that has been ordered from Hamilton. Temp sensors are operating properly.

Vessels were disassembled, inspected, sanitized, and shaft bearings & o-rings were replaced where necessary.

Module connections will come with labels on I/O ports and cables to help facilitate wiring for simple installation.  v6 Win 10 Process PC has DASWare Control 6.2 configured for an 8-fold DASbox system. Setup process, including initial calibration procedure is detailed in the manuals.

DASWare software ais also configured to use overlay gassing, and additional MP8 pumps if desired to be added to the system at a later date.

Included Modules:

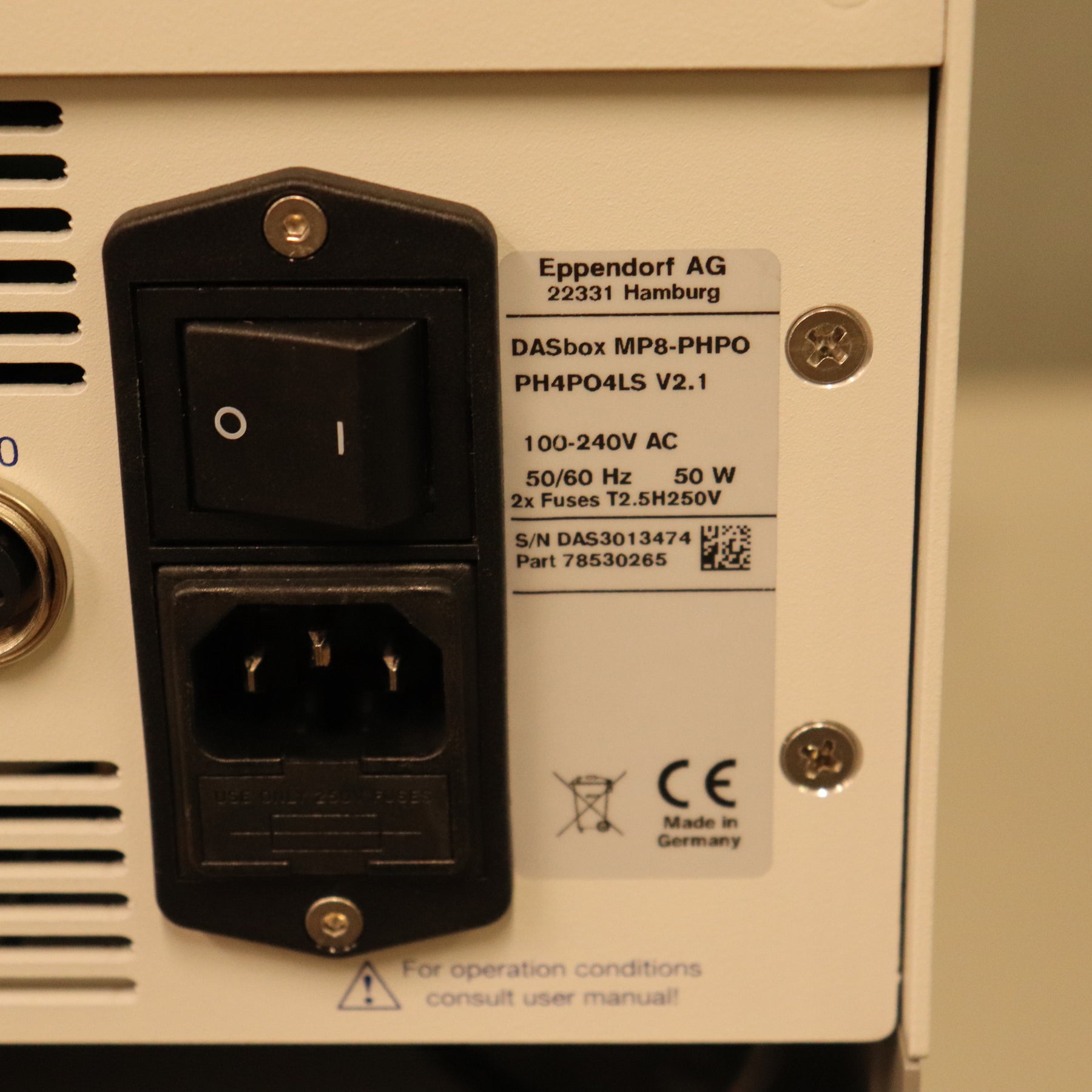

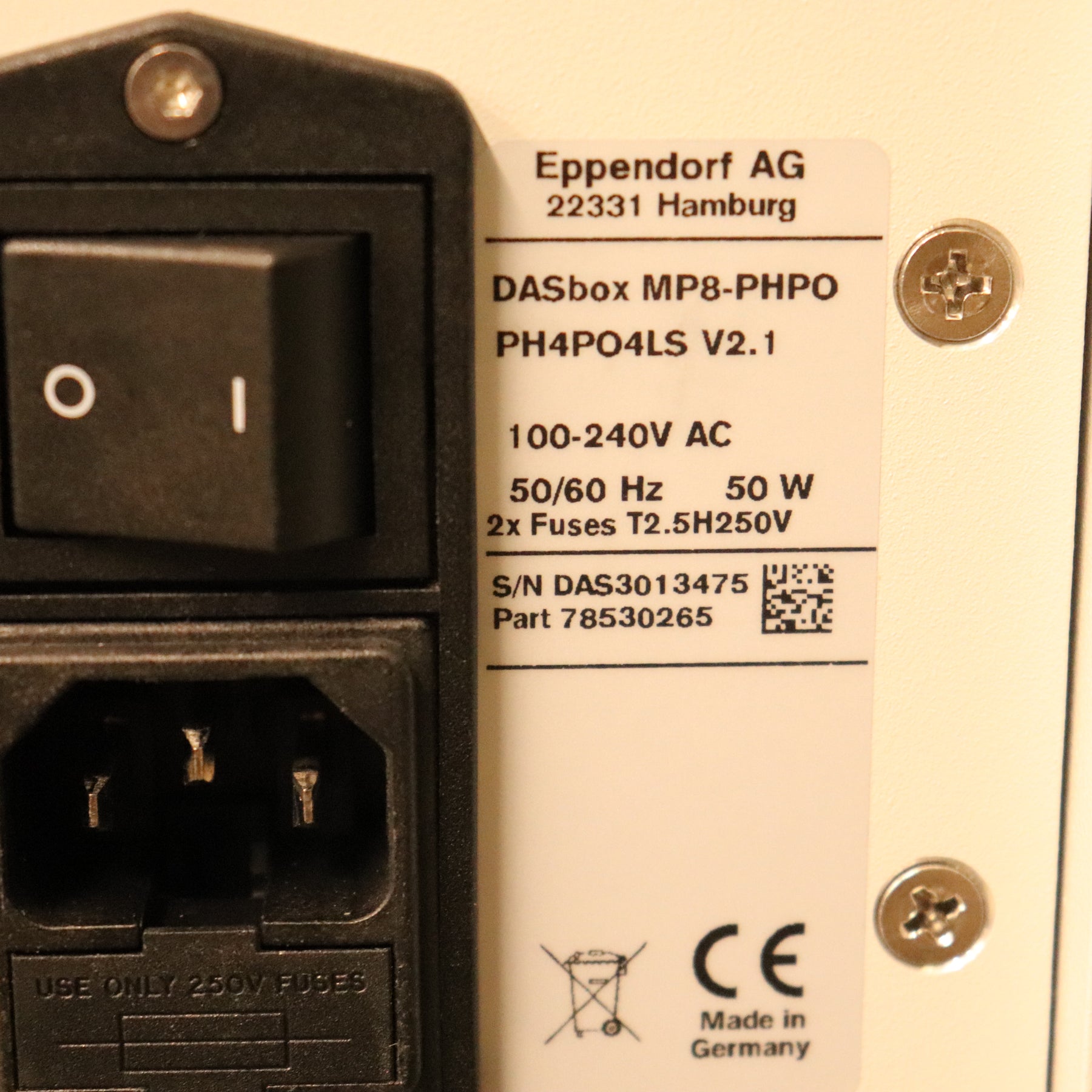

• (2x) MP8-PHPO PH4PO4LS v2.1

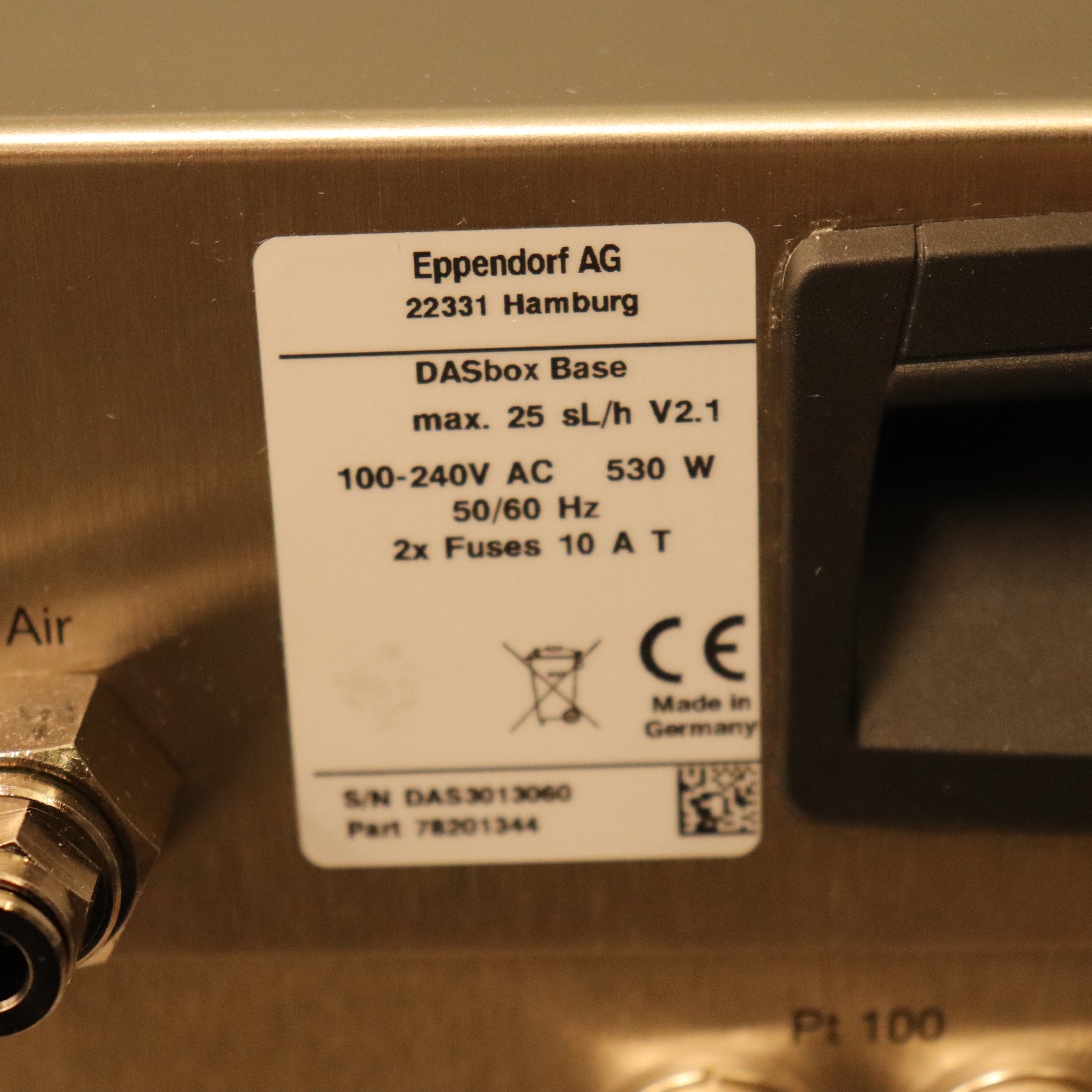

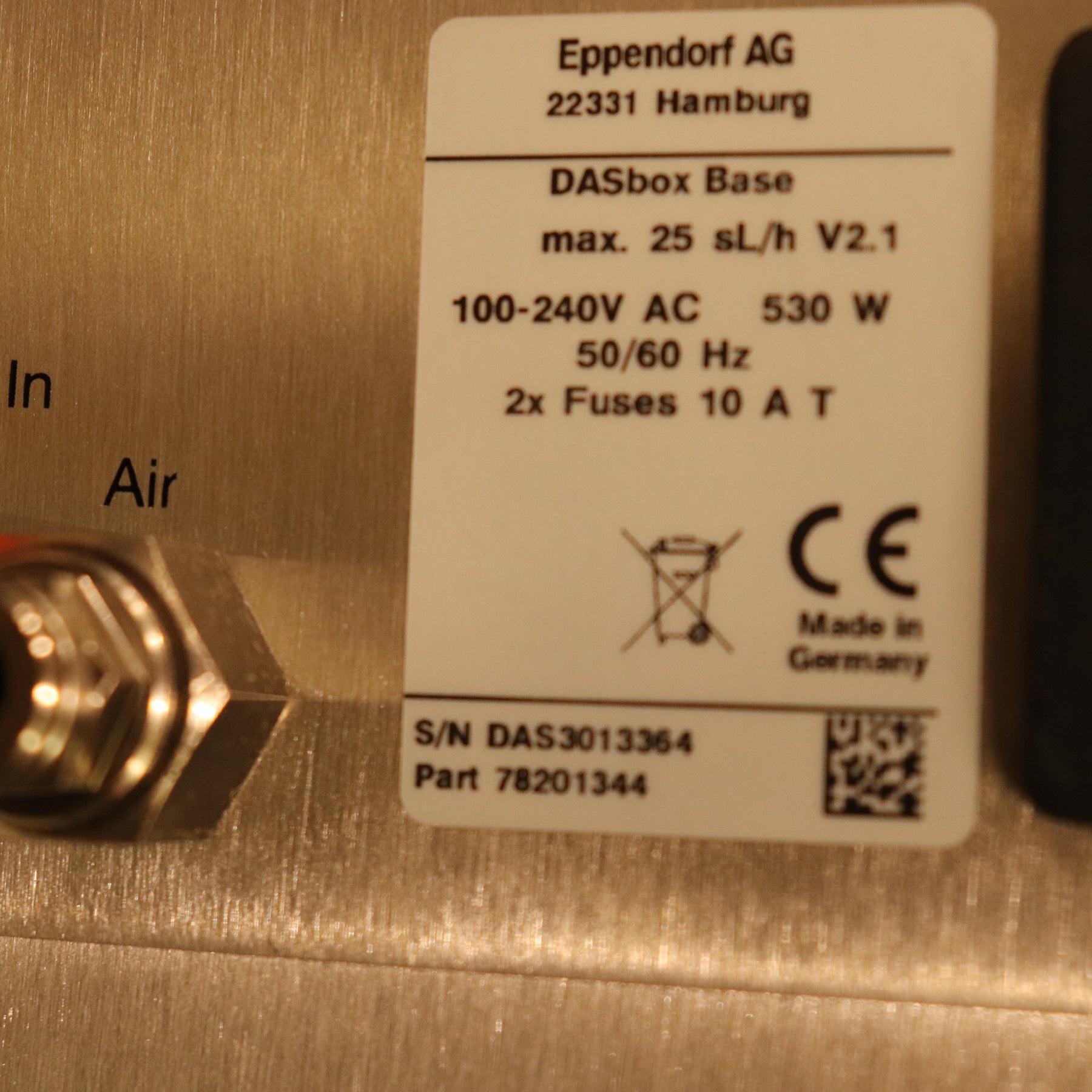

• (2x) DASbox Base v2.1
  • 25 sL/h max

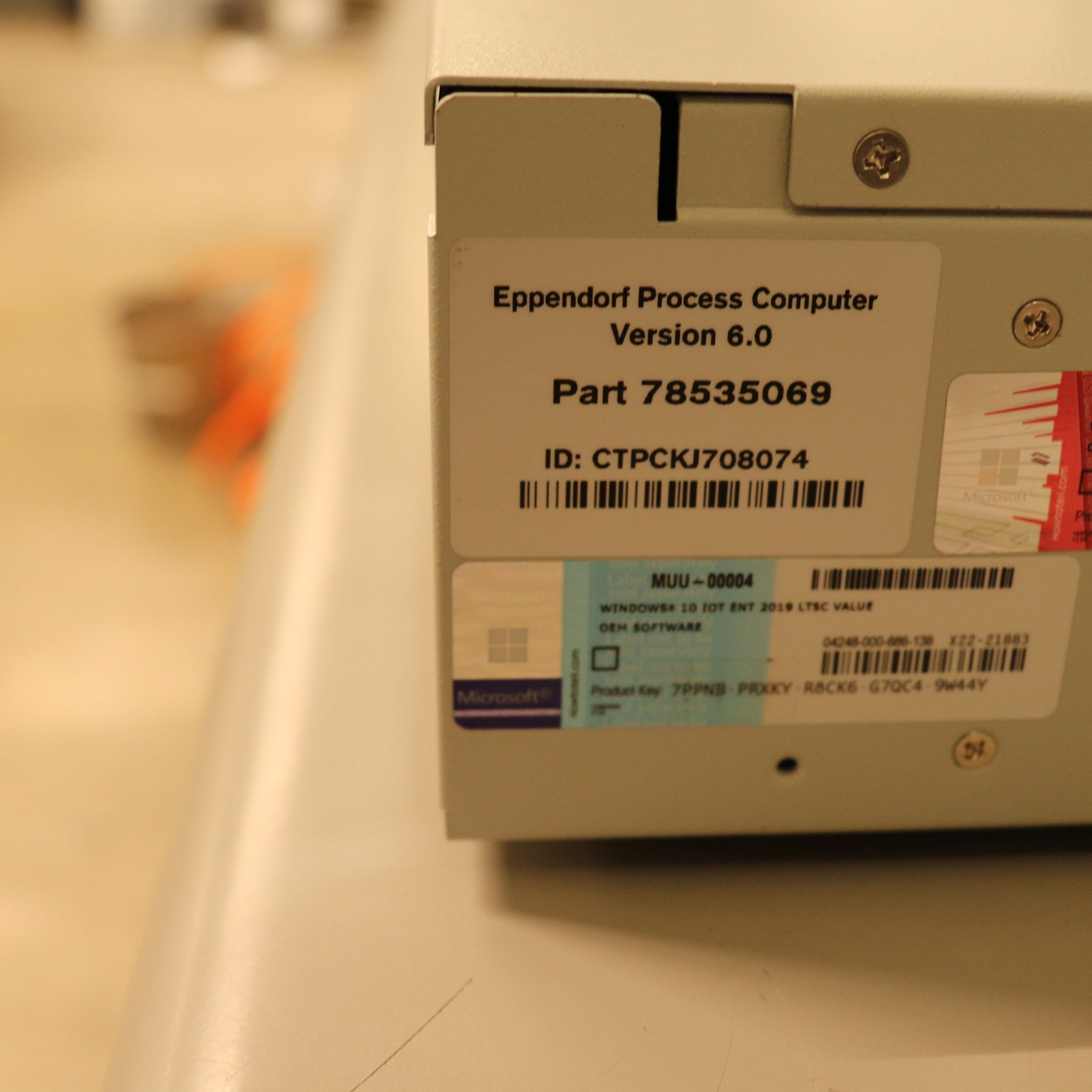

• Win 10 v6.0 Process Control PC configured for an 8-Fold DASbox System. DASWare Control v6.2

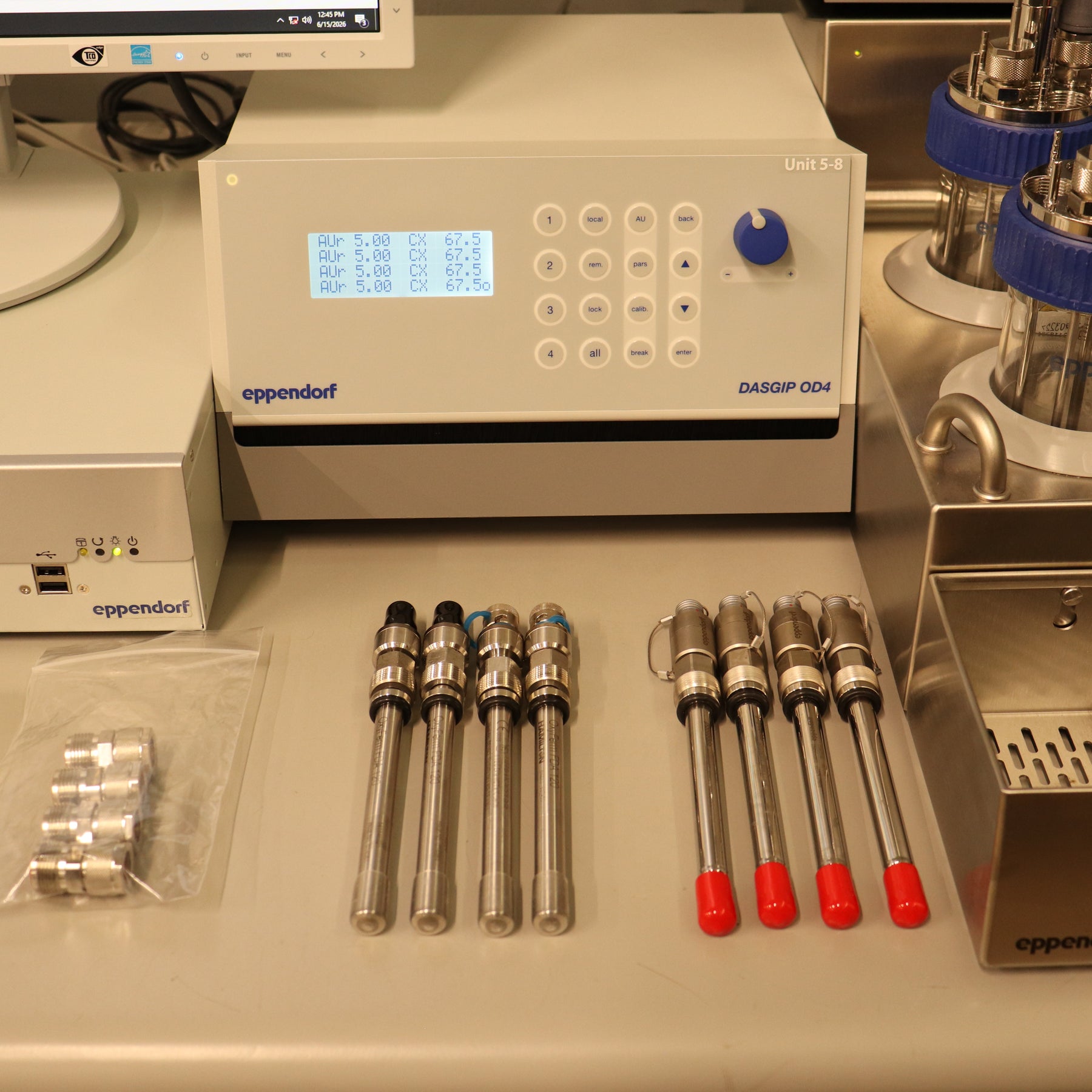

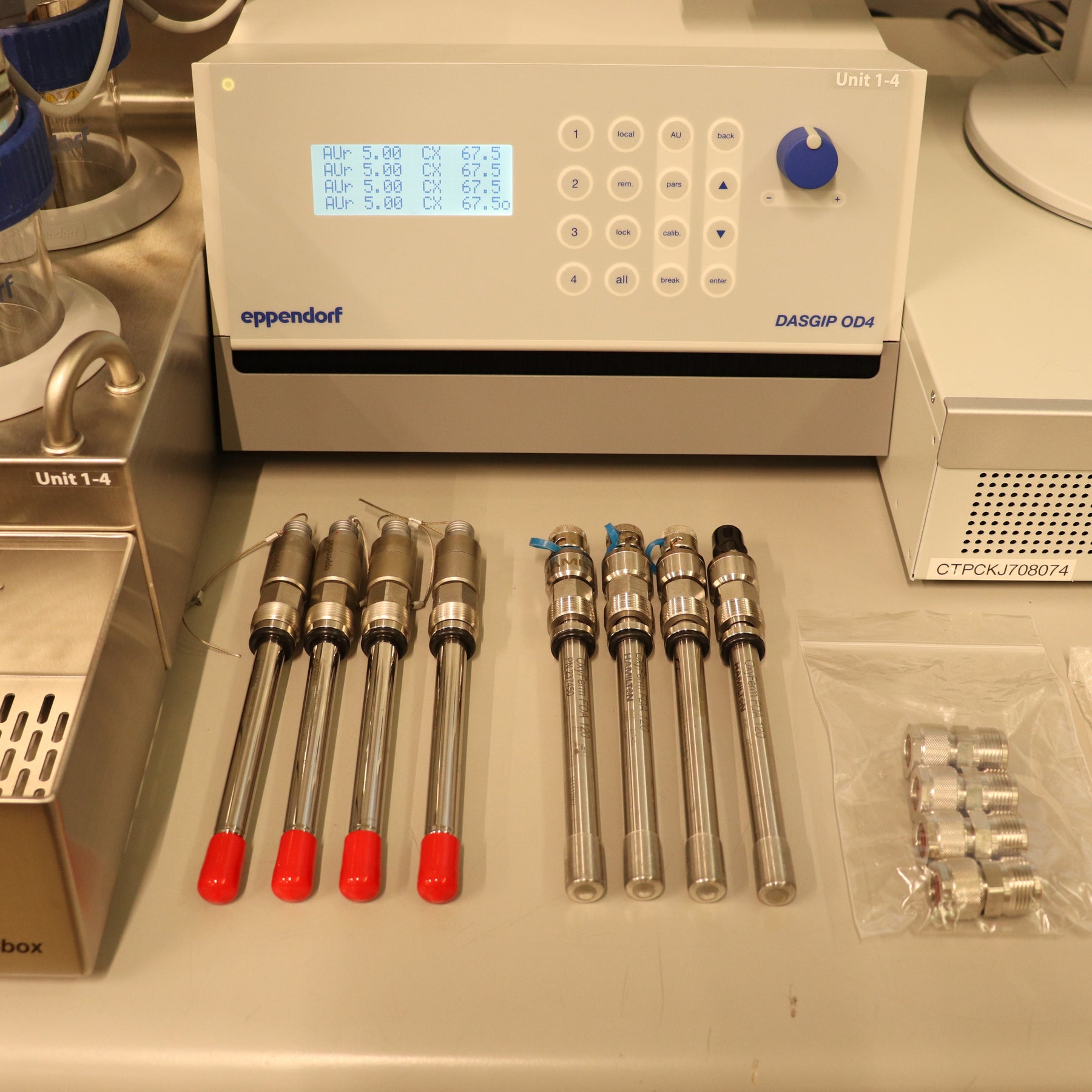

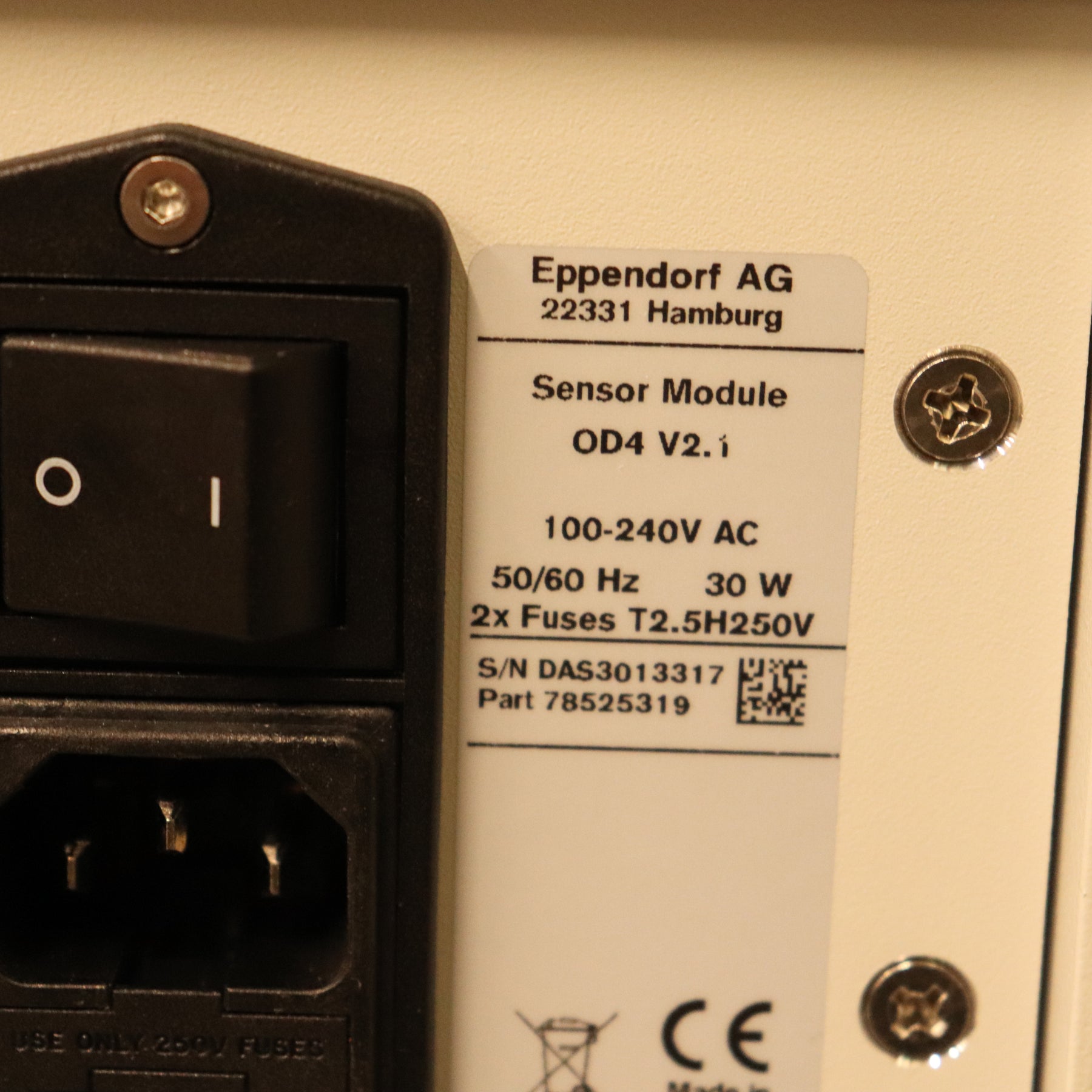

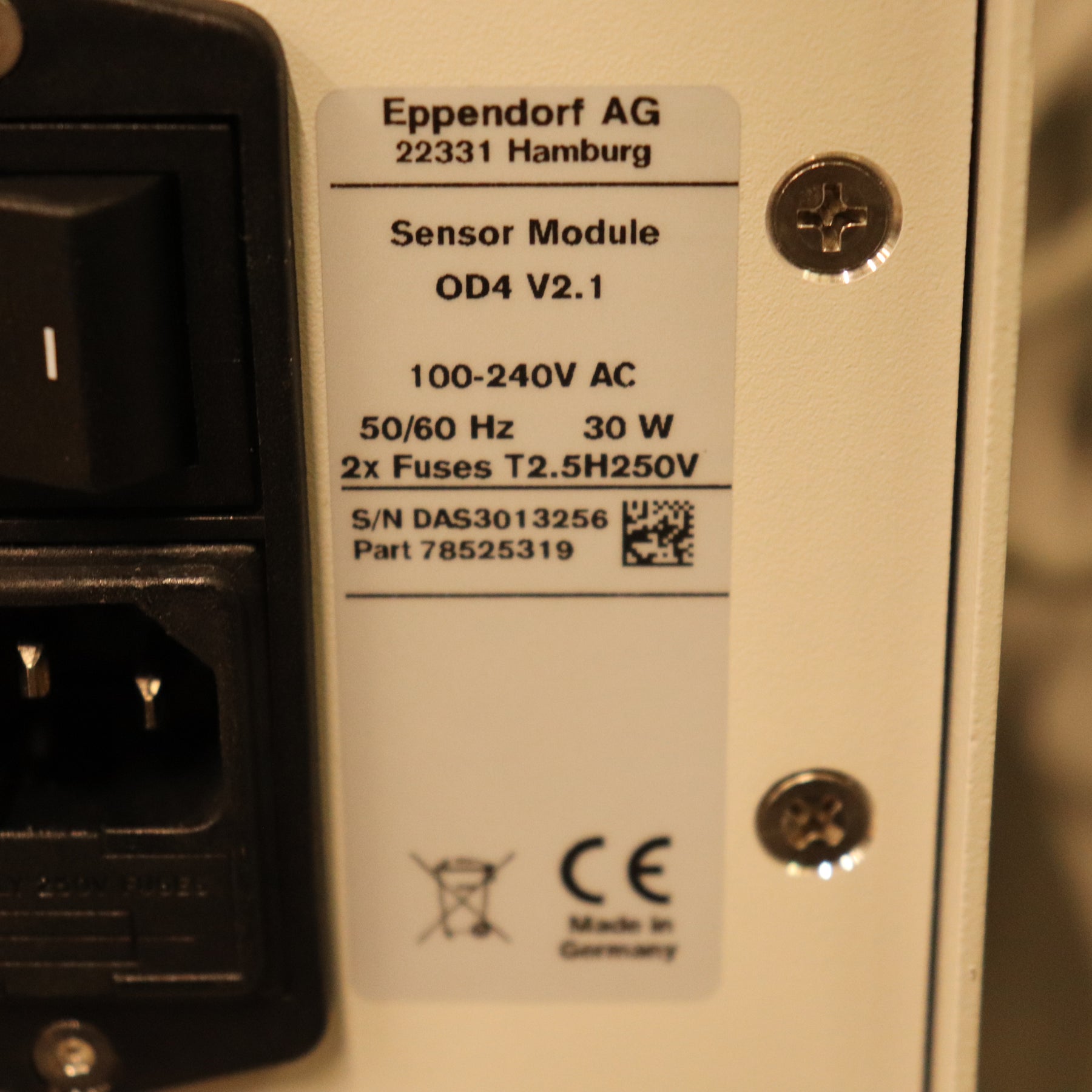

• (2x) OD4 v2.1

• Monitor, Mouse, Keyboard

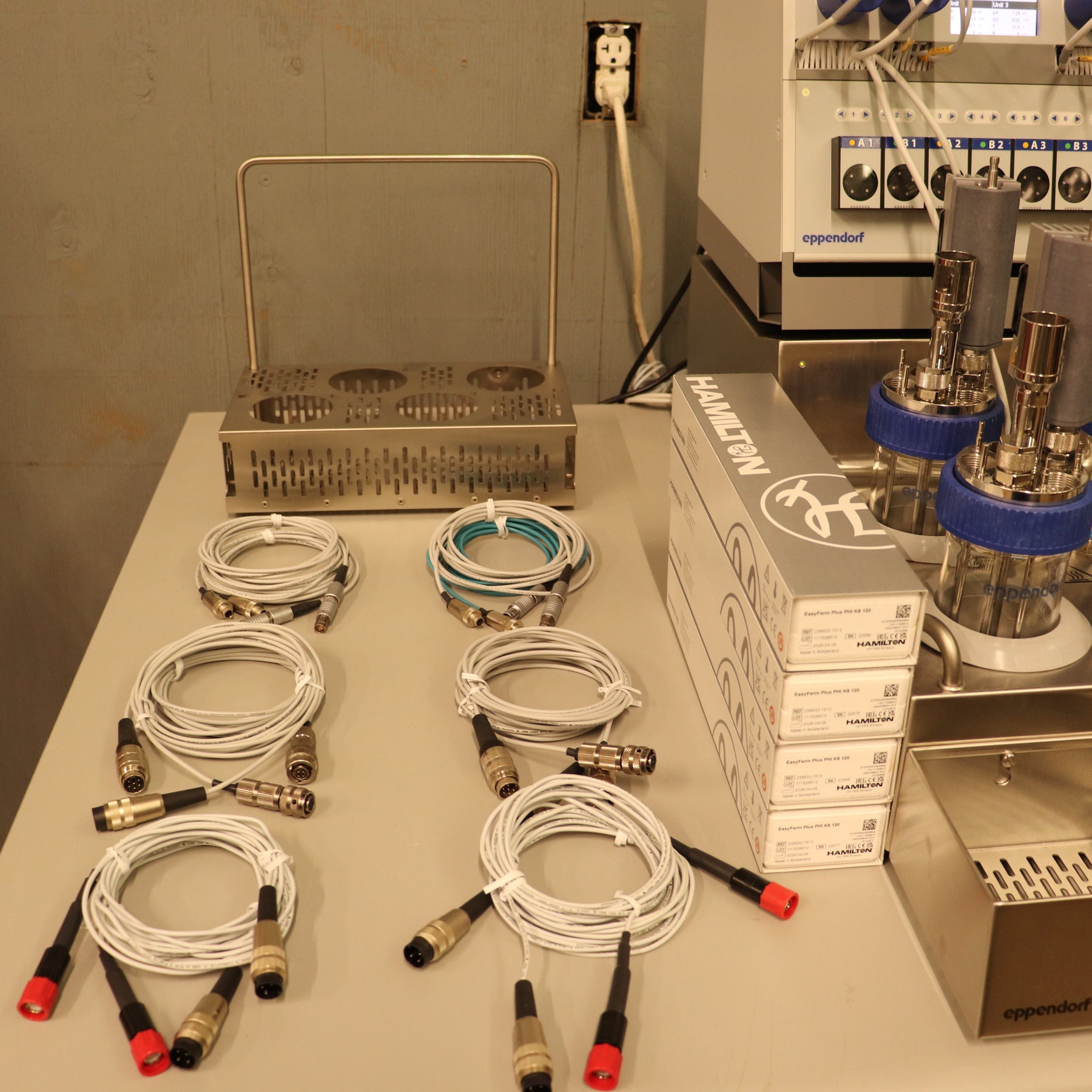

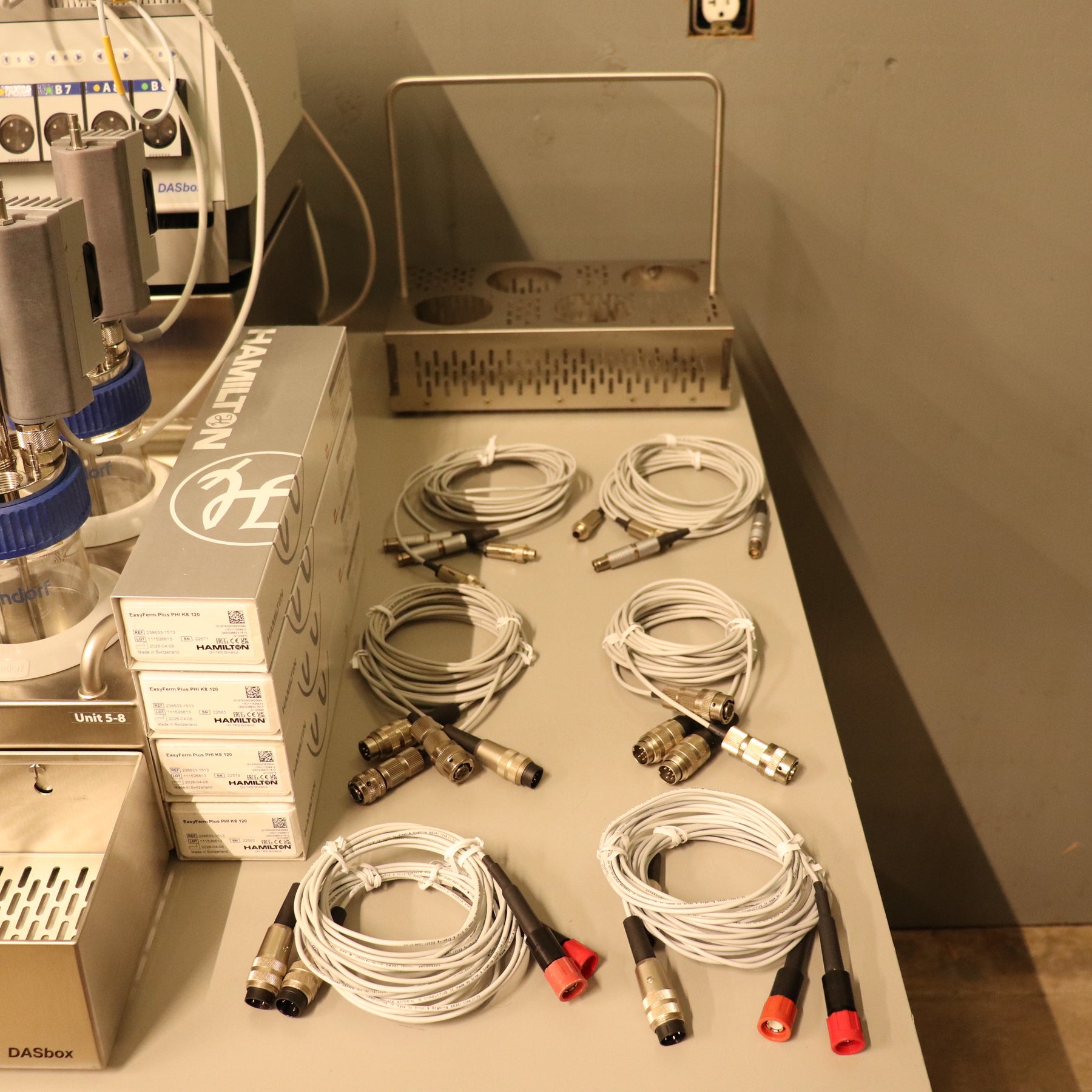

Included Sensors:

OD Sensors

• (8x) Eppendorf OD Sensors, 120mm, 10mm Optical Path Length
  • pn: 78103412
• (8x) Eppendorf OD Sensor Cables 78100252
  • pn: 78522037

DO Sensors

• (8x) Hamilton Analog DO Sensor OxyFerm FDA 120 237450
  • pn: 78108023
• (8x) Eppendorf DO Analog Sensor Cable w/T-82 Connector
  • pn: 78522099

pH Sensors

• (8x) Hamilton pH Sensor EasyFerm Plus PHI K8 120 w/K8 Connector
  • pn: 78103205

• (8x) Eppendorf pH Sensor Cables 78100251, w/AK9 Connector
  • pn: 78522020

Temp Sensors

• (10x) Platinum RTD Temp Sensor, 150mm w/ Attached 1.8m Cable
  • pn: 78103314

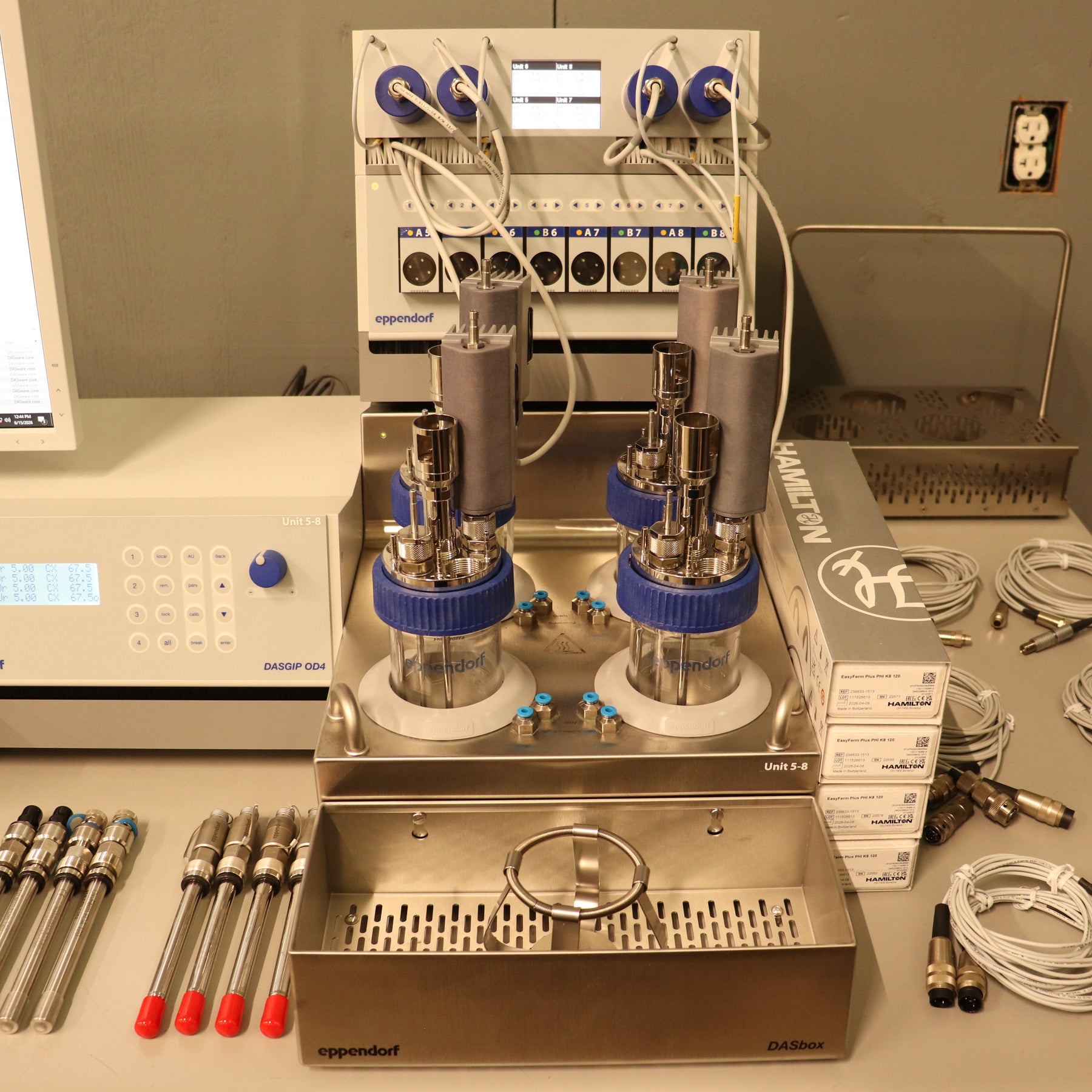

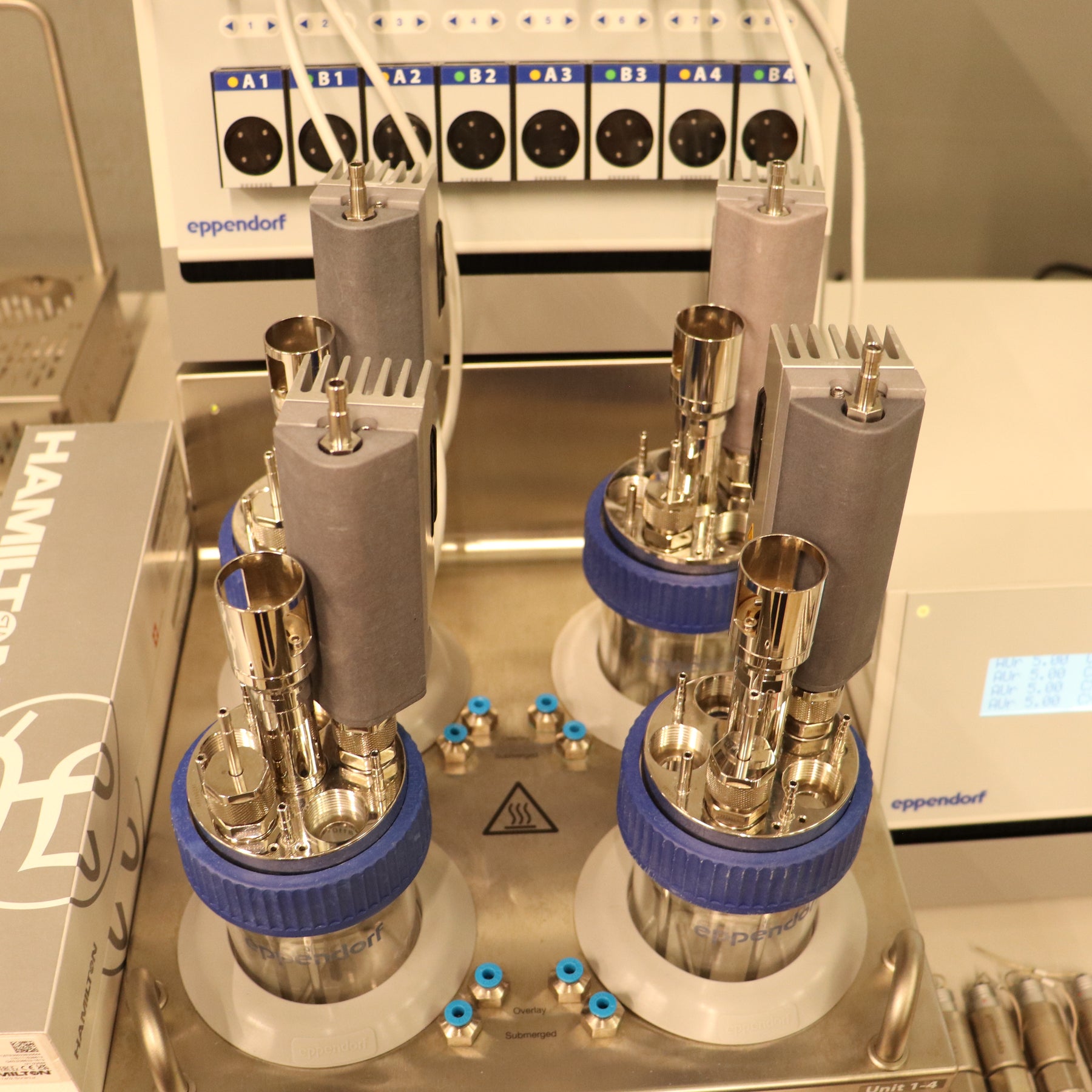

Included Vessels:

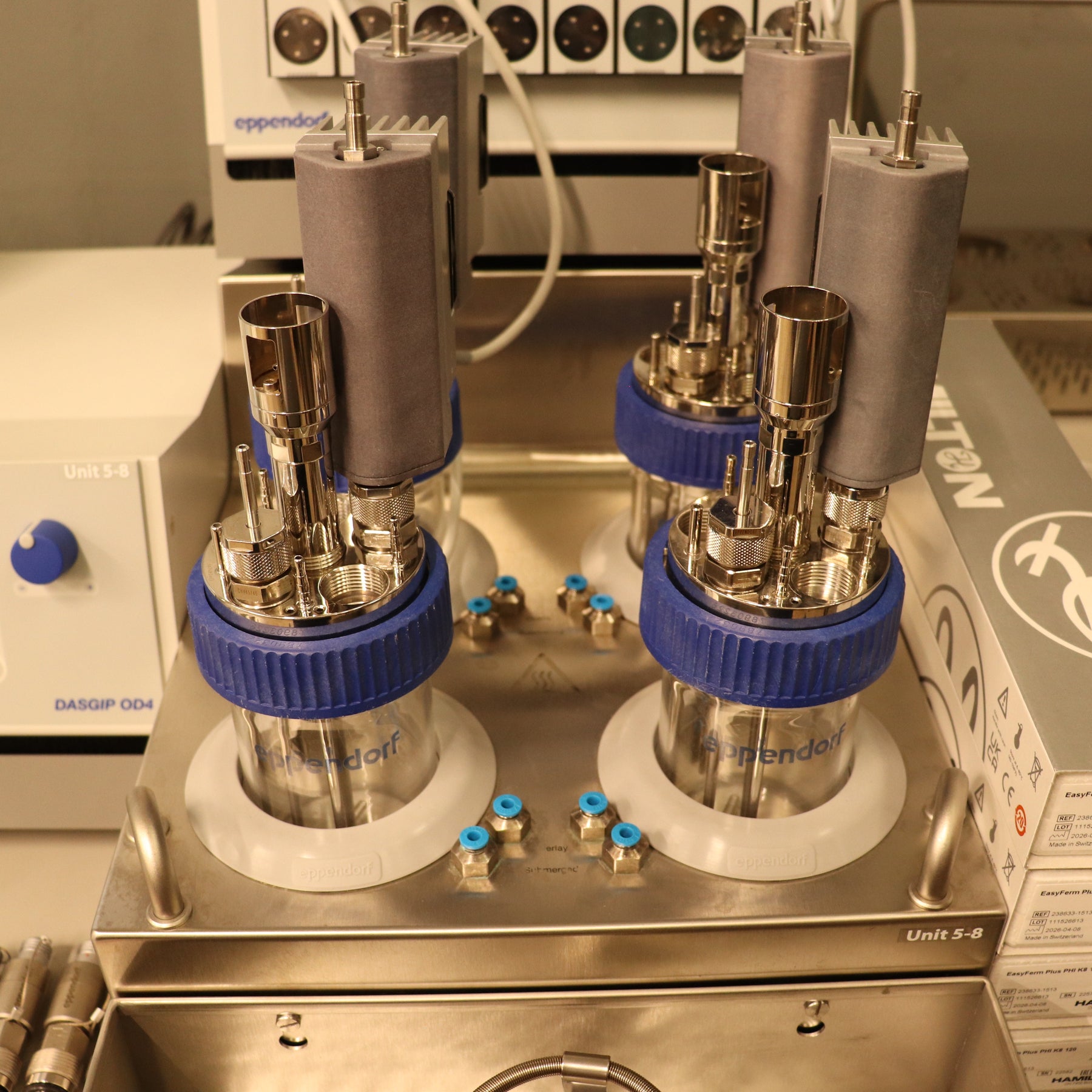

• (8x) Multi-use Glass 0.3L Vessels
  • • pn: 76SR0250ODLS
  • (8x) Glass Vessel
    • pn: 78903227
  • (8x) Blue Screw Cap, 80mm
    • pn: 78903226
  • (8x) Headplate
    • pn: 78107301

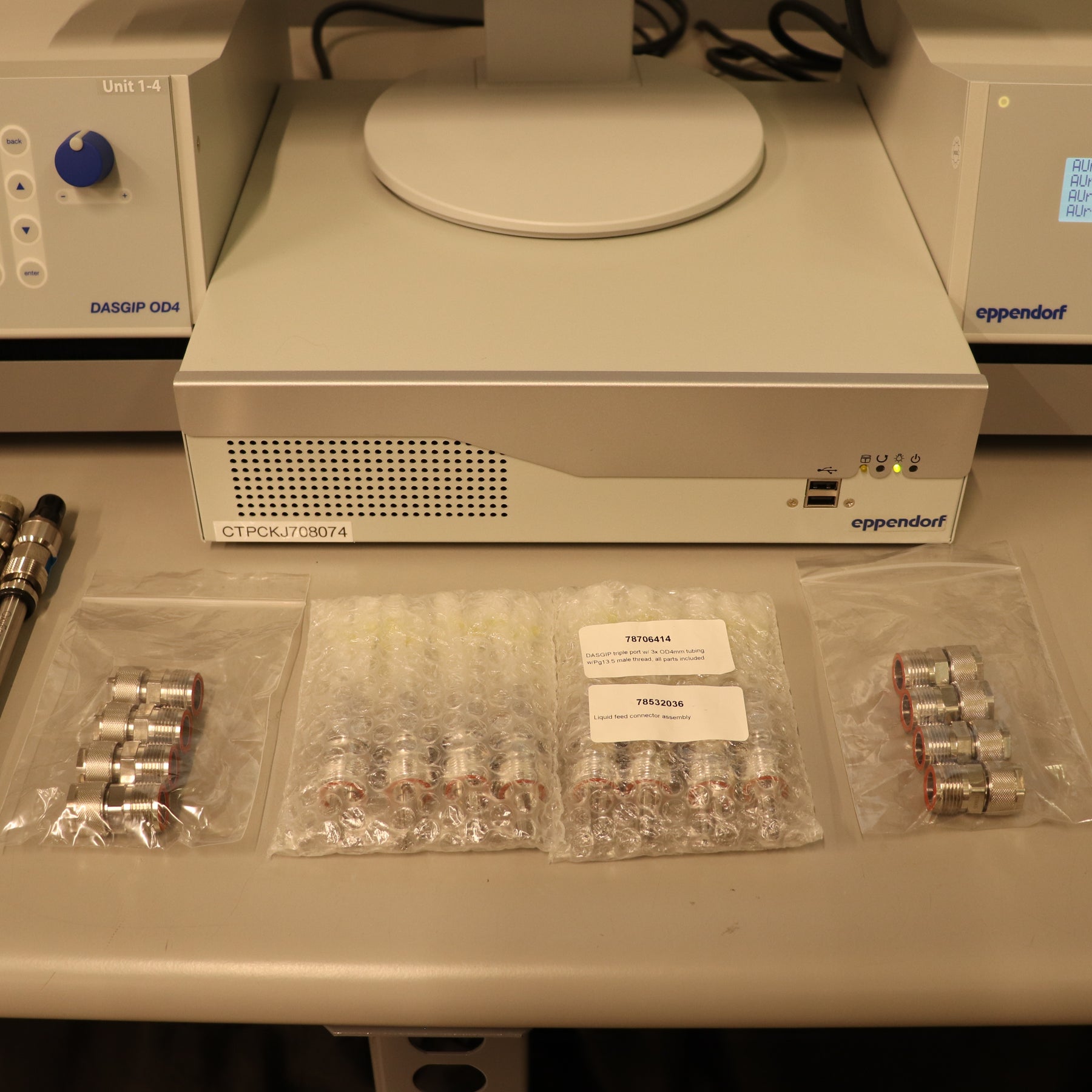

  • (8x) Triple Port w/3x 4x85mm Tubing
    • pn: 78706414
  • (16x) PG13.5 Threaded ID12mm Compression Fitting
    • pn: 78532284
  • (8x) L-Sparger, L180mm
    • pn: 77102052
  • (8x) PG.13.5 Threaded ID4mm Compression Fitting
    • pn: 78532283

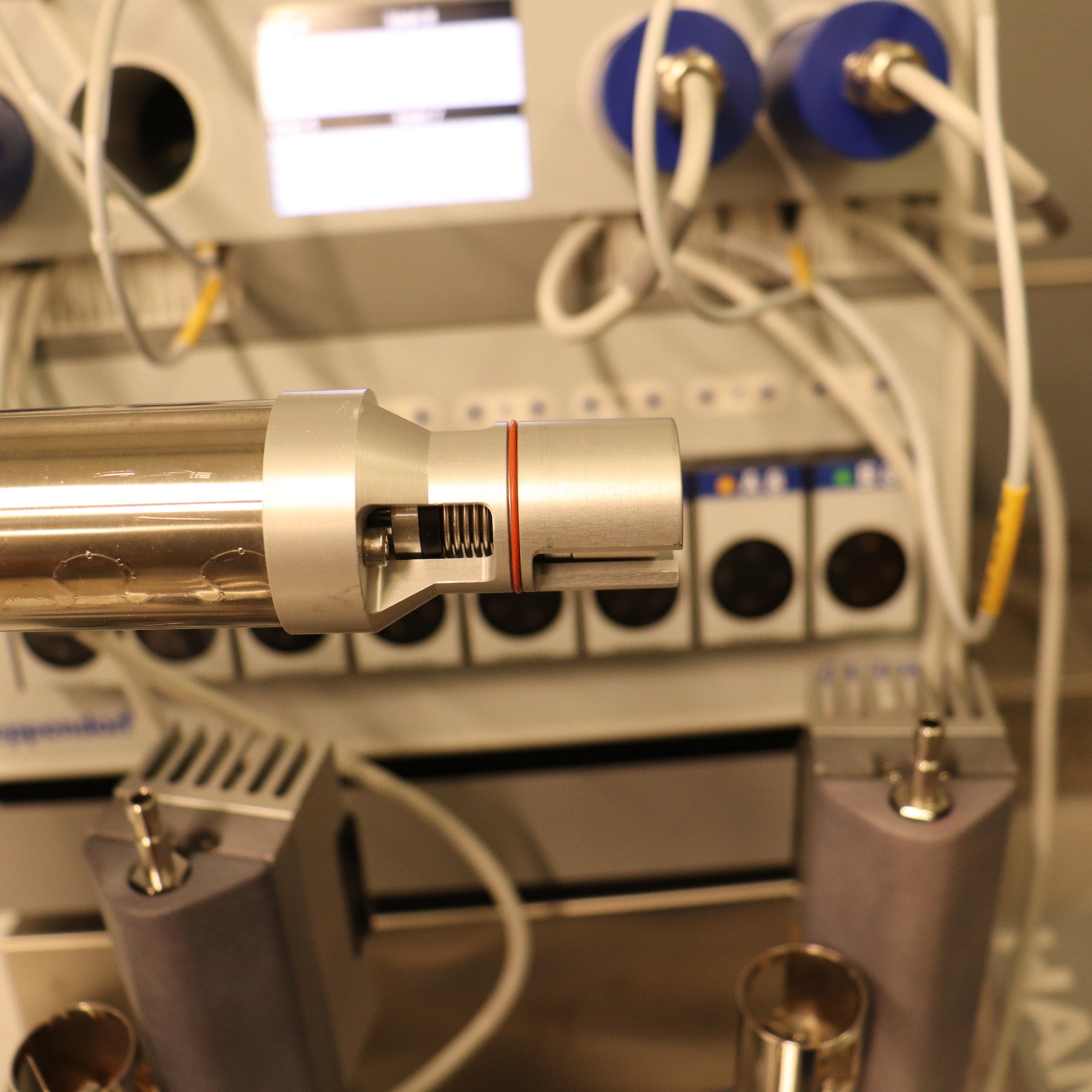

  • (8x) Drive Shaft, direct drive, L120mm
    • pn: 78525123

Included Accessories:

• (8x) Actuator Unit for Peltier Exhaust Condenser w/ Attached 1.6m Cable
  • pn: 78201321
• (8x) Exhaust Condenser Adapter w/ Insulator for 0.3L Vessels
  • pn: 78201323
• (8x) Direct Overhead Drives w/ Attached 1.6m Cables
  • pn: 78515185

• (2x) Autoclavable Carriers
  • pn: 78109112
• (2x) Addition Vessel Tray for DASbox Base w/ Flask Holder
• Power and Data Cables



Description:

The Eppendorf DASbox Mini Bioreactor System is built for small-volume process development where control, speed, and reproducibility matter. Designed as a parallel bioreactor platform, the DASbox allows users to run multiple experiments side by side while maintaining precise control over key process parameters. Eppendorf positions the system for research and development in small working volumes, with support for both cell culture and microbial applications, making it a strong fit for screening studies, process optimization, Design of Experiments work, and scale-down modeling.

This configuration is especially well suited for cell culture labs that want the efficiency of parallel development without the footprint of a larger bench-scale system. The installed setup includes a 4-fold DASbox base, multi-use 0.3 L vessel compatibility, direct overhead drive, peltier-based liquid-free heating and cooling, optical pH capability, and a Windows 10 process computer with DASWare Control 6.2. In this format, the system offers a compact way to compare media, gassing conditions, agitation settings, and other process variables across multiple runs while conserving cell material and media volume.

A major advantage of the DASbox platform is flexibility. The system can be operated with reusable glass or BioBLU single-use bioreactors and highlights easy conversion between the two formats. For labs that need a compact development system today but want room to adapt workflows later, that flexibility is one of the platform’s biggest strengths.

WORLDWIDE SHIPPING AVAILABLE
