Bio-Rad

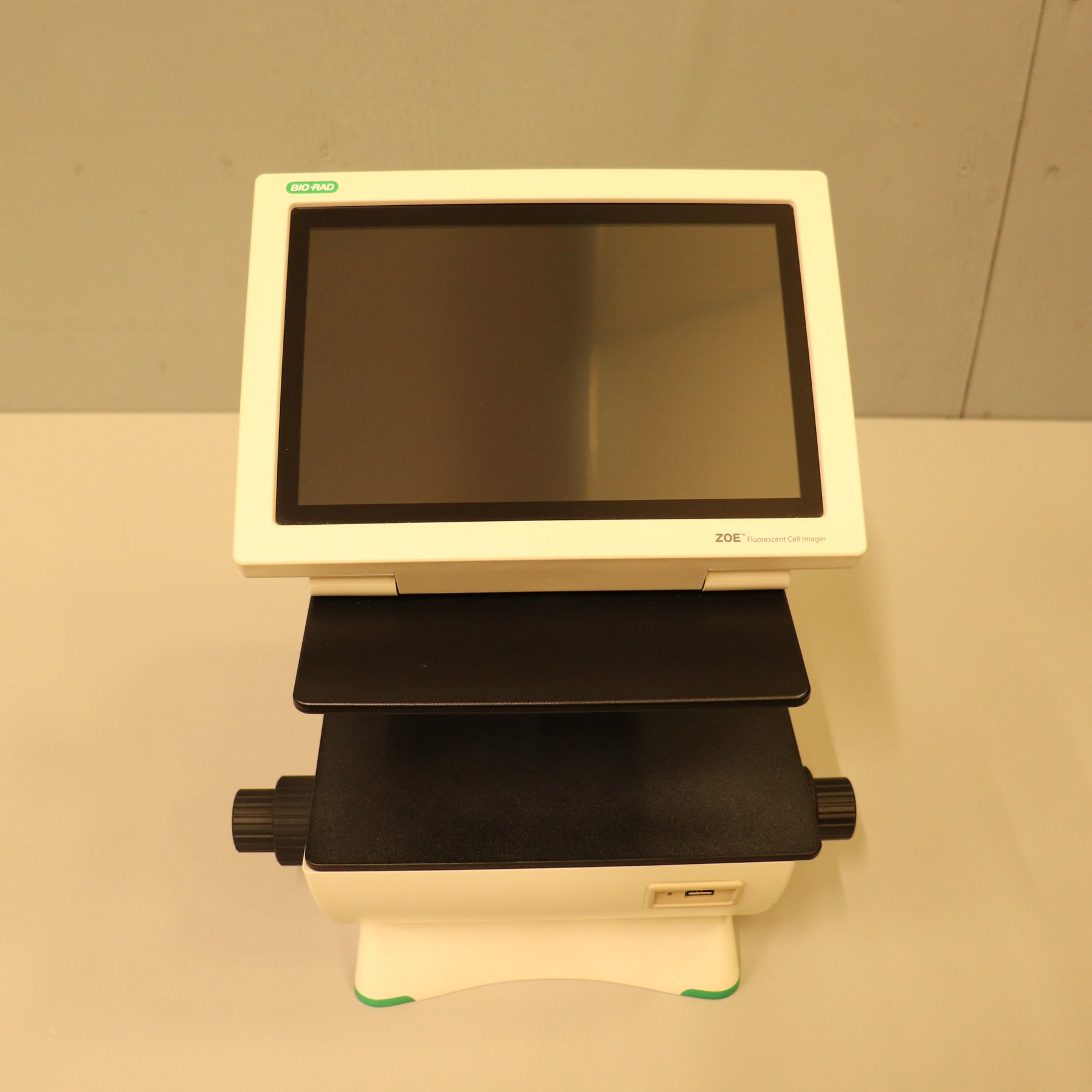

BIO-RAD ZOE Fluorescent Cell Imager Digital Imaging System
BIO-RAD ZOE Fluorescent Cell Imager Digital Imaging System
Model: ZOE

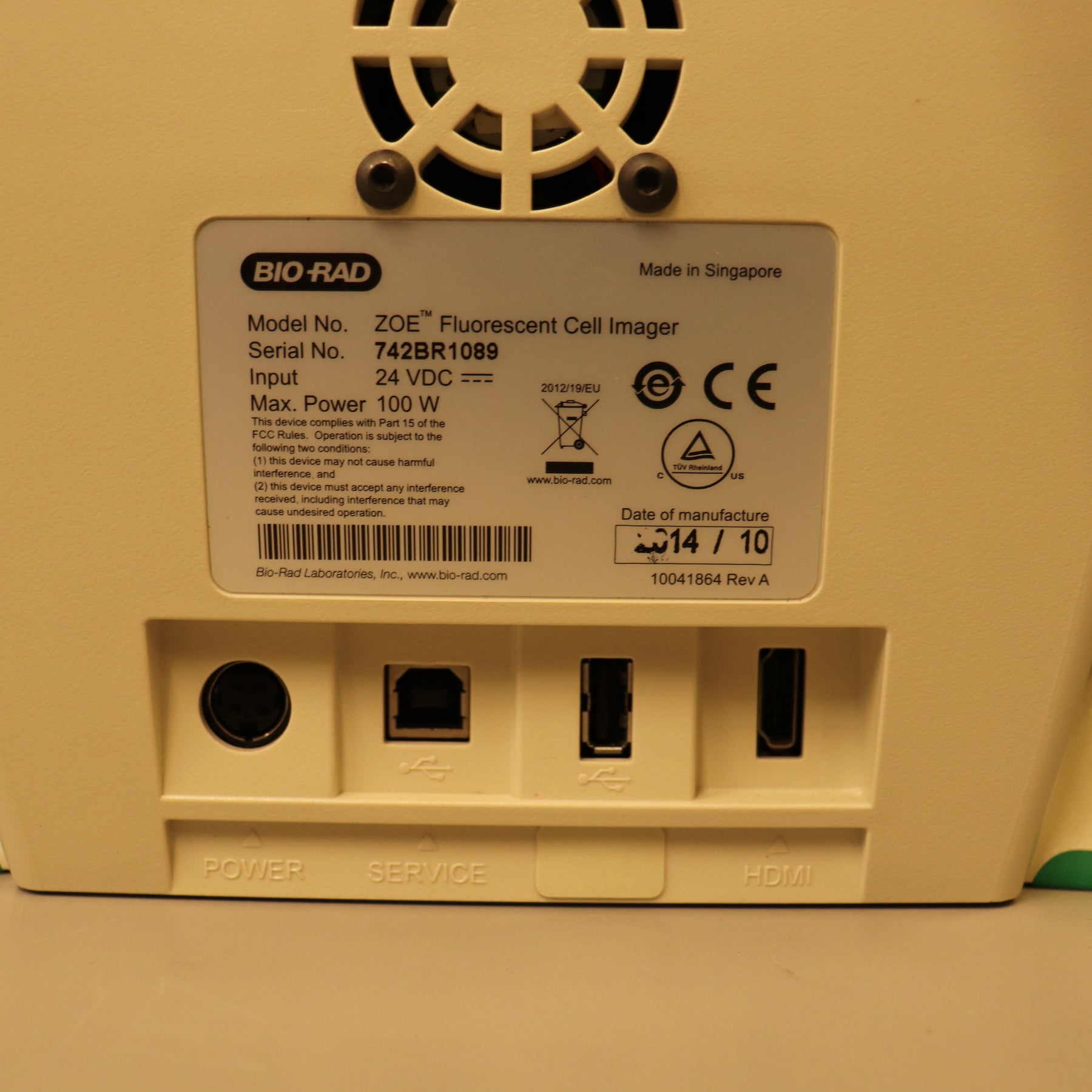

Mfg Date: 10/2014

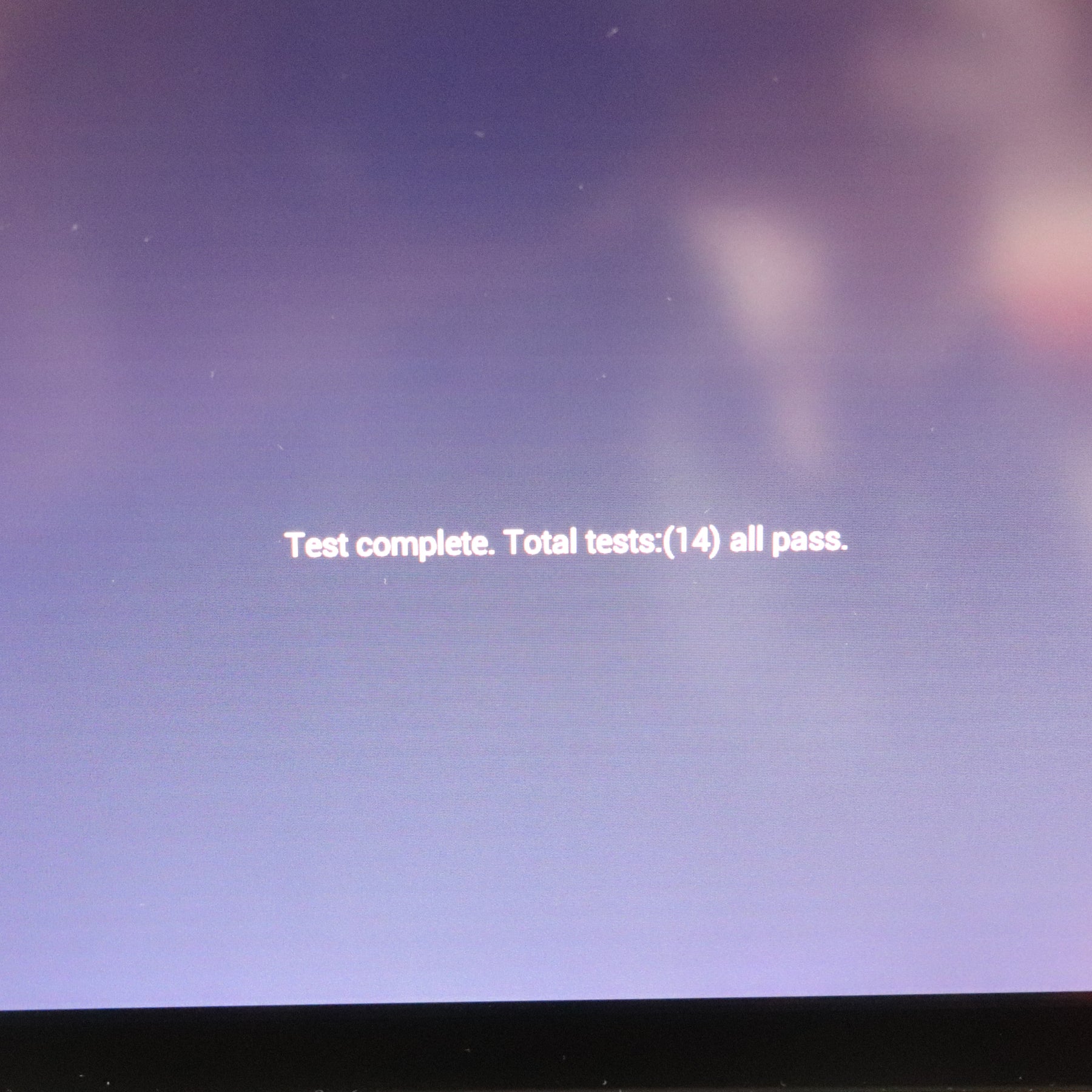

Condition: Used, tested in good working condition.
Includes:
- ZOE Imager
- AC Adapter
Specifications(from Bio-Rad website):
- Imaging channels: 10.1 in. color (26 cm) touch-screen LCD monitor, with anti-glare and anti-fingerprint treatment, 1,280 x 768 pixel image resolution, 80–180° angle tilt range
- Light source: Blue channel: UV LED, Green channel: blue LED, Red channel: green LED, Brightfield channel: multiple green LEDs (reduces chromatic aberration)

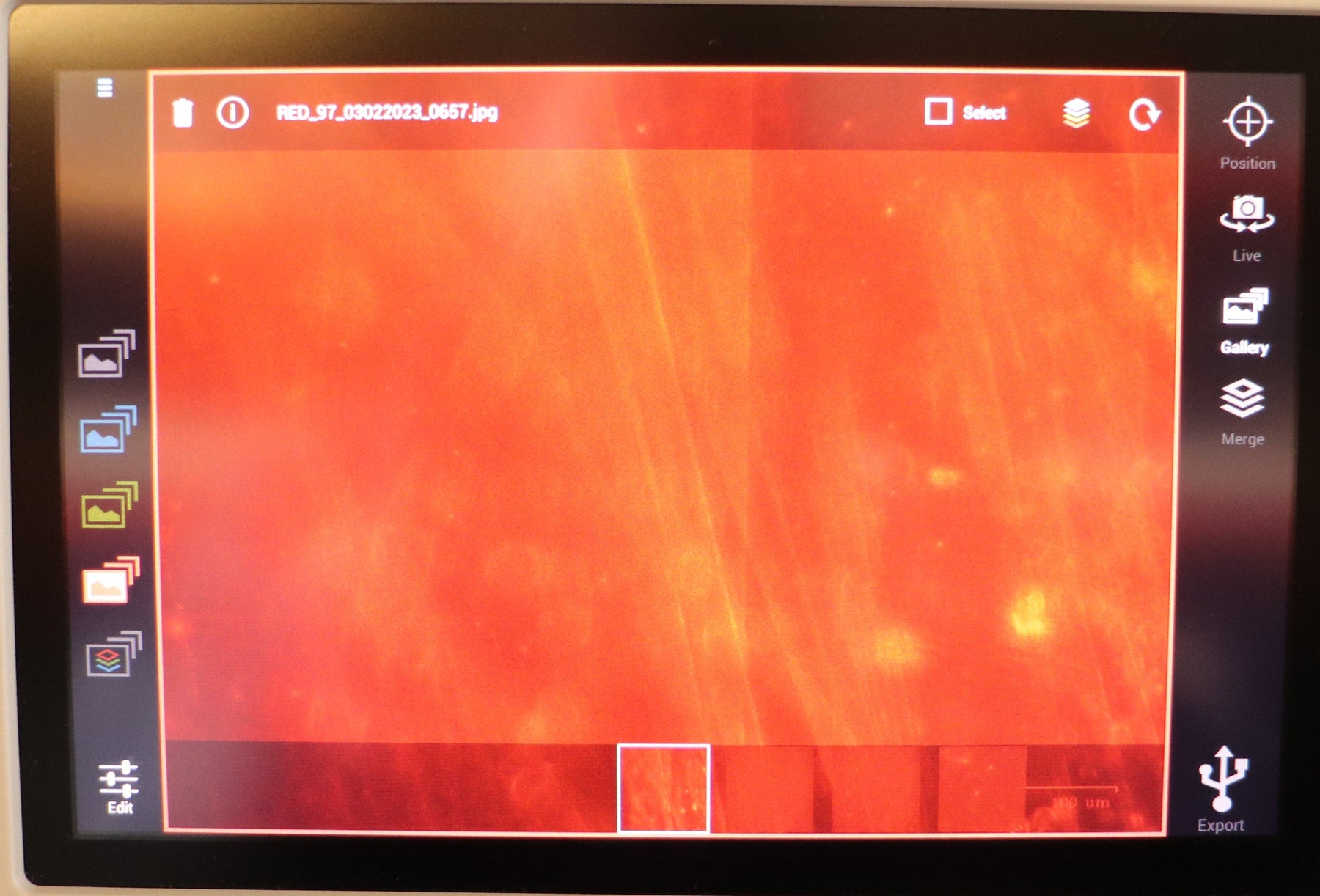

- User interface: 10.1 in. color (26 cm) touch-screen LCD monitor, with anti-glare and anti-fingerprint treatment. 1,280 x 768 pixel image resolution, 80–180° angle tilt range
- Focusing mechanism: Coarse and fine, manual adjustment
- Camera: Monochrome camera, 12 bit CMOS, 5 megapixels
- Data format: JPEG, TIFF, or RAW image files
- Image merge: Images from up to 4 channels can be overlaid
- Data storage: 16 GB internal memory (~2,500 JPEG files,1,500 TIFF files, 400–800 RAW files)
- Data export: Yes, 2 USB ports
- Display output: Yes, 1 HDMI port
- Objective: 20x
- Numerical aperture: 0.40
- Display magnification: Standard: 175x; zoom: 700x
- Maximum imaging area: 0.70 mm2 field of view
- Motorized stage: 6 mm travel in X, Y direction, touch-screen control of travel speed and direction
- Compatible with: Flasks: T25, T75, or T225, Multiwell plates: 6-, 12-, 24-, 48-, 96-, or 384-well microplates, Dishes: 35 mm, 60 mm, or 100 mm, Slides: chamber slides or standard glass microscopy slides
- Software: Stand-alone Android operating system; PC is not required for operation
- Instrument size (L x W x H): 33 x 32 x 30 cm (13 x 12.6 x 11.6 in.)
- Instrument weight: 9 kg (19.7 lb)
