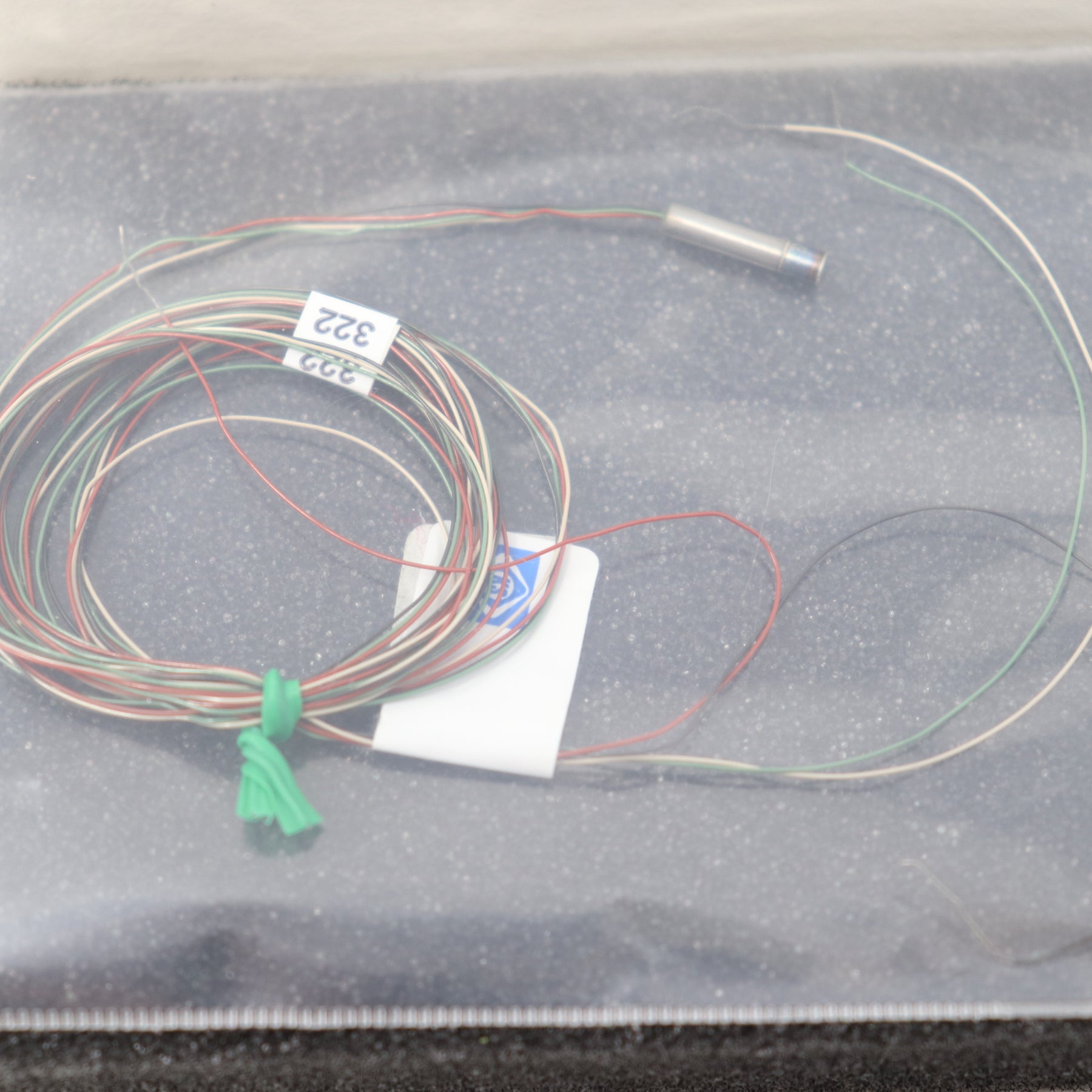

Kulite High Temperature Miniature Pressure/ Sensor Transducer XCEL-100-15A

 Kulite Pressure Transducer/ Sensor

PN: XCEL-100-15A

Condition: Used, tested in working condition.

• Operational Mode: Absolute
• Pressure Range: 15PSI, 1BAR
• Screen: 'M' Option
• Includes Compensation module: No
• Technology: Silicon Piezoresistive
• Excitation: 10V
• Precision:   ±0.10 % FS
• Note: Wire lengths may vary

The XCEL-100 design features Kulite's patented leadless technology. This allows for a very rugged package suited for probes, pressure rakes and other similar test set ups. This transducer is well suited for both dynamic and static pressure measurements in benign or harsh environments. Its wide operating temperature range (-65°F to +525°F) makes it ideal for numerous applications in Aerospace and other areas of Industry.
