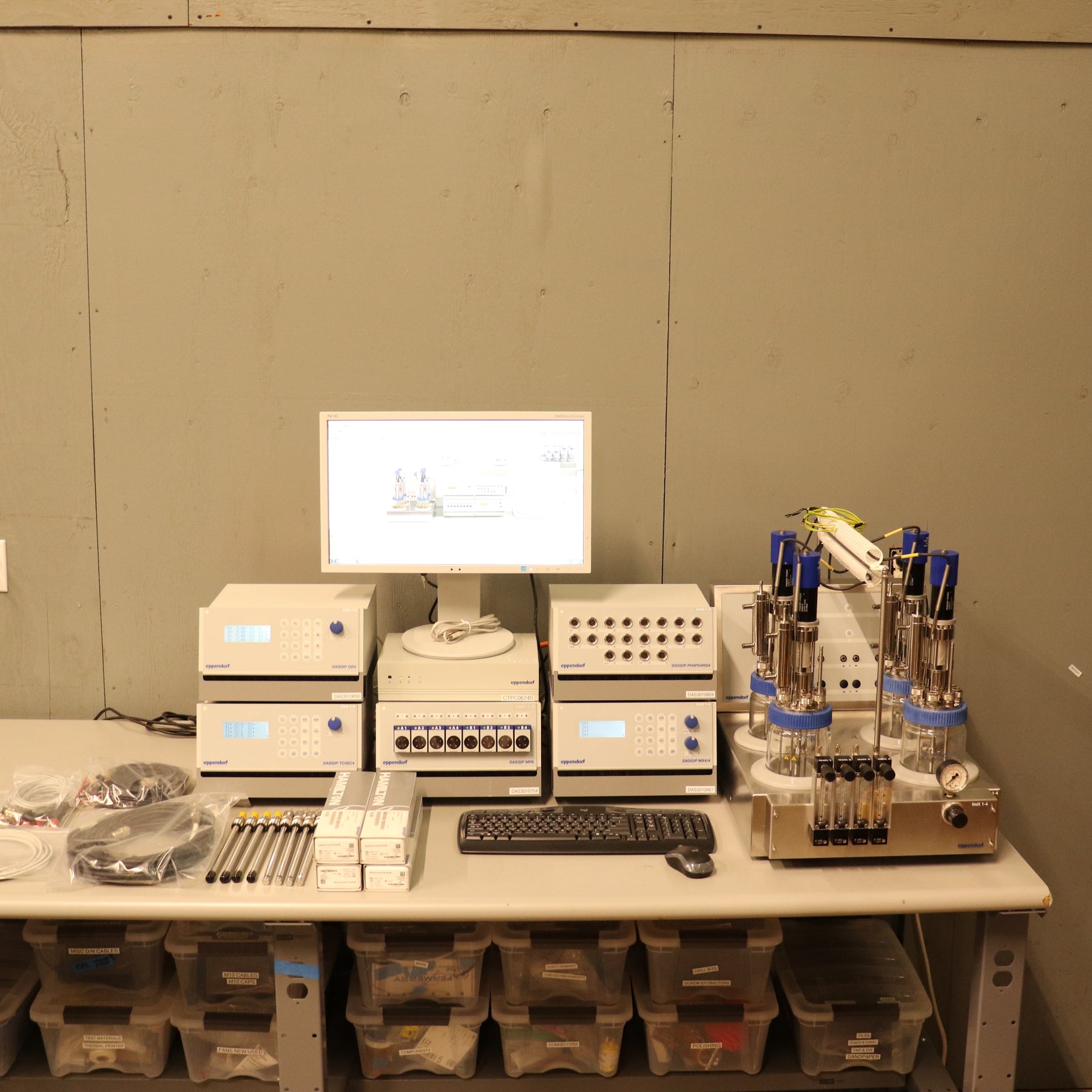

Eppendorf DASGIP 4-Fold Parallel Bioreactor System with Process Computer

Eppendorf DASGIP 4-Fold Parallel Bioreactor System with Process Computer

Mfg Year: 2018
Application: Microbio
Vessels: Glass Multi-Use
Number of Vessels: 4
Flow Rate: max 250sL/h

Specs:

• Vessel compatibility: Multi-Use, Single-Use
  • Included Size: 1.0L, Multi-Use glass
  • WV: 200mL-1.0L
  • Impeller: 2x Rushton
  • Exhaust Condenser: Yes
• Drive: Direct Drive
• MFC gas flow rate: Max 250 sL/h
• Gas mixing: Air, N2, O2 and/or CO2
• Temp control: Bioblock
• Temp range (at 25 °C room temp): 5 K above cooling agent temperature, Max temp 99°C

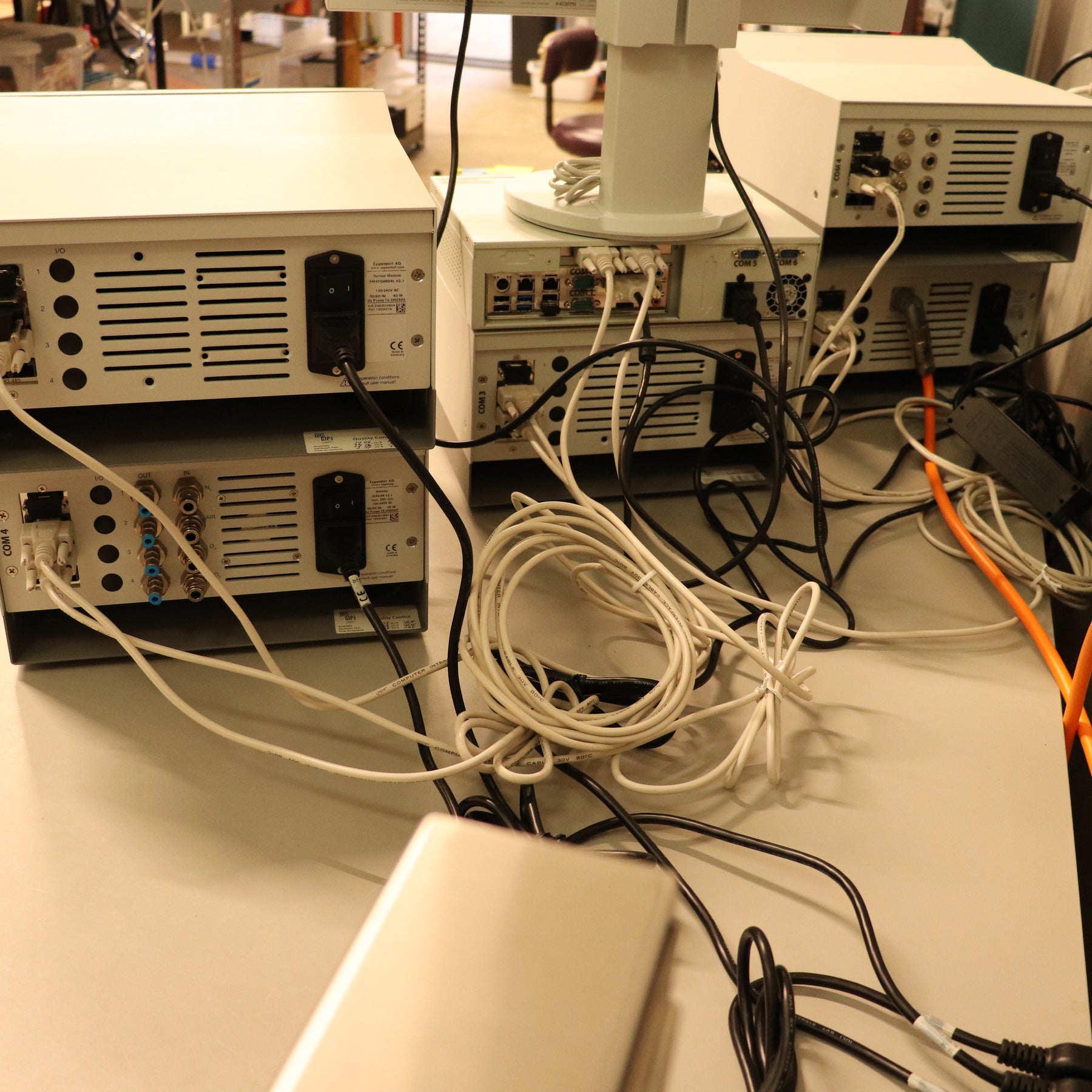

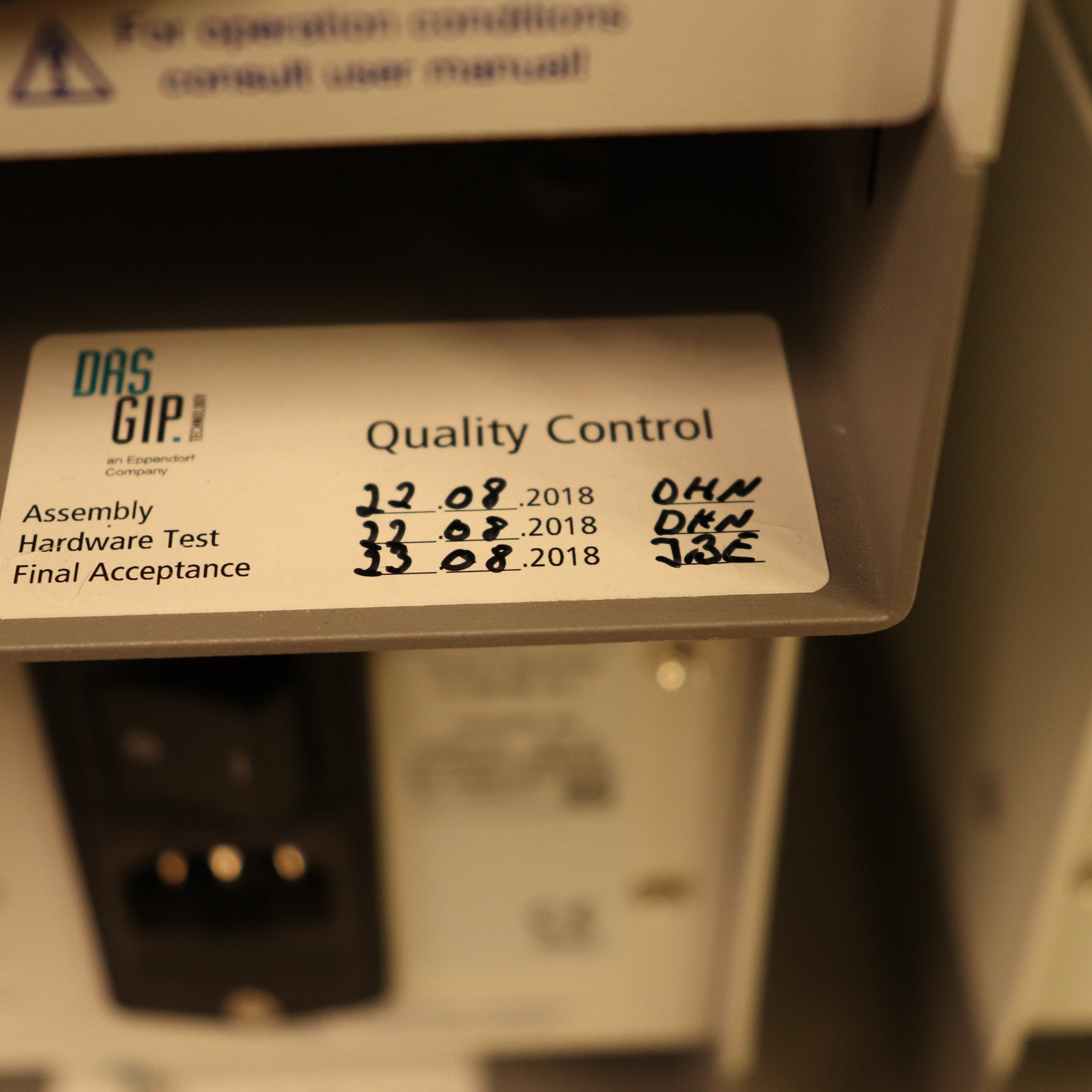

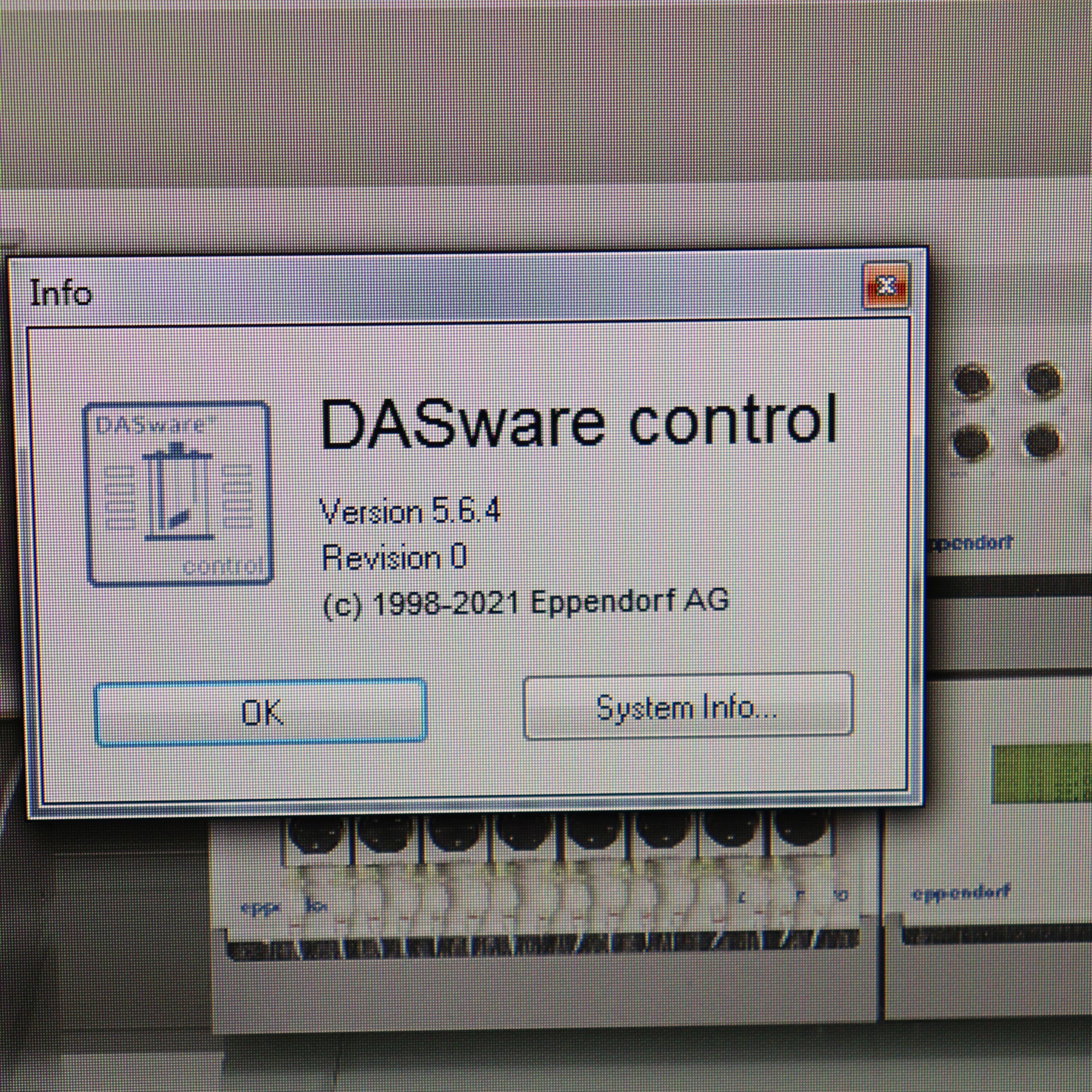

Condition: System is used, has been tested to be in very good working condition.  Modules will come with labels on DTP in/out ports and cables to help facilitate wiring the modules together.  Process PC has DASWare Control 5 (v5.6.4)Standard license for a 4-fold system. Setup process, including initial calibration procedure is detailed in the manuals. Digital manuals are available on the process PC.  System was throughly tested & cleaned. Vessels were disassembled, inspected, sanitized, and o-rings were replaced where necessary.  All sensors were tested, and gave results within the expected range.  Modules were tested for all functions, ie: pumps, measurement, gassing.  All modules were configured in DASWare, and functioned properly.

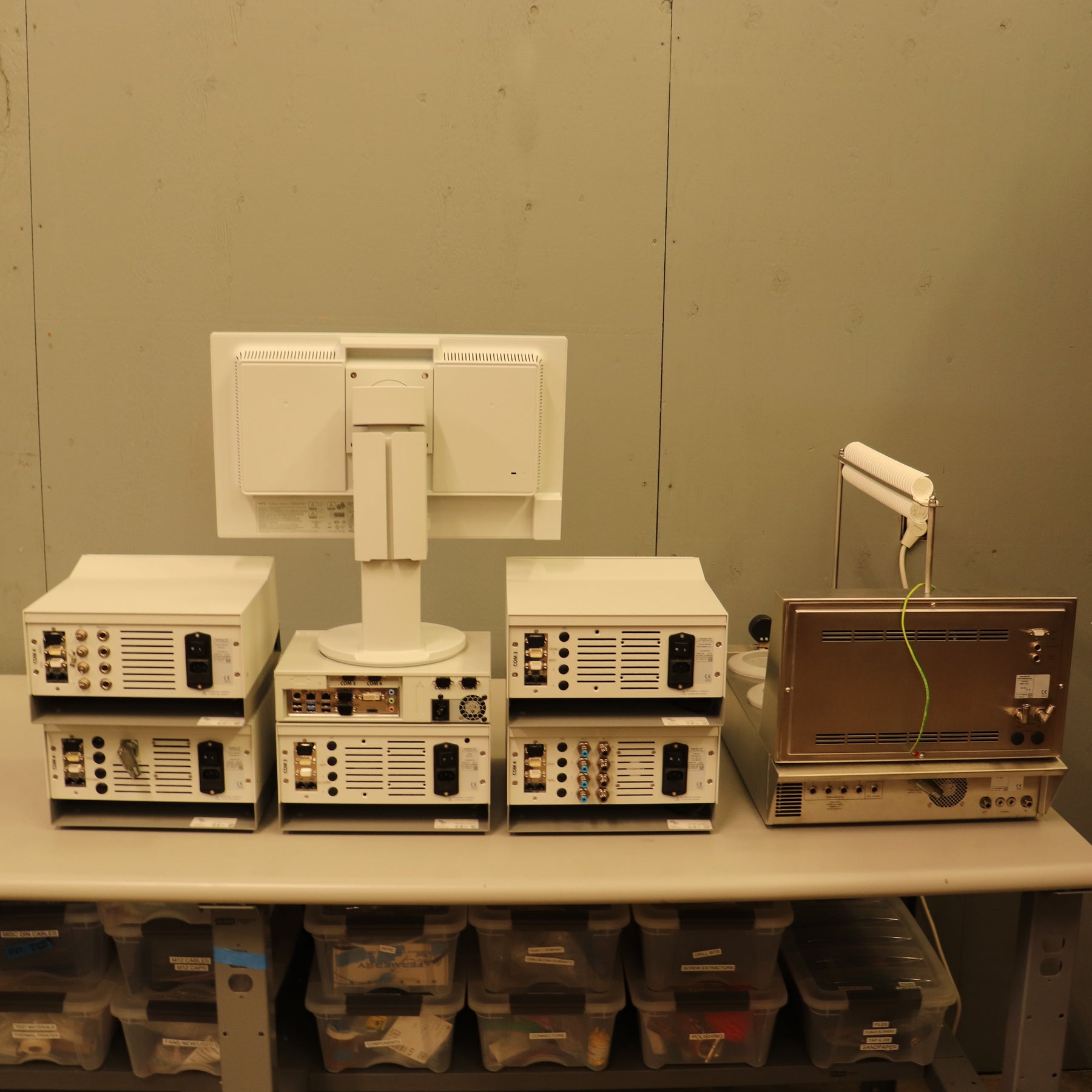

Included Components:

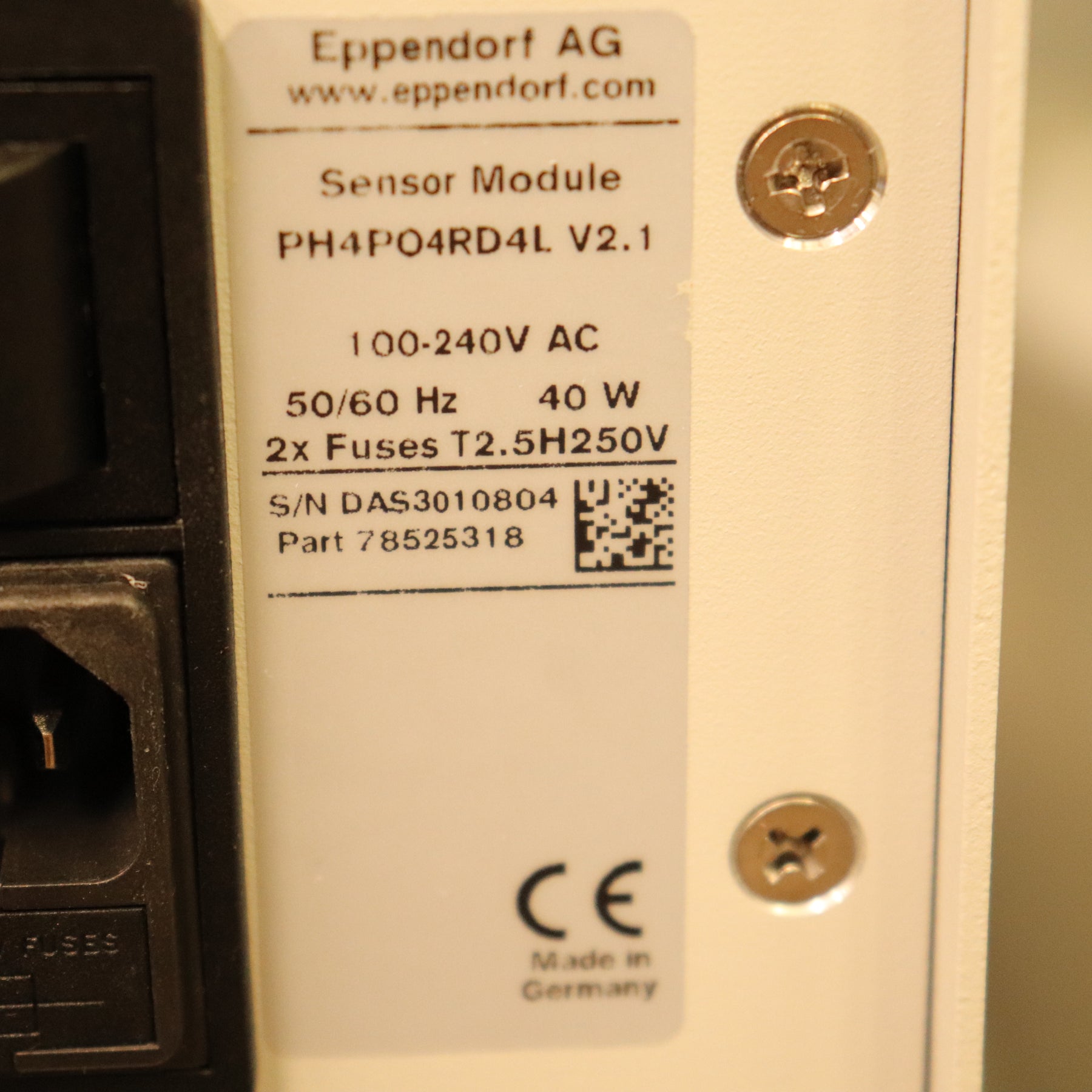

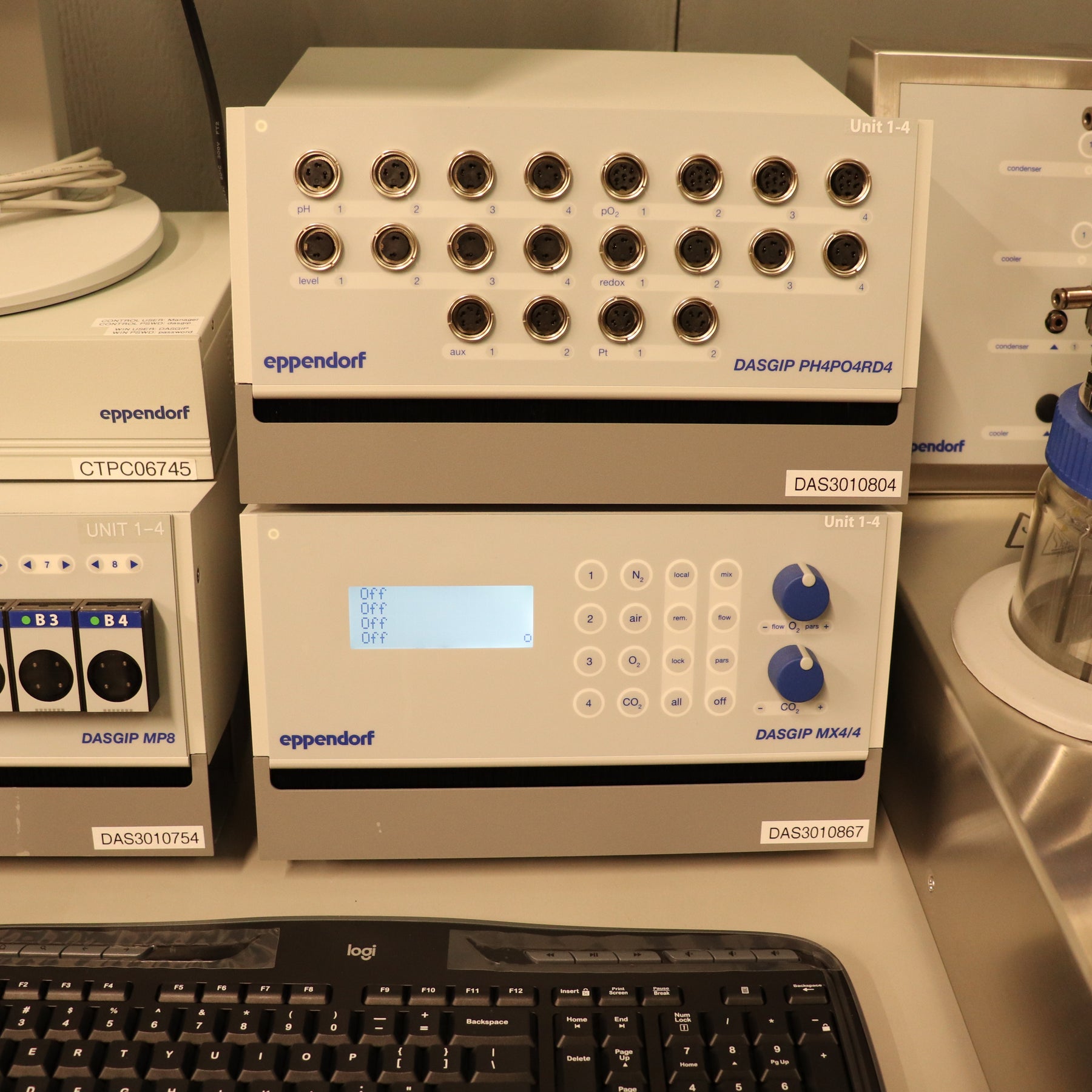

• (1x) PH4P04RD4L V2.1 Sensor Module (pH, DO, Level, ORP)

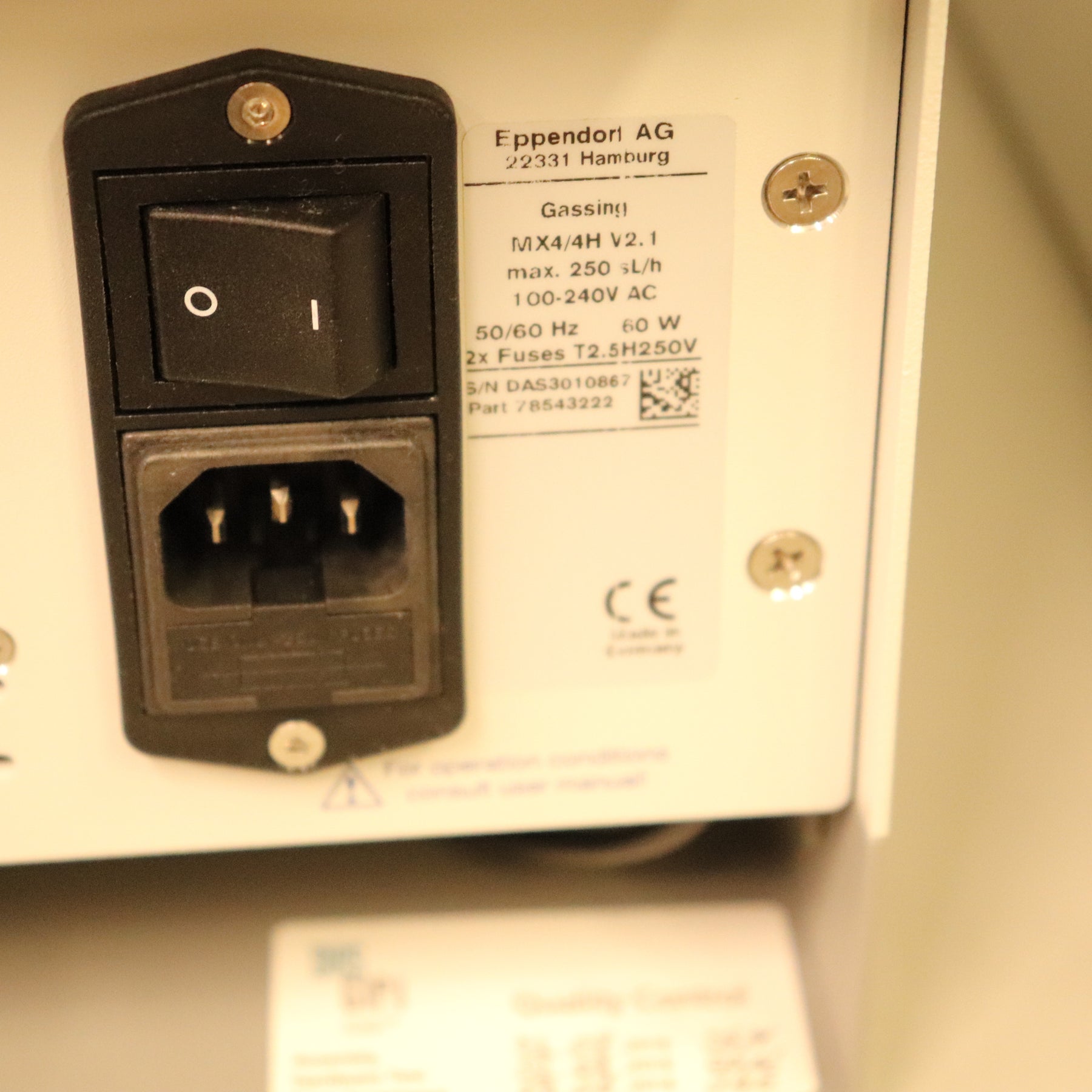

• (1x) MX4/4H V2.1 Gas Mixing System (250 sL/h Max)

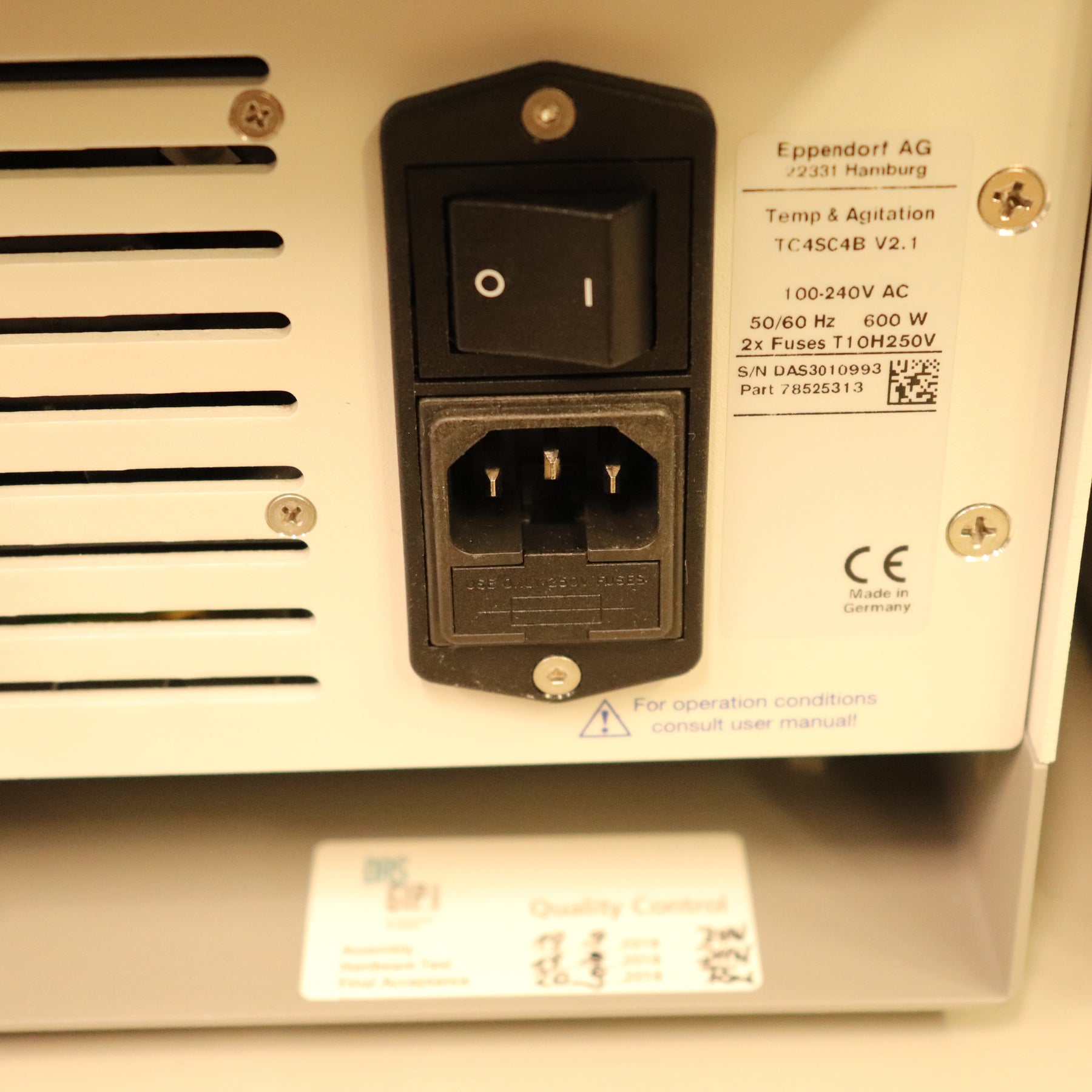

• (1x) TC4SC4B V2.1 Temperature and Agitation Controller

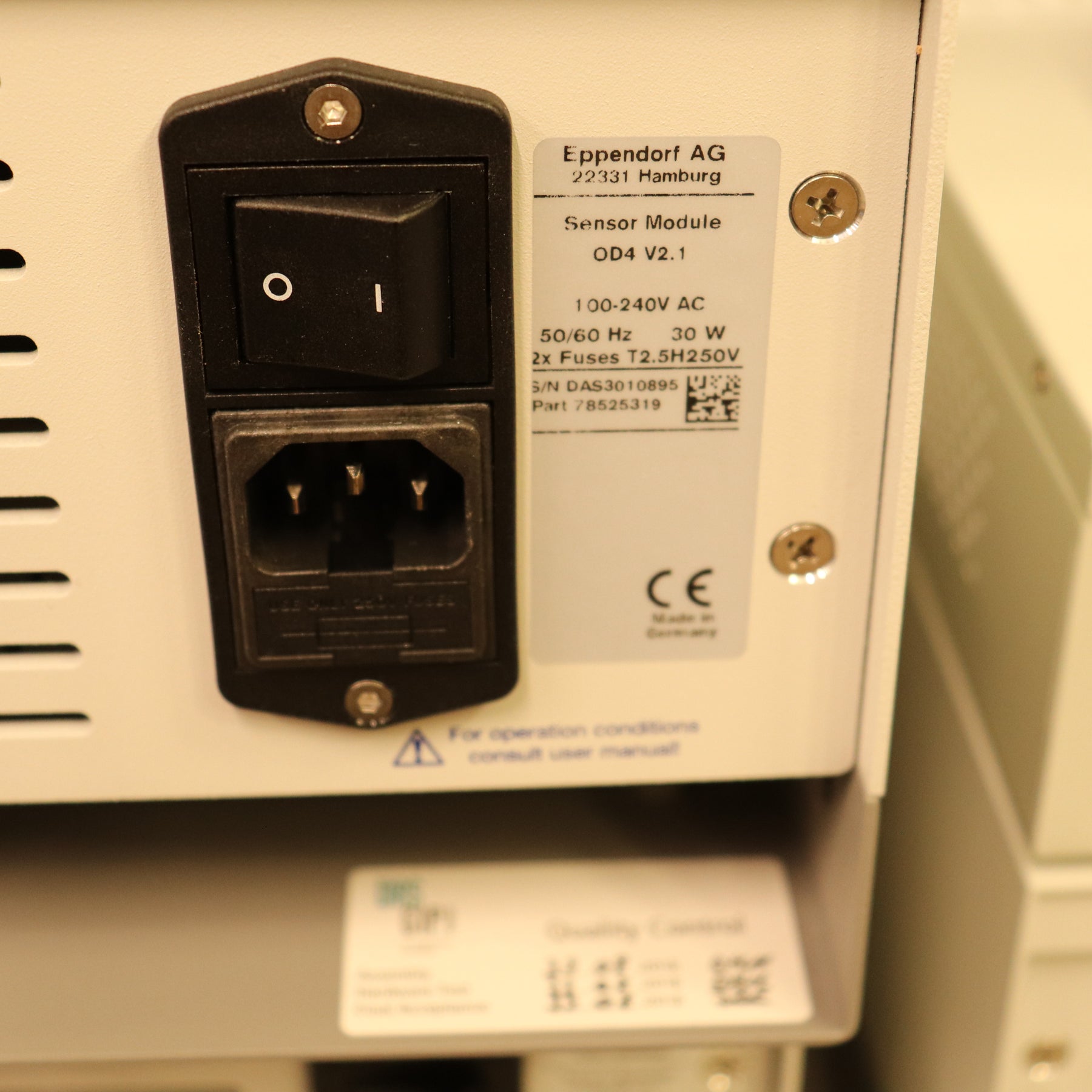

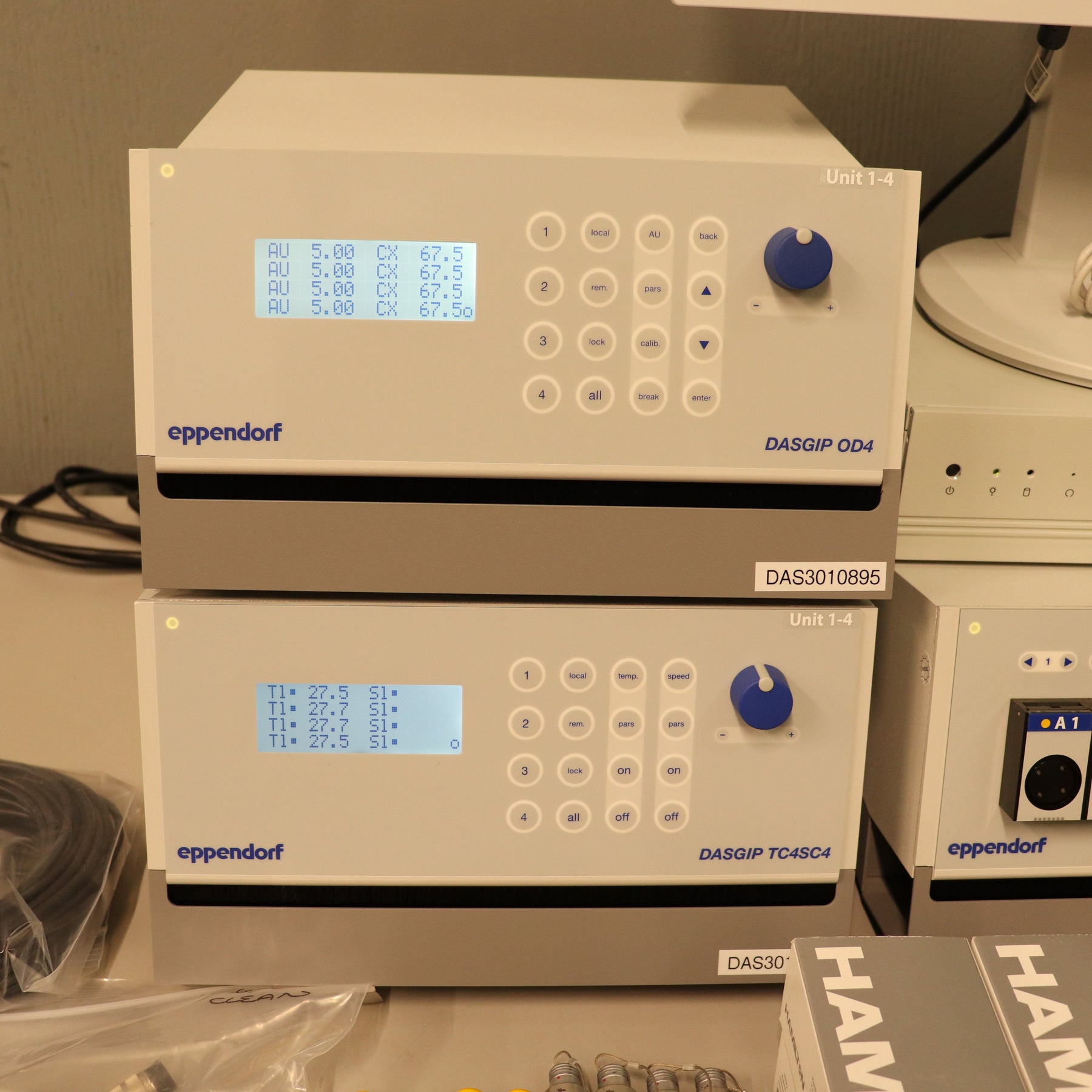

• (1x) OD4 Optical Density Module

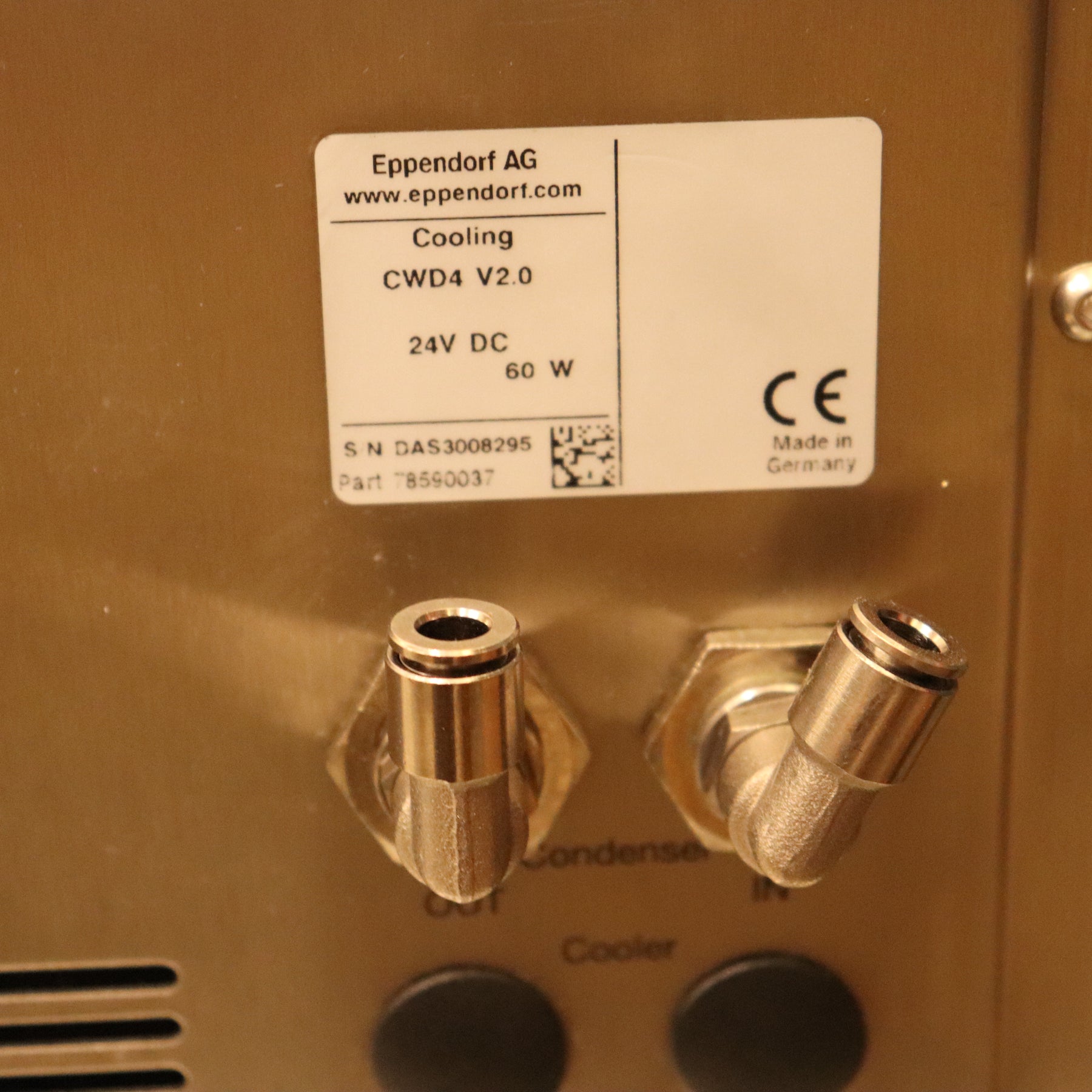

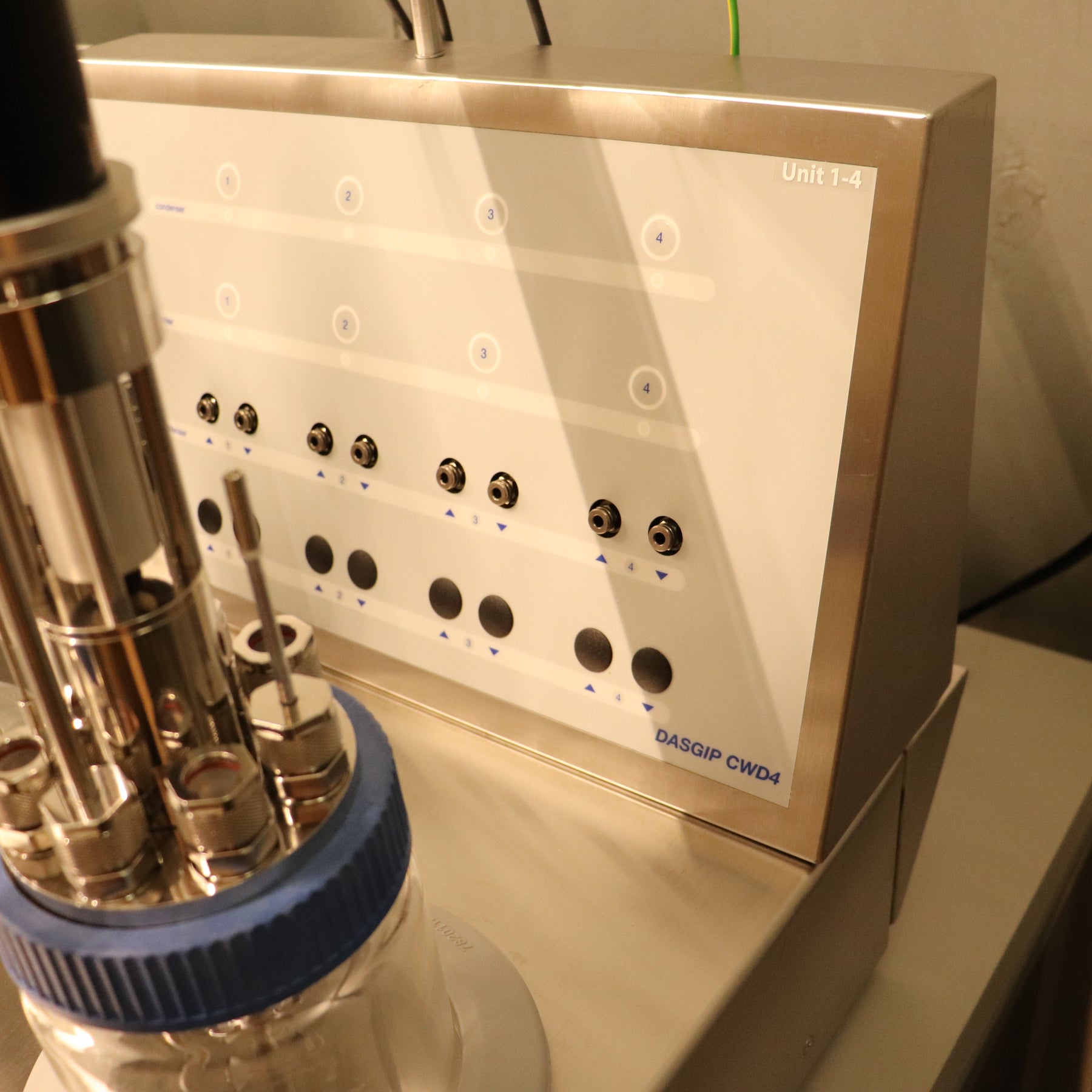

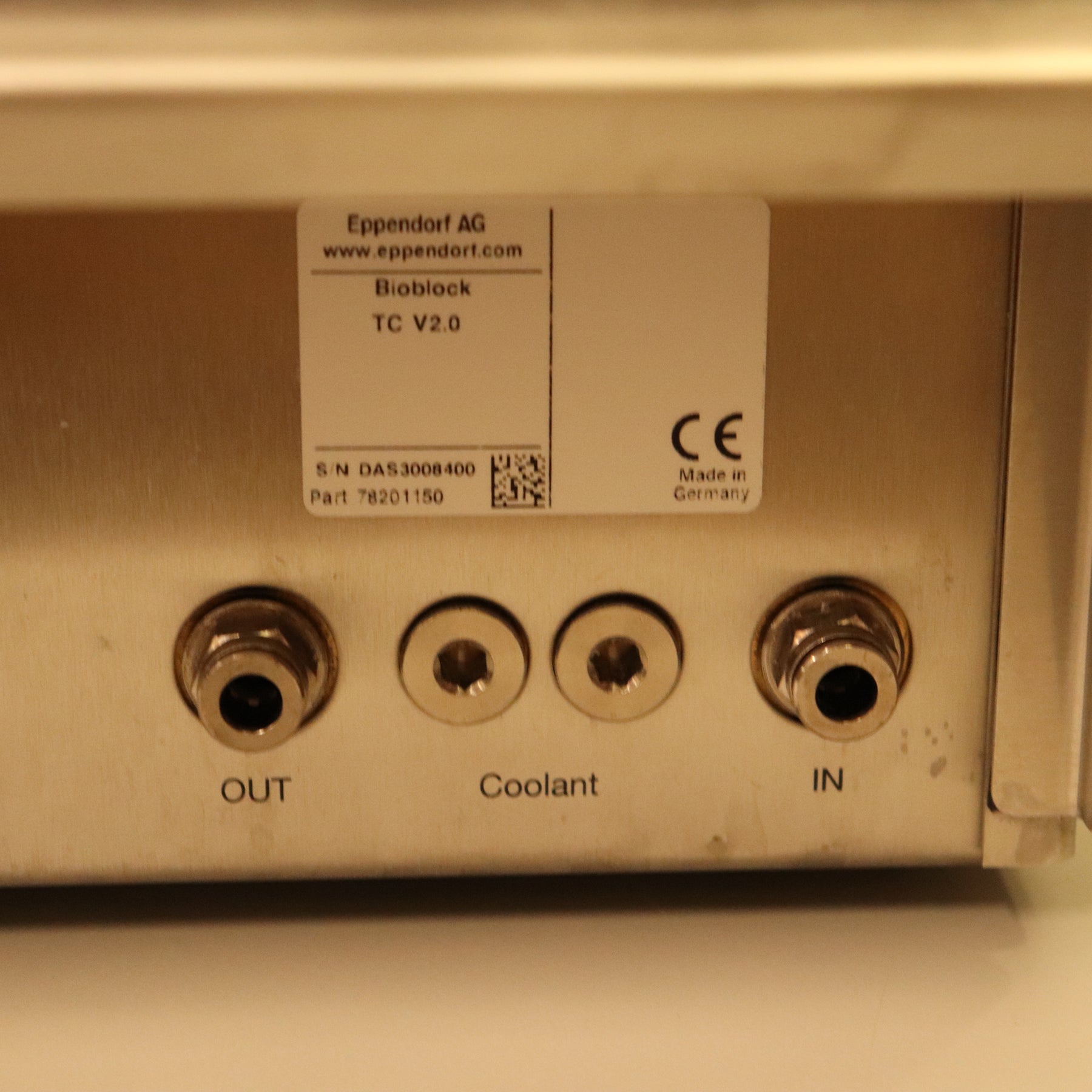

• (1x) Bioblock w/ CWD4
• (1x) Rotameter WRM Gassing Station 1-260sL/h 76DGWRMH

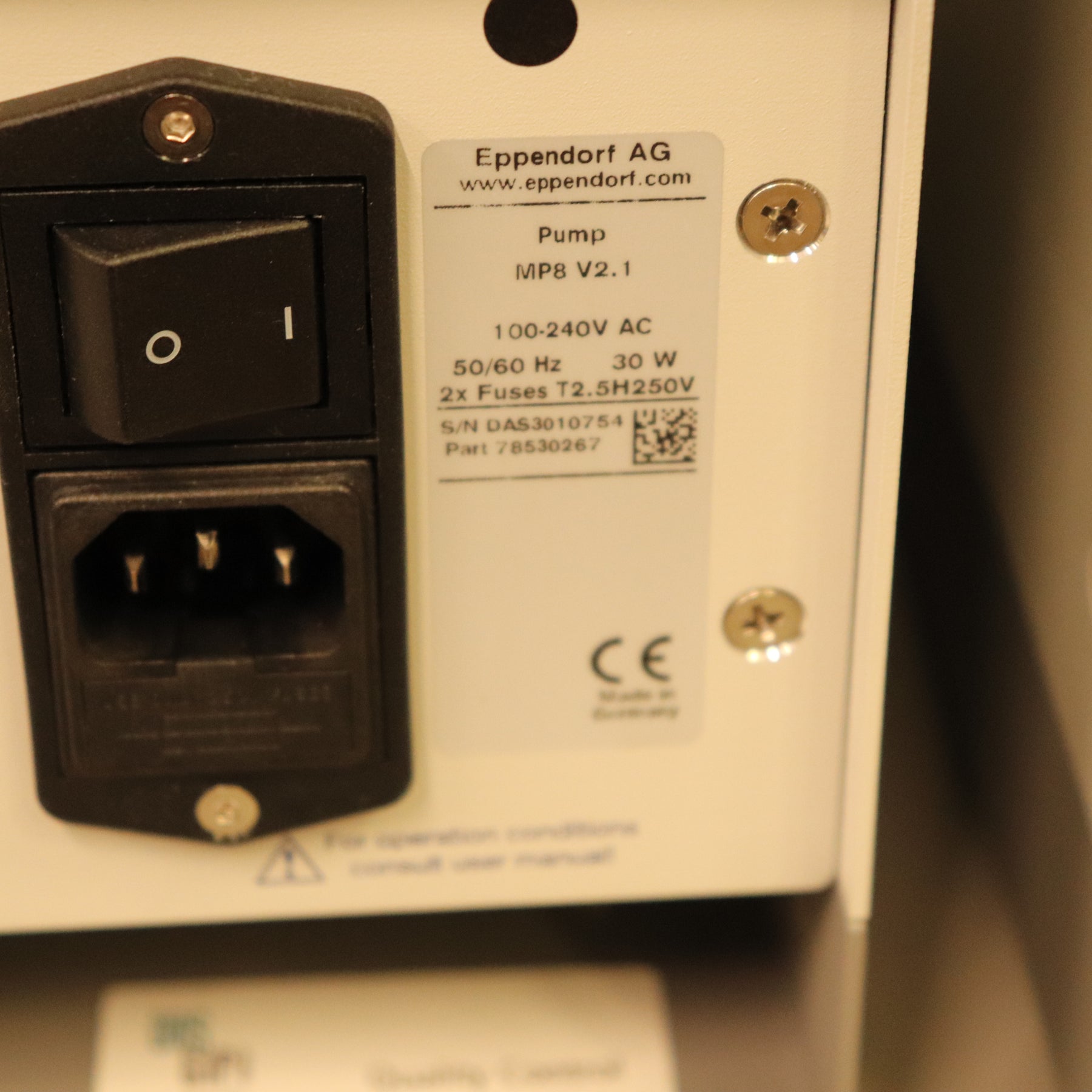

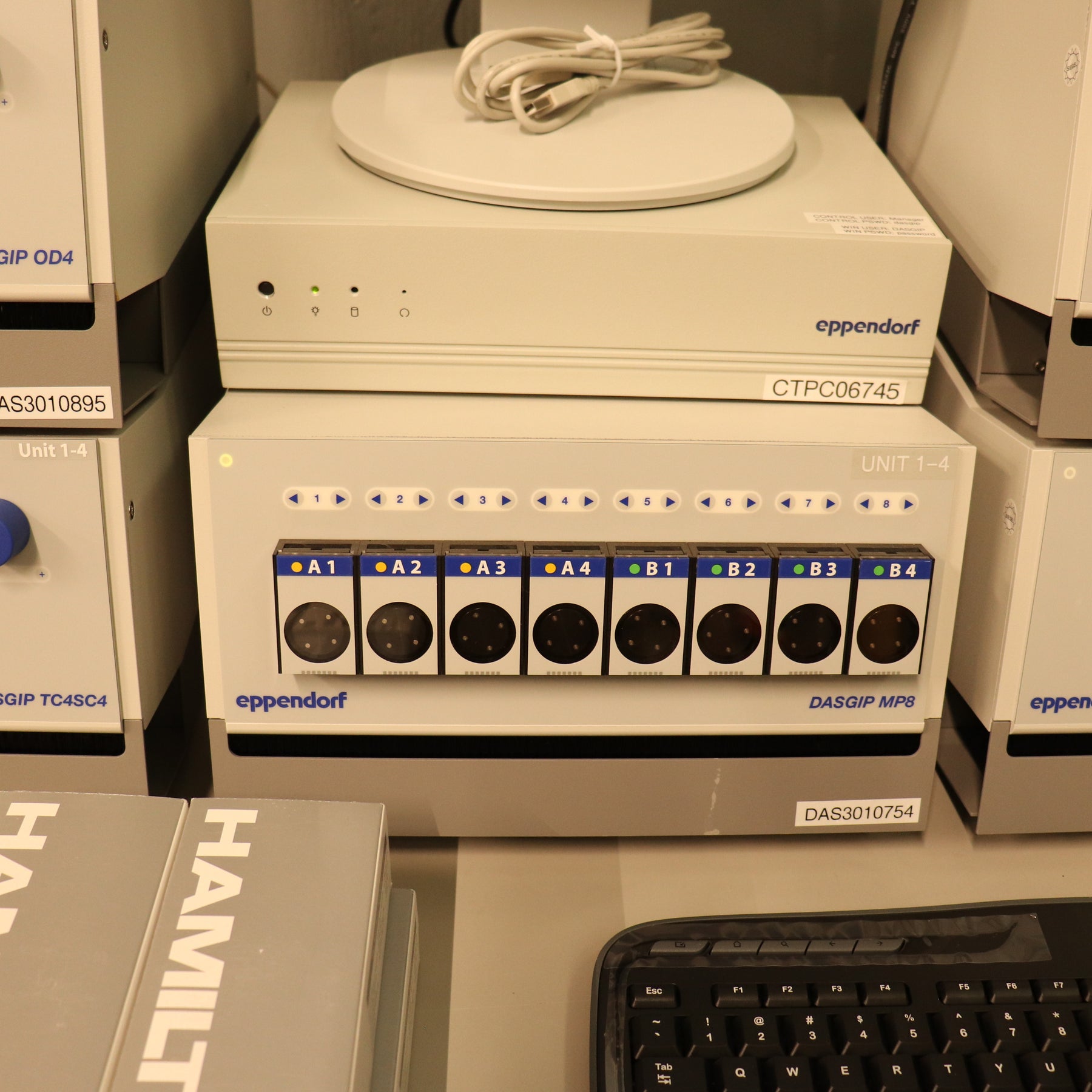

• (1x) MP8 V2.1 Pumps

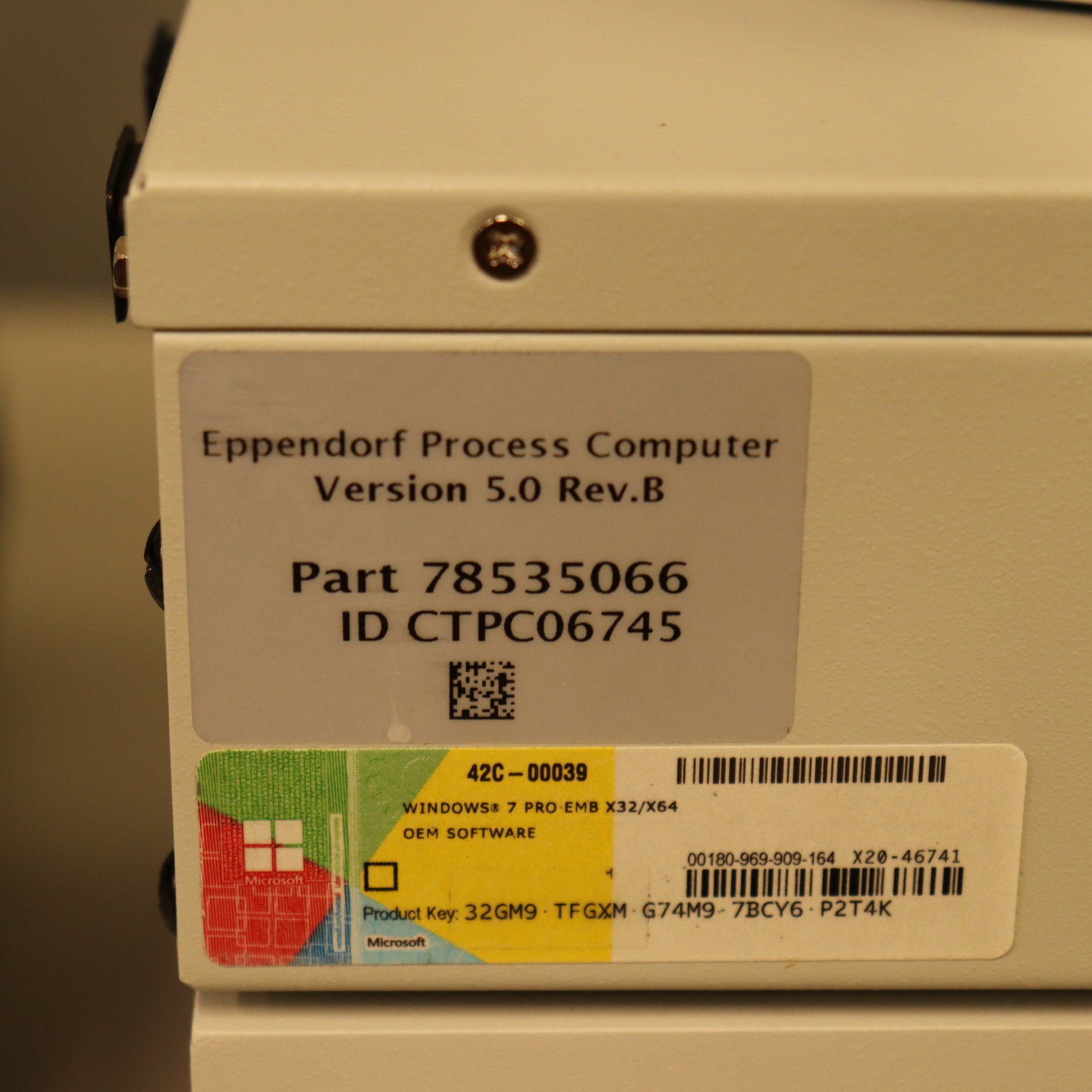

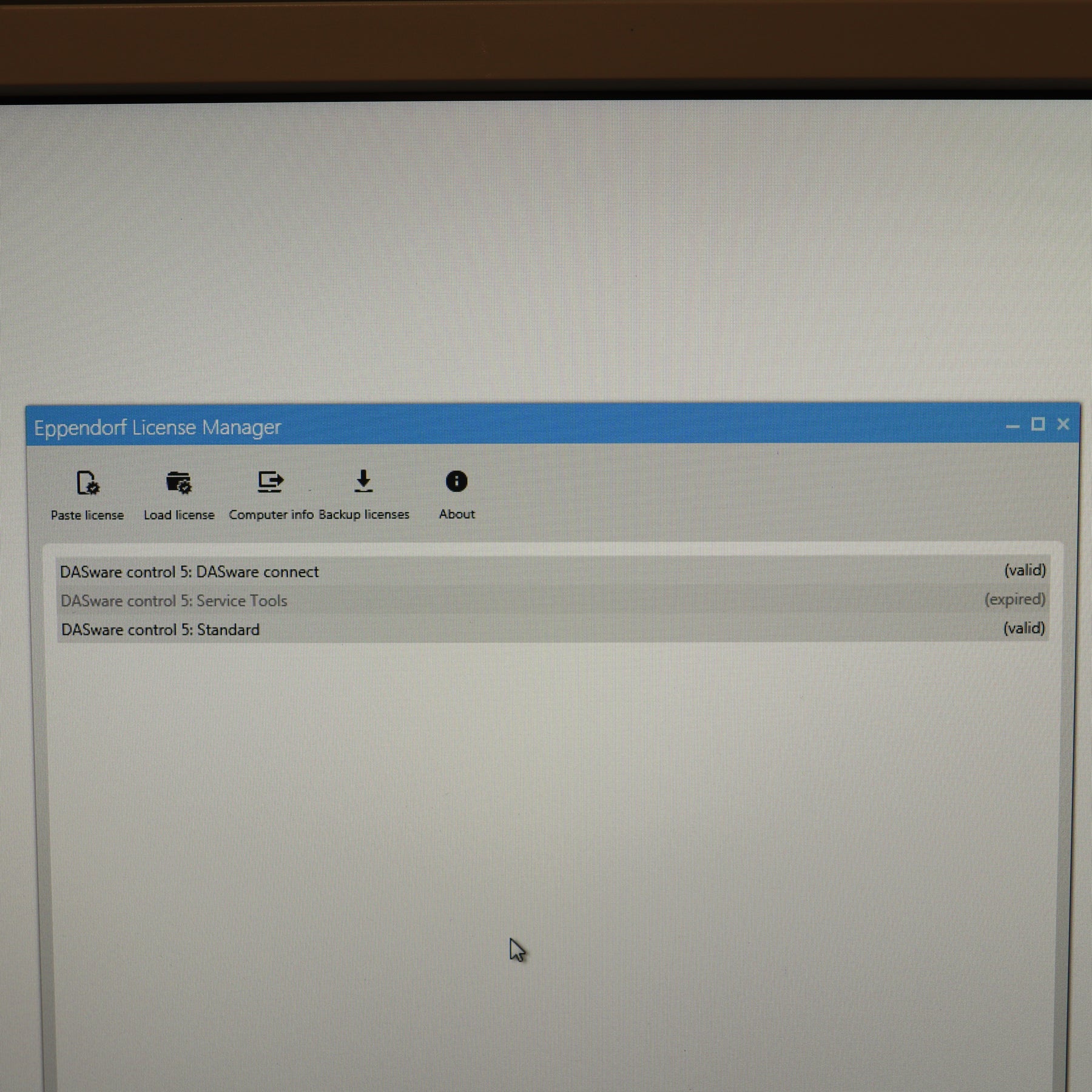

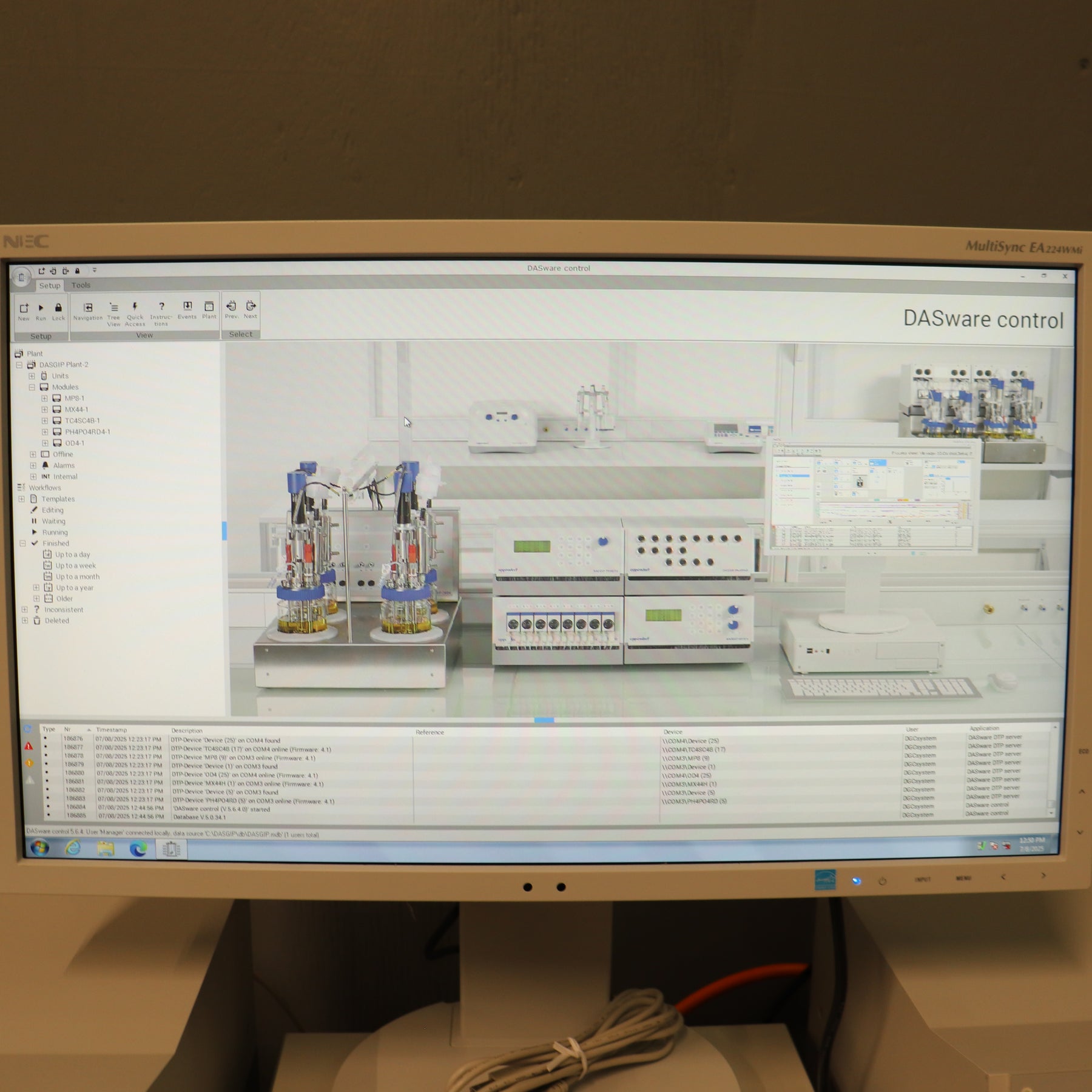

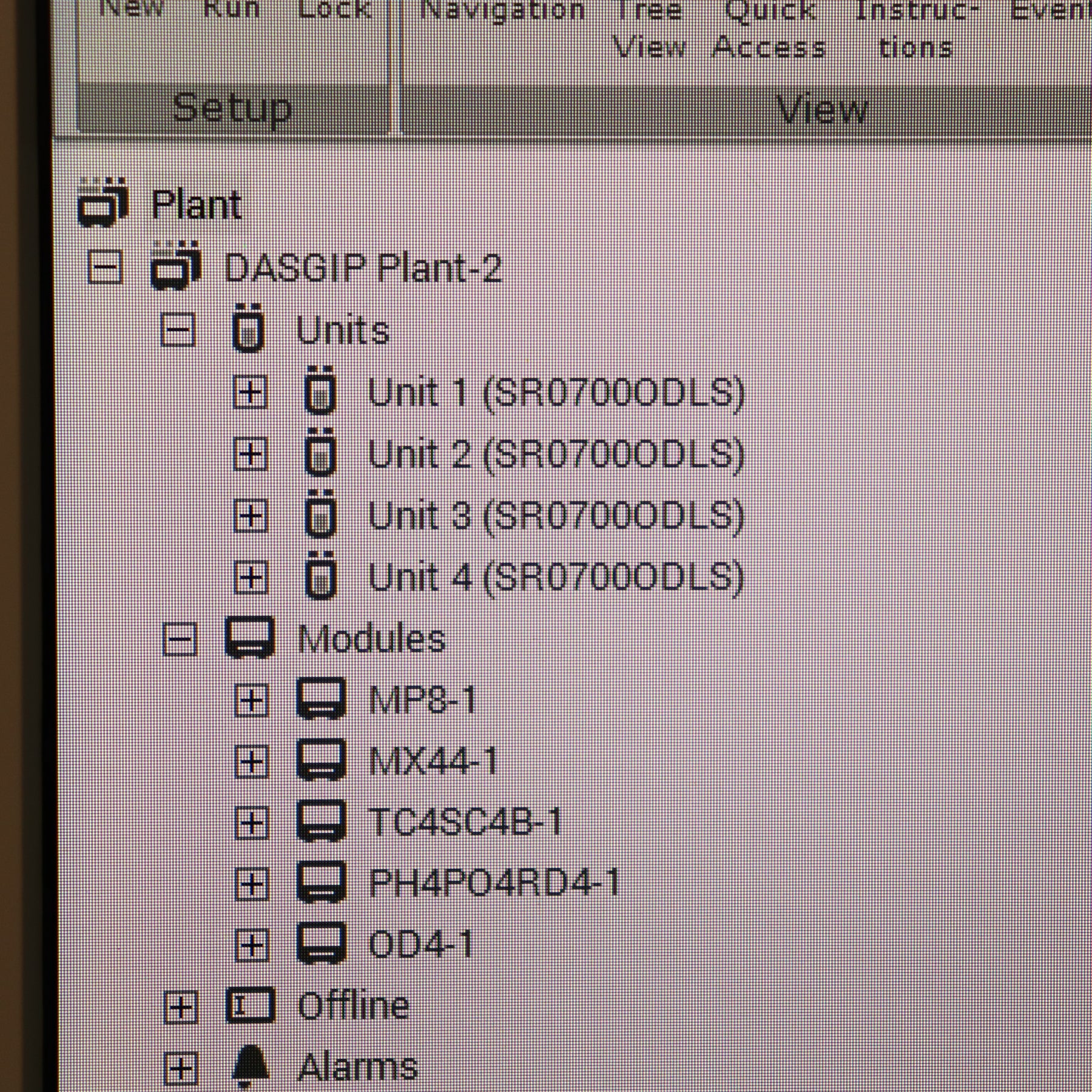

• (1x) DASWare v5.0 Win 7 Process Control PC with 4-Fold system license.  DASWare Control 5.6.4 Standard license.

• (1x) OEM Monitor

Included Sensors/ Accessories:

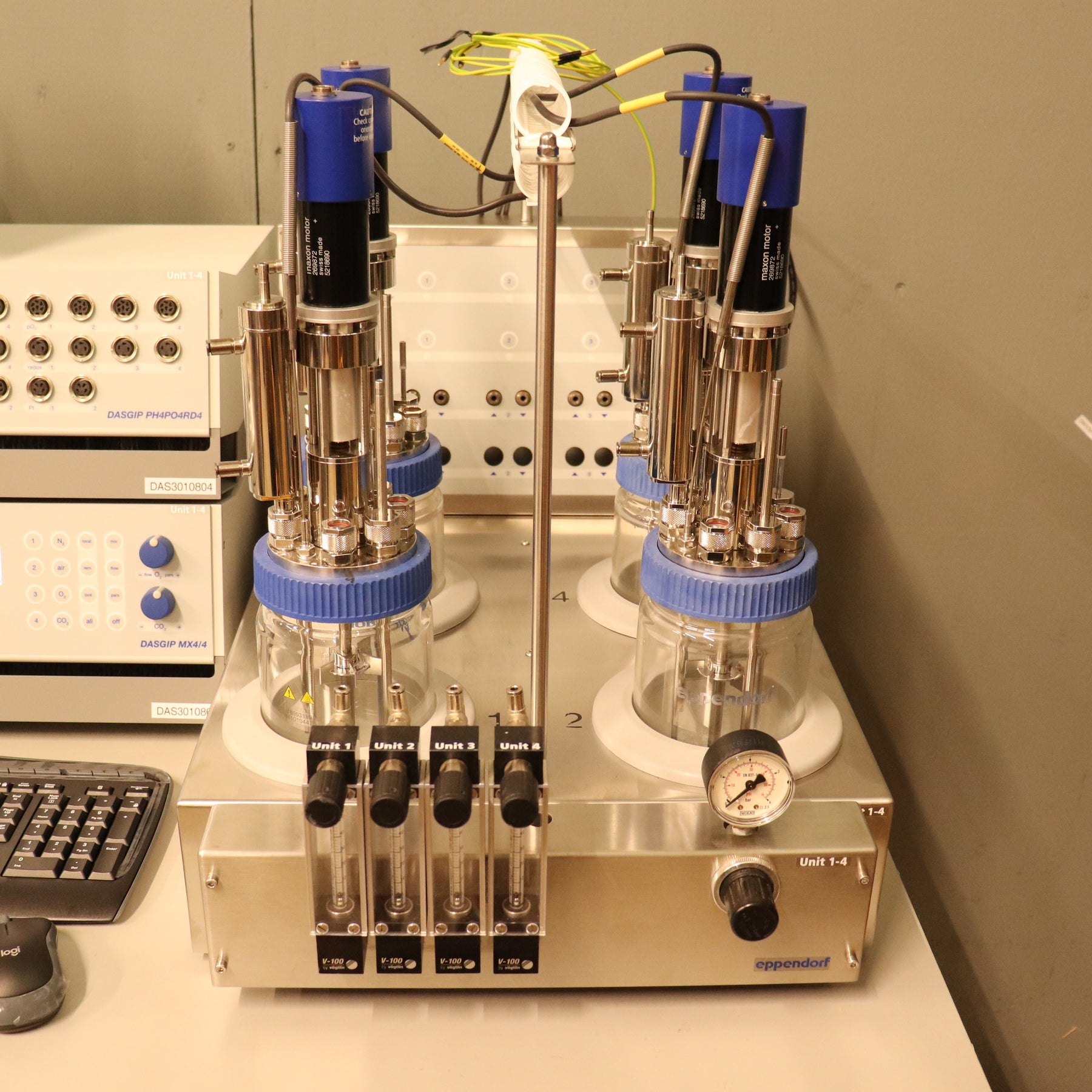

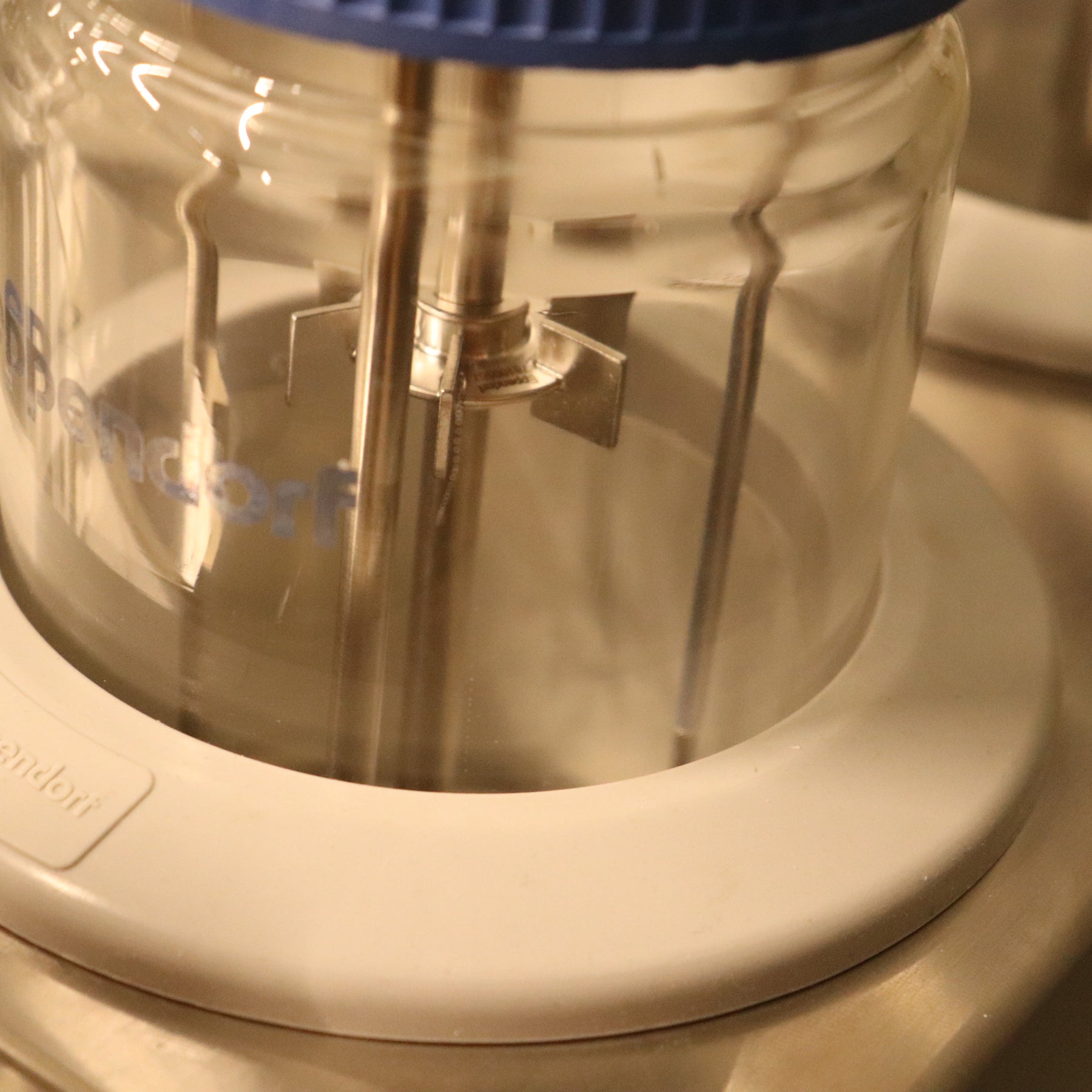

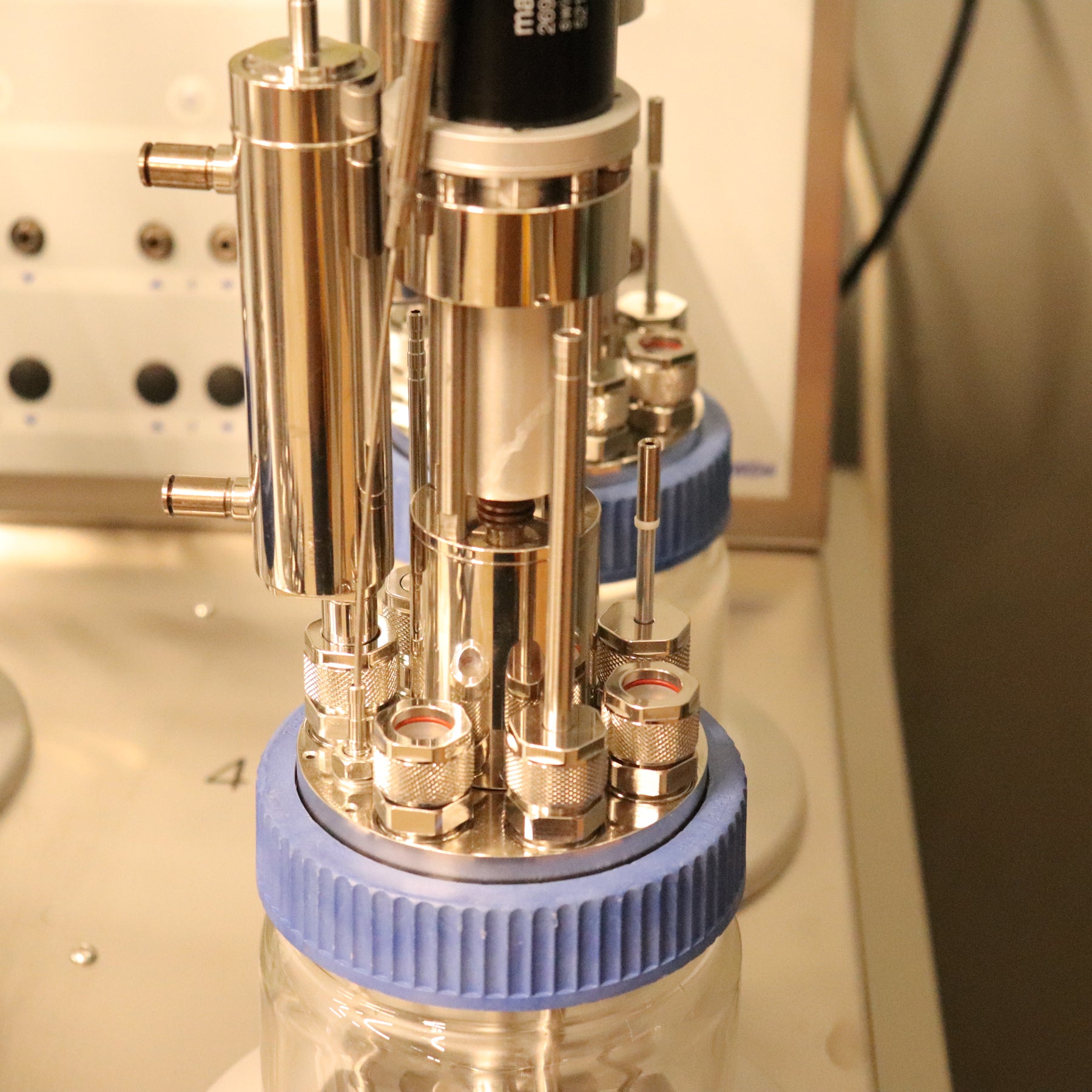

• (4x) 1.0L Glass Vessels (SR0700ODLS)
  • (4x) Exhaust Condensers
  • (8x) Sensor Compression Adapters
  • (4x) 4mm OD Triple Port Compression Fitting w/ 2x 80mm and 1x 220mm SS Pipe

  • (4x) Thermowells
  • (4x) L-Downward Bore Spargers

• (4x) RE40 Direct Overhead Drives
• (4x) Overhead Drive Cables 78100253

• (4x) Platinum RTD Temperature Sensors 78103304

• (4x) Level Sensors w/ Compression Fitting  200mm 78103146
• (4x) pH/Redox Sensor Cable (AK9) 76DGPHRDAK9
• (4x) DO Sensor Cables 78522042

• (4x) Level Sensor Cables 78522031

• (4x) OD Sensor Cables 78100252

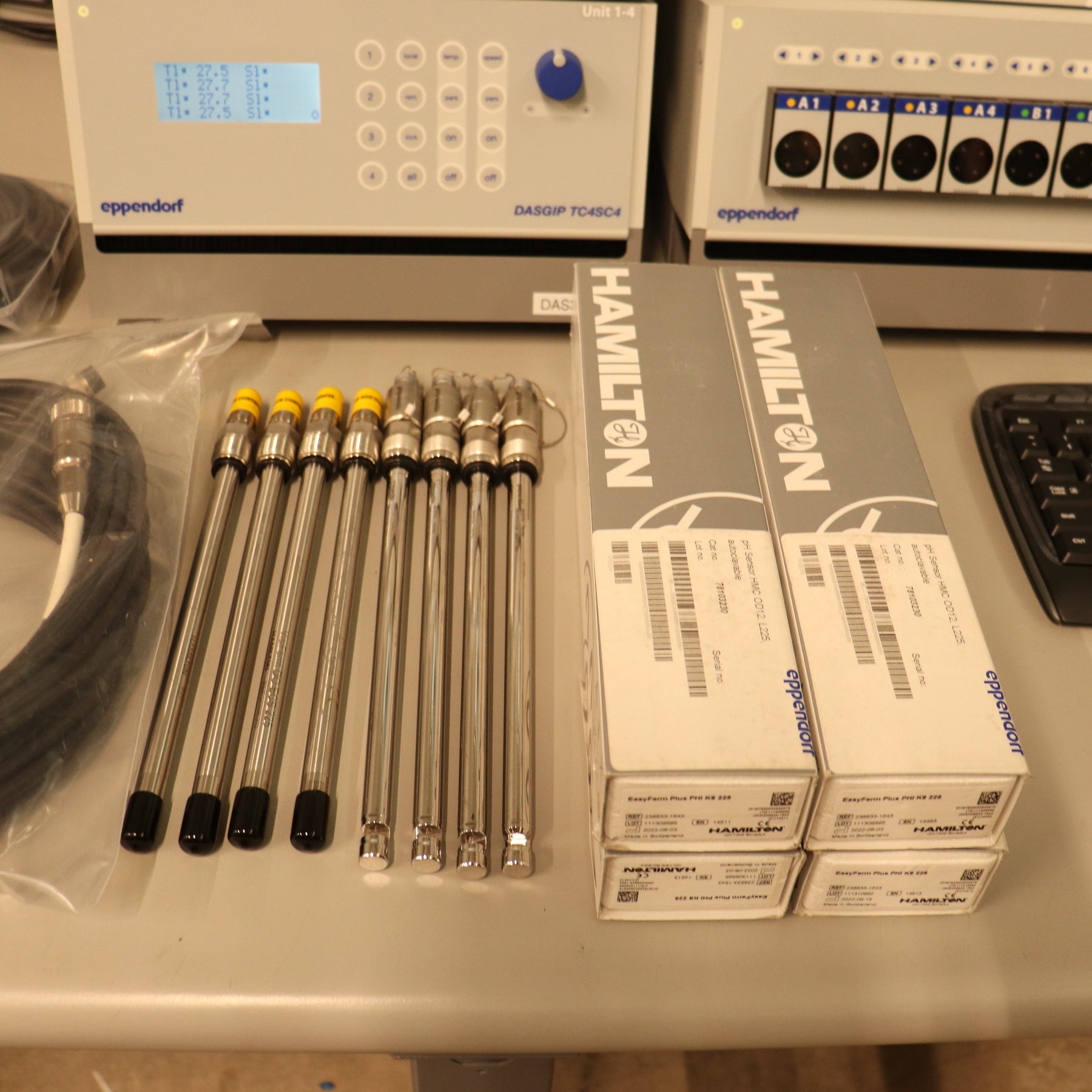

• (4x) pH Sensors Hamilton 225mm 78103230
• (4x) DO Sensors Hamilton Visiferm Optical, H2 cap 225mm 78108055

• (4x) OD Sensors 220mm, 5mm optical path 76DGODOPL05L220

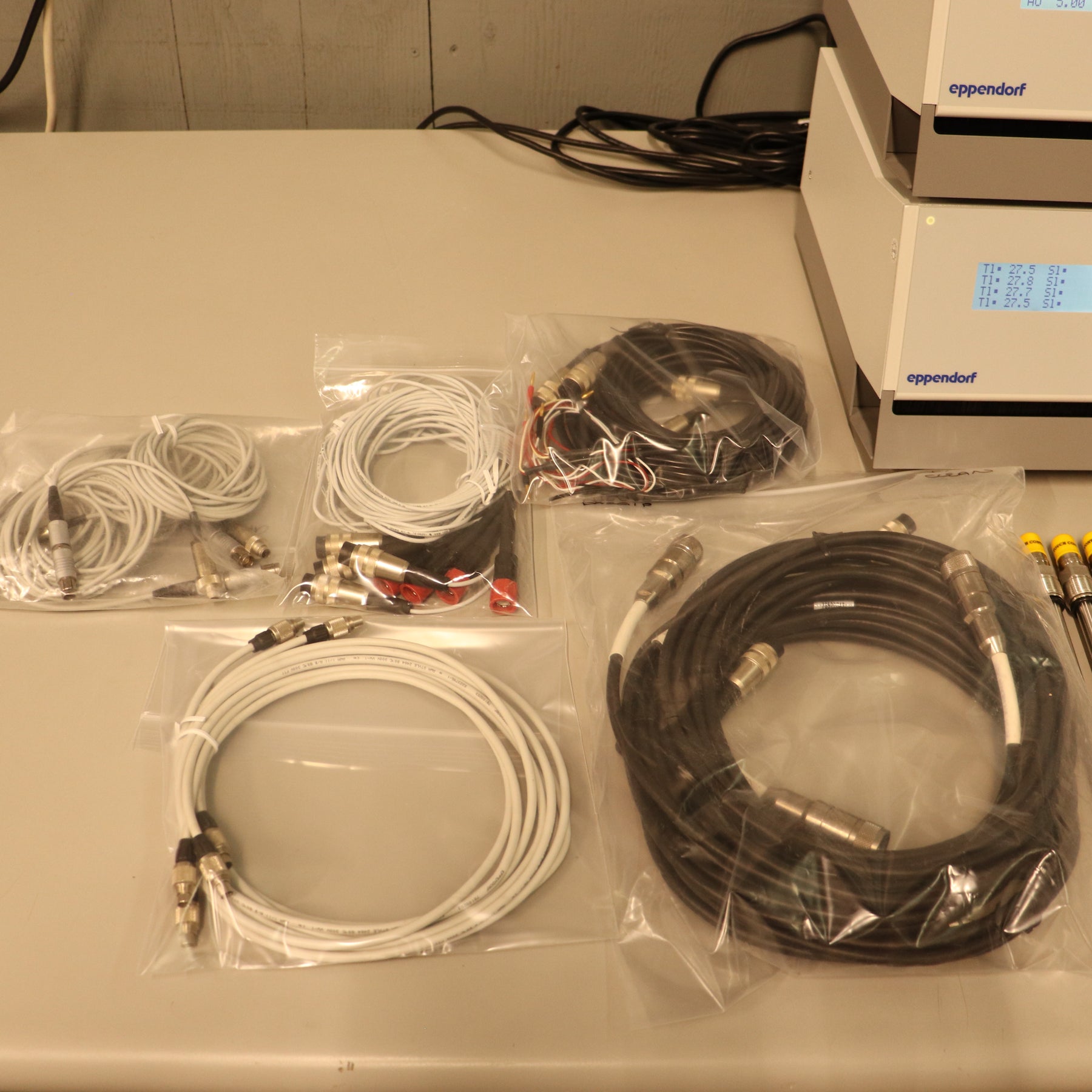

• Data Cables & Power Cords
• Misc Tubing (not pictured)


WORLDWIDE SHIPPING AVAILABLE
