Kulite High Temperature Miniature Pressure/ Sensor Transducer XCEL-100-15A

Sale price$359.00
Sold out

 Kulite Pressure Transducer/ Sensor

PN: XCEL-100-15A

Condition: New Open Box

  • Operational Mode: Absolute
  • Pressure Range: 15PSI, 1BAR
  • Screen: 'M' Option
  • Technology: Silicon Piezoresistive
  • Excitation: 10V
  • Precision:   ±0.10 % FS
  • Includes Compensation module: No

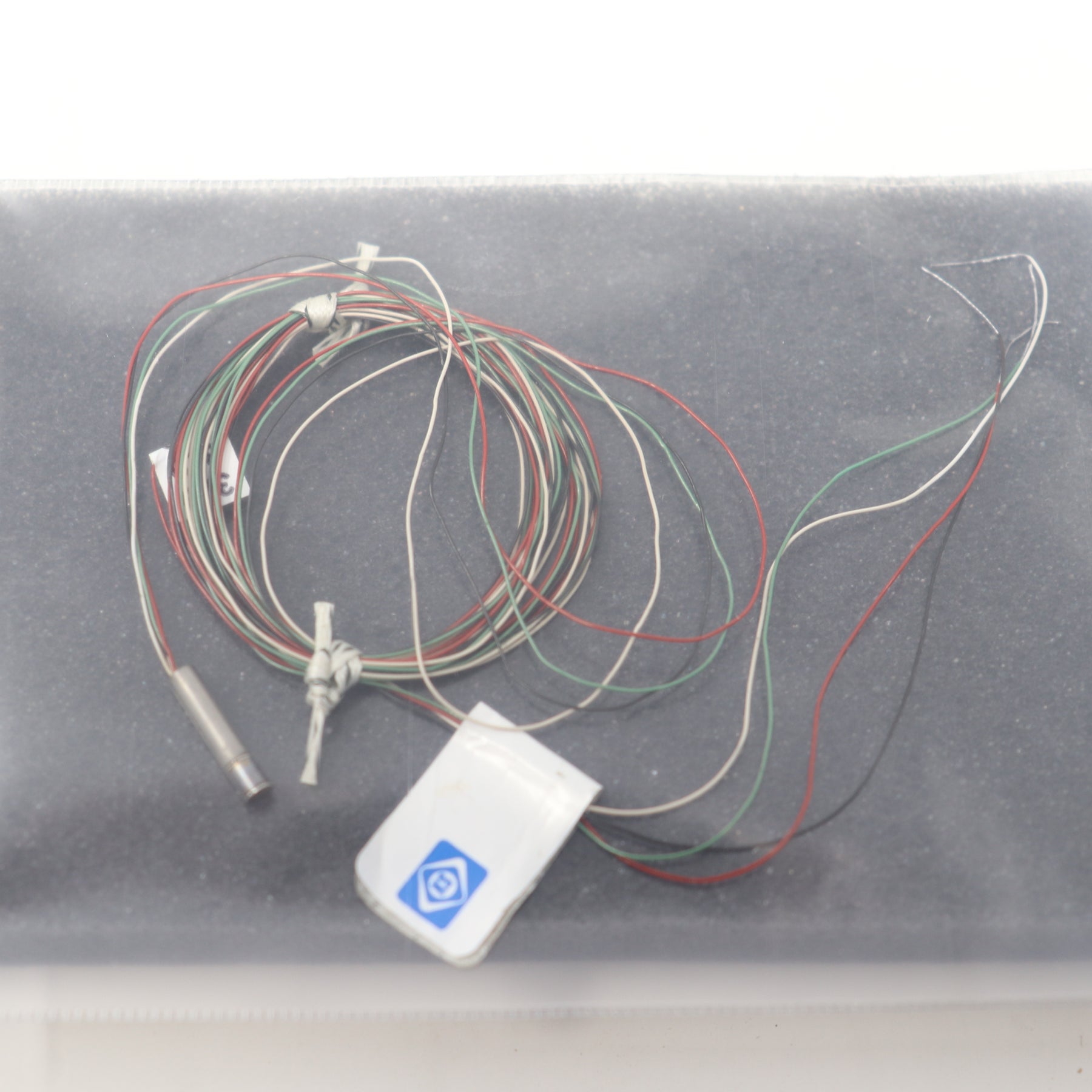

The XCEL-100 design features Kulite's patented leadless technology. This allows for a very rugged package suited for probes, pressure rakes and other similar test set ups. This transducer is well suited for both dynamic and static pressure measurements in benign or harsh environments. Its wide operating temperature range (-65°F to +525°F) makes it ideal for numerous applications in Aerospace and other areas of Industry.

Wide Temperature Capability -65°F To 525°F
Designed For Harsh Environments
Ideal For Turbine Engine Probes and Wind Tunnel Applications Patented Leadless Technology VIS®
Designed For Both Static and Dynamic Response
Suitable For Use in Most Conductive Liquids and Gases
