UMPCO

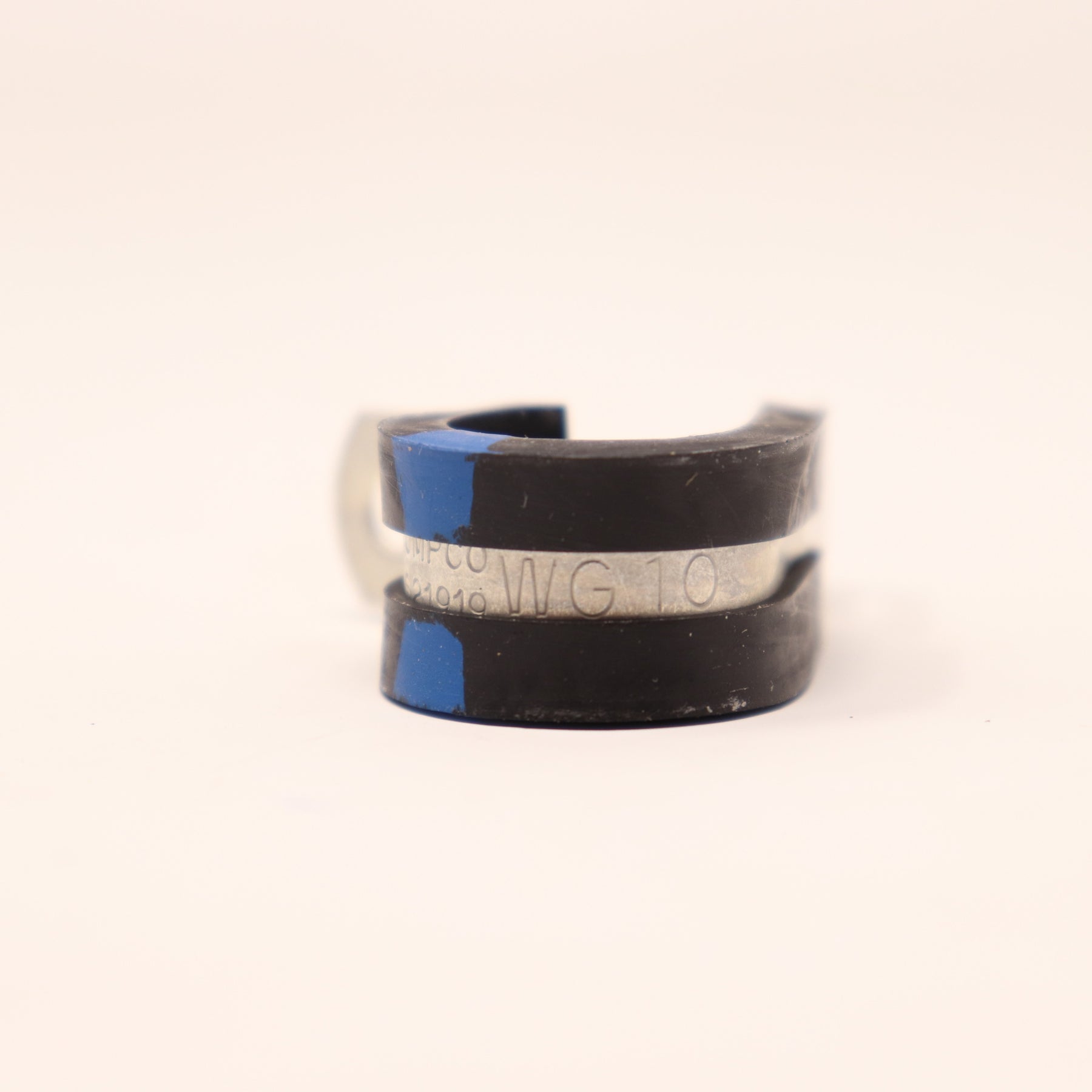

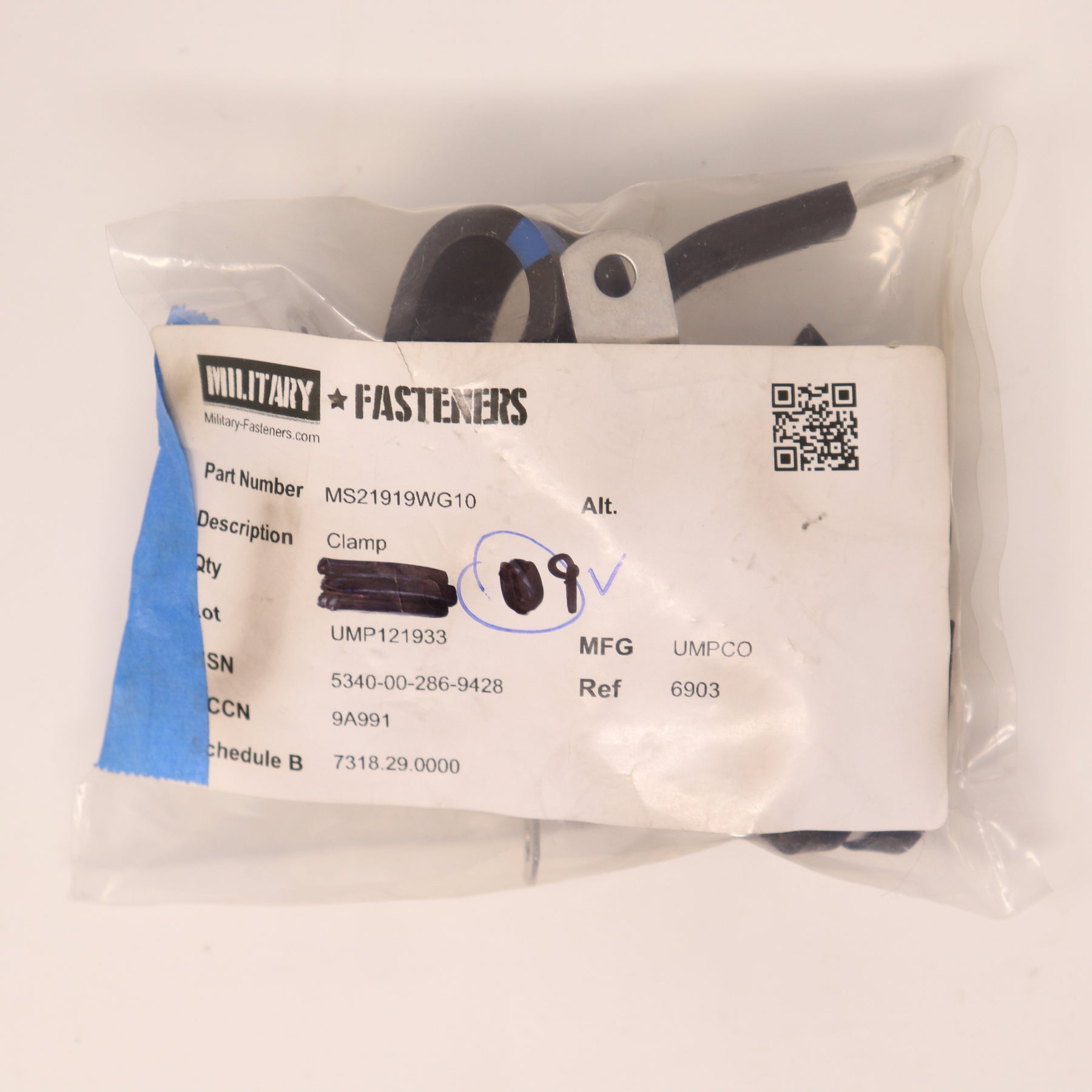

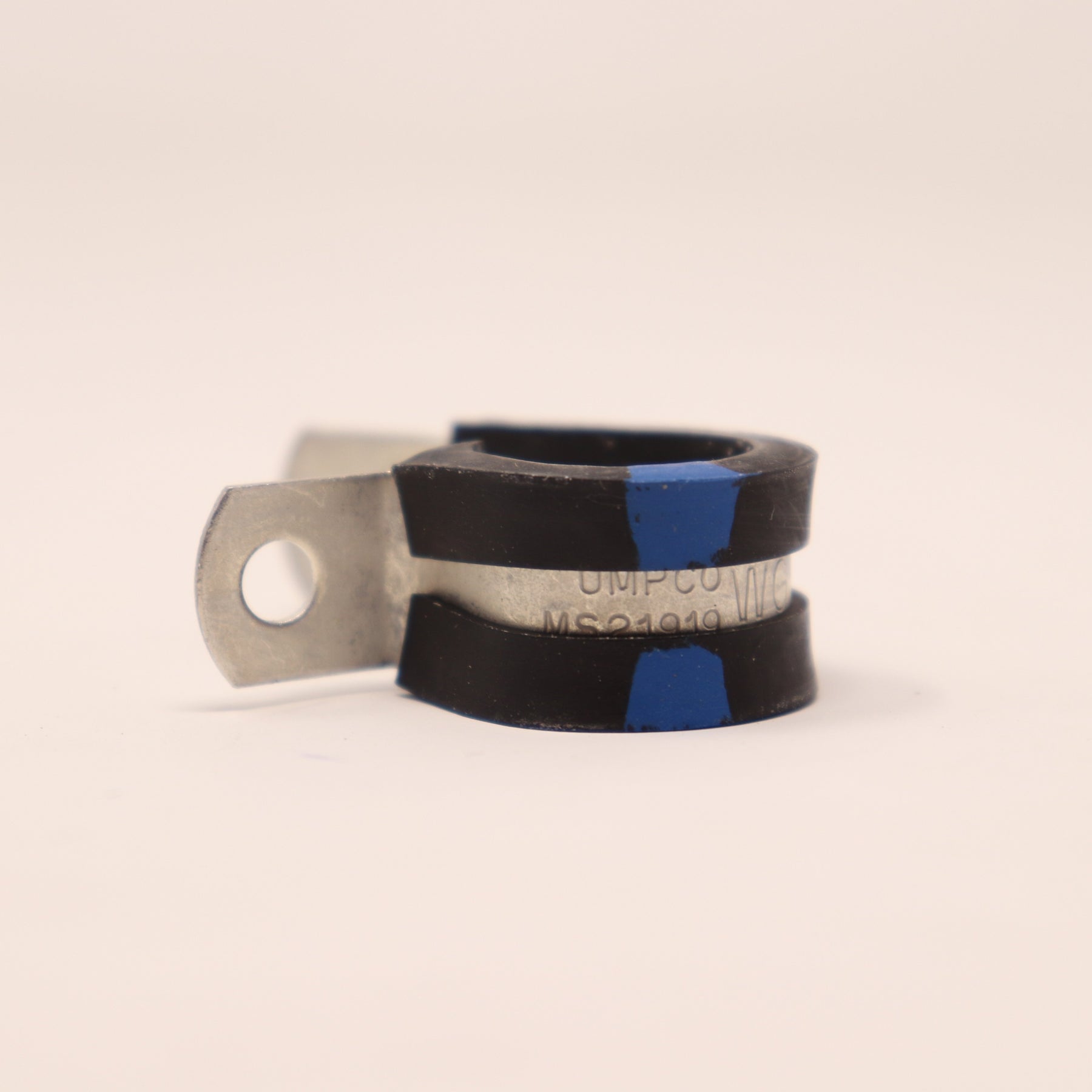

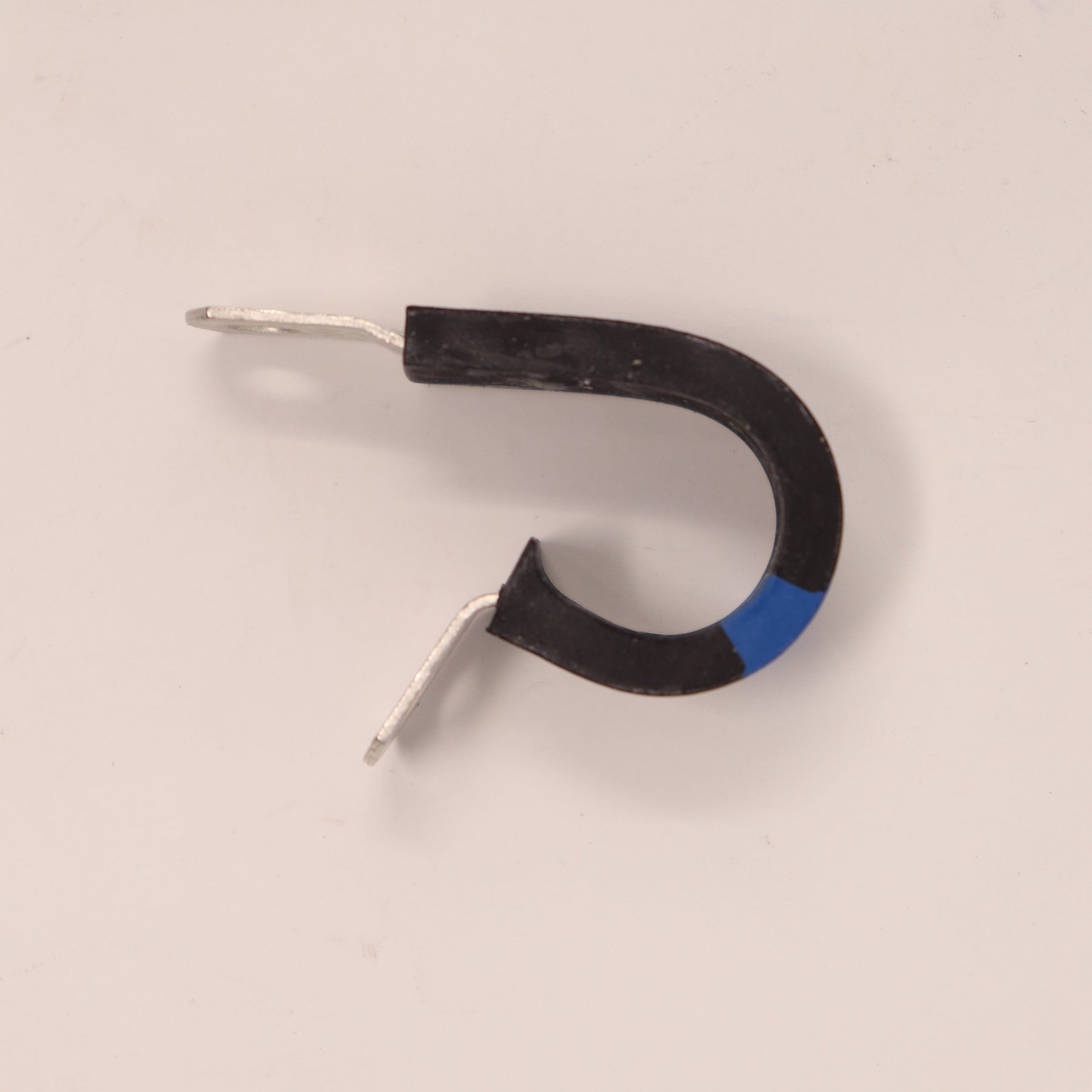

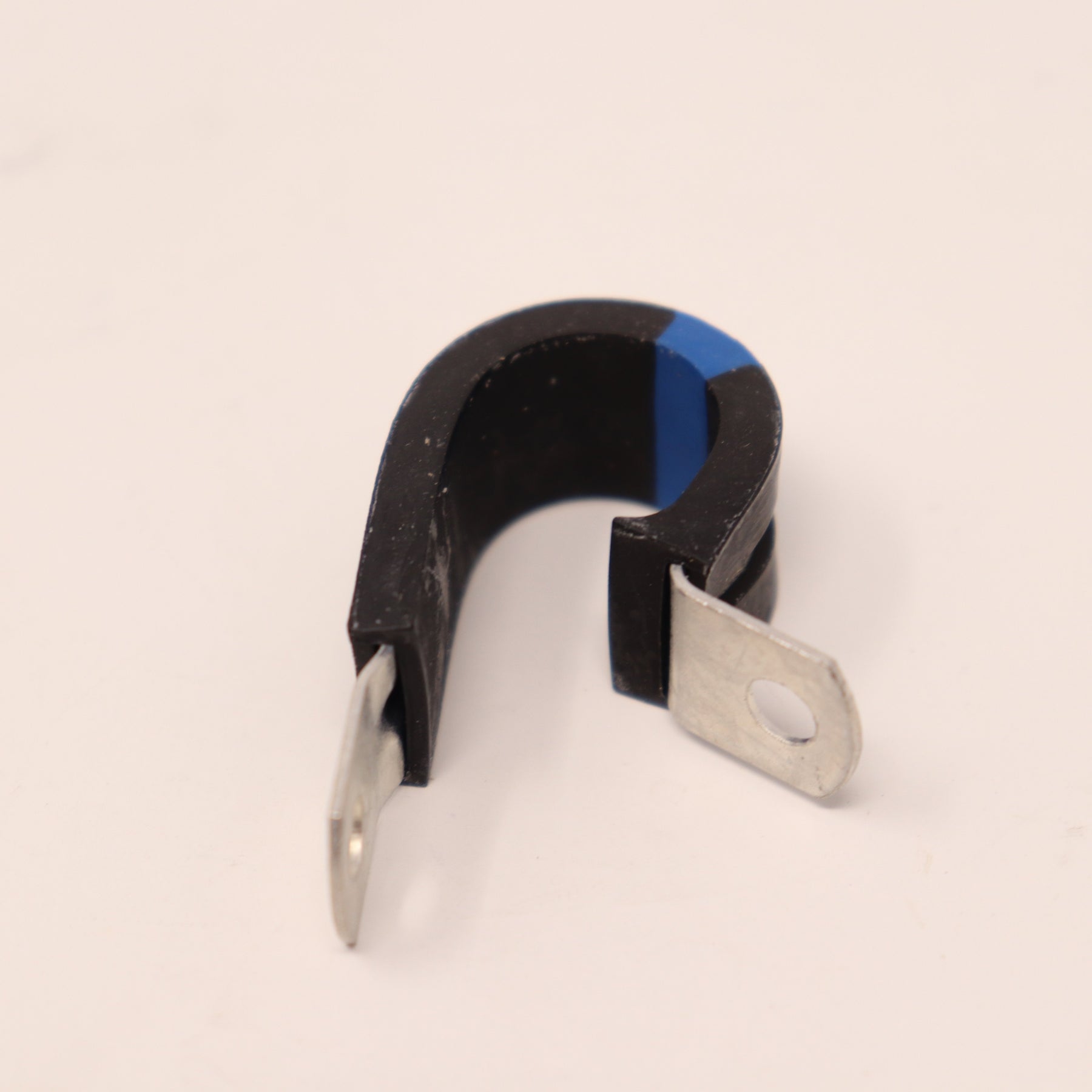

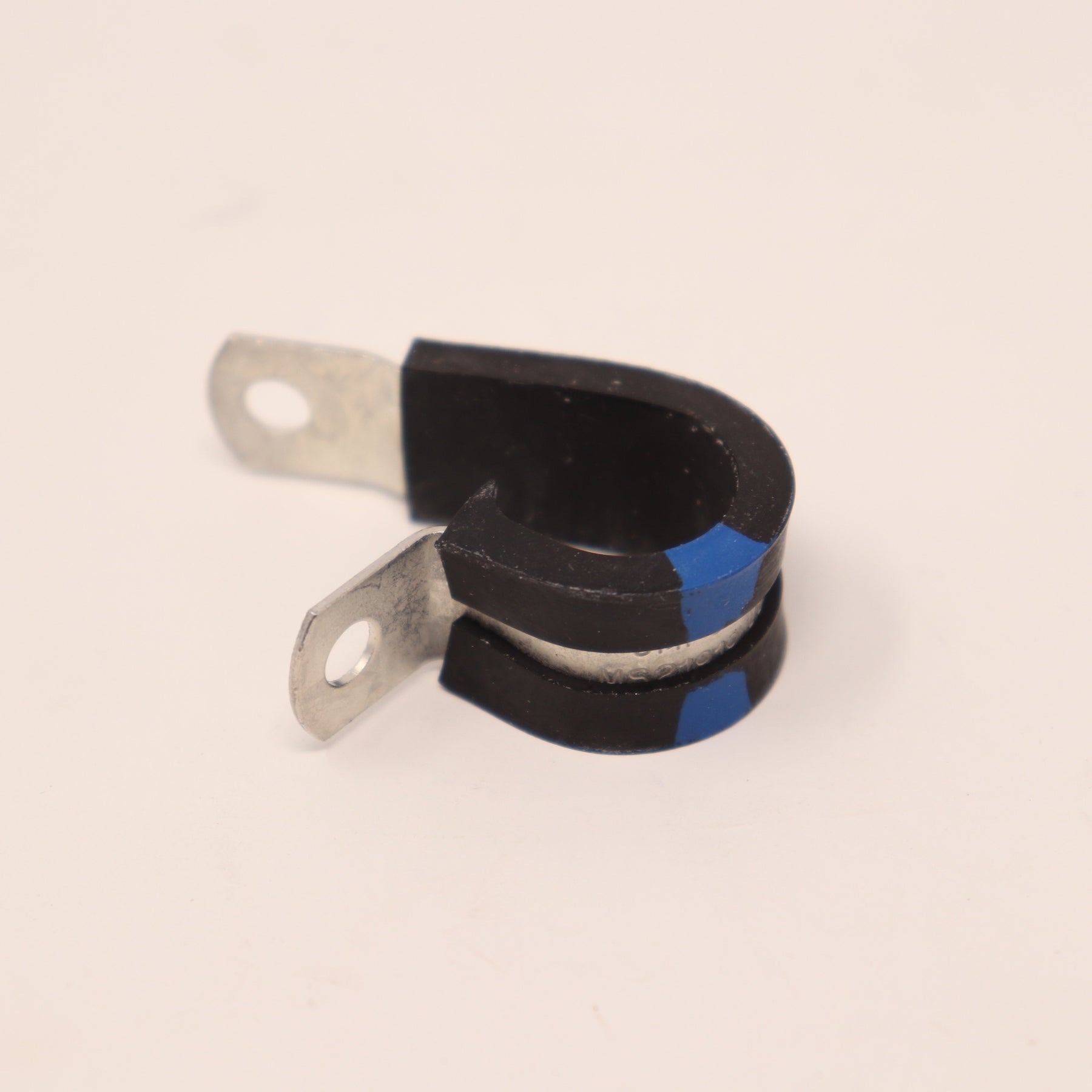

9 Pack UMPCO Clamp MS21919WG10

$9.99
Sold out
Request A Quote

Request A Quote

×



9 Pack UMPCO Clamp MS21919WG10

Condition: New

Quantity: 9 Pack

Description

  •  Tongue Hole Type:  Round, Unthreaded
  •  Cushioning Environmental Protection:  Weather Resistant
  •  Overall Width:  0.490 Inches Minimum And 0.510 Inches Maximum
  •  Diameter:  0.204 Inches Nominal
  •  Material Thickness:  0.032 Inches Nominal
  •  Center To Center Distance Between Loop And Mounting Hole:  0.765 Inches Minimum And 0.795 Inches Maximum
  •  Distance From Loop Center To Tongue End:  0.998 Inches Nominal
  •  Loop Inside Diameter:  0.610 Inches Minimum And 0.640 Inches Maximum
  •  Special Features:  Wedge Type Cushion Construction
  •  Material:  Rubber Chloroprene Class Cr Cushion
  •  Material:  Steel Comp 1008 Band Or Steel Comp 1009 Band Or Steel Comp 1015 Band Or Steel Comp 1018 Band Or Steel Comp 1020 Band
  •  Material Document And Classification:  Ams 3209 Assn Std Single Material Response Cushion
  •  Surface Treatment:  Cadmium Band
  •  Surface Treatment Document And Classification:  Qq-P-416 Ty 1 Cl 2 Fed Spec Single Treatment Response Band
  •  Style Designator:  Offset Mount
  •  Nondefinitive Spec/Std Data:  4 Type And B Class
    •
