UMPCO

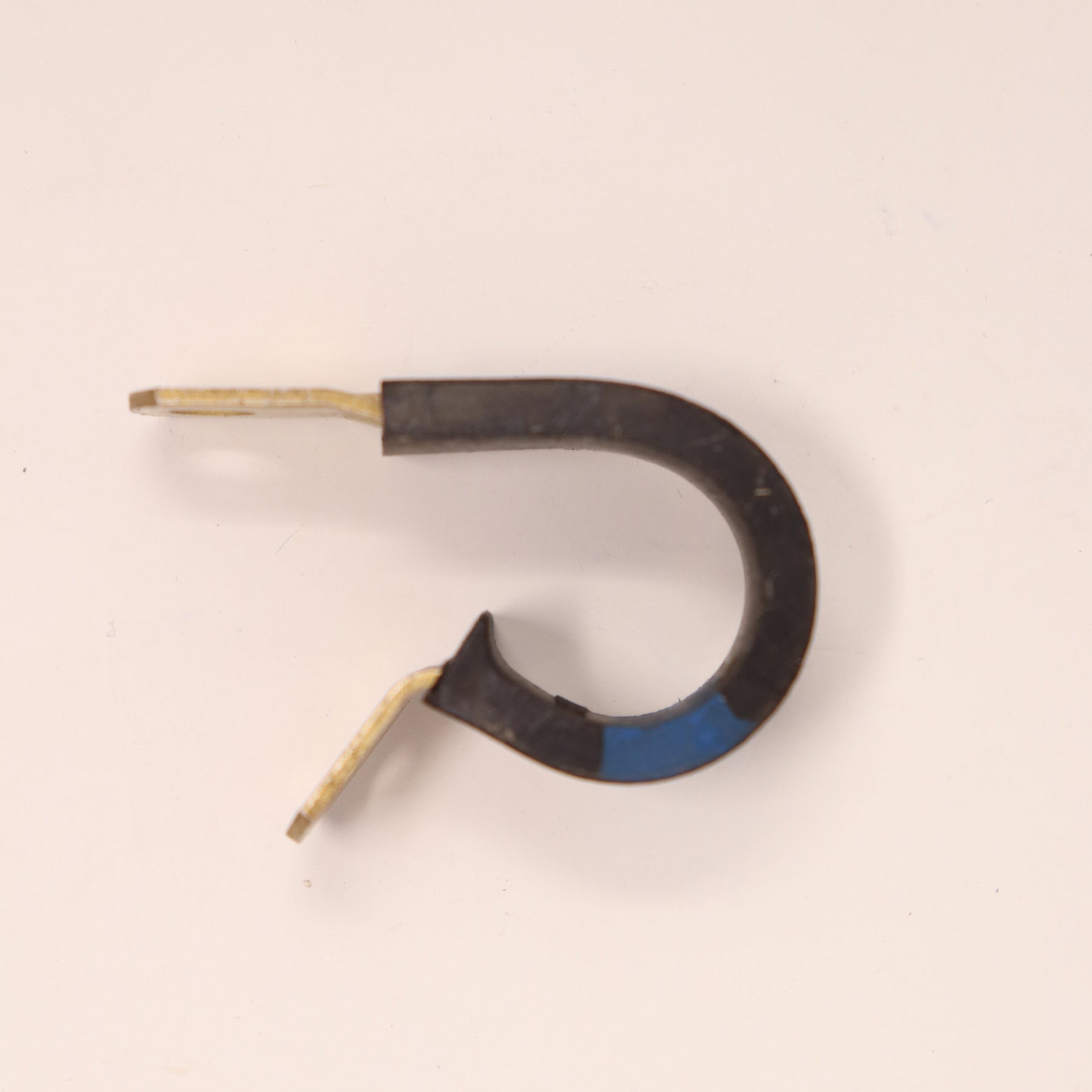

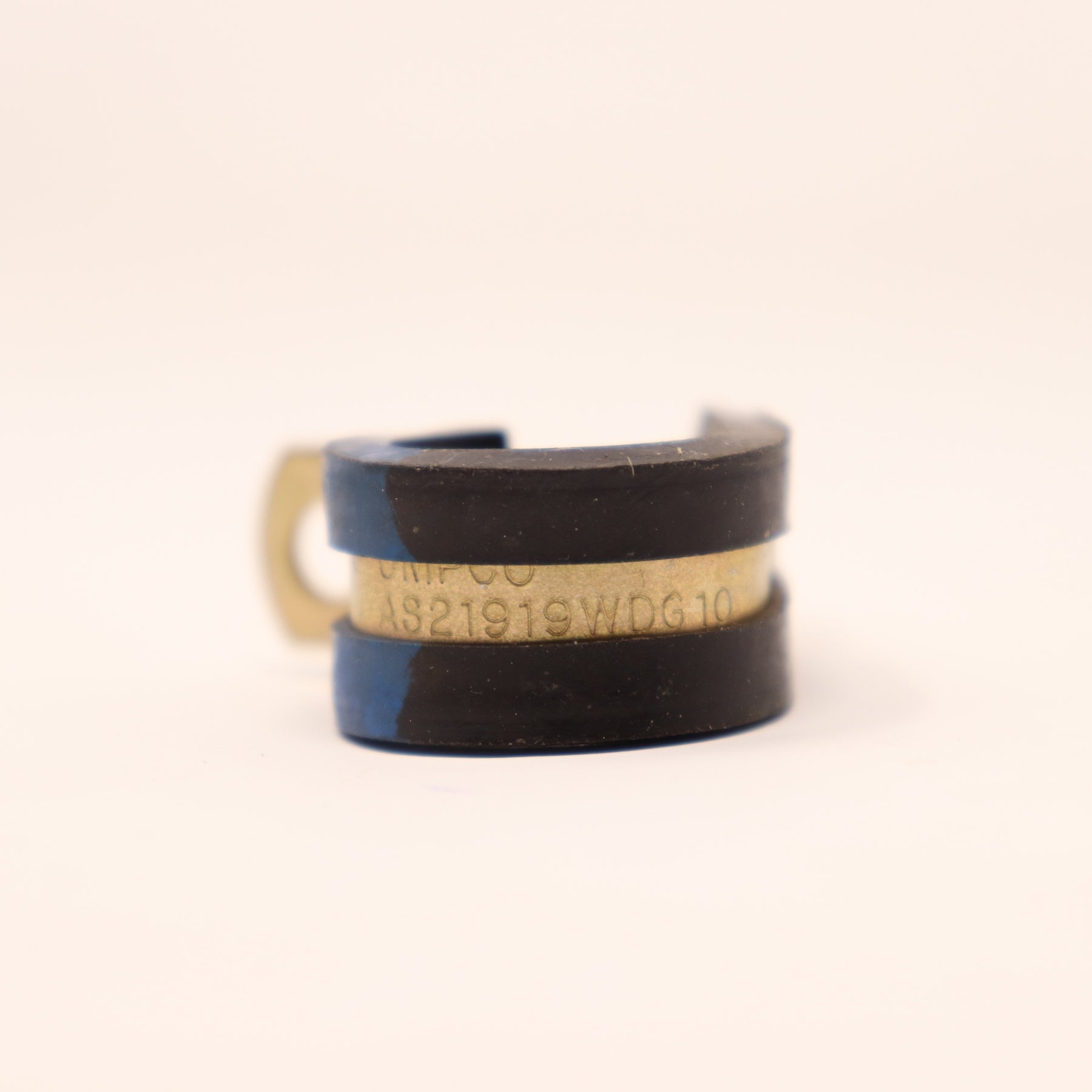

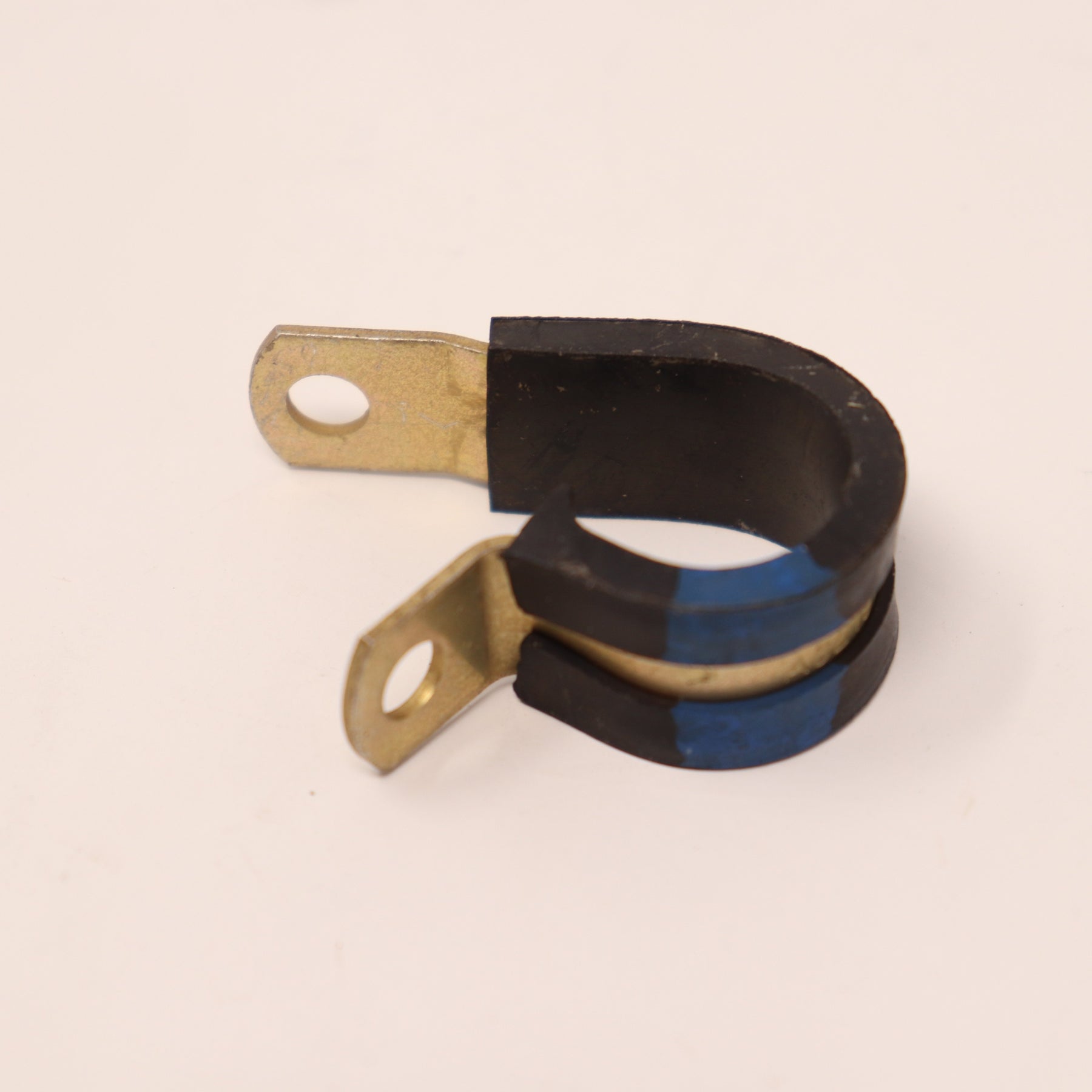

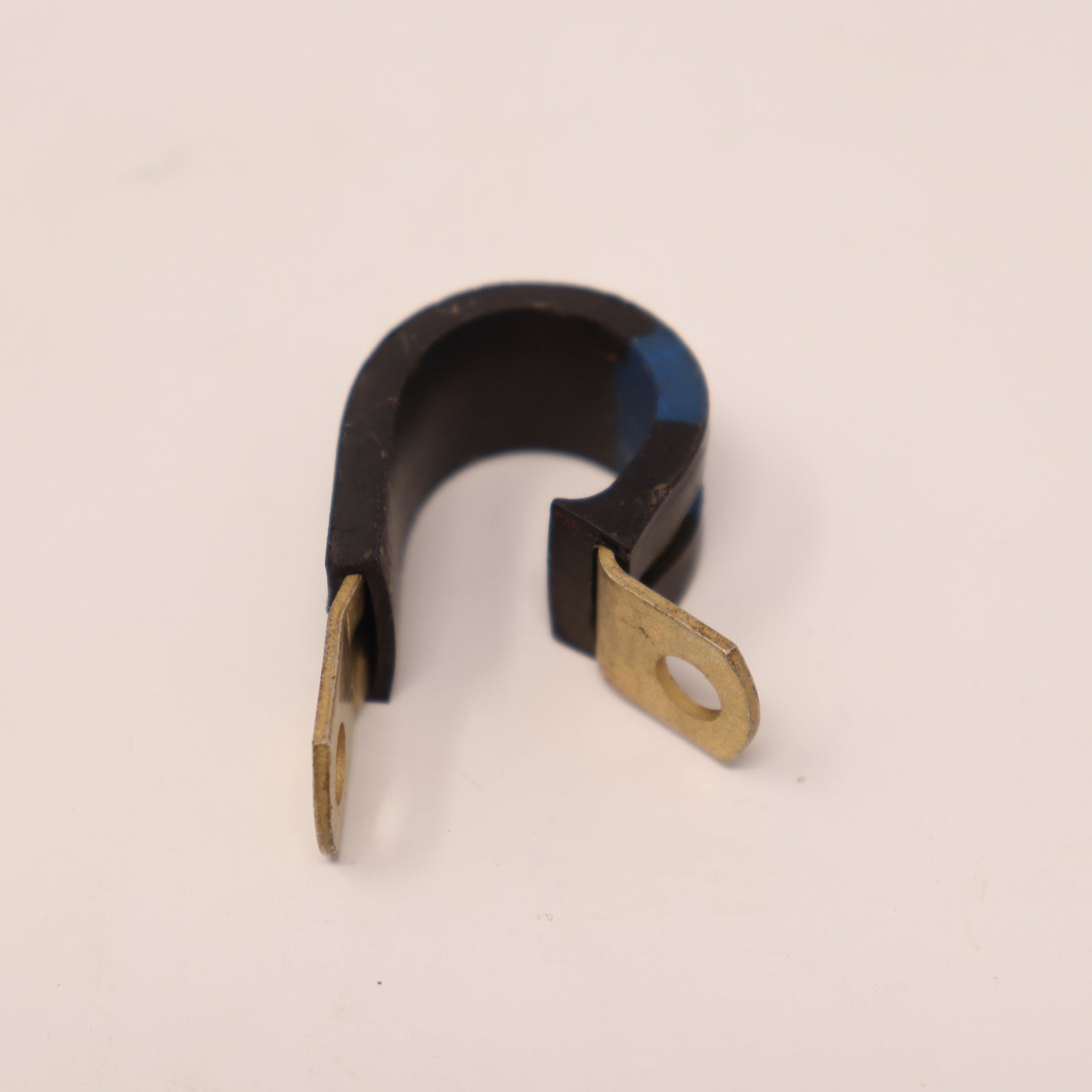

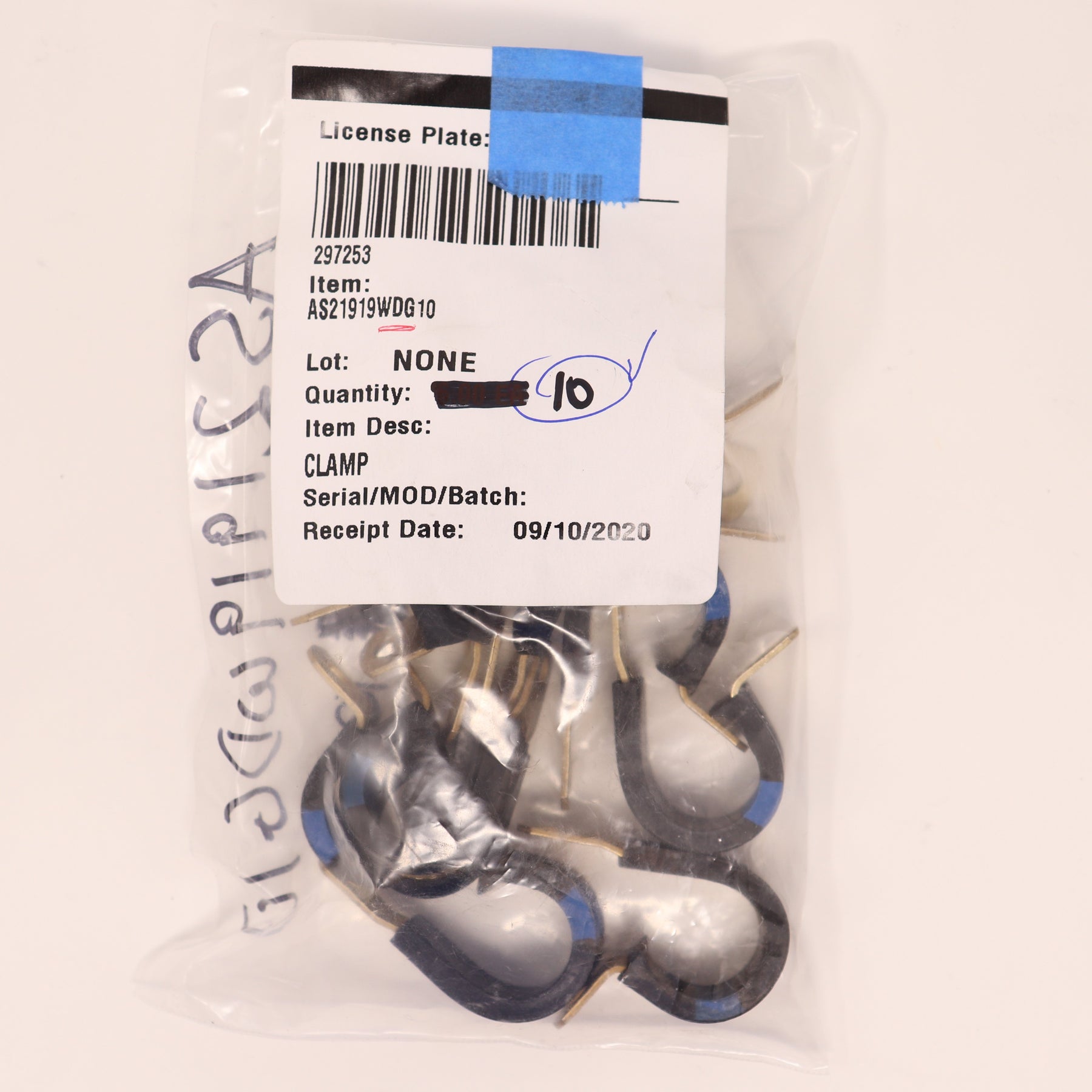

10 Pack UMPCO Loop Clamp AS21919WDG10
10 Pack UMPCO Loop Clamp AS21919WDG10
Condition: New
Quantity: 10 Pack
Description:
Diameter: 13/64", rubber chloroprene class cushion, AS21919 series clamp
AS21919WDG10 Features and Specification
Center To Center Distance Between Loop And Mounting Hole:
Between 0.768 inches and 0.798 inches
Cushioning Environmental Protection:
Weather resistant
Diameter:
0.204 inches
Distance From Loop Center To Tongue End:
1.001 inches
End Application:
4120-01-244-6385 air conditioner
Loop Inside Diameter:
Between 0.610 inches and 0.640 inches
Material:
Rubber chloroprene class cr cushion
Material Specification:
Ams 3209 assn standard single material response cushion
Material Specification:
Qq-a-250/5 federal specification single material response band
Material Thickness:
0.050 inches
Overall Width:
Between 0.490 inches and 0.510 inches
Part Name Assigned By Controlling Agency:
Cushioned support loop type clamp
Special Features:
Test
Style Designator:
Offset mount
Surface Treatment:
Chromate band
Surface Treatment Specification:
Mil-c-5541 military specification single treatment response band
Tongue Hole Type:
Unthreaded round
