JM

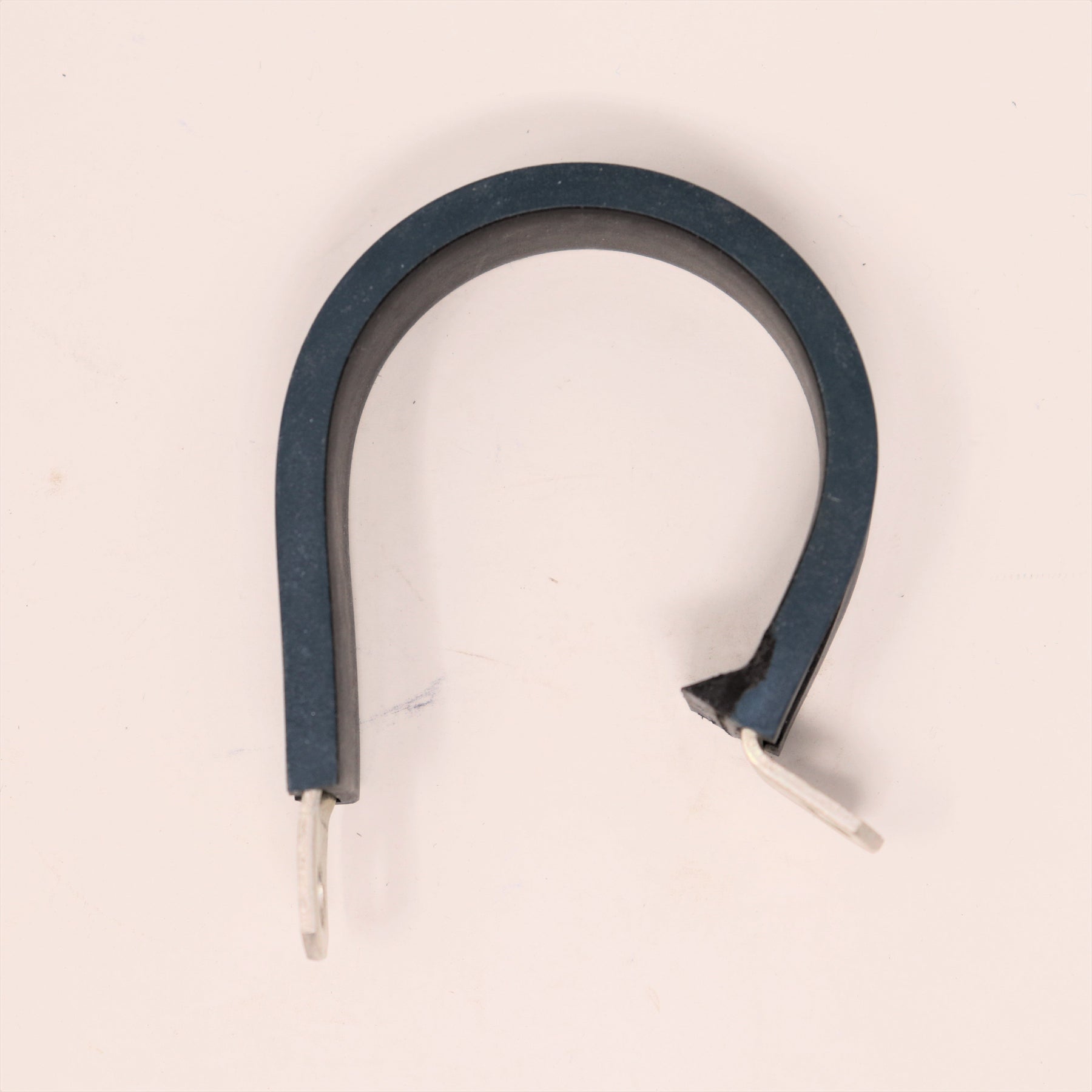

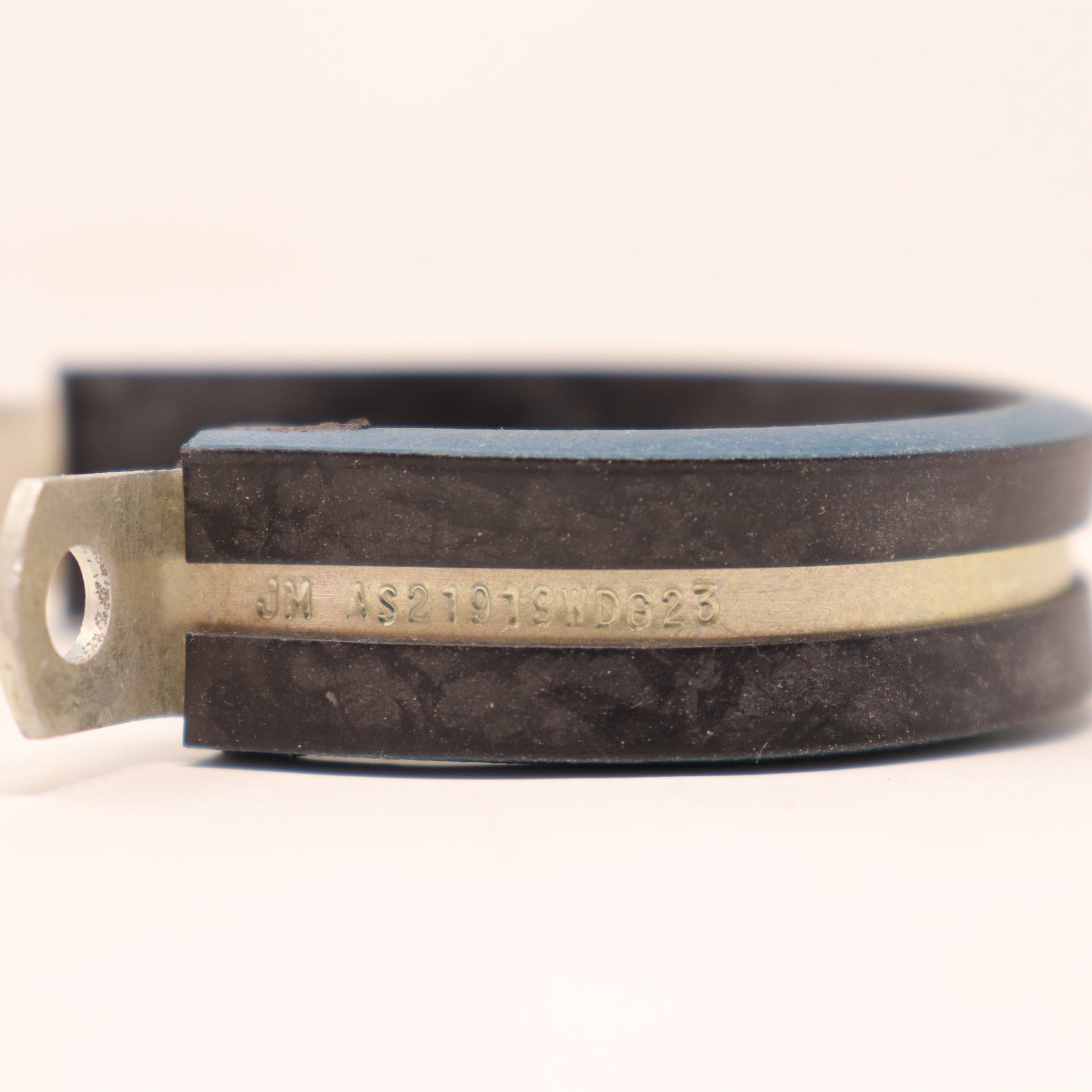

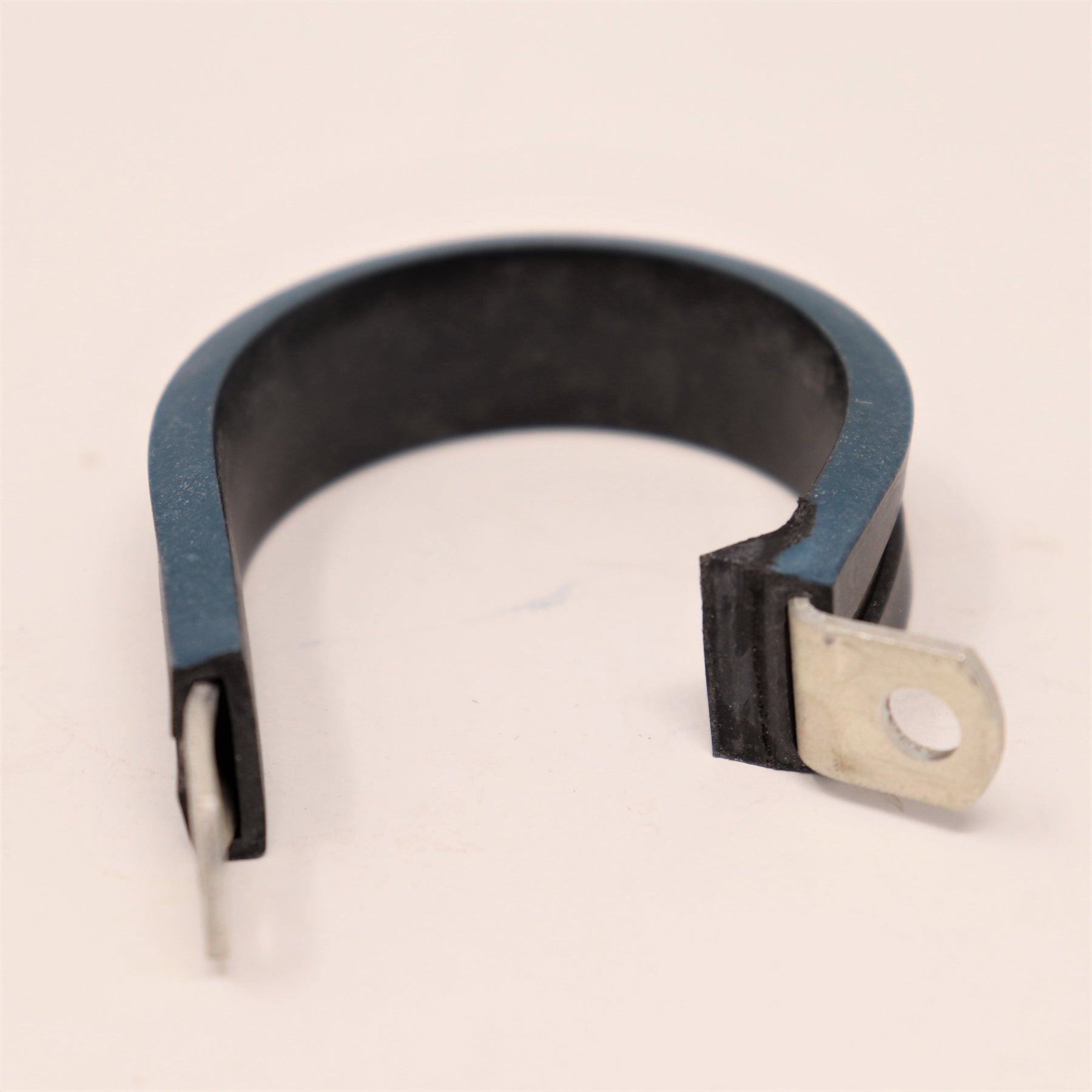

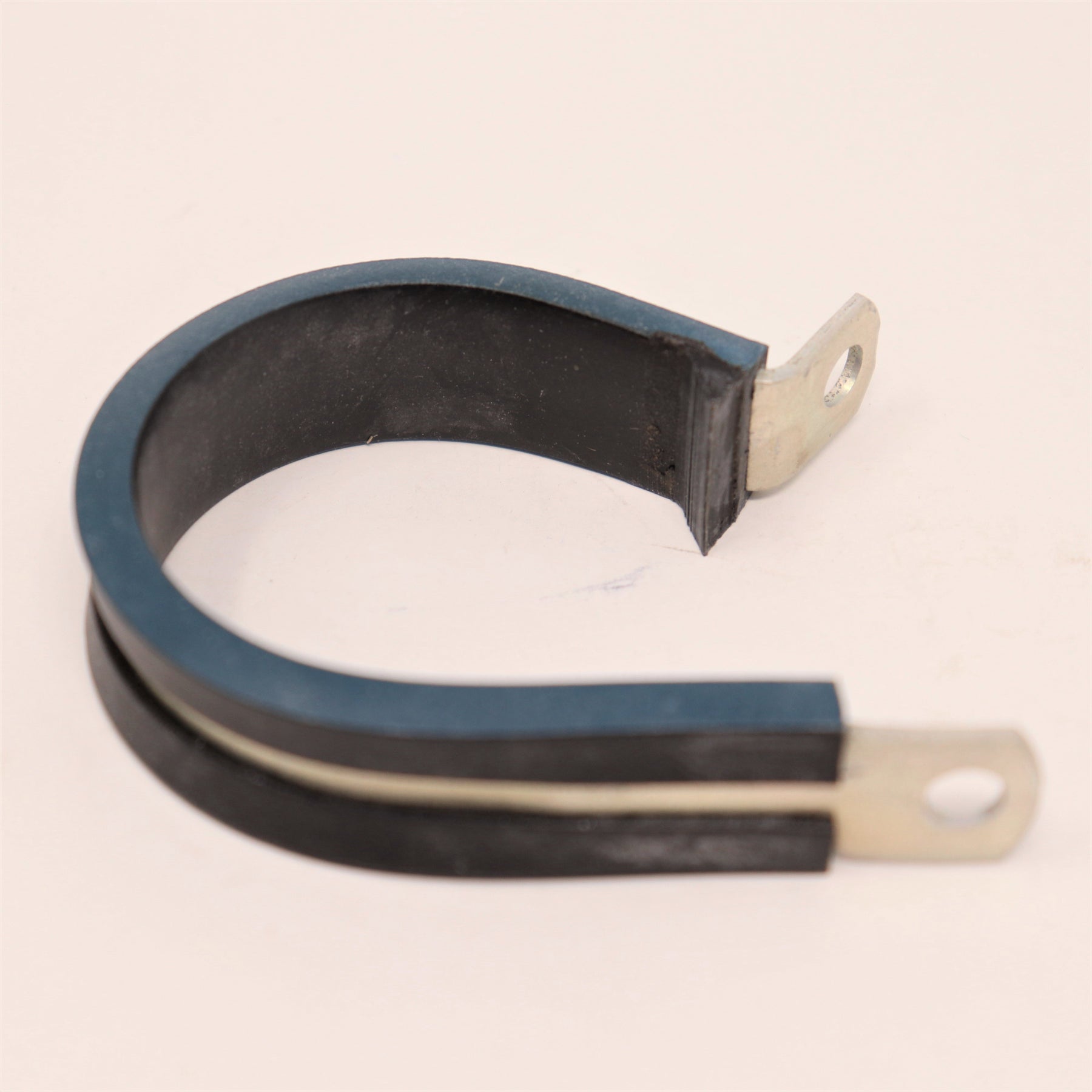

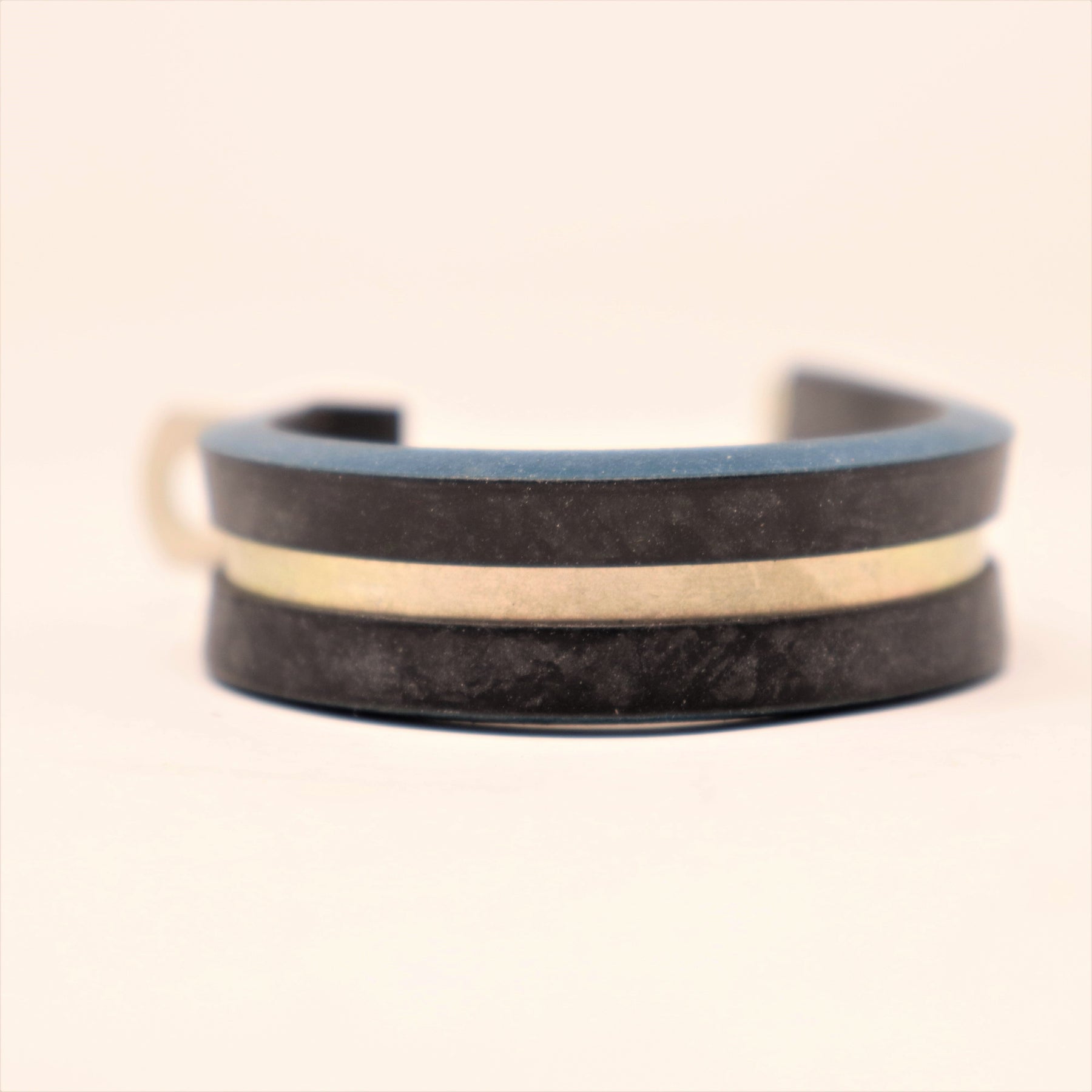

30 Pack JM 13/64"Rubber Chloroprene Clamp AS21919WDG23
Quantity:
PN: AS21919WDG23
Condition: New

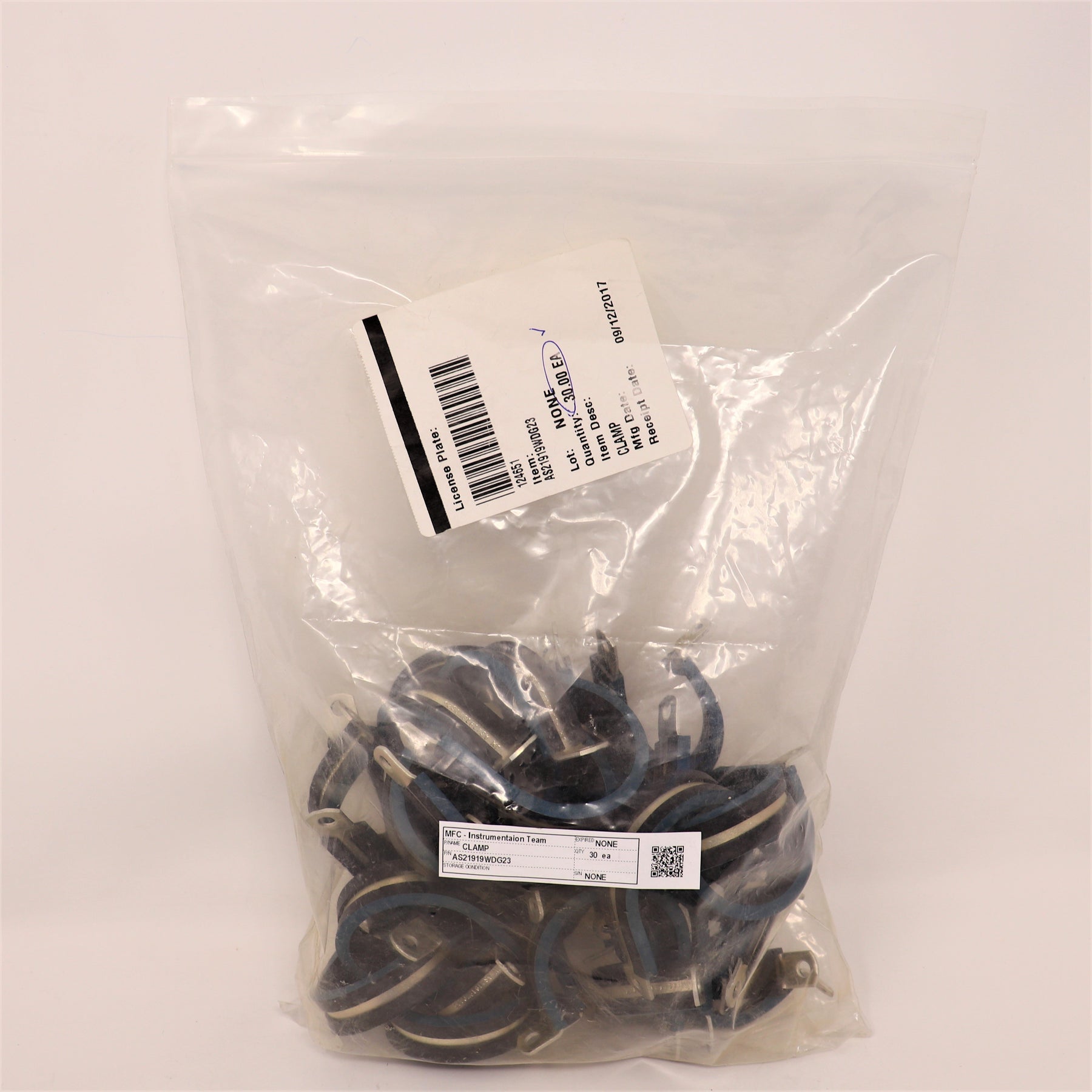

Quantity: 30 pack
Description:
Diameter: 13/64", rubber chloroprene class cushion, AS21919 series clamp
Tongue Hole Type:
Round, unthreaded
Cushioning Environmental Protection:
Weather resistant
Overall Width:
0.490 inches minimum and 0.510 inches maximum
Diameter:
0.204 inches nominal
Material Thickness:
0.062 inches nominal
Center To Center Distance Between Loop And Mounting Hole:
1.203 inches minimum and 1.233 inches maximum
Distance From Loop Center To Tongue End:
1.436 inches nominal
Loop Inside Diameter:
1.423 inches minimum and 1.453 inches maximum
Material:
Aluminum alloy 2024 band
Material:
Rubber chloroprene class cr cushion
Material Specification:
Ams 3209 assn std single material response cushion
Material Specification:
Qq-a-250/5 fed spec single material response band
Surface Treatment:
Chromate band
Surface Treatment Specification:
Mil-c-5541 mil spec single treatment response band
Style Designator:
Single loop
