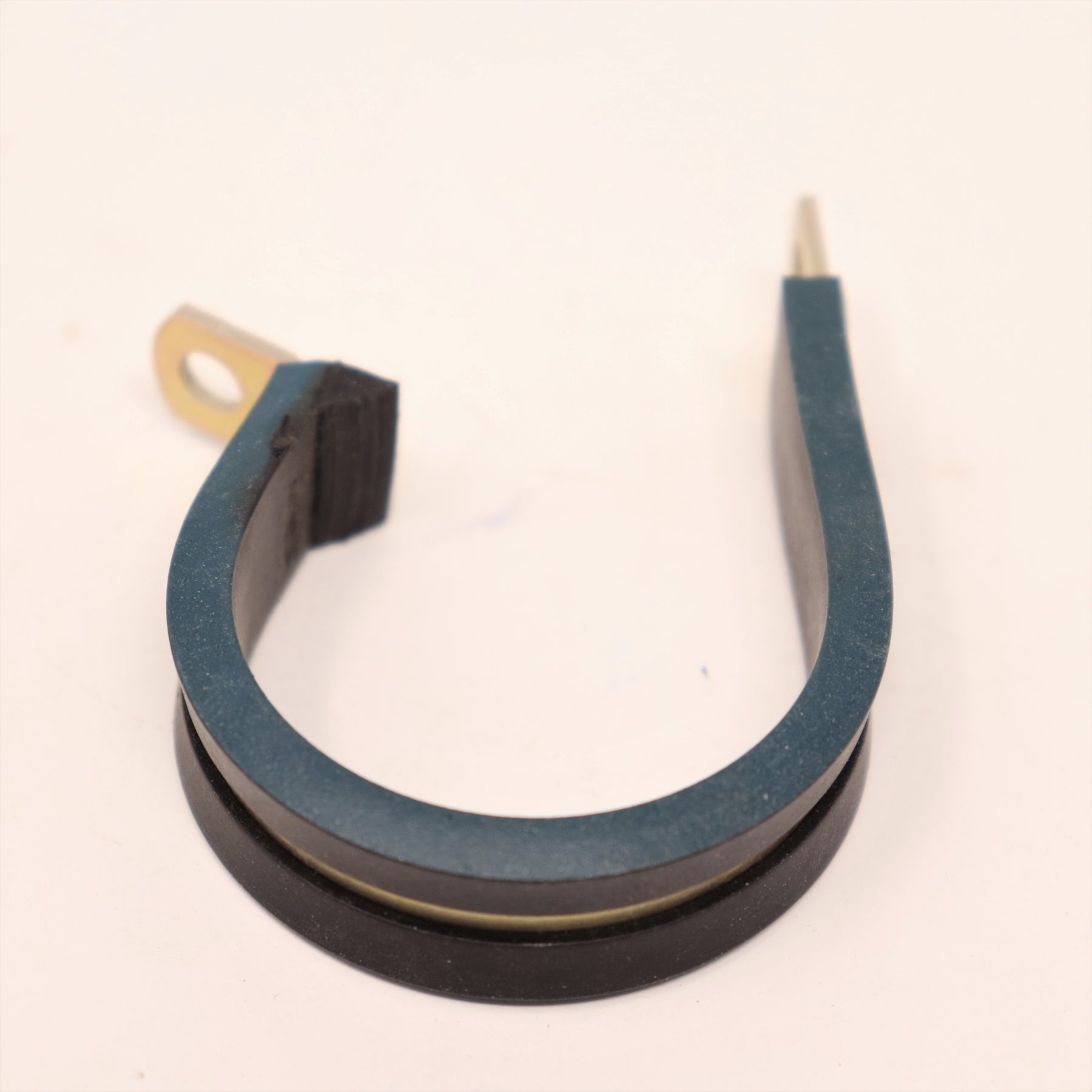

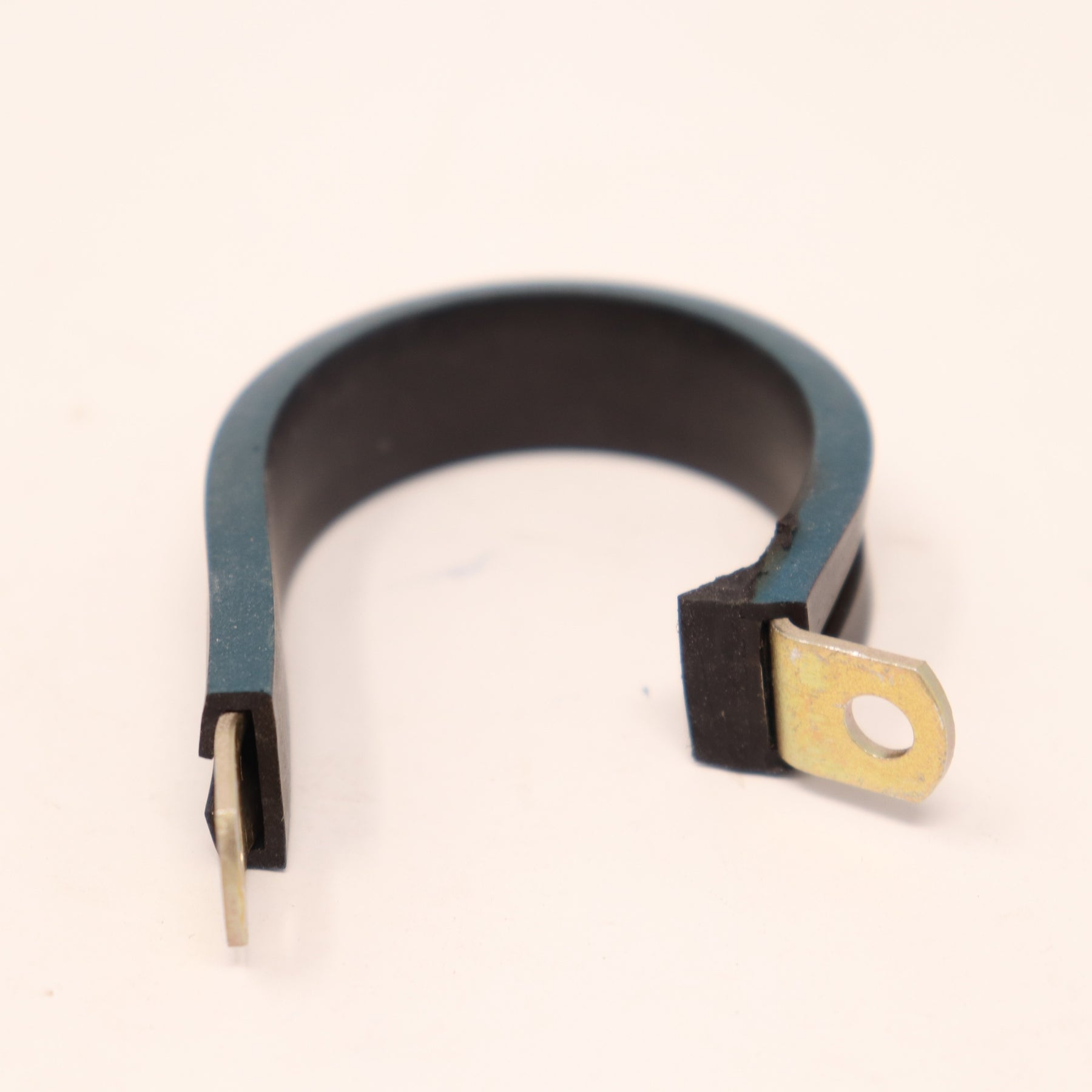

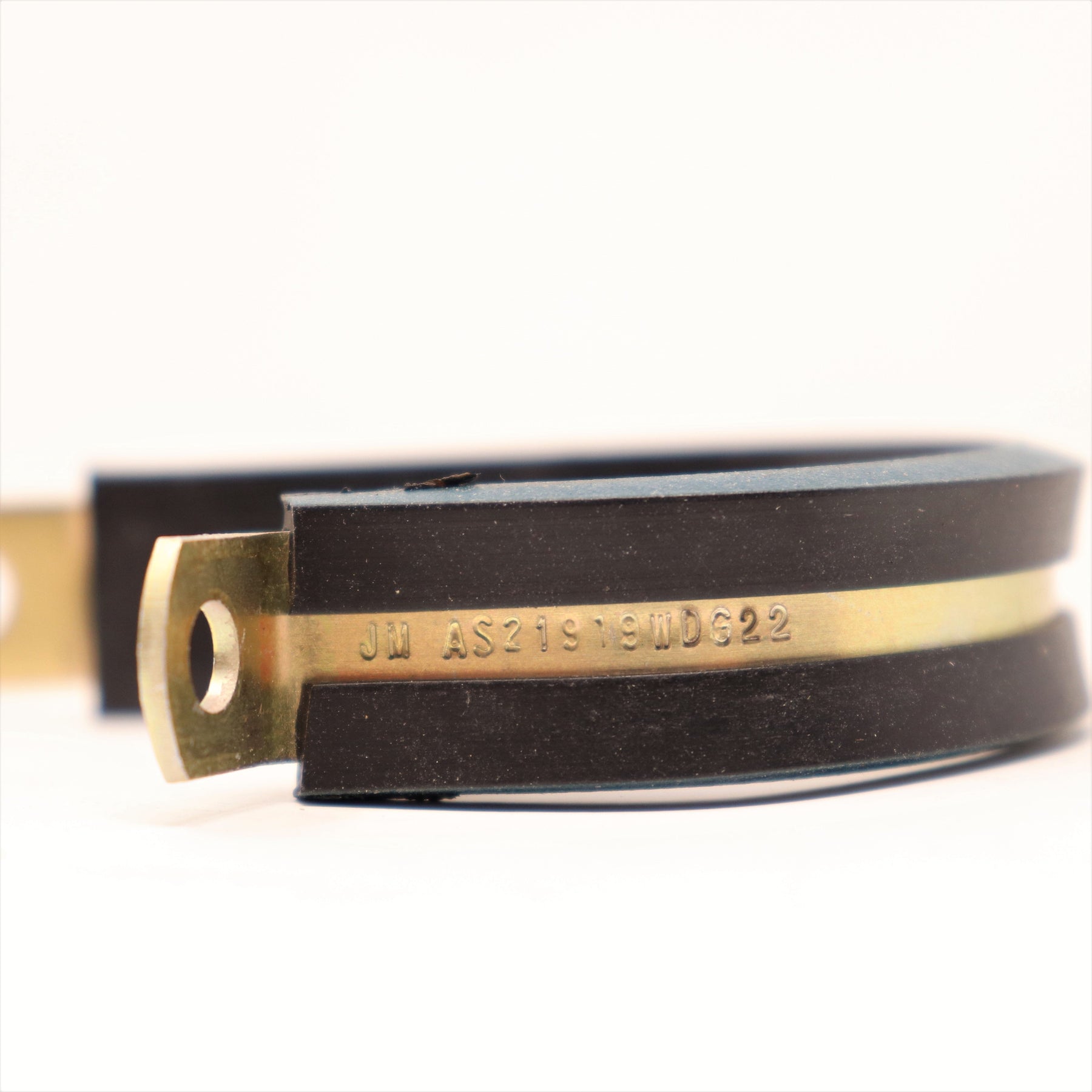

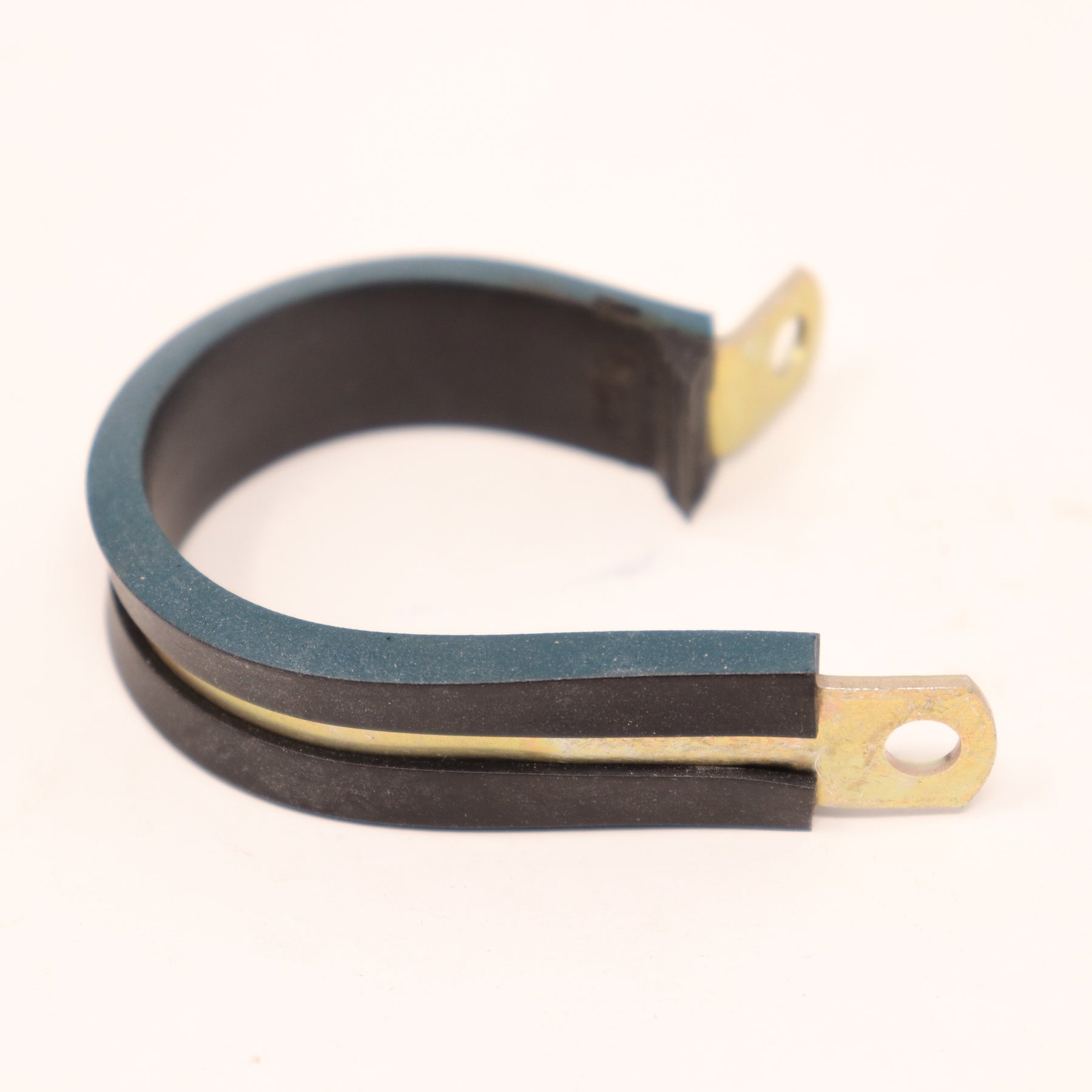

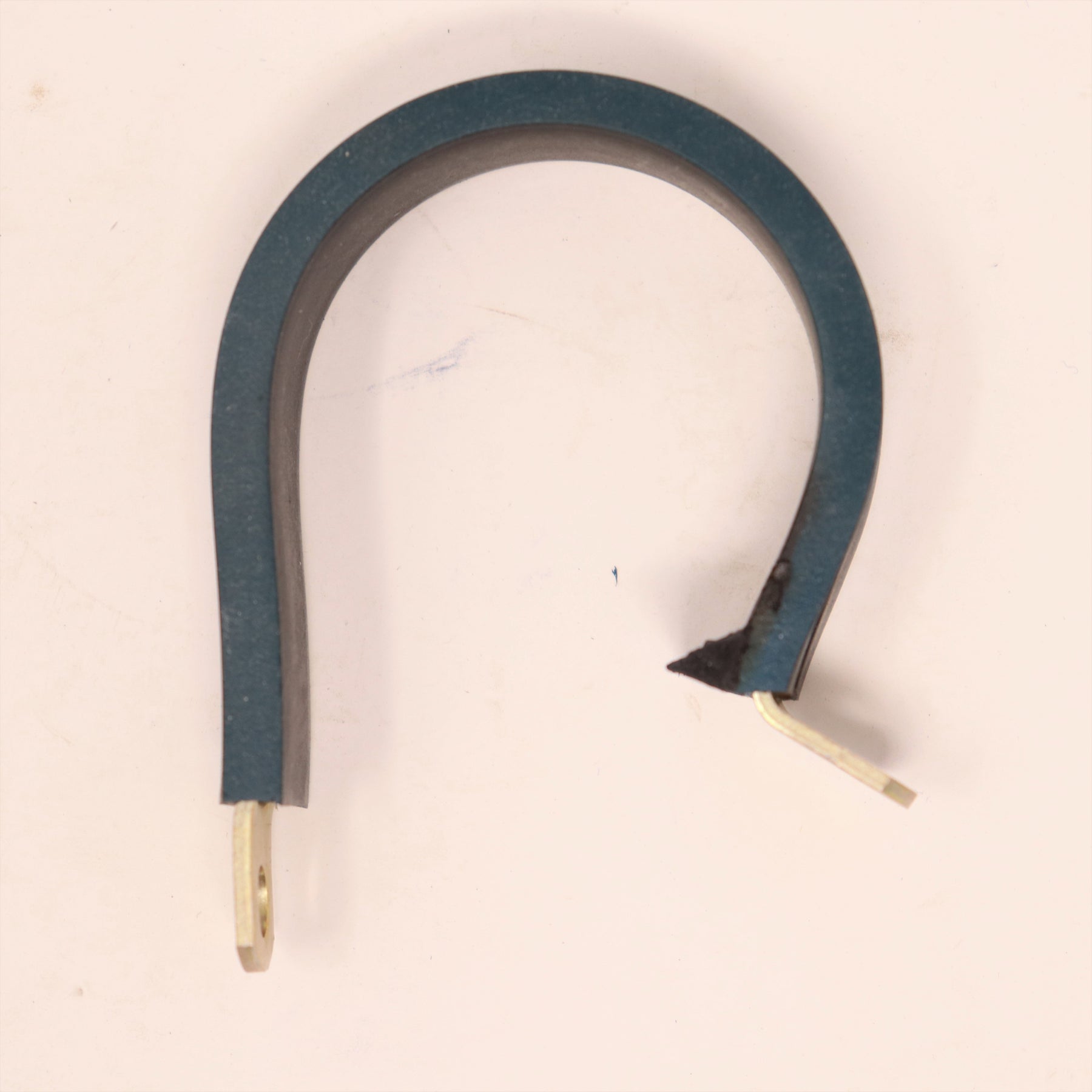

8 Pack JM 13/64" Rubber Chloroprene Loop Clamp

PN: AS21919WDG22

Condition: New

Quantity: 8

Description:

Diameter: 13/64", rubber chloroprene class cushion

Tongue Hole Type:
Round, unthreaded
Cushioning Environmental Protection:
Weather resistant
Overall Width:
0.490 inches minimum and 0.510 inches maximum
Diameter:
0.204 inches nominal
Material Thickness:
0.062 inches nominal
Center To Center Distance Between Loop And Mounting Hole:
1.172 inches minimum and 1.202 inches maximum
Distance From Loop Center To Tongue End:
1.405 inches nominal
Loop Inside Diameter:
1.360 inches minimum and 1.390 inches maximum
Material:
Aluminum alloy 2024 band
Material:
Rubber chloroprene class cr cushion
Material Specification:
Ams 3209 assn std single material response cushion
Material Specification:
Qq-a-250/5 fed spec single material response band
Surface Treatment:
Chromate band
Surface Treatment Specification:
Mil-c-5541 mil spec single treatment response band
Style Designator:
Offset mount
Specification Data:
26512-gs14 manufacturers specification
