Clamp

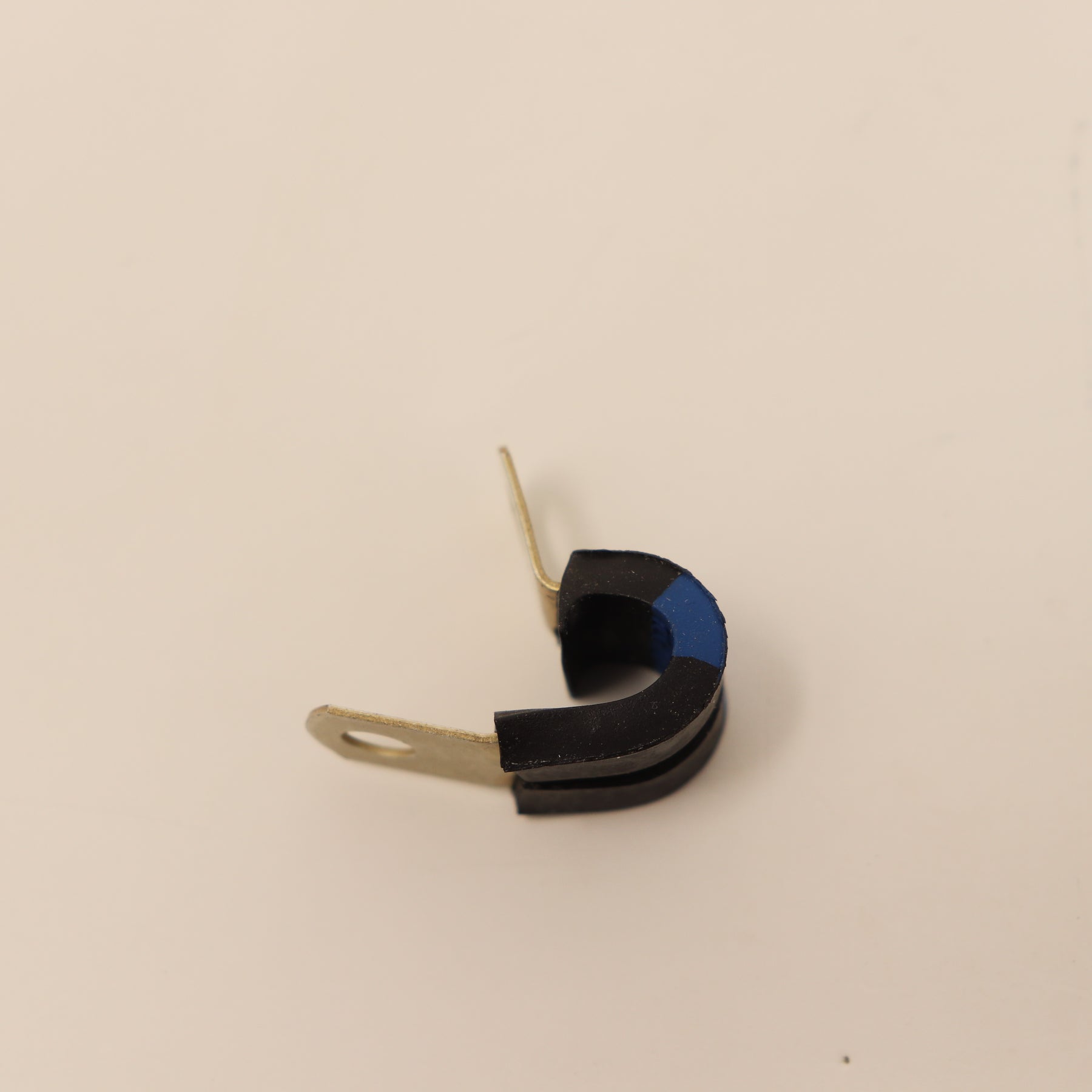

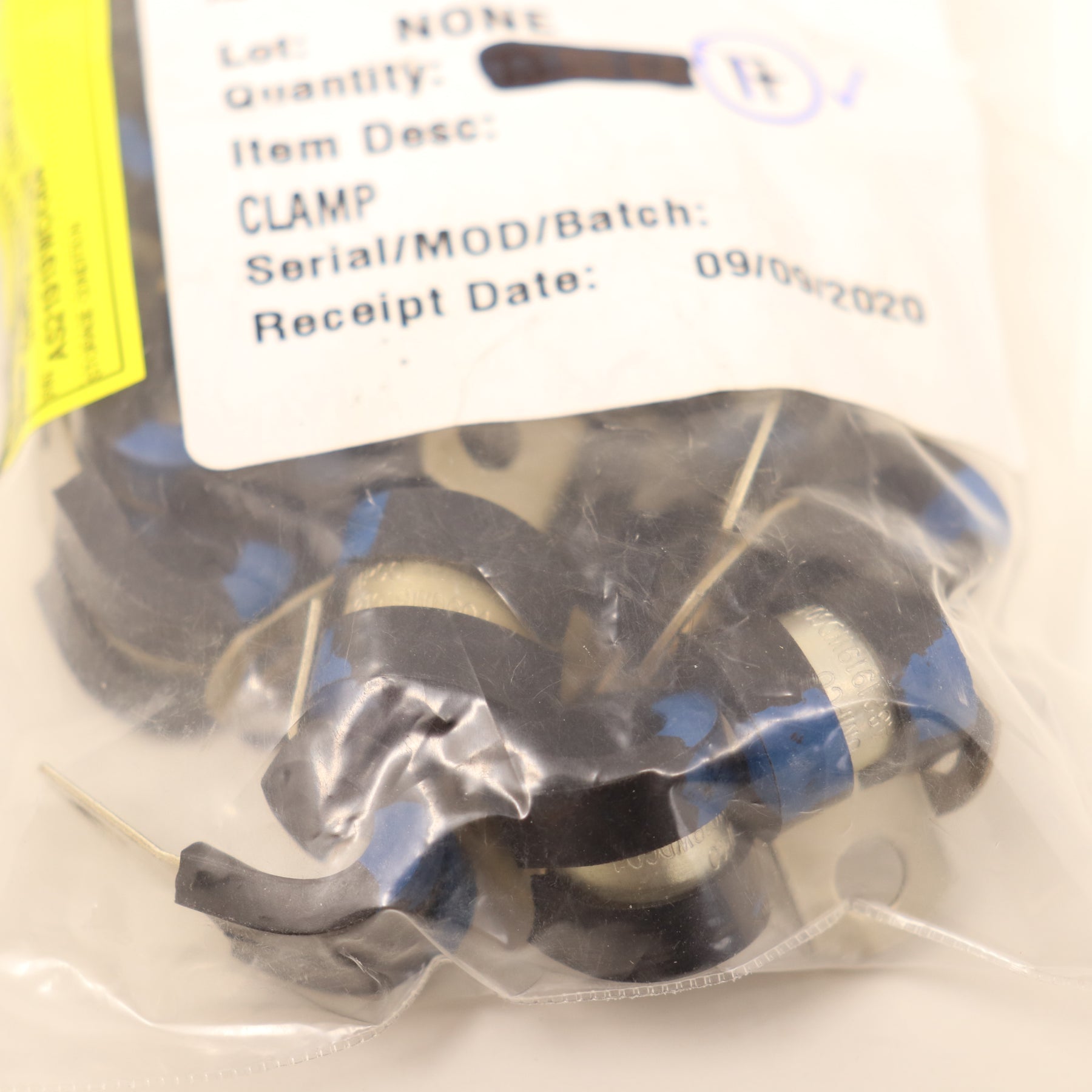

17 Pack Clamp AS21919WDG04
17 Pack Clamp AS21919WDG04
Condition: New
Quantity: 17
Description:
Tongue Hole Type:
Unthreaded round
Style Designator:
Offset mount
Surface Treatment:
Chromate band
Special Features:
The item is a flight safety critical aircraft part (fscap).
Nondefinitive Specification/std Data:
4 type and b class
Overall Width:
Between 0.490 inches and 0.510 inches
Material Specification:
Ams 3209 assn standard single material response cushion
Material Thickness:
0.032 inches
Material Specification:
Qq-a-250/5 federal specification single material response band
Material:
Rubber chloroprene class cr cushion
Material:
Aluminum alloy 2024 band
Loop Inside Diameter:
Between 0.235 inches and 0.265 inches
End Application:
Mrap rg-33 auv
Diameter:
0.204 inches
Distance From Loop Center To Tongue End:
0.747 inches
Surface Treatment Specification:
-1l-c-5541 military specification single treatment response band
Cushioning Environmental Protection:
Weather resistant
Criticality Code Justification:
Feat
Center To Center Distance Between Loop And Mounting Hole:
Between 0.514 inches and 0.544 inches
